AAdynTech JAB Daylight Cinema 5600K LED Fixture, Kit 2(Aadyntech Jab Daylight Cinema 5600k Led Fixture Kit 2)

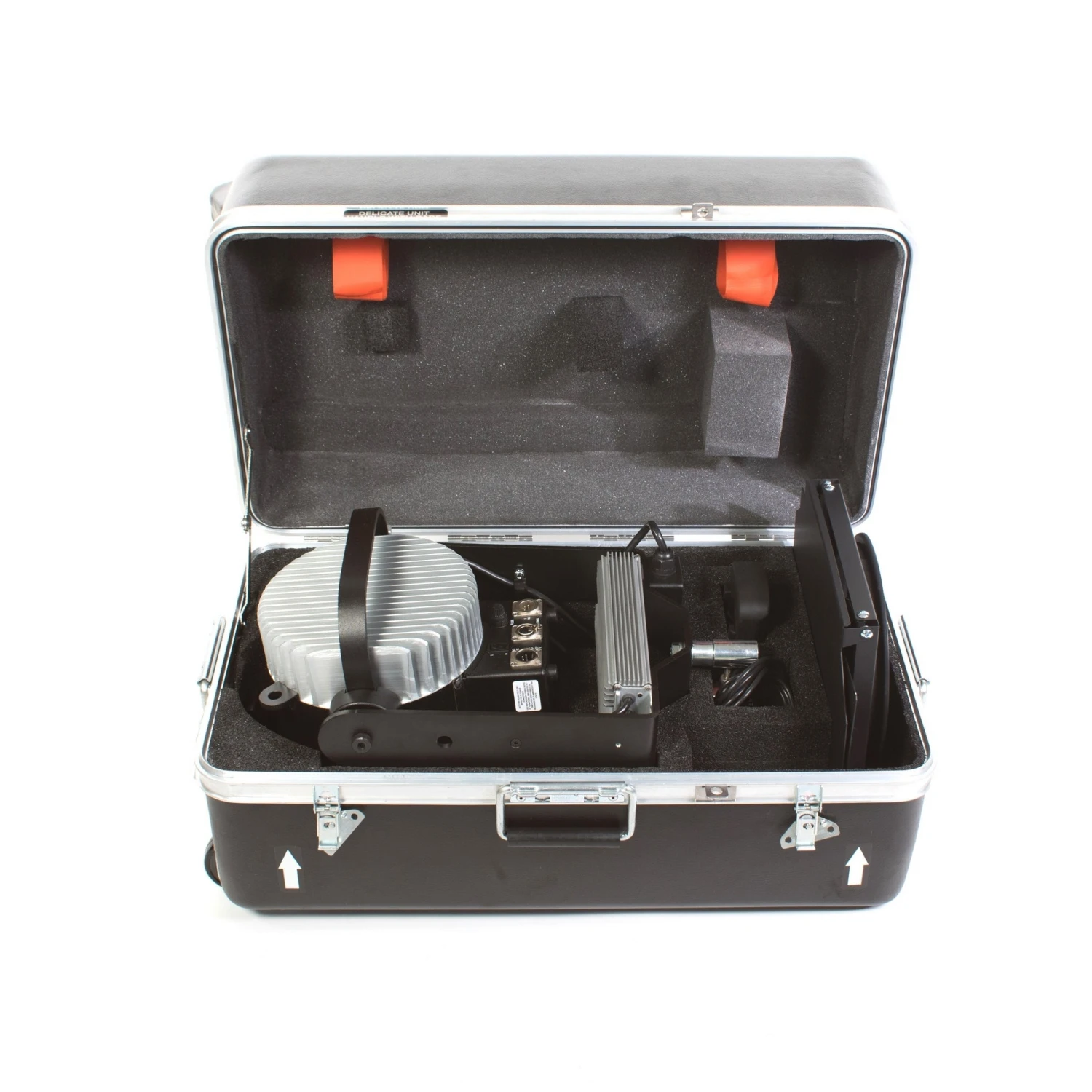

The AAdynTech JAB Daylight Cinema 5600K LED Fixture Kit from AAdynTech’s JAB Series lineup has gained immense popularity in the lighting industry, and for good reason. With the introduction of the JAB Daylight Cinema fixture, featuring high CRI (92+) performance, this fixture is now even more versatile and practical for various lighting applications. Weighing only 19 lbs., it is lightweight and easy to transport, making it ideal for on-the-go lighting assignments. Additionally, the fixture’s impressive output of over 1,509 foot-candles at 10 ft. combined with low energy consumption of just 1.77 amps at full brightness results in significant energy savings of up to 90% compared to traditional fixtures. Each of the AAdynTech Kits includes a professional, rugged Thermodyne road case with wheels & handle for easy transport.

One of the standout features of the JAB Daylight Cinema fixture is its ability to operate on 48v DC battery power, making it suitable for situations where conventional A/C supply may not be available. Unlike HMI fixtures, this fixture produces minimal heat and emits no harmful UV or IR radiation, ensuring the safety of both talent and crew members. The self-contained design eliminates the need for heavy ballasts, head cables, or replacement lamps, simplifying setup and maintenance. The fan-less convection cooling system ensures quiet operation, while the instant ‘ON’ feature eliminates any warm-up time on set.

The JAB Daylight Cinema fixture offers a range of control options, including a built-in UIM, DMX with loop-thru, or the optional illuminated UIM Digital Remote for added convenience. The fixture comes with specially designed holographic lenses that enhance optical efficiency by creating a single light source and eliminating multiple shadows. With four quick-change lenses to adjust the beam angle, from very narrow to flood, users can achieve a flat, even field of light. Additionally, accessory options such as barn doors, road cases, speed rings, and light banks provide further customization possibilities for different lighting setups.

Key Features

• Kit Includes: Fixture with Yoke & Pin, Barn Door, 1/4 CTO Hard Gel, 1/4 MG Hard Gel, 5° Lens, 15° Lens, 30° Lens, 55° Lens, Scrim Bag, ATA Road Case, Remote User Interface
• JAB Daylight Cinema fixture offers high CRI (92+) performance
• Suitable for various lighting applications including broadcast ENG, studio installation, sports coverage, video shoots, and film
• Weighs only 19 lbs. for easy transport
• Provides an output of over 1,509 foot-candles at 10 ft.
• Draws a mere 1.77 amps at full brightness, resulting in up to 90% energy savings
• Can be operated on 48v DC battery power
• Offers precise brightness control with no color shift
• Single light source eliminates multiple shadows
• Operates cool to the touch with no heat generation
• Includes various lenses to vary beam angle
• No need for head cables, ballast, or spare lamps
• Optional corded digital User Interface Module (UIM) control available
• Full DMX control with DMX loop-thru and 5-pin XLR DMX In/Out
• Programmable multiple lightning and strobe effects
• Multiple user memory storage with recall
• Comes with a 2-year warranty and is certified UL, ETL, CSA, CE & RoHS compliant.

Technical Specifications

Control
Local, UIM, DMX
Source
LED, 5600K CCT, 92+ CRI
Cooling
Passive
Mounting
Baby Pin or Junior
Certifications
ETL, UL, CSA, CE and RoHS Compliant
Dimensions
Length
339.0 mm / 13.3 in
Width
326.5 mm / 12.9 in
Height
554.9 mm / 21.8 in
Weight
8.9 kg / 19.5 lbs
Power
Input Voltage
100-277v AC Battery (48v DC)
Input Freq
50/60 Hz
Input Current
1.77 Amp @ 120V 212 Watts @ full
Connection
US NEMA 5-15
RoHS Compliant
1,509-foot candles @ 10 feet
Daylight-Balanced at 5600K CCT
Dimmable with no color shift
Draws 1.7 amps at max output
No Harmful UV or IR Radiation
