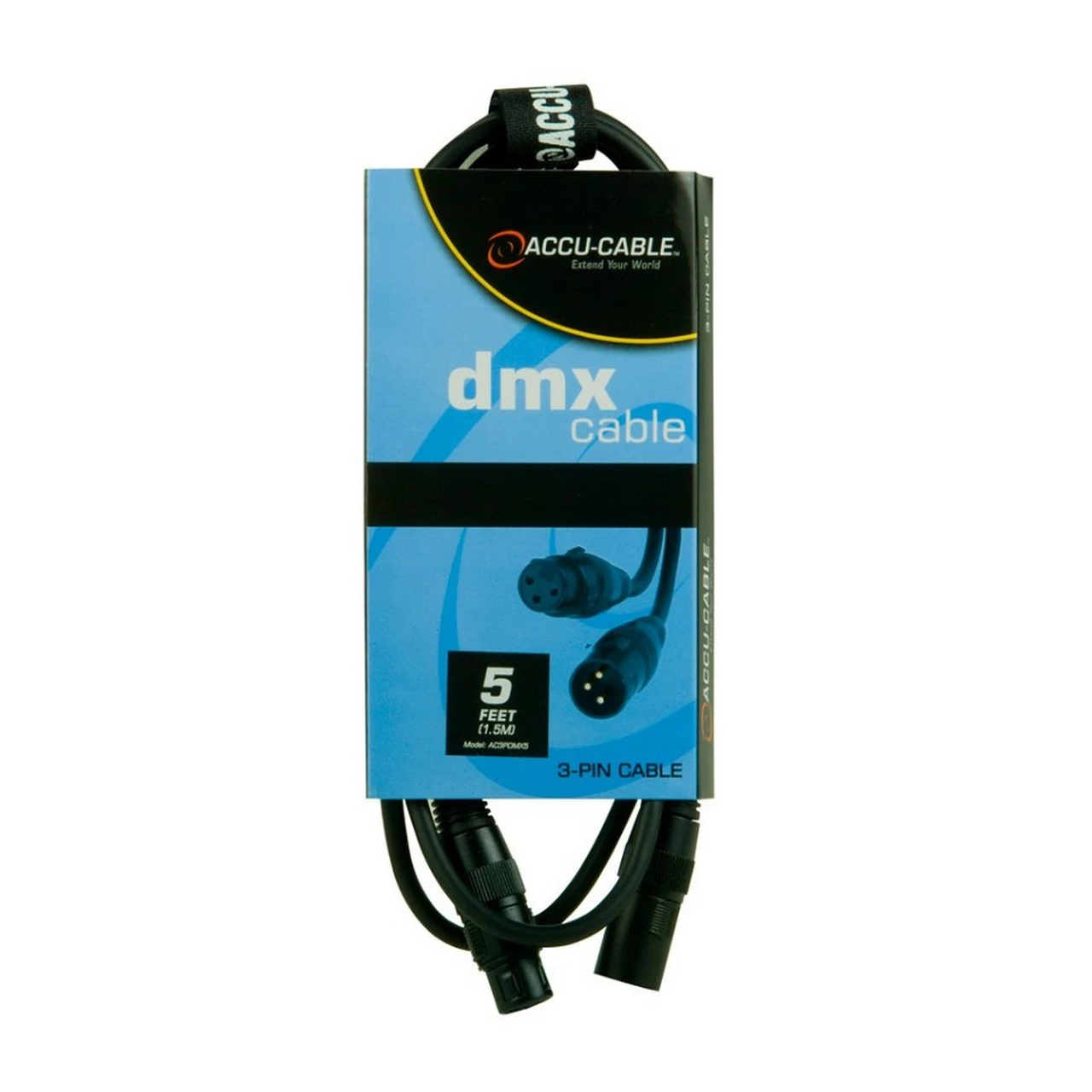

Accu Cable AC3PDMX5 5ft 3 Pin DMX Cable

22 AWG stranded (0.15 x 19) tinned copper conductors, polyethylene insulation, twisted pair, polyethylene inner jacket, Duofoil (100% coverage) and cotton plus a tinned copper braid shield (85% coverage), PVC jacket.

Technical Specifications

Length
5 Foot
Conductor
Number of Pairs: 1
Total Number of Conductors: 2
AWG: 22
Stranding: 0.15 x 19
Conductor Diameter: .0354 inch
Conduct or Material: TC-Tinned Copper
Insulation
Insulation Material PE Polyethylene
Lay Length
Lay Length: 2.5 inch
Direction: Left Hand Lay
Twists: 4.8 per foot
Inner Jacket
Inner Jacket Material: PE- Polyethylene
Inner Jacket Diameter: .055 inch
Pair Color Code: Black/White
Outer Shield
Outer Shield Trade Name: Duofoil
Outer Shield Type: Tape/Braid
Outer Shield Material
Layer Number:1, Material Trade Name: Dufoil, Type: Tape, Material: Aluminum Foil-Polyester, Coverage %: 100
Layer Number: 2, Material Trade Name: Dufoil, Type: Braid, Material: TC-Tinned Copper, Coverage %: 85
Outer Jacket
Outer Jacket Material: PVC-Polyvinyl Chloride
Overall Nominal Diameter
Overall Nominal Diameter: .229 inch
Mechanical Characteristics
Operating Temperature Range: (-30 degrees C To + 75 degrees C)
Bulk Cable Weight: 31 lbs/1000
Minimum Bend Radius (Install): 3.2 inch
Maximum Recommended Pull Tension: 72 lbs.
Electrical Characteristics
Nominal Characteristic Impedence: 110 Ohms
Nominal Capacitance Conductor to Conductor @ 1KHz: 12.8 pF/f t
Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft
Nominal Velocity of Propagation: 66%
Nominal Delay: 1.6 Nanoseconds per foot
Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft
Nominal Outer Shield D C Resistance @ 20 degrees C: 3.4 Ohms/ 1000 ft
Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MH z) dB/100 ft
Maximum Recommended Current: 2.1 A mps per conductor @ 25 degree C
