Accu Cable AC5CDMX300 300ft Spool 5 Pin DMX Cable(Accu Cable Ac5cdmx300 300ft Spool 5 Pin Dmx Cable)

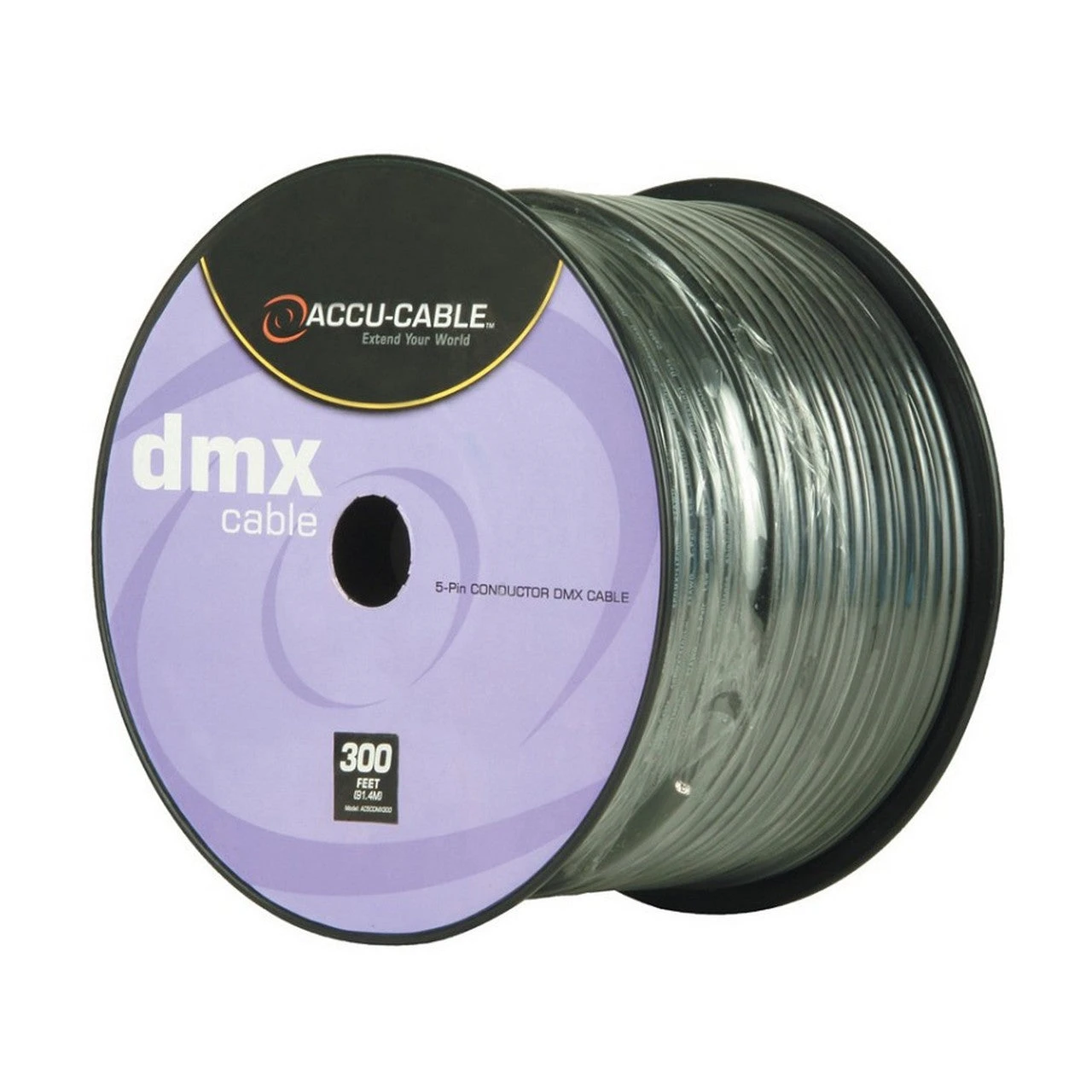

Accu Cable AC5CDMX300 300ft Spool 5 Pin DMX Cable

22 AWG stranded (0.15 x 19 ) tinned copper conductors, polyethylene insulation, twisted pair, polyethylene inner jacket, Duofoil® (100% coverage) and cotton plus a tinned copper braid shield (85% coverage), PVC jacket.

Technical Specifications

Length
300 Foot
Physical Characteristics
Conductor:
Number of Pairs: 2
Total Number of Conductors: 4
AWG: 22
Stranding: 0.15 x 19
Conductor Diameter: .0354 inch
Conduct or Material: TC-Tinned Copper
Insulation
Insulation Material PE Polyethylene
Lay Length
Lay Length: 1.1 inch
Direction: Left Hand Lay
Twists: 10.9 per foot
Inner Jacket
Inner Jacket Material: PE- Polyethylene
Inner Jacket Diameter: .055 inch
Pair Color Code: Green/Black/Red/White
Outer Shield
Outer Shield Trade Name: Duofoil
Outer Shield Type: Tape/Braid
Outer Shield Material
Layer Number: 1, Material Trade Name: Dufoil®, Type: Tape, Material: Aluminum Foil-Polyester, Coverage %: 100
Layer Number: 2, Material Trade Name: Dufoil®, Type: Braid, Material: TC-Tinned Copper, Coverage %: 85
Outer Jacket
Outer Jacket Material: PVC-Polyvinyl Chloride
Overall Nominal Diameter
Overall Nominal Diameter: .295 inch
Mechanical Characteristics
Operating Temperature Range: (-30 degrees C To + 75 degrees C)
Bulk Cable Weight: 50 lbs/1000
Minimum Bend Radius (Install): 3.5 inch
Maximum Recommended Pull Tension: 22 lbs.
Electrical Characteristics
Nominal Characteristic Impedence: 110 Ohms
Nominal Capacitance Conductor to Conductor @ 1KHz: 12.5 pF/ft
Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft
Nominal Velocity of Propagation: 76%
Nominal Delay: 1.6 Nanoseconds per foot
Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft
Individual Pair Nominal Shield DC Resistance @ 20 degrees C: 15 Ohms/1000 ft
Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MH) dB/100 ft.
Maximum Recommended Current: 2.1 Amps per conductor @ 25 degrees C
