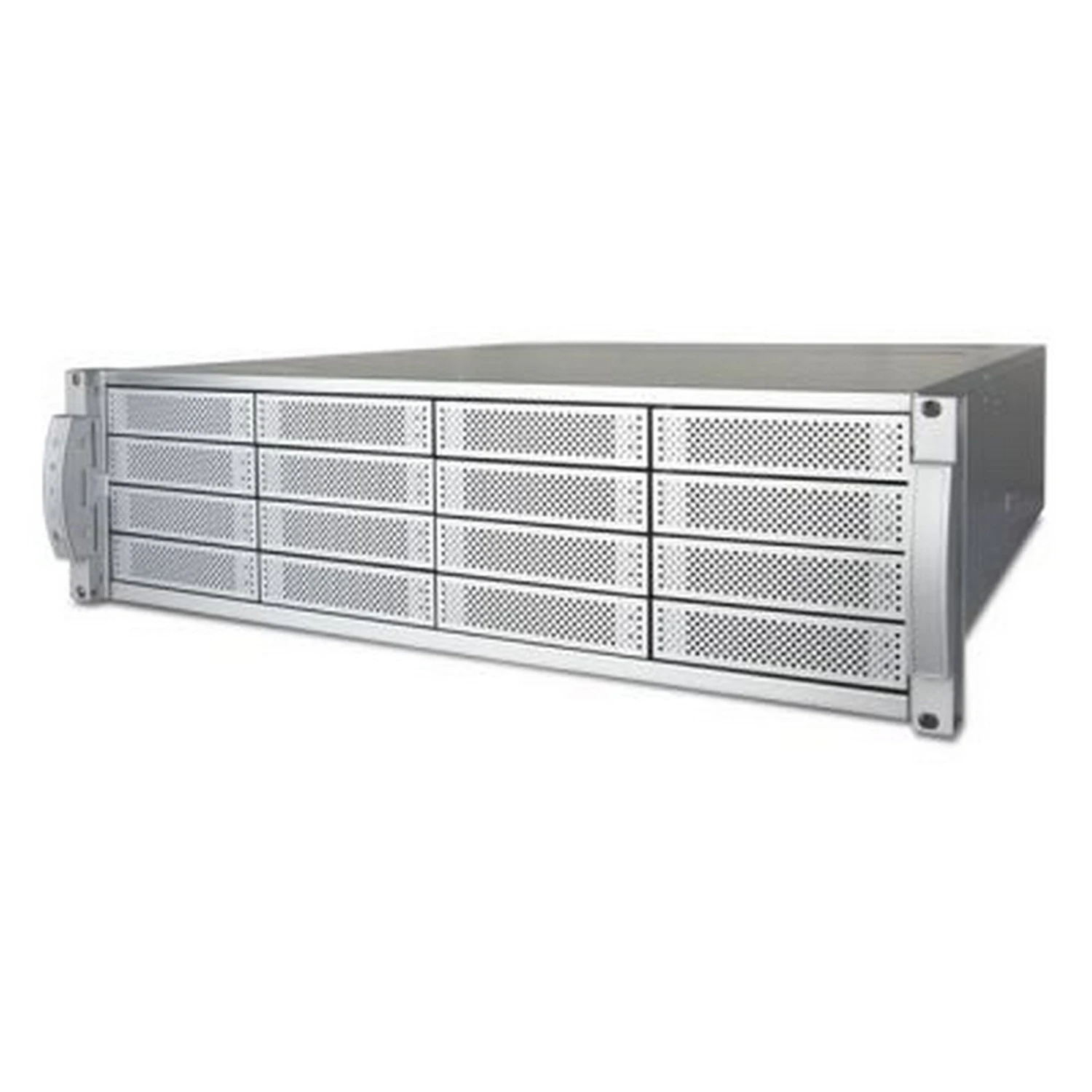

Accusys A16T3-Share 16-Bay Rackmount RAID System With Redundant Power Supply(Accusys A16t3 Share 16 Bay Rackmount Raid System With Redundant Power Supply)

Accusys A16T3-Share 16-Bay Rackmount RAID System with Redundant Power Supply

Leveraging new blazingly-fast Thunderbolt 3 technology, A16T3-Share comes with scalable capacity, unprecedented speed performance, and best of all: Being able to share to as many workstations as needed.

Performance
More Speed. More Power. More Possibilities.
2600 MB/s
The A16T3-Share unleashes the power of Thunderbolt 3 technology to reach the extraordinary speed of 2600MB/s in a single unit.

A16T3-Share is fully compatible with both MAC and Windows. With 1 PCIe and 4 Thunderbolt 3 ports, A16T3-Share allows for 5 creatives to share content in real-time. Work concurrently and collaboratively to ensure projects are delivered on time and on budget!

Technical Specifications

System Type
16-bay Rackmount RAID system
Interface
Thunderbolt 3 * 4
PCIe 3.0 *1
Data Transfer Rate
Thunderbolt 3 : 40 Gb/s
QSFP : 32 Gb/s
Disk Interface
SAS / SATA * 16
Disk Type
3.5″ / 2.5″ / SSD
RAID Level
0, 1, 5, 6, 0+1, JBOD
Cache Memory
2G DDRlll 1866 with ECC-protected
JBOD Expansion
JBOD * 3
T-Share Expansion
Thunderbolt 3 * 8, JBOD * 6
Power Supply
Dual 400W PSU (Redundant)
Fans
12x12cm redundant cooling fans
RAID Controller Functions
Online RAID Set Expansion and RAID LEVEL Migration
Online bad block data recovery and reallocation
Online disk scrubbing with data refresh and parity
Disk health monitorning by S.M.A.R.T
Array Roaming and Drive Traveling
Mirror Snapshot for fast backup and restore
Disk Lag Proof Technology to guarantee disk timely response
Equalization Mode to smooth the performance of sequential I/Os and reduce large fluctuation
Management
Java-based RADIGuard X GUI
Event log saving in text file for quick trobleshooting
Event notification by email (SMTP)
LED indicator for RAID & disk drives status in front
400W (Redundant). 110V~240V power supply
Two 12cm x 12 cm Fan with Smart Fan Control feature
Physical
L: 567mm, W:447mm, H: 131mm/ 19.4 kg
