Ace Backstage Co. BRK1048BBX Extra Deep Double Wide Stage Pocket Back Box(Ace Backstage Co Brk1048bbx Extra Deep Double Wide Stage Pocket Back Box)

Ace Backstage Co. BRK1048BBX Extra Deep Double Wide Stage Pocket Back Box

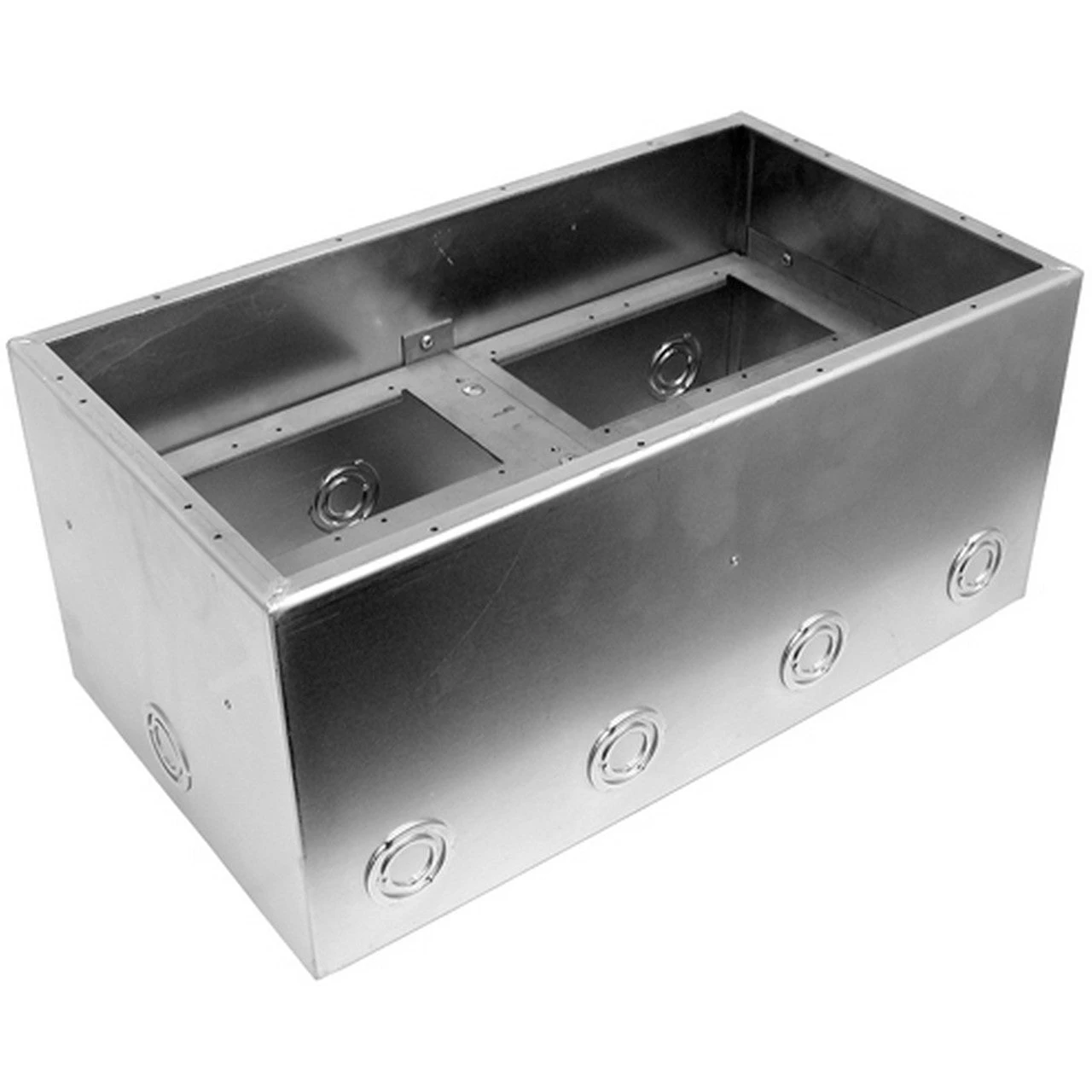

ACE Extra Deep Back Boxes (#BRK1028BBX and #BRK1048BBX) are slightly deeper (8”) as compared with Standard #BBX Series Back Boxes (6”) and may be used exclusively with ACE Full and Double Wide Stage Pockets. The #BRK1028BBX and #BRK1048BBX Extra Deep Back Boxes are welded 14 gauge steel with a protective cover that is discarded when the pocket body is finally installed. The box and cover have a clear zinc corrosion resistant finish. A 1/2” mounting flange is predrilled to mate with the pocket body flange. The pocket body assembly is 4.5” deep and the extra deep back box is 8” deep providing a 3.5” work clearance in the bottom of the back box (ideal for feed thru or distribution junction).

The clearance volume (volume between bottom of pocket body and bottom of the extra deep back box) is 338 cubic inches in the #BRK1028BBX and 613 cubic inches in the #BRK1048BBX. ACE Extra Deep Back Boxes come with standard Electrical Conduit Combination 1/2”, 3/4”, 1”, and 1-1/4” Knock Outs, 4 places typical on opposing sides and Electrical Conduit Combination 1/2”, 3/4”, 1”, and 1-1/4” Knock Outs, 2 places typical on one side.
