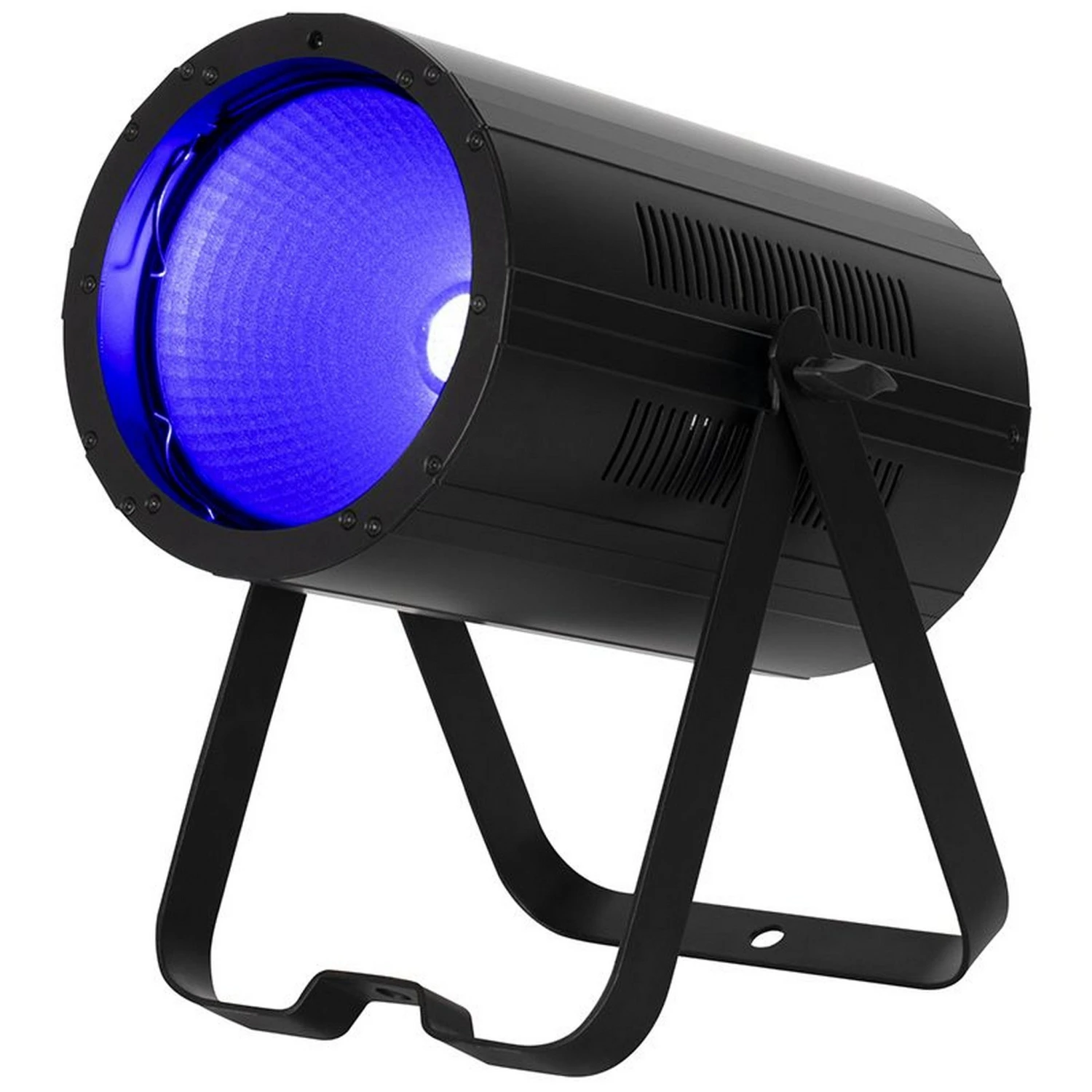

ADJ COB Cannon LP200X 200W LED Color Mixing Wash Lighting Fixture(Adj Cob Cannon Lp200x 200w Led Color Mixing Wash Lighting Fixture)

ADJ COB Cannon LP200X – Powerful RGBAL LED Light for Stunning Color Mixing

The ADJ COB Cannon LP200X is a cutting-edge LED fixture designed to provide powerful, smooth RGBAL color mixing with rich, vibrant color palettes. Equipped with a 200-Watt Chip on Board (COB) RGBAL LED engine, this versatile lighting solution is perfect for a wide variety of applications, including stage productions, architectural lighting, and event spaces. The inclusion of Red, Green, Blue, Amber, and Lime LEDs allows for a broad spectrum of color possibilities, ensuring you get the exact look you’re aiming for. Whether you’re illuminating a venue or creating an immersive atmosphere, the COB Cannon LP200X delivers the performance and reliability you need.

The fixture features an 80-degree beam angle, but it also comes with a lens kit that lets you change to 40-degree or 50-degree beam angles for more targeted lighting. Its tunable white color temperature range of 2300K to 9900K gives you the flexibility to adjust the warmth or coolness of the light, allowing you to match the environment or create dramatic lighting effects. With a life rating of approximately 50,000 hours, this robust fixture offers long-lasting performance, making it a great investment for professional use. Additionally, the fixture operates flicker-free, ensuring that it works seamlessly with cameras for live-streamed events or recordings.

The COB Cannon LP200X is equipped with advanced control features, including 10 DMX channel modes, linear color temperature control, built-in color temperature presets, and a range of dimming options. The built-in Aria X2 Wireless Management System ensures reliable and flexible control, while the fixture’s scissor yoke allows for easy mounting on a truss or setting it on the ground. It also includes a 4-summary OLED digital DMX display on the rear panel for quick adjustments, and it’s compatible with the ADJ UC IR remote control (included), offering an easy-to-use solution for adjusting settings on the fly.

Key Features

• Embedded Aria X2 Wireless Management System
• Primary / Secondary Mode
• Flicker-Free operation (no flickering on camera)
• Produces powerful, smooth RGBAL color mixing with rich color palettes
• Scissor yoke for mounting on truss or placing on the ground
• Optional Barn Doors (BAR001) sold separately
• 10 DMX Channel modes (5CH, 8CH-A, 8CH-B, 9CH, 10CH-A, 10CH-B, 12CH, 13CH, 16CH, 20CH)
• Linear color temperature control via DMX
• 64 built-in color macros

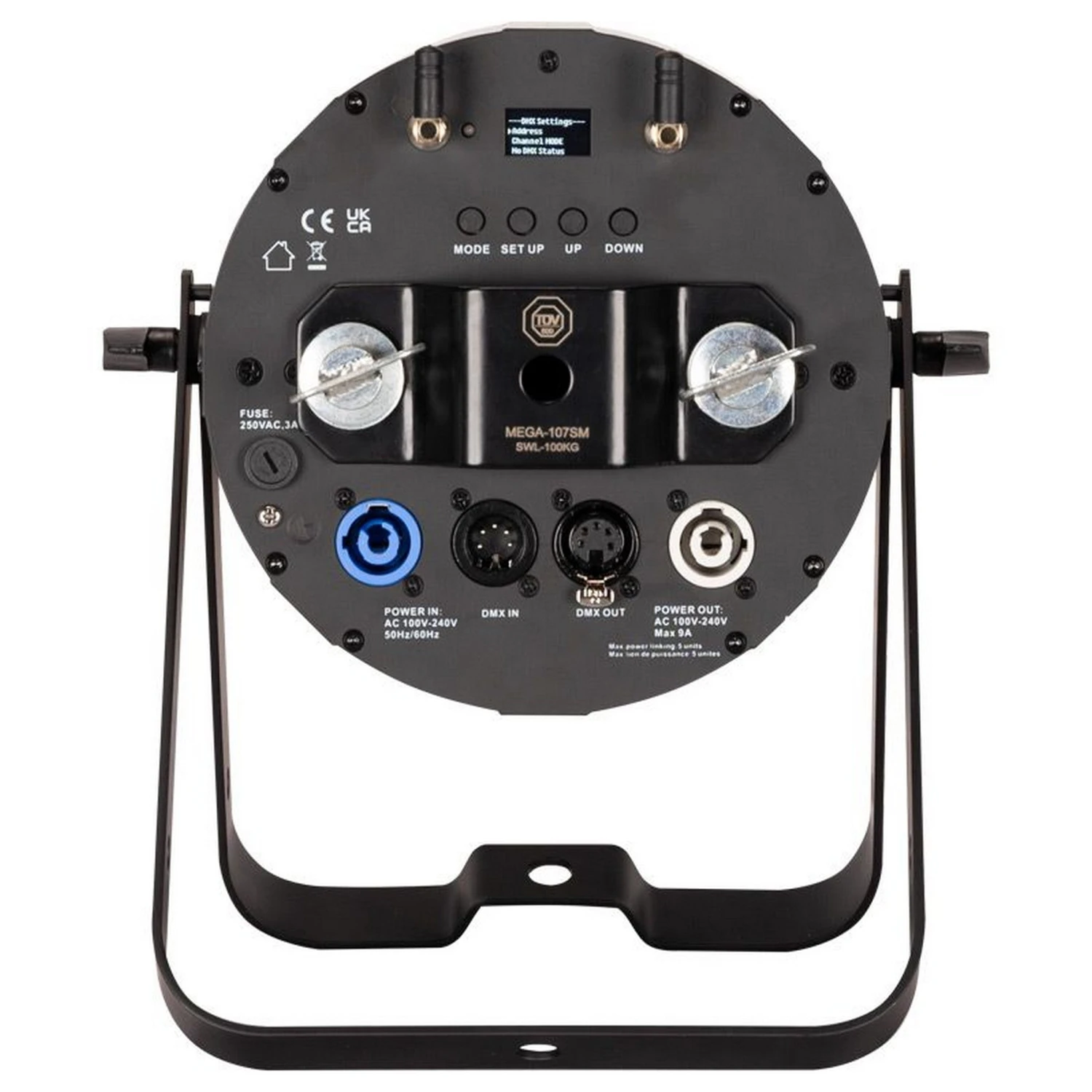

• 4-summary OLED digital DMX display on rear panel
• Compatible with the ADJ UC IR remote control (included)
• LED pulse and strobe effect
• Electronic Dimming: 0 – 100%
• 6 selectable Dim Modes (Standard, Stage, TV, Architectural & Theatre)
• 4 selectable Dim Curves (Square, Linear, Inv. Squa & S.Curve)
• Adjustable selectable Refresh Rate (14 presets from 900 – 25,000Hz)
• Indoor locking power In & Out connections to daisy chain power

Technical Specifications

OPTICAL:
Light Source: 1x 200-Watt COB (Chip on Board), RGBAL (Red, Green, Blue, Amber & Lime), LED Engine
LED Engine Life Rating: Approximately 50,000 hrs.
CRI: >90
Tunable White Color Temperature: 2300~9900K
Beam Angle: 80-degree
Included Lens Kit: Lens kit to change to 40-degree or 50-degree beam angle

CONTROL:
DMX Channel Modes: 10 DMX Channel modes (5CH, 8CH-A, 8CH-B, 9CH, 10CH-A, 10CH-B, 12CH, 13CH, 16CH, 20CH)
Linear Color Temperature Control: Via DMX
Built-in Color Temperature Presets: Accessible via DMX
Built-in Color Macros: 64
OLED Digital DMX Display: 4-summary OLED display on rear panel
Remote Control: Compatible with ADJ UC IR remote control (included)
LED Pulse and Strobe Effect: Yes
Electronic Dimming: 0 – 100%
Dim Modes: 6 selectable (Standard, Stage, TV, Architectural & Theatre)
Dim Curves: 4 selectable (Square, Linear, Inv. Squa & S.Curve)
Refresh Rate: Adjustable (14 presets from 900 – 25,000Hz)

CONNECTIONS:
DMX Data Link: 5-pin XLR connectors
Power Connections: Indoor locking power In & Out connections to daisy chain power

ELECTRICAL:
Auto-Sensing Power Supply: AC 100V/60Hz – 240V/50Hz
Power Draw: 175W max
Daisy Chain: Up to 5 fixtures (120V) or 10 fixtures (230V) maximum

DIMENSIONS / WEIGHT:
Dimensions: 16.25” x 9.75” x 7.5”
Weight: 9.45 lbs.

What’s Included

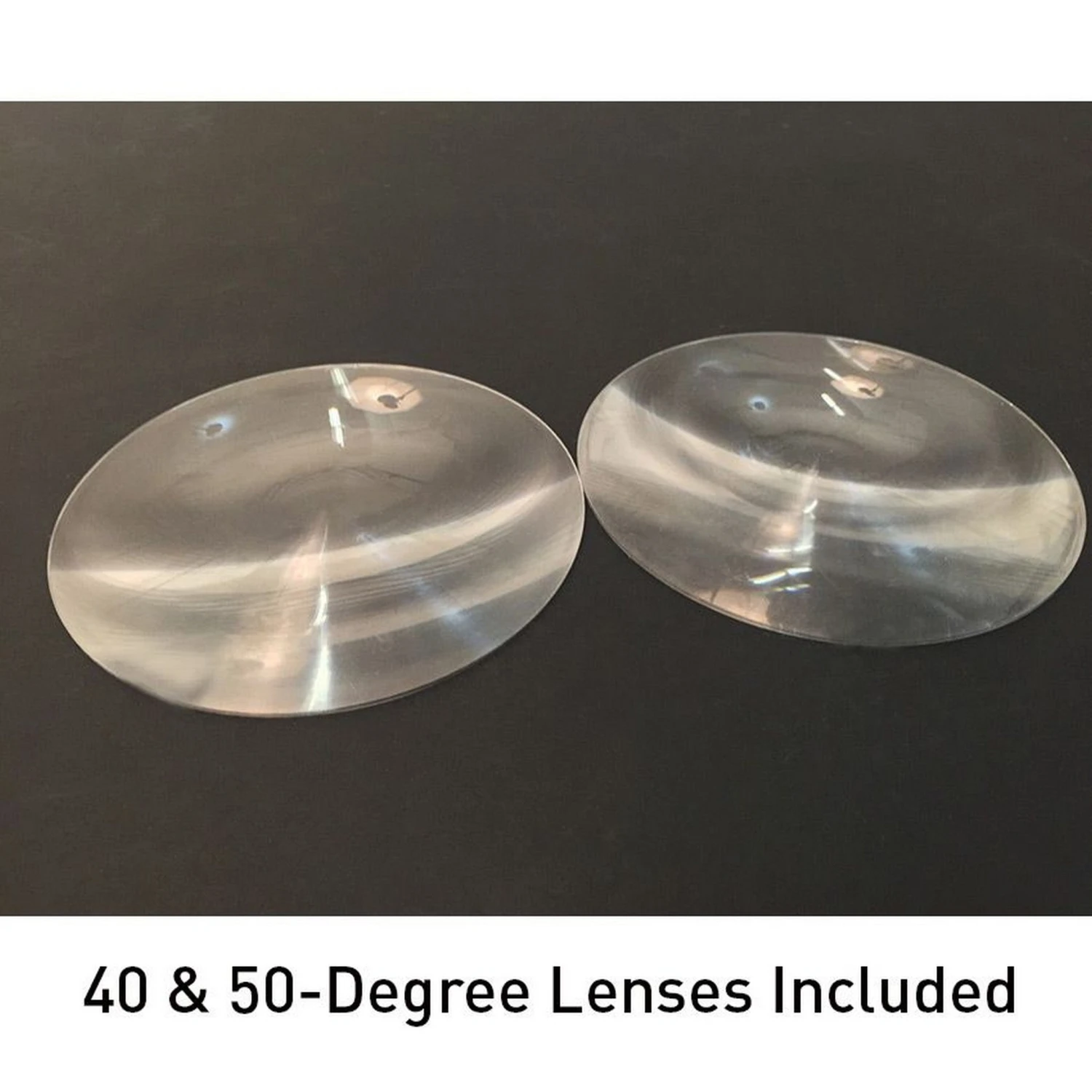

• (1) 50-degree lens
• (1) 40-degree lens

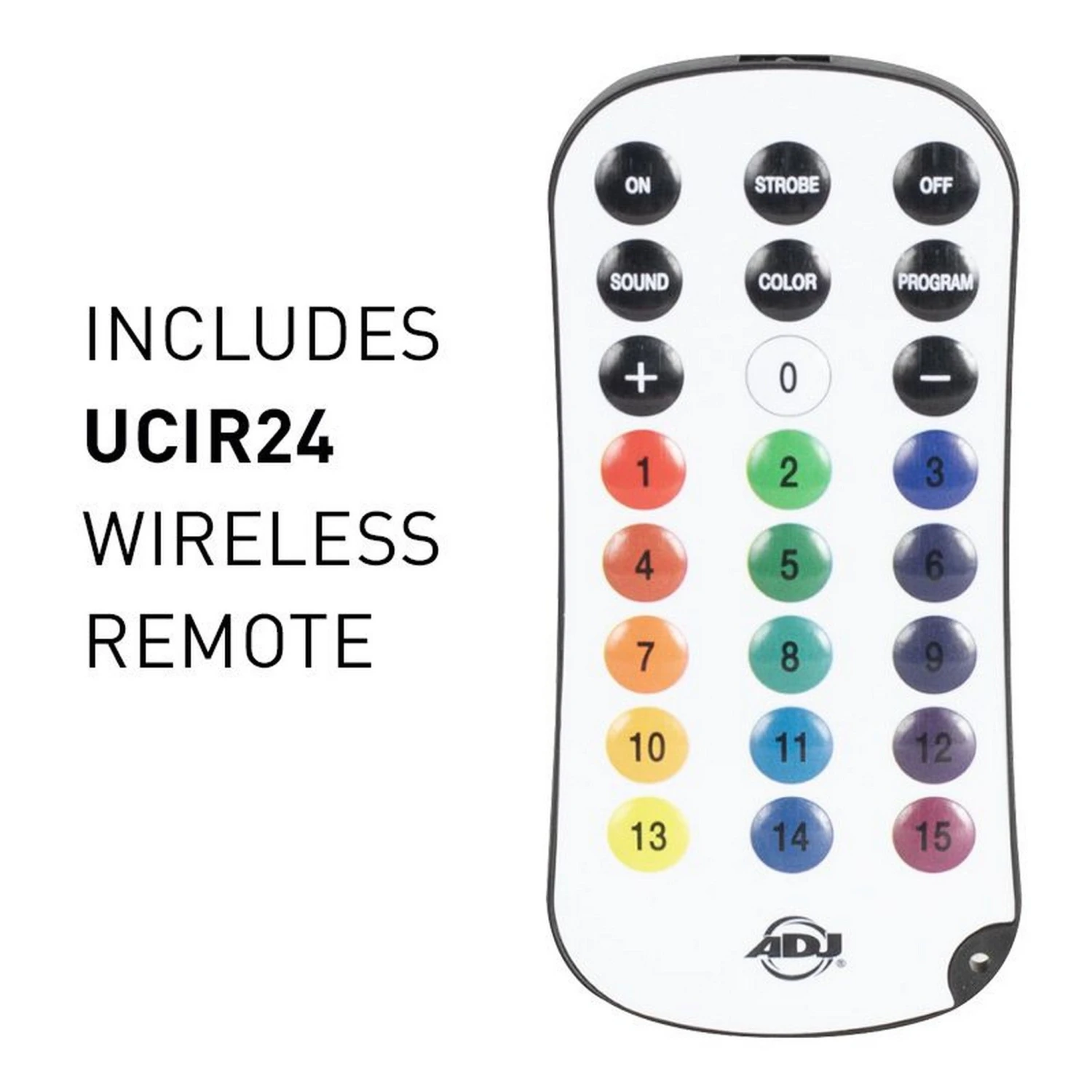

• UCIR24 Wireless IR Remote
• Power Cord
• Scissor Yoke
• Omega Bracket

Accessories

• BAR001 – COB Cannon Wash Barn Doors (Sold Separately)

Rating / Approvals

cETLus (Pending)
