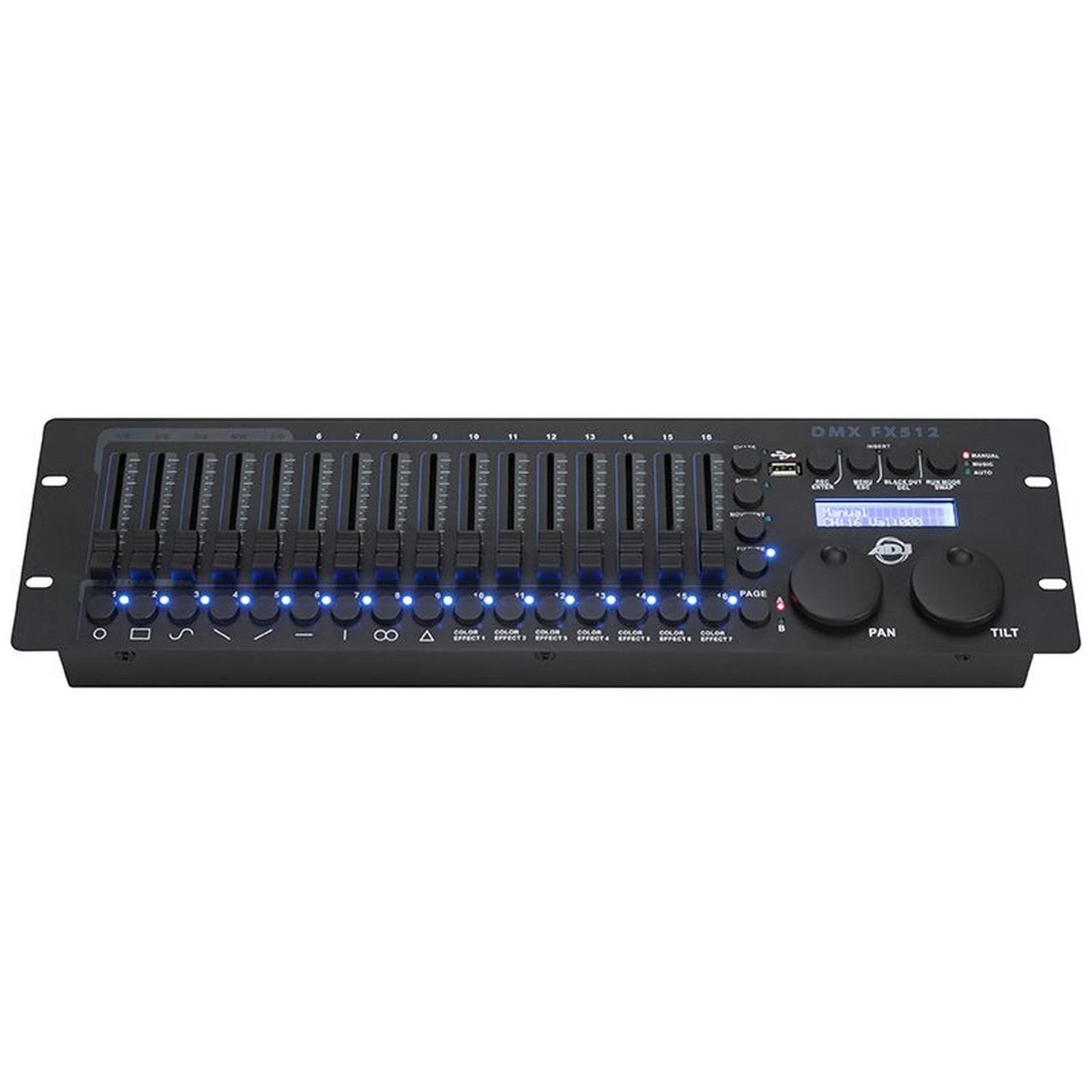

ADJ DMX FX512 3-Space 19-Inch Rack-Mount DMX Lighting Controller(Adj Dmx Fx512 3 Space 19 Inch Rack Mount Dmx Lighting Controller)

ADJ DMX FX512 3-Space 19-Inch Rack-Mount Lighting Controller: A Revolution in Professional Lighting Control
The ADJ Lighting DMX FX512 is a DMX controller that sets the standard for professional lighting applications. This controller is perfect for use in churches, nightclubs, stages or for event production. Its compact 3-rack space design provides a tactile, hands-on experience that is perfect for lighting designers and operators on the go or in a fixed installation.

Equipped with DMX-512 and RDM protocols, the DMX FX512 allows for precise control of up to 512 DMX channels. It can manage up to 32 intelligent fixtures with 18 channels each. With 32 programmable scenes and 32 chases, each up to 100 steps and the ability to run up to 5 chases simultaneously, you can create captivating light shows that will leave your audience in awe.

Featuring soft-patchable faders and control wheels, the DMX FX512 provides flexibility and 16 built-in effect generators. 9 are for moving lights and 7 are for RGB LED fixtures. This allows for dynamic lighting possibilities that will make your shows unforgettable. Using RDM, you can remotely access and configure DMX addresses and channel modes for your fixtures. This eliminates the need for physically reaching each device, saving you valuable time during setup and ensuring a hassle-free and error-free address assignment process.

The control interface is intuitive, with a digital display, 16 channel control faders, dedicated Pan/Tilt wheels, and 16 Effects/Fixture select summarys. The built-in Mic with digitally adjustable sound sensitivity enhances the interactive experience. Connect effortlessly with 5-pin XLR DMX Output. A USB port is on the front panel designed for data backup and firmware updates.

Measuring 5.28” x 19” x 2.71” and weighing only 4.7lbs, the DMX FX512 is compact and lightweight. Rubber feet ensure it can be used freely on a front of house design desk without being rack mounted. This is truly a revolutionary controller that will elevate your lighting experience.

Key Features

• Advanced ADJ Lighting DMX FX512 controller designed for professional lighting applications
• Suitable for churches, nightclubs, stages, and event production
• Compact 3-rack space design for easy installation
• Supports DMX 512 & RDM protocol
• Provides 512 DMX channels for precise control
• Capable of controlling up to 32 intelligent fixtures with up to 18 channels each
• Allows for 32 chases, each with up to 100 steps, and can run 5 chases simultaneously
• Offers 32 programmable scenes for customized lighting setups
• Features soft-patchable faders and control wheels for intuitive operation
• Equipped with 16 built-in effects generators, including 9 for moving lights and 7 for RGB LED fixtures
• Includes USB port for data backup and firmware updates.

Technical Specifications

Control
DMX512 and RDM
RDM to set the DMX addresses and DMX channel mode of the fixtures from controller
16 channel control faders
Dedicated Pan/Tilt wheels (User Assignable)
16 Effects / Fixture select summarys
Sound sensitivity digitally adjustable (0%-100%), built-in Mic.
With Wired Digital Communication Network
Connections
5pin XLR DMX Output
Power Supply Input
USB A Port
Operational Conditions
Use in dry location only
Min. ambient temperature
32 Degrees F (0 Degrees C)
Max ambient temperature
113 Degrees F (45 Degrees C)
Humidity
<75%
Allow 6” minimum between this controller and surrounding devices or wall
Storage Conditions
Store in a dry location
Ambient storage temperature
77 Degrees F (25 Degrees C)
Power
Power Supply
DC9V`12V 300mA min. (DC9V 1A PSU Included)
Power Consumption
DC9V 165mA 1.5W, DC12V 16mA 2W
Dimensions & Weight
Length
5.28” (134mm.)
Width
19” (482mm.)
Height
2.71” (68.9 mm.)
Weight
4.7lbs.(2.13kg.)
Certifications & Rating
CE
cETLus (Pending)
IP20
