ADJ Encore LB15IP 15 X 20-Watt Quad Color RGBL Linear LED Wash Fixture(Adj Encore Lb15ip 15 X 20 Watt Quad Color Rgbl Linear Led Wash Fixture)

ADJ Encore LB15IP 15 x 20-Watt Quad Color RGBL Linear LED Wash Fixture

The Encore LB15IP, part of ADJ’s Lime LED Series, utilizing high output 4-in-1 color mixing LEDs that each include individually controllable red, green, blue and lime elements. Each LED is rated at 20-Watts and offers a wide variety of color options achieved through mixing the four primary colors at varying levels of intensity. These include white light with a variable color temperature of 2700K to 7000K, which can be easily selected using either linear control or one of six preset macros. Inclusion of the Lime LED element boosts both CRI and perceived brightness as well as filling in gaps in the color spectrum. 16-Bit fine control over the four primary LED elements allows for a huge variety of color possibilities, while 64 built-in macros facilitate easy selection of popular options. The LP15IP features 15 LEDs, with an equally spaced linear arrangement, which can each be controlled independently to allow for the creation of pixel-mapped effects.

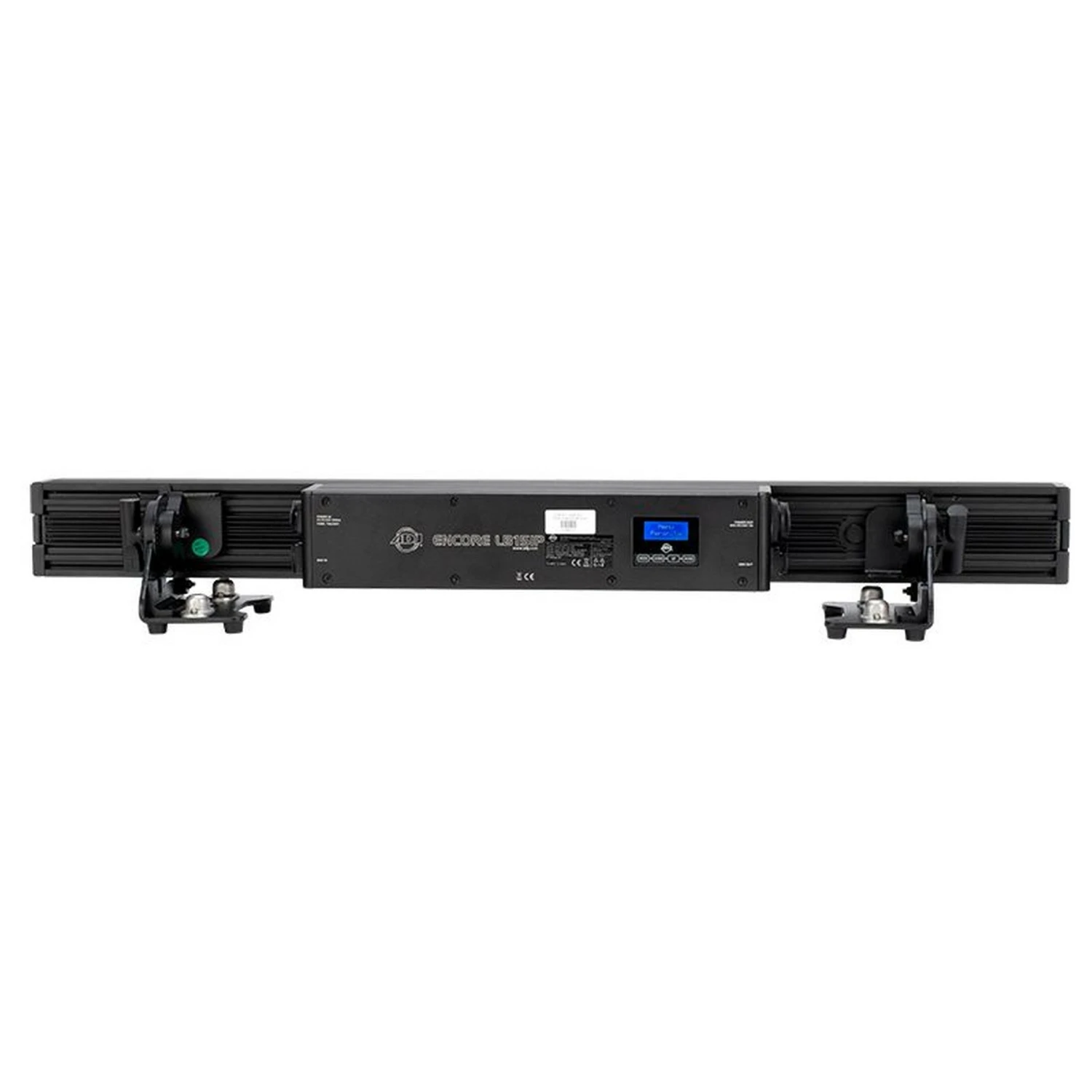

With a robust metal construction, the LB15IP is designed for use in professional entertainment lighting environments. It has an IP65 rating, which means that it is sealed to prevent the ingress of liquid, snow, dust, and sand. This makes It’suitable for temporary outdoor use as well as for indoor applications where the fixture may be subject to liquid spillage or come into contact with excessive dust or dirt. It is supplied with two variably-angled brackets – one on each side – that can be used to stand the fixture directly on the floor or (with the attachment of the included Omega brackets) hang it from a truss or lighting rail. The unit is also supplied with a detachable glare shield and features locking power input and output sockets, allowing multiple fixtures to be connected to a single power outlet.

Key Features

• 15 x 20-Watt Quad RGBL LED’s (4-IN-1: Red, Green, Blue & Lime)
• Individual Pixel Controllable
• 16-Bit Fine Color Control (Red, Green, Blue & Lime)
• 64 built-in Color Macros
• IP65 Rated: Ingress Protection against liquid, snow, dust and sand

Technical Specifications

SOURCE
15 x 20-Watt Quad RGBL LED’s (4-IN-1: Red, Green, Blue & Lime)
PHOTMETRIC DATA
Beam angle: 12.4 ° (24Ëš with diffusion filter attached)
CRI
89.3
CRI R9
69
Lumens
5982
Linear Color Temperature Control (2700K to 7000K)
Preset Color Temperatures (2700K, 3200K, 4000K, 5600K, 6500K and 7000K)
EFFECTS
Individual Pixel Controllable
16-Bit Fine Color Control (Red, Green, Blue & Lime)
64 built-in Color Macros
CONTROL / CONNECTIONS

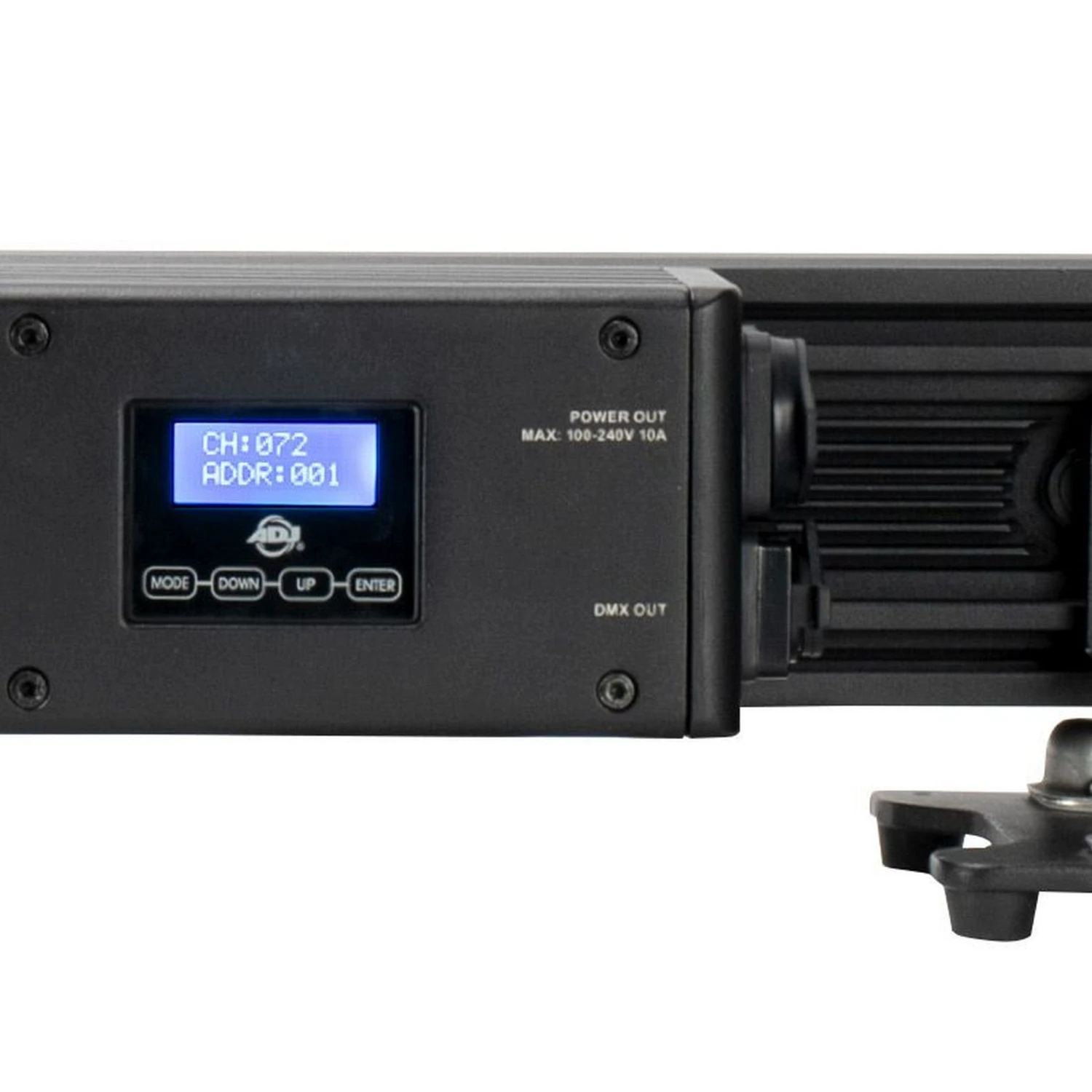

4-summary, DMX digital display on rear panel
5 Operational modes
Static Color Mode, RGBL Dimmer Mode, Program Mode, Sound Active Mode and DMX Controlled
Supports RDM (Remote Device Management)
With Wired Digital Communication Network
6 selectable Dimming Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
4 selectable Dim Curves (Linear, Square Inv. Squa, S-Curve)
Adjustable Refresh Rate (14 presets from 900 – 25,000Hz)
Flicker Free operation (No flickering on camera)
LED pulse and strobe effect
Electronic Dimming
0 – 100%
10 DMX Modes
4, 7, 8, 13, 16, 60, 63, 72 & 120 channel
Adjustable fan modes
WiFLY EXR Wireless DMX built-in (2500 ft. / 700M line of sight)
CONSTRUCTION
IP65 Rated
Ingress Protection against liquid, snow, dust and sand
All metal construction
IP Rated rubber covers protect in/Out Locking Power connectors and IP rated 5-pin sockets
Locking, outdoor IN/Out Power connectors
Data linkable via 5-pin DMX connections
ELECTRICAL / THERMAL
Multi-voltage operation
AC 100-240V, 47/63Hz
Daisy chain
5 @ 120V, 10 @ 220V
Max power
198W
DIMENSIONS / WEIGHT
Dimensions (LxWxH) 5.99” x 36.1” x 8.33” / 152×914.9×211.55mm
Weight
19.5 lbs. / 8.85 kg.
APPROVALS / RATINGS
cETLus Pending
IP65
INCLUDED ACCESSORIES
Glare Shield
Locking Outdoor Power Cord
OPTIONAL ACCESSORIES

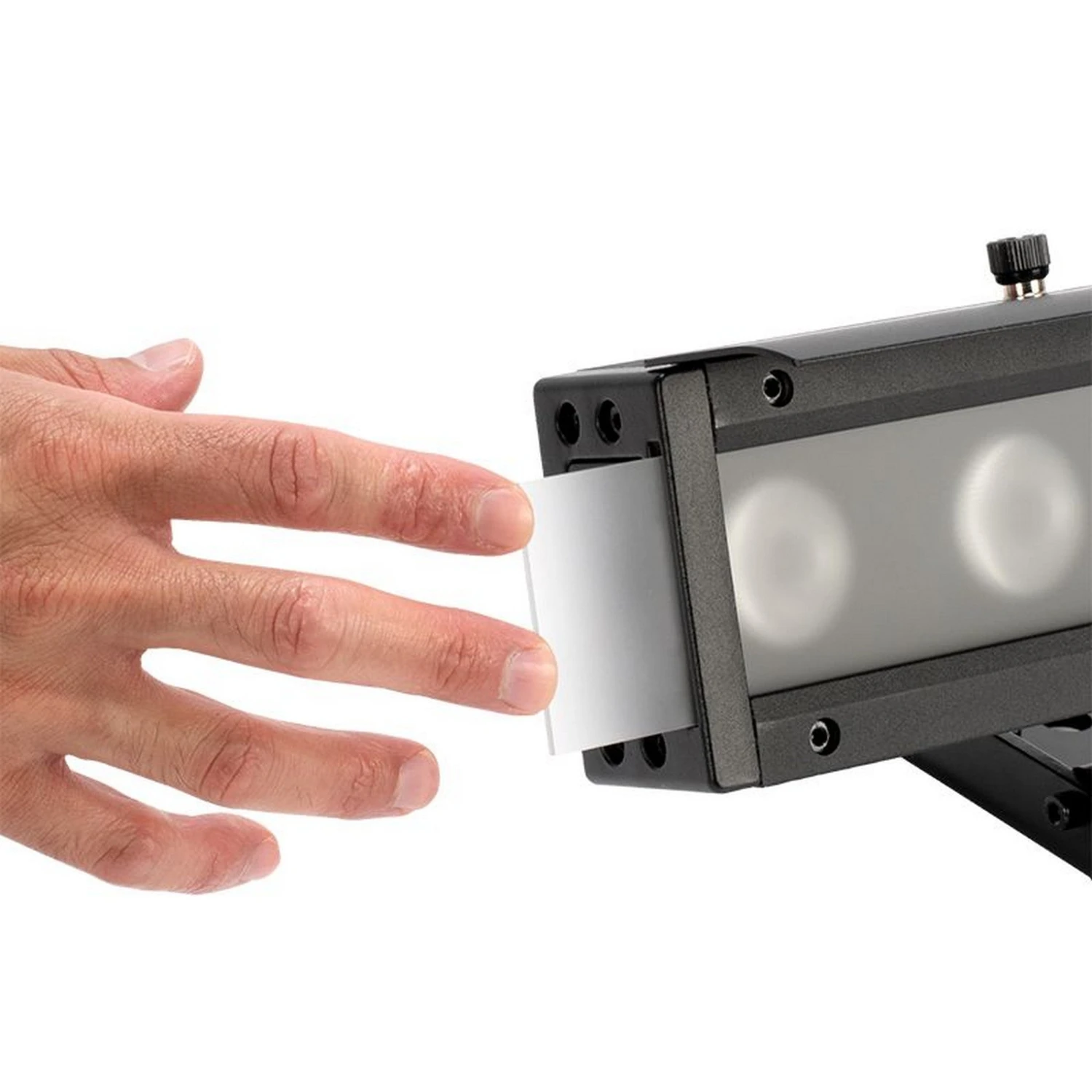

ELB15L20: 20 ° frost filter for Encore LB15IP
ELB15L60: 60 ° frost filter for Encore LB15IP
ELB15L100: 100 ° frost filter for Encore LB15IP
