ADJ ENCORE LP18IP IP65 Outdoor Rated 18 X 20-Watts Quad LED Par(Adj Encore Lp18ip Ip65 Outdoor Rated 18 X 20 Watts Quad Led Par)

ADJ ENCORE LP18IP IP65 Outdoor Rated 18 x 20-Watts Quad LED Par

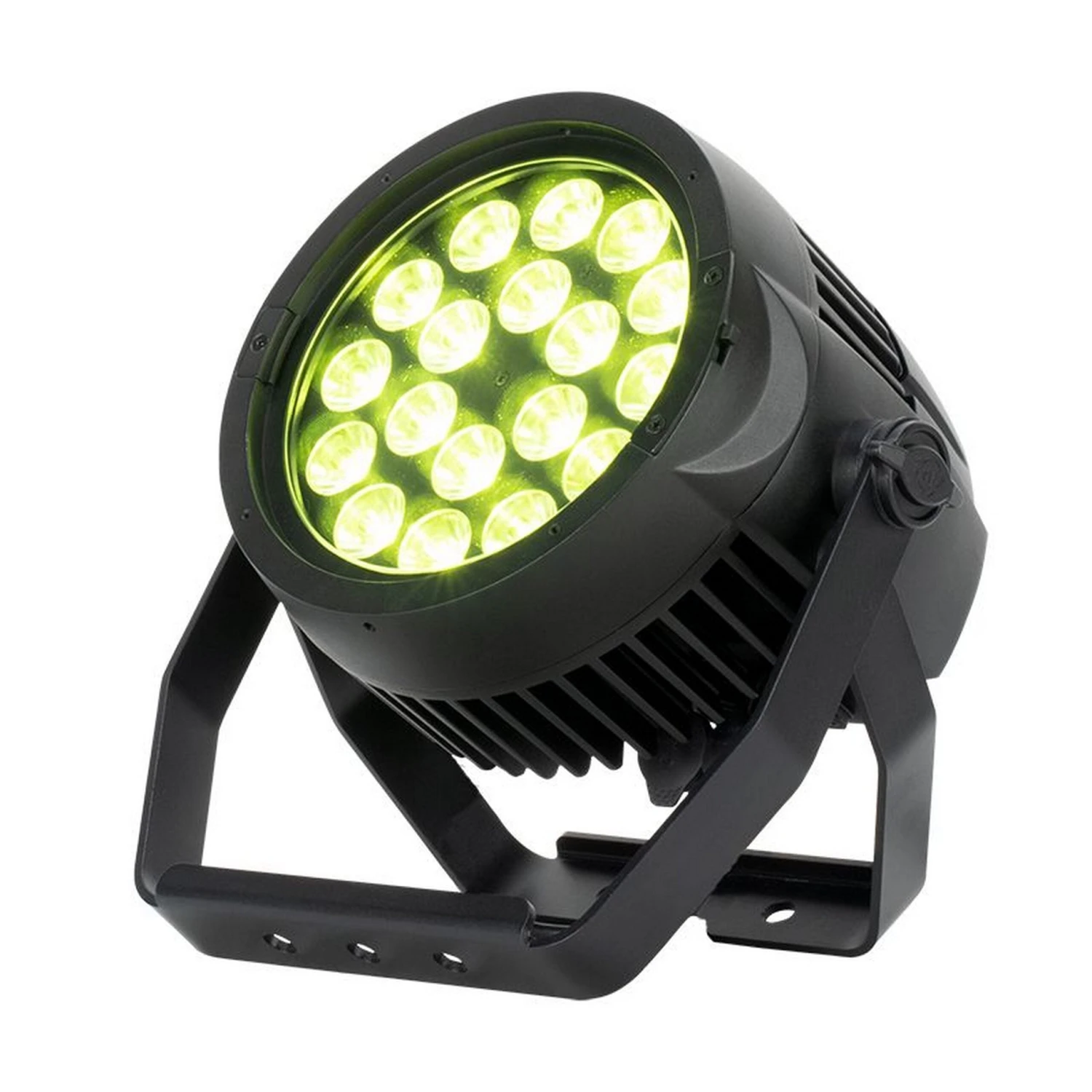

The ADJ Encore LP18IP is a versatile IP65 outdoor rated Par with 18 x 20-Watt (4-IN-1: Red, Green, Blue & Lime) Quad LEDs. With a 10-degree beam angle, users may produce wide washes with smooth color mixing from 64 built-in color macros utilizing red, green, blue, amber, white and UV LEDs. Not only is this LED Par great for lighting indoor stages and venues, but with its IP65 rating, it’s a great solution for temporary outdoor lighting of stages or events. The IP65 rating helps protect the fixture from rain, snow and dust.

The fixture’s Quad LED engine offers flicker free operation for TV and film and linear white color temperature control from 2700K – 6500K.

The Encore LP18IP professional features include: 4 DMX modes, 5 operational modes, 6 selectable dimming modes, 4 selectable dimming curves, and a 4-Button DMX menu with digital display. The unit is equipped with outdoor Locking Power connectors and IP rated 5-pin DMX rubber covers and connectors. IP rated power linking and DMX cables are available, but standard 5-pin DMX cables may also be used for indoor applications.

There are several additional frost filter options that customize the beam angle. These filter snap into the front of the fixture and are sold separately.

Technical Specifications

SOURCE
Light Source: 18 x 20-Watt Quad RGBL LEDs (4-IN-1: Red, Green, Blue & Lime)
PHOTMETRIC DATA
Beam angle: 10-degree
CRI: 86.2
CRI R9: 82.8
Lumens: 7300
EFFECTS
Linear Color Temperature Control (2700K to 7000K)
Preset Color Temperatures (2700K, 3200K, 4000K, 5600K and 6500K)
16-Bit Fine Color Control (Red, Green, Blue & Lime)
64 built-in Color Macros
CONTROL / CONNECTIONS
4-summary, DMX digital display on rear panel
5 Operational modes: Static Color Mode, RGBL Dimmer Mode, Program Mode, Sound Active Mode and DMX Controlled
Supports RDM (Remote Devise Management)
With Wired Digital Communication Network
6 selectable Dimming Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
4 selectable Dim Curves (Linear, Square Inv. Squa, S-Curve)
Adjustable Refresh Rate (14 presets from 900 – 25,000Hz)
Flicker Free operation (No flickering on camera)
LED pulse and strobe effect
Electronic Dimming: 0 – 100%
9 DMX Modes: 4, 6, 7, 8, 9, 10, 14, 17, & 20-channel
Quiet fan mode
CONSTRUCTION

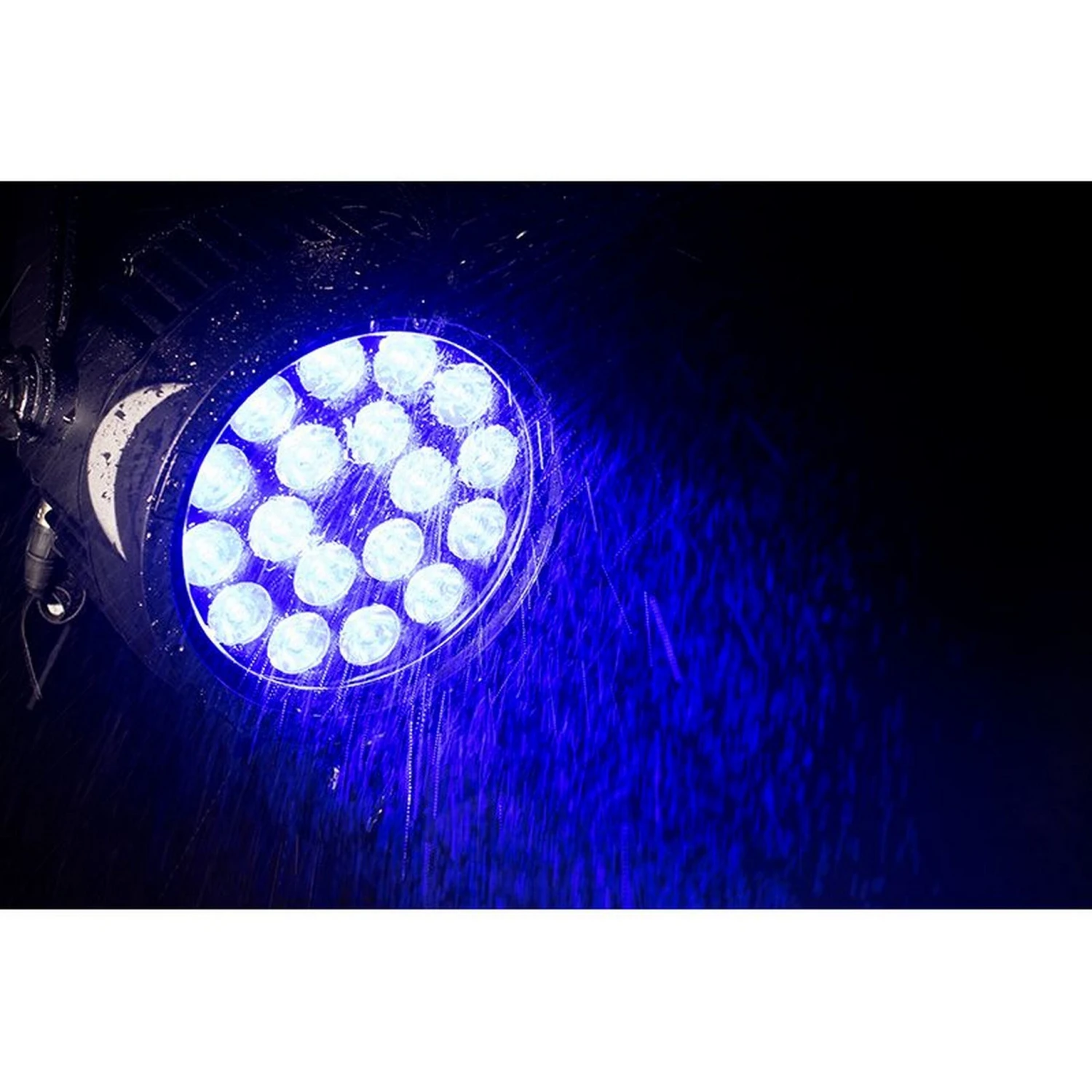

IP65 Rated: Ingress Protection against liquid, snow, dust and sand
All metal construction

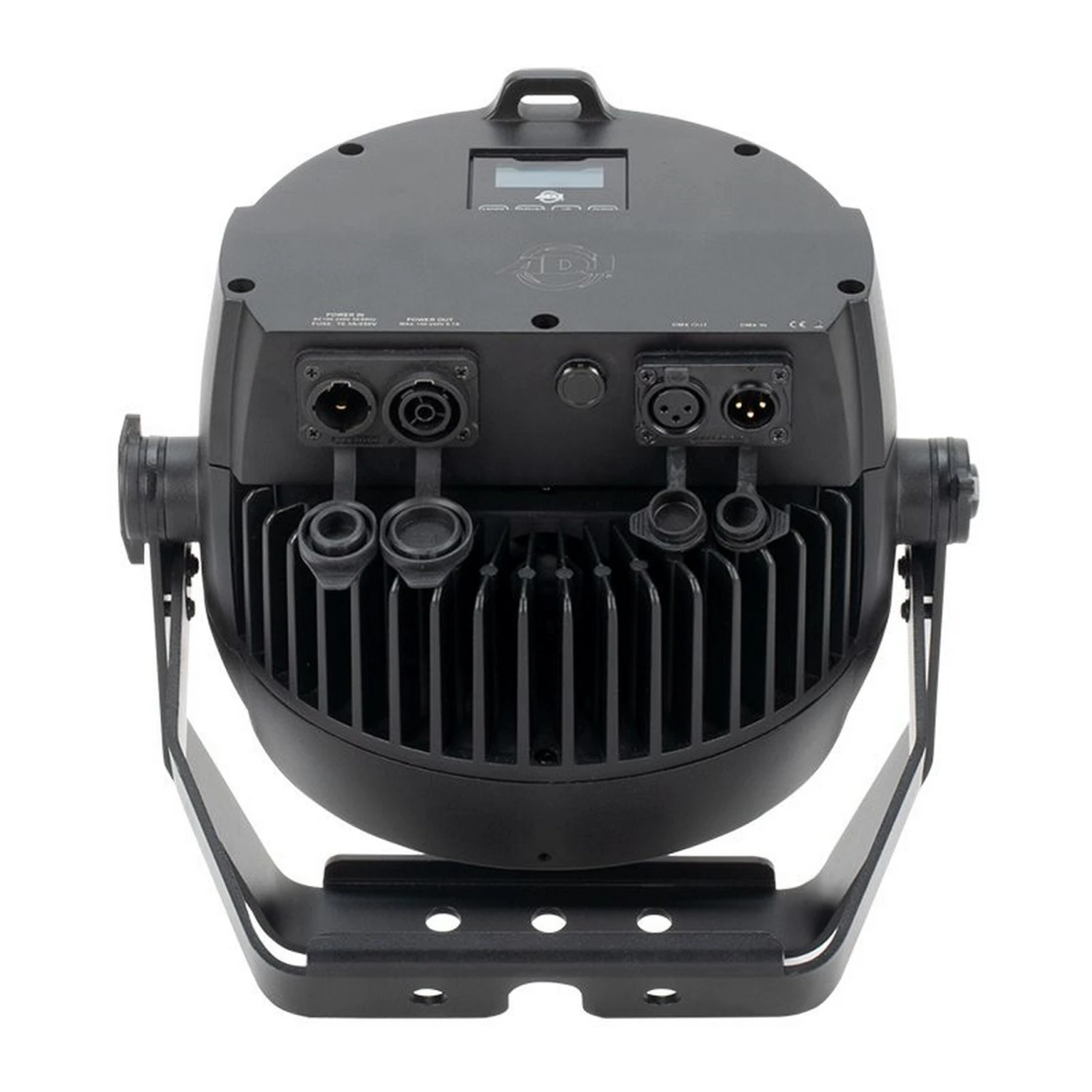

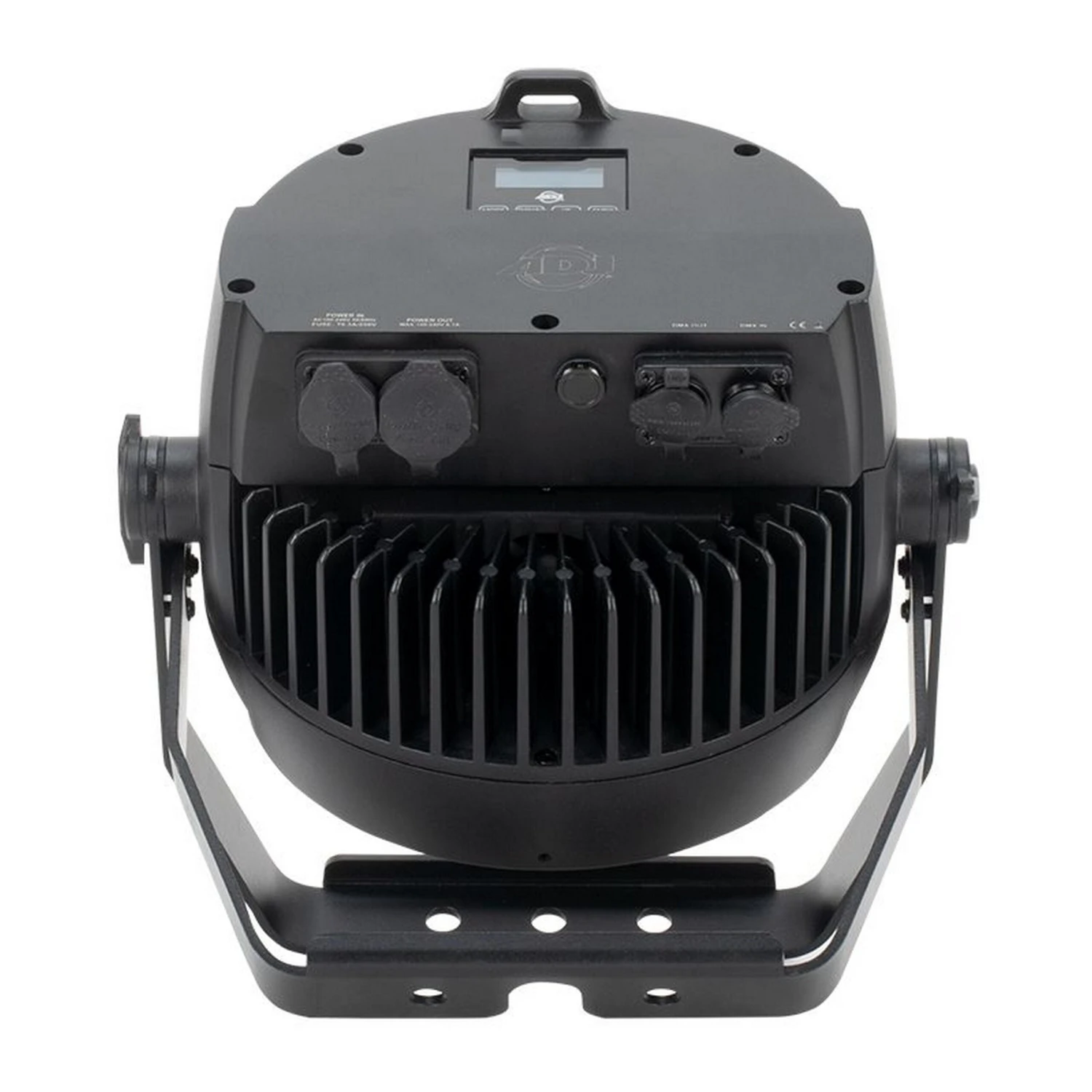

IP Rated rubber covers protect In/Out Locking Power connectors and IP rated 5-pin sockets
Locking, outdoor IN/Out Power connectors
Data linkable via 5-pin DMX connections
Includes Lens kit with 4 different beam angles
Scissor Yoke & safety eye
ELECTRICAL / THERMAL
Multi-voltage operation: AC 100-240V, 47/63Hz
Daisy chain: 2 @ 120V, 6 @ 220V
Max power: 240W
DIMENSIONS / WEIGHT
Dimensions (LxWxH): 11.85” x 9.25” x 11.5” / 300x234x289mm
Weight: 16 lbs. / 7.15 kg.
APPROVALS / RATINGS
cETLus Pending
IP65
ACCESSORIES
ELP18L100: 100-degree frost filter for the Encore LP18IP
ELP18L60: 60-degree frost filter for the Encore LP18IP
ELP18L30X60: 30×60-degree frost filter for the Encore LP18IP
ELP18L1X40: 1×40-degree frost filter for the Encore LP18IP
ELP18L20: 20-degree frost filter for the Encore LP18IP
