ADJ EVS3 LED Lighting Video Panel With Wired Digital Communication Network(Adj Evs3 Led Lighting Video Panel With Wired Digital Communication Network)

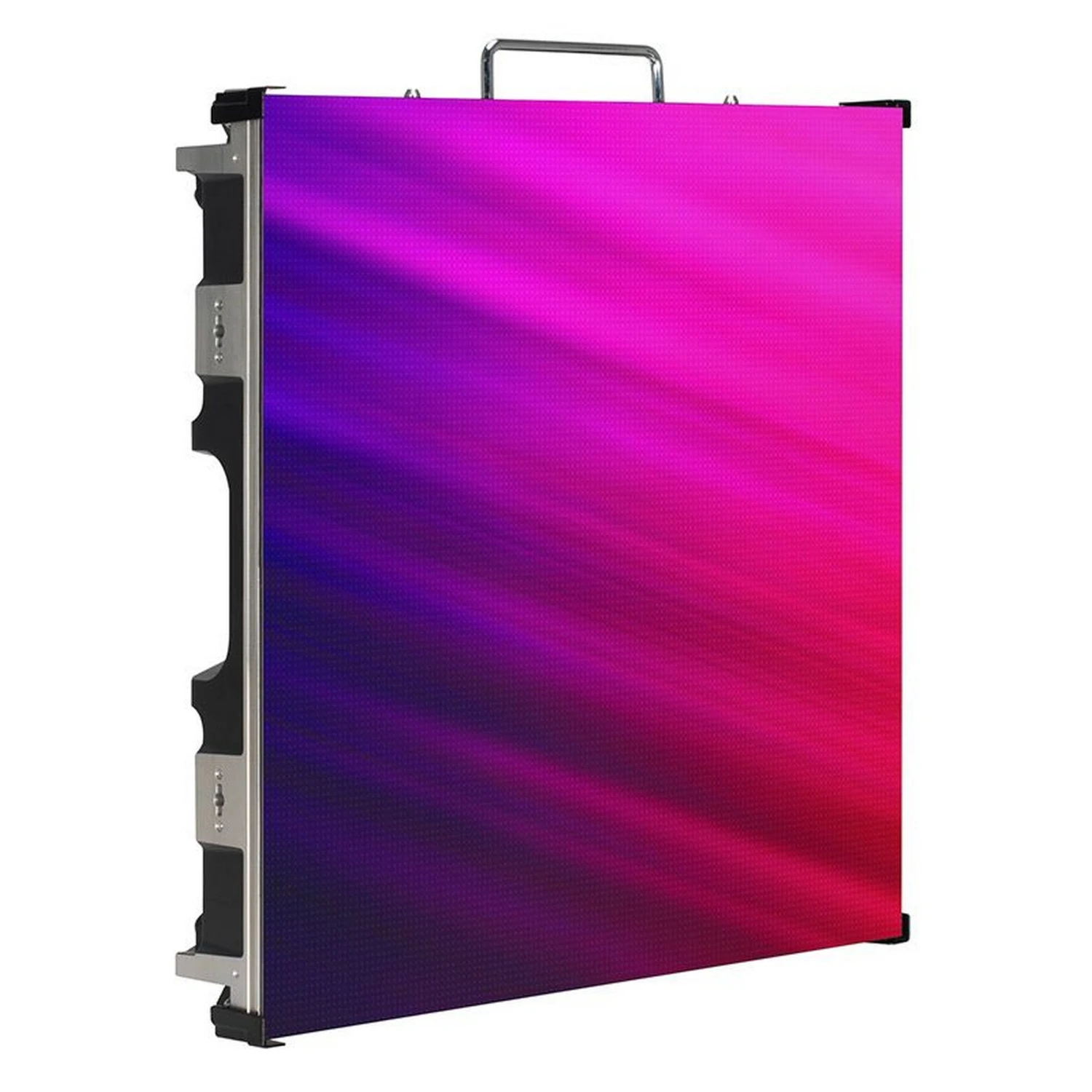

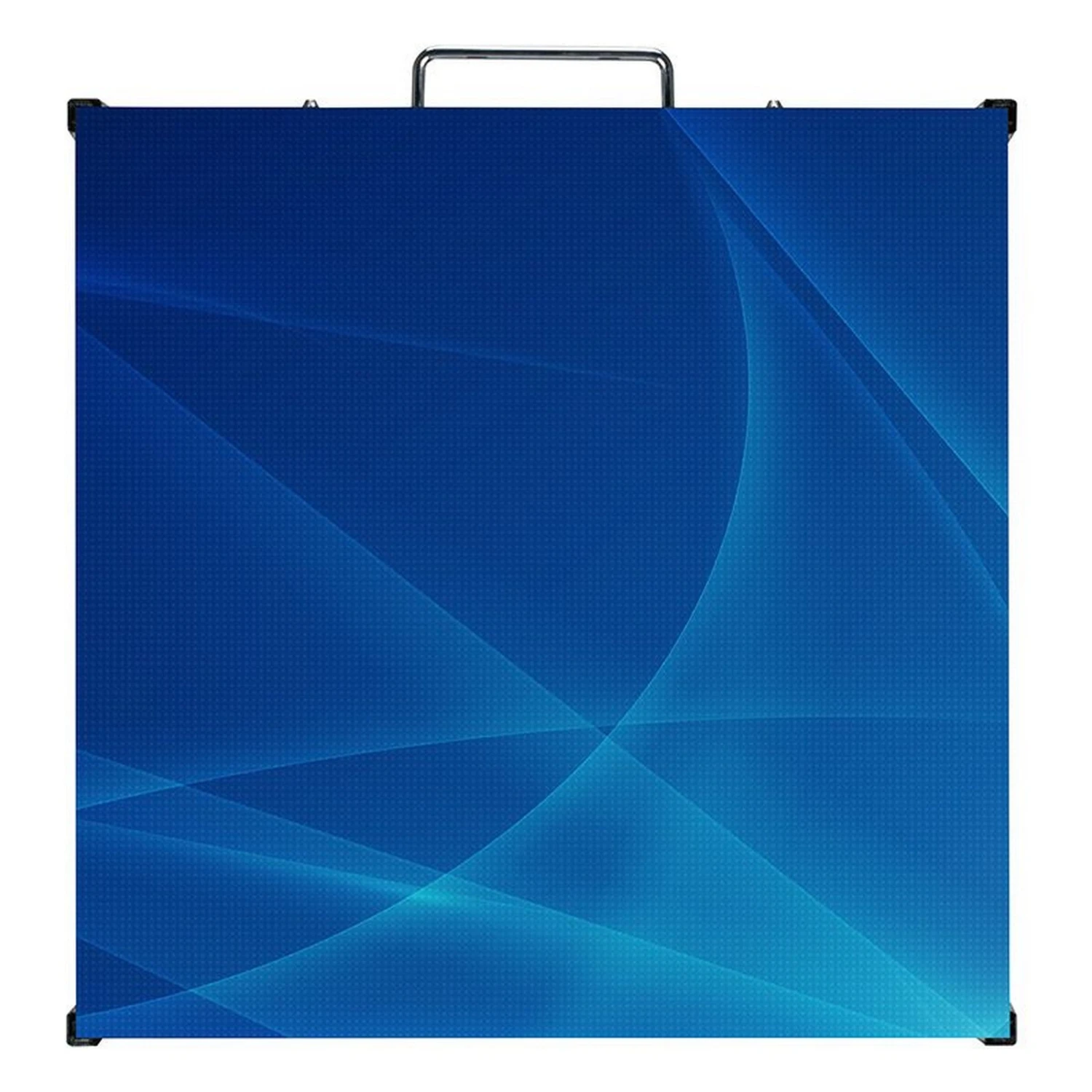

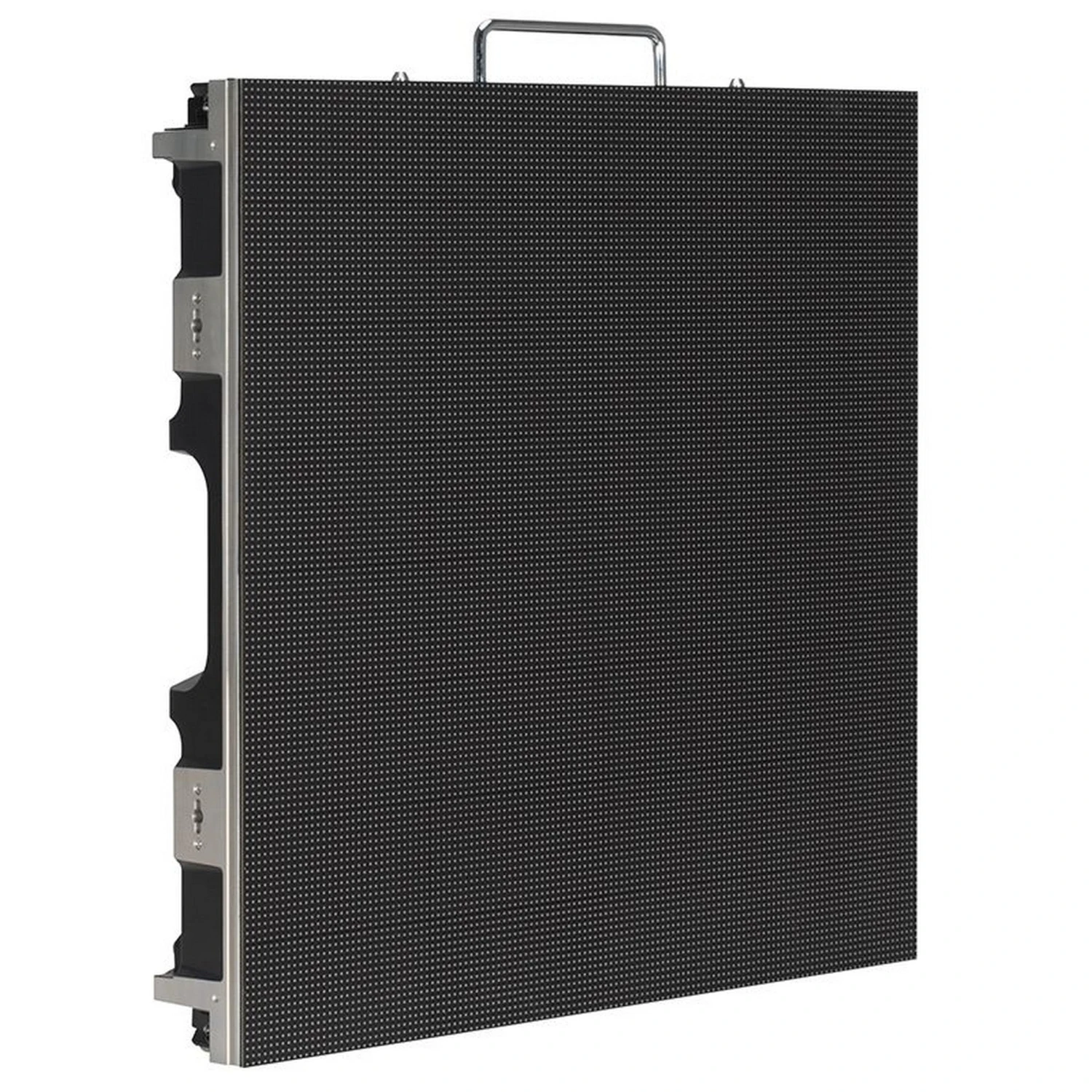

The ADJ EVS3 LED Lighting Video Panel with Wired Digital Communication Network stands out as a robust LED video panel solution tailored for temporary installations that require impressive visual presentations. Boasting a pixel pitch of 3.91mm and a 3-in-1 RGB SMD2121 LED configuration, the EVS3 delivers sharp, vibrant images with a pixel density of 128×128, totaling an impressive 65,536 pixels per square meter.

Designed for ease of use and durability, the EVS3 features both front and rear serviceability, with four easily replaceable video modules on each panel. Its compact dimensions of 19.68” x 19.68” x 2.96” and light weight of 16.5 lbs ensure portability and ease of handling.

Enhanced with corner protectors to safeguard against wear during transportation and setup, the EVS3 guarantees the longevity of your investment. Noteworthy optical specifications include a brightness of 800 NITS and a wide viewing angle of 160° horizontally and 140° vertically at a distance of 9.75 ft. The EVS3 offers versatile control options, accommodating various input modes such as Composite, S-Video, Component, VGA, DVI, HDMI, and HD-SDI.

Easily mount up to 20 EVS3 Video Panels vertically using the VSRB1 (VS1100) Rigging Bar. Additionally, a selection of optional accessories, including flight cases, rigging bars, support brackets, and video processors, are available to customize and optimize your setup to meet your specific requirements.

It is important to note that the EVS3 is suitable for temporary applications and should not be permanently installed. Elevate your visual presentations to a new level of excellence with the ADJ Lighting EVS3 LED video panel.

Key Features

• Module Memory (MOM)

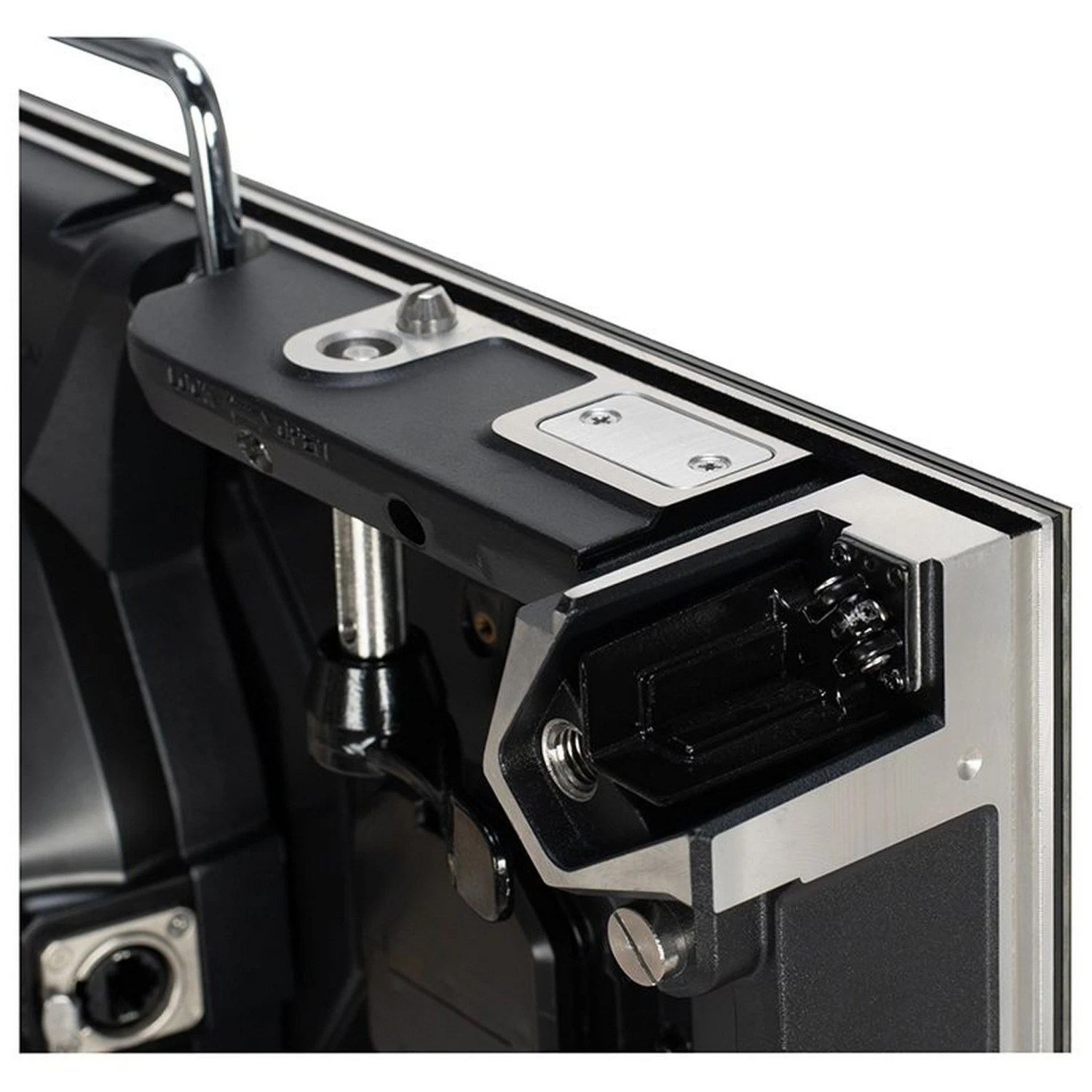

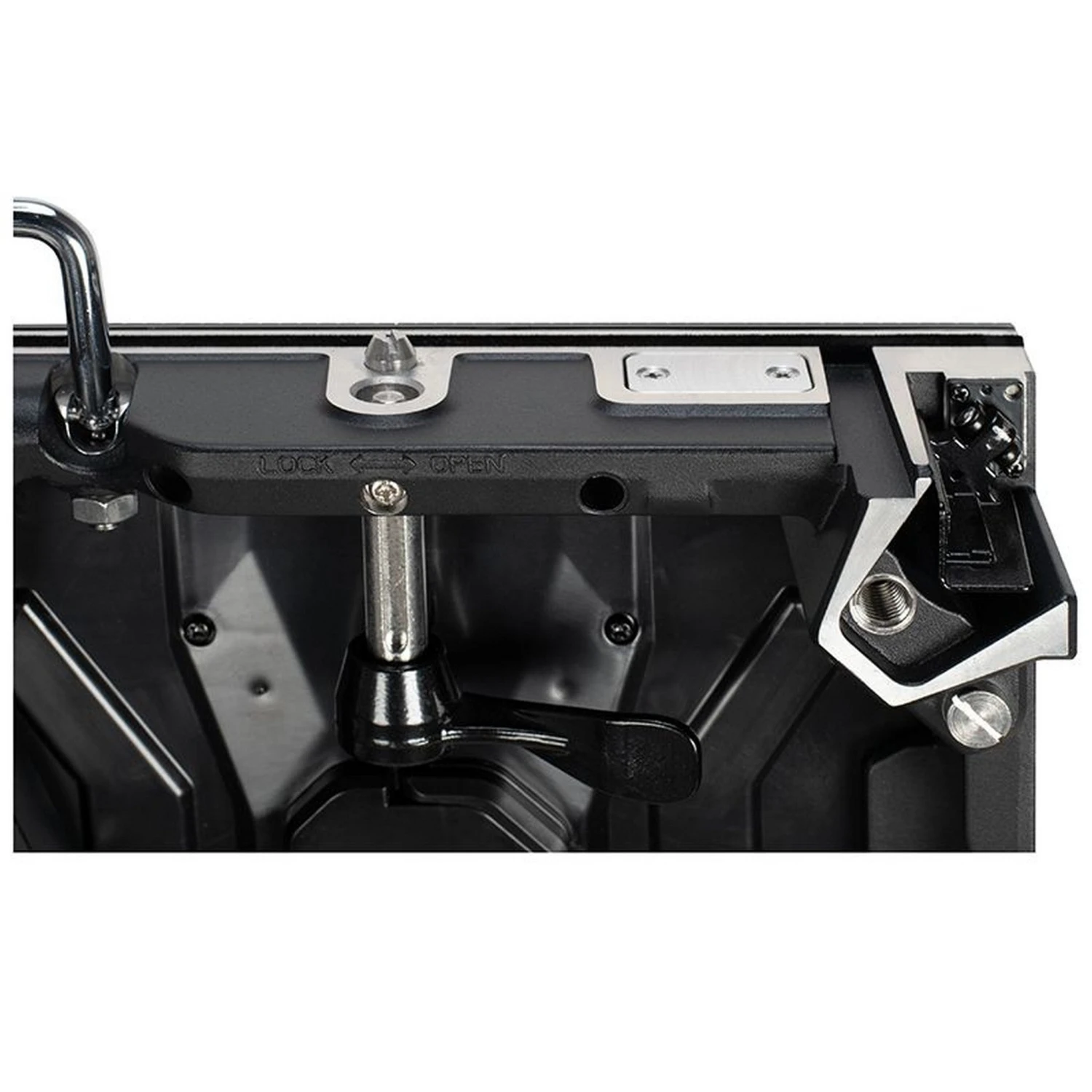

• Protective corner guards for safeguarding the corners of the EVS3 during transportation, setup, and dismantling

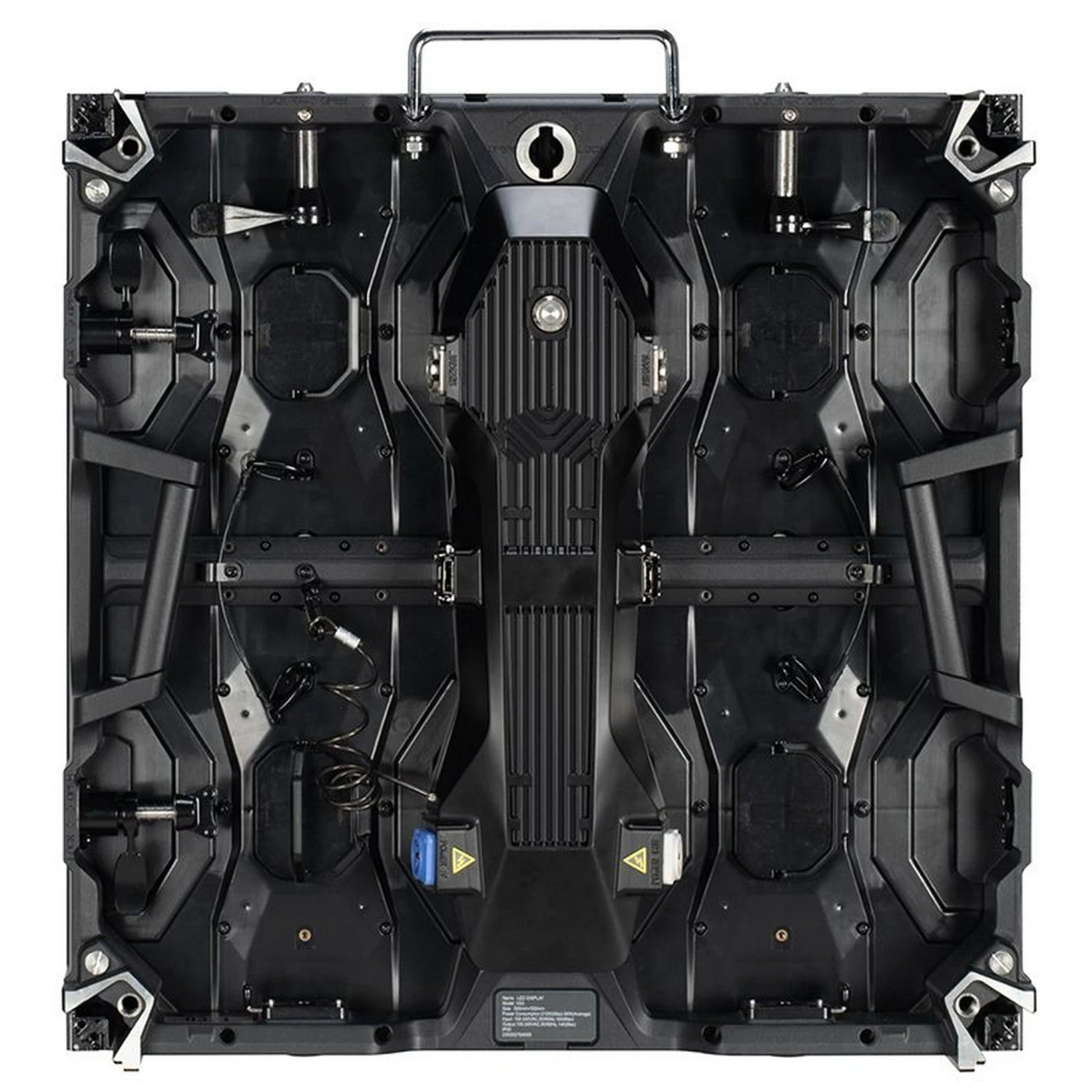

• Both front and rear serviceable: Each panel consists of 4 video modules that can be easily replaced

Technical Specifications

Pixel Pitch:
3.91mm (0.15”)
LED Configuration:
3-in-1 SMD2121 LED
Pixel Density:
128×128; 65536 per square meter
Size:
19.68” x 19.68” x 2.96” / 500 x 500 x 75mm
Module Quantity:
4
Weight:
16.5 lbs. / 7.5kg

MECHANICAL RATINGS:
Surface Flatness
Gaps<0.5mm

OPTICAL RATINGS:
Brightness
800 NITS
View Angle
Horizontal 160°/Vertical 140° @ 9.75 ft. (3m)
Gray Scale
≥14-bit
Display Color
256
Brightness Adjustment
0~100% 100 Levels
Contrast ratio
5000:1
Processing
14-bit

POWER SUPPLY:
Operation Power
100~240V 50-60Hz
Max. Power Consumption
120W/per panel
Ave. Power Consumption
48W/per panel
Connections Power/Data
Power-PowerLock In/Out; DataLock In/Out

CONTROL SYSTEM:
Control Mode
Nova Star Synchronous System with Control via DVI
Frame Update Frequency
50-75Hz
Scan Mode
1/16
Refresh Rate
3840Hz
Support Input
Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Control Distance
Ethernet Cable <120m or Fiber Optic>120m
Support VGA Mode
1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
Brightness Correction
Pixel, Module, Cabinet

ENVIRONMENTAL:
Operating Temp / Humidity
Fahrenheit
-4° + 104°
Celsius
-20° + 40°/ 10-90% (No Condensation)
Operating Life / MTBF
50,000 Hours / 5,000 Hours
Protection Level
IP20 (Front and Back)
Out of Control Rate
<0.02%

OPTIONAL ACCESSORIES (Sold Separately):
VSFC8 (VS8100)
Flight Case – Fits 8 EVS3 Video Panels
VSRB1 (VS1100)
Rigging Bar – Hang up to 20 EVS3 Video Panels vertically
VSMRT (VSM111)
Module Removal tool – Magnetically assists the tech in removing modules from the front side when servicing.
VSRQR (VSR210)
Quick Rig – Attaches and locks on to the rear of EVS3 so it can be fastened to a 2″ pipe or truss
VS1RSB (VS1126)
Rear Support Bracket for EVS3
VSSCSB (VSS225)
Single Column Support Base
VSGSB (VSG100)
Ground Support Base
VSGSLT (VSG132)
Ground Support Ladder Truss
VSGSCSB (VSG155)
Clamp Support Bar
EVSVAC (EVSVAC)
Vacuum Tool to Remove Modules

Novastar VX4S
Video Processor
Novastar MCTRL-300
Video Processor
Novastar Nova Pro HD
Video Processor
Arkaos Media Master
Video Software
Arkaos GrandVJ 2.0
Video Software

CABLES:
Cabinet to Cabinet Data Link Cables (Ethernet Locking Connectors)
Indoor Power Locking Link Cables
Indoor Power Locking Main Power Cables

CERTIFICATIONS:
cETLus

This product was developed for temporary use only! It should not be permanently installed.

Specifications are subject to change without notice.
