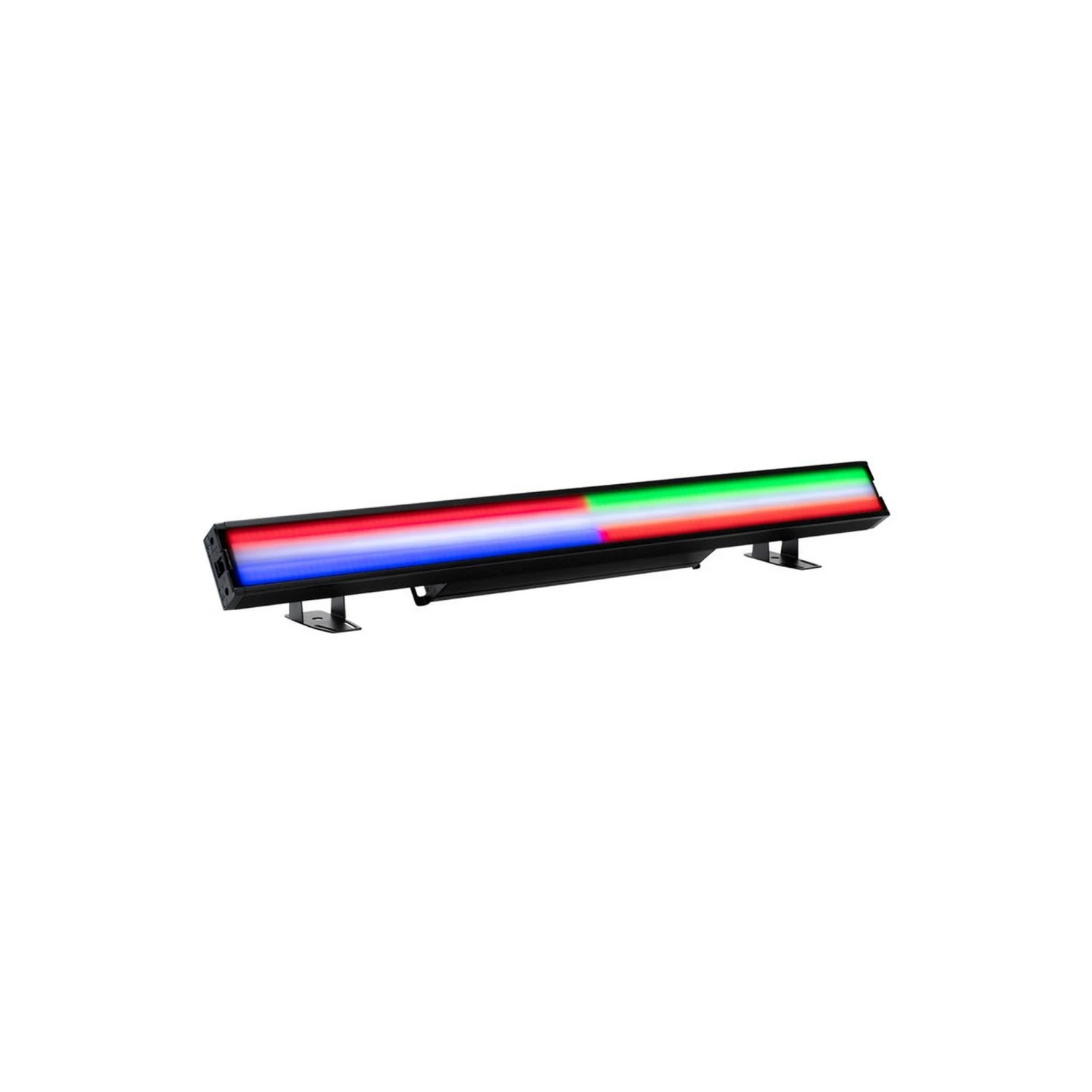

ADJ Jolt Bar FX2 IP20 RGBCW LED With Wired Digital Communication Network(Adj Jolt Bar Fx2 Ip20 Rgbcw Led With Wired Digital Communication Network)

The ADJ Jolt Bar FX2 IP20 RGBCW LED with Wired Digital Communication Network is a multi-purpose lighting fixture that combines intense white strobing with vibrant colored washes and eye-catching chaser effects. Ideal for large stages, festivals, nightclubs, and events, it offers unparalleled flexibility for lighting designers.

At the heart of the ADJ Jolt Bar FX2 IP20 RGBCW LED with Wired Digital Communication Network lies a hybrid LED design. A central strip of cool white SMD LEDs delivers powerful strobing effects, while flanking RGB SMD LEDs create colored washes and chases. Both zones are independently controllable, allowing for a wide variety of creative effects.

The ADJ Jolt Bar FX2 IP20 RGBCW LED with Wired Digital Communication Network boasts built-in ADJ Aria X2 wireless DMX for simplified data transmission. It’s also compatible with ADJ WiFLY EXR for even more flexibility. Users can choose from 13 DMX channel modes for optimal control. To further enhance visual effects, a frost lens filter is included to diffuse the LEDs and create softer washes. Additionally, seamless linking of multiple units allows for continuous chase effects.

The ADJ Jolt Bar FX2 IP20 RGBCW LED with Wired Digital Communication Network packs a punch with exceptional brightness and a wide 117-degree beam angle, making it perfect for illuminating large venues. Strobe effects can be fine-tuned with variable speed control, and LED refresh rates can be adjusted to eliminate flicker during video recording.

Despite its robust metal build, the ADJ Jolt Bar FX2 IP20 RGBCW LED with Wired Digital Communication Network is surprisingly lightweight and compact for convenient transport and setup. An intuitive 4-summary LCD menu display facilitates easy configuration and DMX addressing. 25 built-in RGB and 9 white program macros offer quick and impressive lighting effects.

Professional features include locking power connectors that allow daisy-chaining multiple fixtures, and 5-pin DMX In/Out enables seamless integration with lighting control systems. In summary, the ADJ Jolt Bar FX2 is a versatile and powerful LED fixture that empowers lighting professionals to create dynamic and creative lightshows for various entertainment applications.

Key Features

• 32 x RGB LED zones
• 16 x Cool White LED zones
• 25 built-in RGB LED Program Macros
• 9 built-in Cool White LED Program Macros
• 180 degree mounting bracket system

Technical Specifications

Light Source:
448 x 0.5W RGB SMD LEDs + 112 x 5W Cool White SMD LEDs
78° Beam Angle
117° Field Angle
Color Temperature: Red: 620-630nm. Green: 515-525nm. Blue: 460-470nm. / Cool White: 6900-7400K
CRI: 89
50,000 Hour Average LED Life

Control:
Control Protocol: DMX, Aria X2 and RDM
12 DMX Modes: 6, 9, 13, 16, 18, 32, 38, 43, 64,78, 112 and 127 channels
Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
Dim Curves: 4 Presets (Linear, Square Law, Inv Square Law and S Curve)
0-100% Smooth Dimming
Strobe, shutter & pulse control
Max Strobe Rate 25Hz. Min Strobe Rate: 0.35Hz.
With Wired Digital Communication Network
Display: OLED display with 4-summary touch menu

Connections:
Data: Indoor locking 5-pin DMX In/Out
Power: Indoor locking power In/Out

Electrical:
100-240V 50Hz/60Hz (Auto Sensing)
Max Power Consumption: 214W @120V, 208W @230V
Max Power Link: 6pcs @120V, 12pcs @230V +
Fuse Protected: T5A/250V Glass Fuse (5*20MM)

Dimensions / Weight:
Length: 4.07″ (103.5mm)
Width: 39.4” (1000mm)
Height: 3.98” (101mm)
Weight: TBA lbs. ( TBA kg)

What’s Included:
1x Indoor, 6ft (1.83m) Power locking to Edison power cable (U.S.)
1x Frost Filter
2x Omega Receiver Brackets (Omega Clamps sold separately)

Optional Accessories:
180mm Omega Bracket

Approvals and Ratings:
CE
cETLus (Control # 4010765)
IP20

Specifications subject to change without notice.
