ADJ Mirage Par H IP 60W Wireless DMX LED Par(Adj Mirage Par H Ip 60w Wireless Dmx Led Par)

Mirage PAR H IP – High-Performance LED Par Light with Battery and Wall Power Options

Introducing the Mirage PAR H IP, a versatile and powerful LED Par light designed for professional lighting applications. Whether you’re working on an outdoor event or setting up an indoor display, this fixture delivers exceptional lighting quality with a wide range of customizable features. Its five 20W Hex Color RGBAL+UV LEDs allow you to create vibrant, dynamic colors with superior brightness and accuracy. Perfect for a variety of settings, this LED par offers battery-powered operation with durations ranging from 5 to 20 hours, or can be connected to wall power for continuous operation. The Mirage PAR H IP provides professional-grade control options, including DMX512, Aria X2 wireless management, Bluetooth, and IR, making it easy to integrate into any lighting setup. Designed with IP65-rated housing, this fixture is built to withstand the elements, making it an ideal choice for outdoor events or demanding environments. With a beam angle of 17° and a variable white color temperature range of 2,300K to 9,900K, the Mirage PAR H IP gives you complete control over your lighting needs.

Take advantage of the Mirage PAR H IP’s extensive control features, including user-selectable LED refresh rates (900Hz to 25K) and a range of dimming modes (6 selectable dim modes and 4 dim curves). Whether you’re using it for a concert, theater production, or a corporate event, this fixture’s versatility and ease of use make it an indispensable tool. The Mirage PAR H IP is also equipped with an electronic strobe feature (0.3Hz to 11Hz) and electronic dimming for added creative control. The 50,000-hour average lifespan of the LEDs ensures long-lasting performance, reducing the need for frequent replacements. Its rechargeable lithium-ion battery with a 6,600mAh capacity offers reliable performance for hours, and the fixture can be charged fully in just 5 hours. The Mirage PAR H IP is engineered to perform in a wide range of temperatures, from -4°F to 113°F, making it adaptable for use in different climates.

With its sleek digital display, adjustable hanging/kickstand bracket, and IP65-rated construction, the Mirage PAR H IP is easy to set up and move around. Whether you’re setting up for a large outdoor festival or adding some atmosphere to a small indoor venue, this fixture is designed to meet the demands of any lighting professional. Its rugged design, combined with its cutting-edge features, makes it a top choice for any lighting project.

Key Features

• 5 Pixel, Hex Color LED (RGBAL+UV) LED Par Battery or Wall Powered
• Battery operation selectable from 5 to 20 hours
• Built-in programs for easy use
• Variable White Color Temperature Control (2,700K ~ 9,900K)
• User Selectable LED Refresh Rates (900Hz ~ 25K)
• 6 User-Selectable Dim Modes
• 4 User-Selectable Dim Curves
• Electronic Strobe (0.3Hz ~ 11Hz)
• Electronic Dimming

Technical Specifications

Light Source: 5 x 20W Hex Color RGBAL+UV LED’s
Average LED Lifespan: 50,000 Hours
Optical: 2,300K ~ 9,900K White Color Temperature Range
Beam Angle: 17°
Housing: IP65 Housing

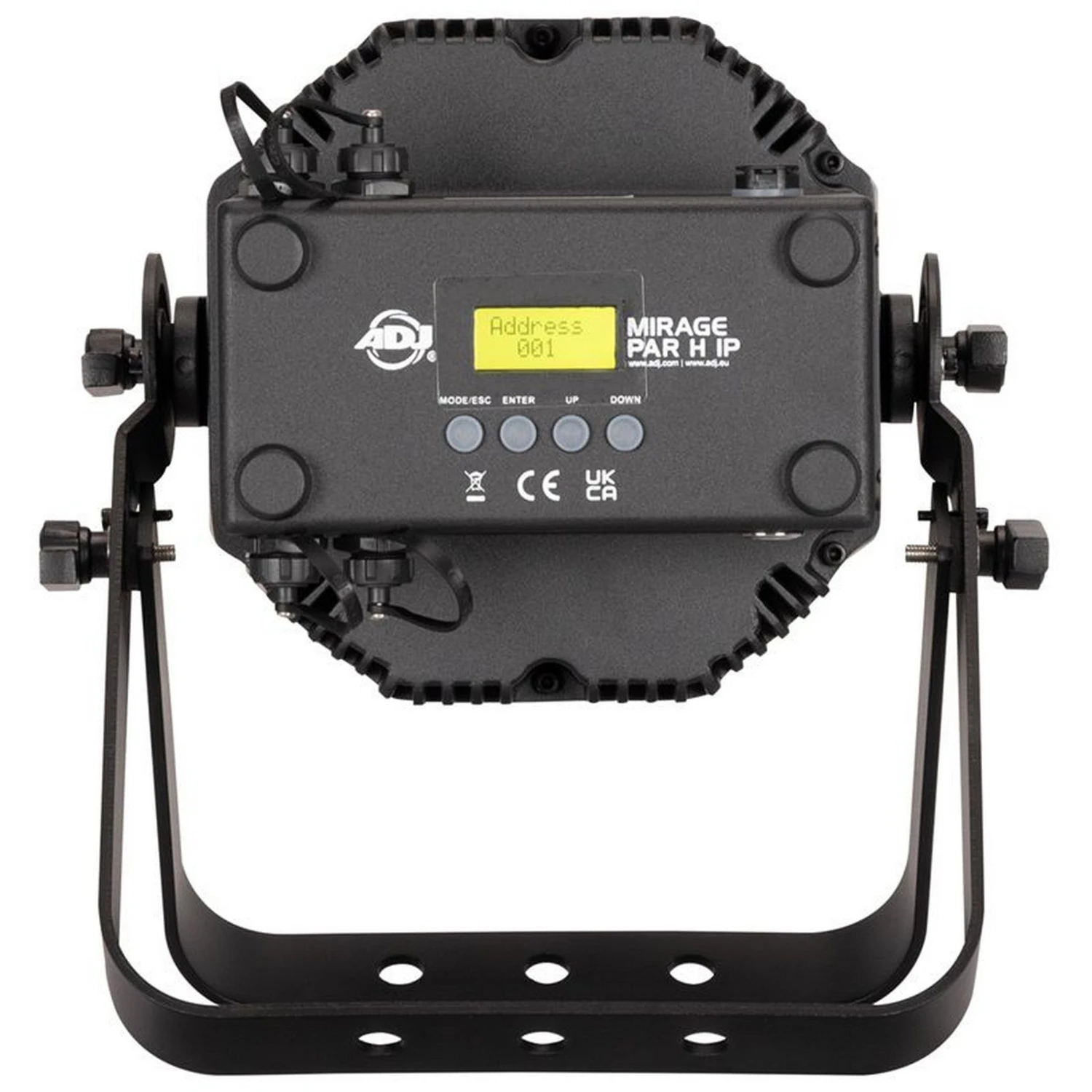

Display: Digital display
Bracket: Adjustable, hanging / kickstand bracket

Control

• DMX512
• Aria X2 Wireless Management / DMX System
• Bluetooth
• RDM and RDM Net Compatible
• IR (Includes UCIR24 wireless remote)
• 6 DMX Channel Modes (5, 6, 9A, 9B, 15 & 17 Channel modes)
• On-board Manual Control Mode
• Primary / Secondary Mode

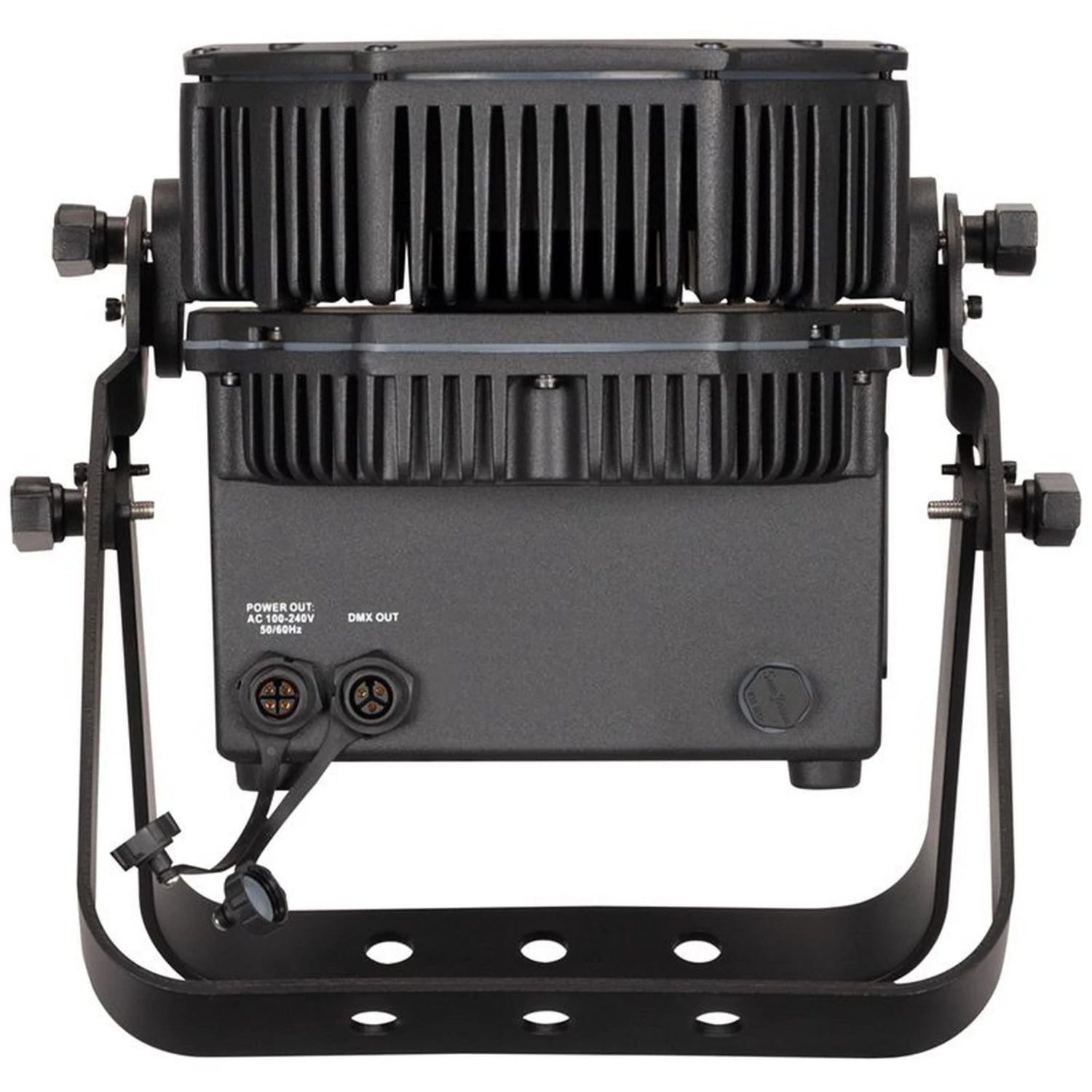

Connections

• Chogori IP65 data locking connectors
• Chogori IP65 power connectors

Dimensions & Weight

Length: 11.1” (282mm)
Width: 10.6” (269mm)
Height: 10.4” (265mm)
Weight: 11.9 lbs. (5.4 kg)

Power

Input: AC100-240V/50Hz-60Hz
Power Consumption: 60W
Link: 14 pieces @120VAC or 28 pieces @ 230VAC

Battery

Rechargeable Lithium-ion
Battery Capacity: 6,600mAh
Battery Voltage: 22.2V
Charge Time: 5 Hours (To Full)
Battery Cycles: 500

Thermal

Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)
Storage Temperature: -22°F to 113°F (-30°C to 45°C)

Certifications & IP Rating

CE
cETLus (Pending)
FCC
IP65

What’s Included

• 1 x WIF901-POWER CABLE (IP65 Chogori to Edison Locking Power Cable)
• 1 x CHS5INDMX (20” Chogori locking output data connector to Seetronic 5-pin, IP65, male input XLR connector adapter cable)
• 1 x CHS5OUTDMX (20” Chogori locking input data connector to Seetronic 5-pin, IP65, female output XLR connector adapter cable)
• 1 x Floor / Mounting Bracket
• 1 x UCIR24 Remote
