ADJ Par Z100 3K2 100W 3000K Warm White COB LED Fixture(Adj Par Z100 3k2 100w 3000k Warm White Cob Led Fixture)

ADJ Par Z100 3K2 100W 3000K Warm White COB LED Fixture: A Modern Twist on Classic Par Can Design

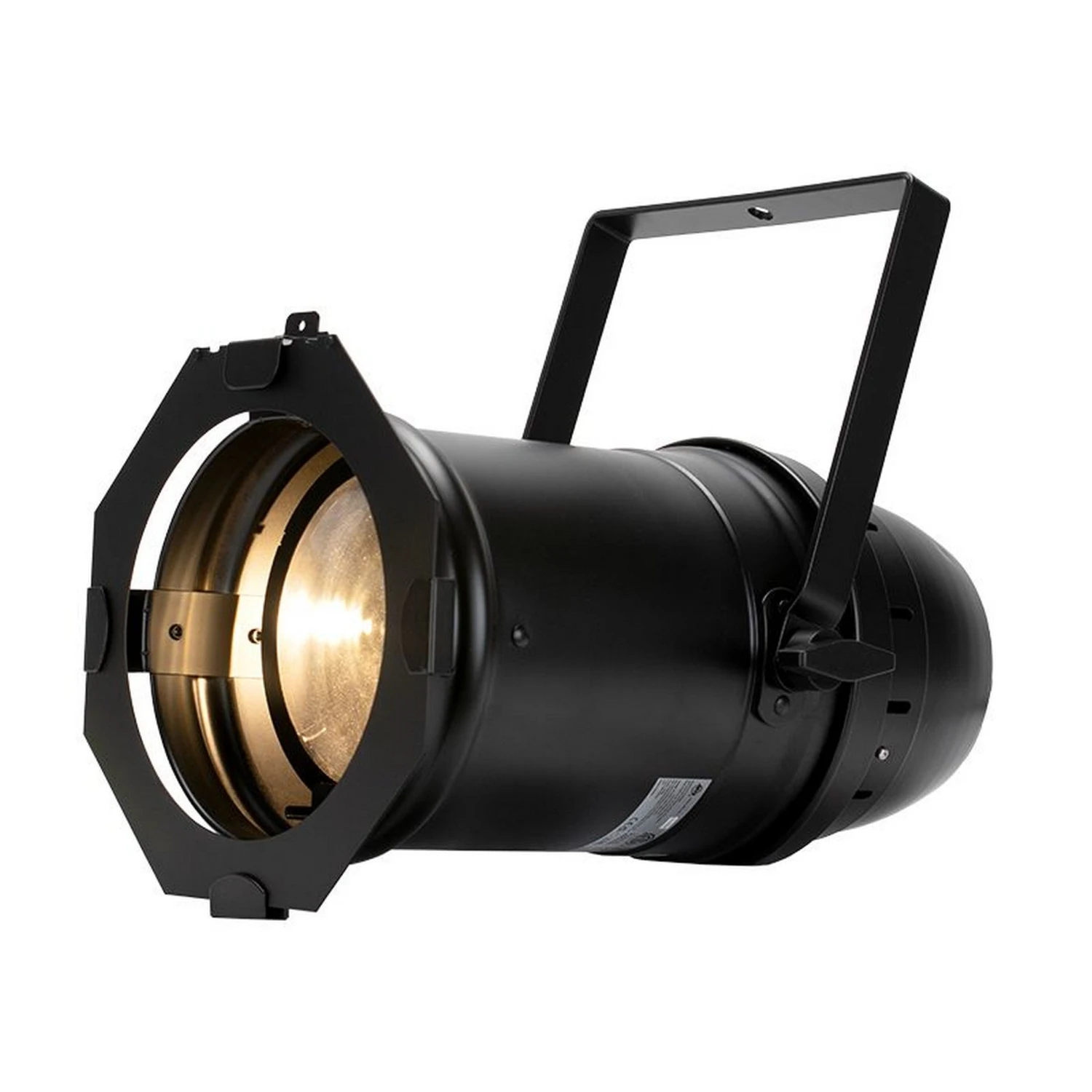

The ADJ Lighting Par Z100 3K2 combines the traditional aesthetic of a par can with the modern technology of LED lights. The black casing is reminiscent of a standard par can, but with an LED light source that produces a similar output to a 1000W sealed beam par, without producing excess heat.

This Par Z100 3K2 is powered by a 100-Watt, 3000K Warm White C.O.B. LED engine, with a CRI greater than 90, providing an accurate replication of the output from a classic lamp. The fixture also features five manual zoom beam angles, allowing designers to choose from a range of 9° to 30°. Additionally, the fixture comes with a traditional par can gel frame, which allows designers to add diffusion filters for further control over the fixture’s output.

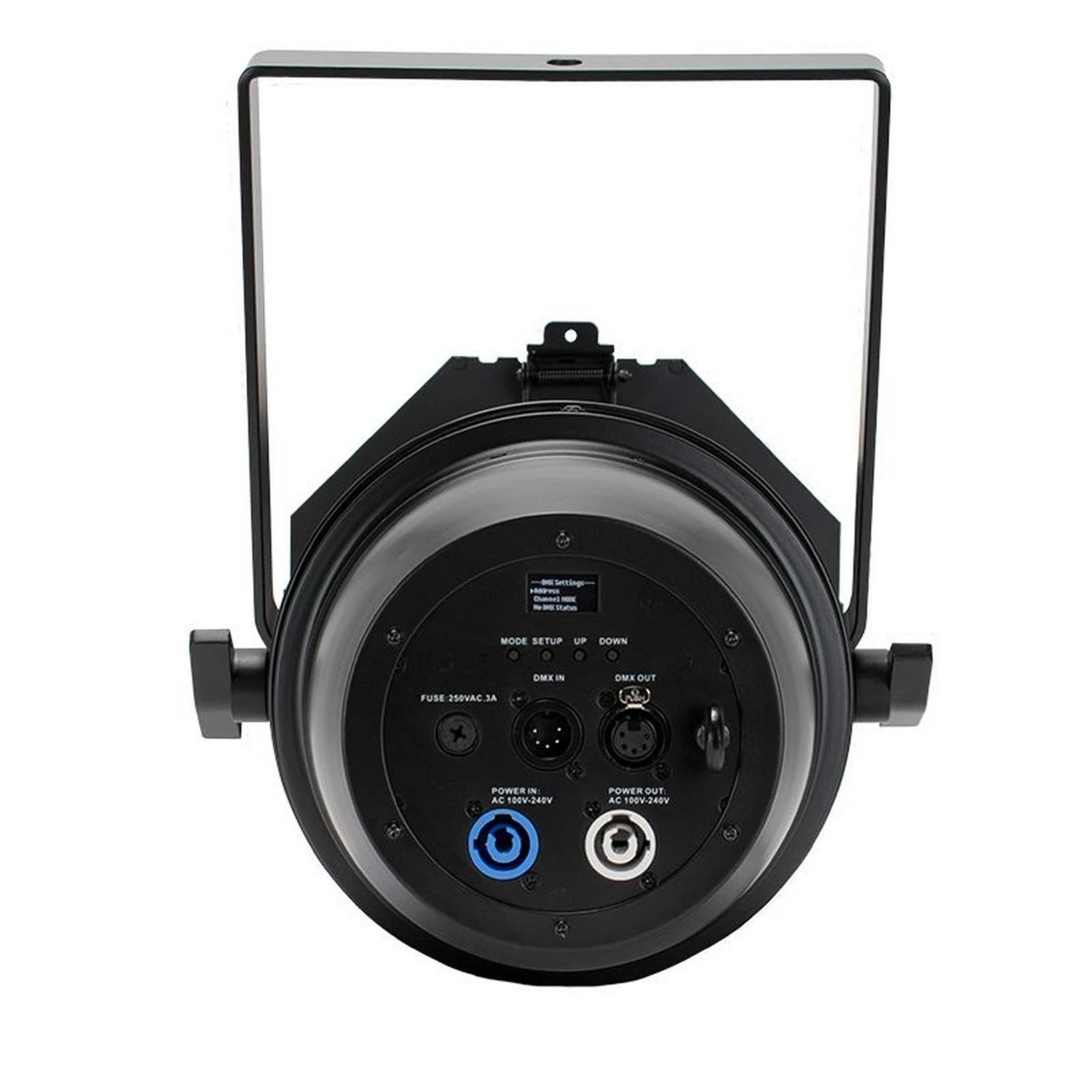

With a 4-summary DMX OLED display menu, adjustable strobe rates, 6 dim modes, and electronic dimming from 1-100%, the Par Z100 3K2 is a versatile option for lighting designers. The fixture is also RDM and RDM Net compatible, with locking power In/Out sockets for daisy-chaining power, as well as 5-pin DMX data In/Out sockets located on the back.

Key Features

• The ADJ Lighting Par Z100 3K2 is a LED lighting fixture that combines the classic par look with modern LED technology.
• It has the appearance of a regular black Par can, but it houses a powerful LED light source inside.
• The output of the PAR Z100 3K2 is comparable to a 1000W sealed beam Par, but it generates much less heat.
• This makes it an ideal choice for illuminating stages without causing discomfort to performers.
• The rear panel of the fixture features a 4-summary DMX menu display for easy control.
• It also has an OLED display for clear visibility of settings and information.
• The beam angle of the PAR Z100 3K2 can be manually adjusted using an adjustable latch.
• It comes with a gel frame for diffusion filters, although the diffusion filters themselves are sold separately.
• The strobe rate of the fixture can be adjusted from 0.6Hz to 7.5Hz.
• It has a high refresh rate of 1.2KHz and offers electronic dimming from 0 to 100% in 6 different modes.
• The PAR Z100 3K2 is equipped with a 100 Watt, 3000k Warm White C.O.B. LED (Chip On Board) with a rated life expectancy of 50,000 hours.

Technical Specifications

Optical
100 Watt, 3000k Warm White C.O.B. LED (Chip On Board)
Life expectancy
rated at 50,000 hrs.
Manual Zoom
9°, 15°, 20°, 25° or 30°
Zoom Ration
3.3:1
Photometrics
5885 Lux (Zoomed In to 9° @ 5 meters)
767 Lux (Zoomed Out to 25° @ 5 meters)
CRI
>90
Connection
DMX
5-pin DMX In/Out
With Wired Digital Communication Network
Locking power In/Out connections
Control
DMX-512
2 DMX control modes
(3 & 4 Ch. modes)
RDM and RDM Net Compatible
Primary/Secondary, stand-alone mode
On-board manual control mode
Features
4-summary DMX menu display on rear panel
OLED display
Adjustable latch to manually change beam angle
Includes gel frame for diffusion filters (Diffusion filter sold separately)
Strobe Rate
0.6Hz to 7.5Hz
Refresh Rate
1.2KHz
Electronic Dimming
0 – 100%
6 Dim Modes
Electrical
Power Draw Total (@ Full On)
115W
Power Consumption
0.964A @ 120V/60Hz; 0.5A @ 220V/50Hz
Multi-voltage operation
AC 100-240V, 50/60Hz
Daisy chain
15 fixtures @ 120V; 25 fixtures @ 230V
Fuse protected
3A/250V
Ambient Temperature Range (For Use)
-4 Degrees ~ 113 Degrees F (-20 Degrees C ~ 45 Degrees C)
Storage Temperature Range
-22 Degrees ~ 113 Degrees F (-30 Degrees C ~ 45 Degrees C)
Dimensions / Weight
Dimensions (LxWxH)
19.25” x 10.94” x 10.68” / 489 x 277.7 x 271.1mm
Weight
7.94lbs. / 3.6kg.
IP Rating / Approvals
IP20
CE & FCC
ETL PENDING
