ADJ Par Z300 RGBA 300W Quad LED Par(Adj Par Z300 Rgba 300w Quad Led Par)

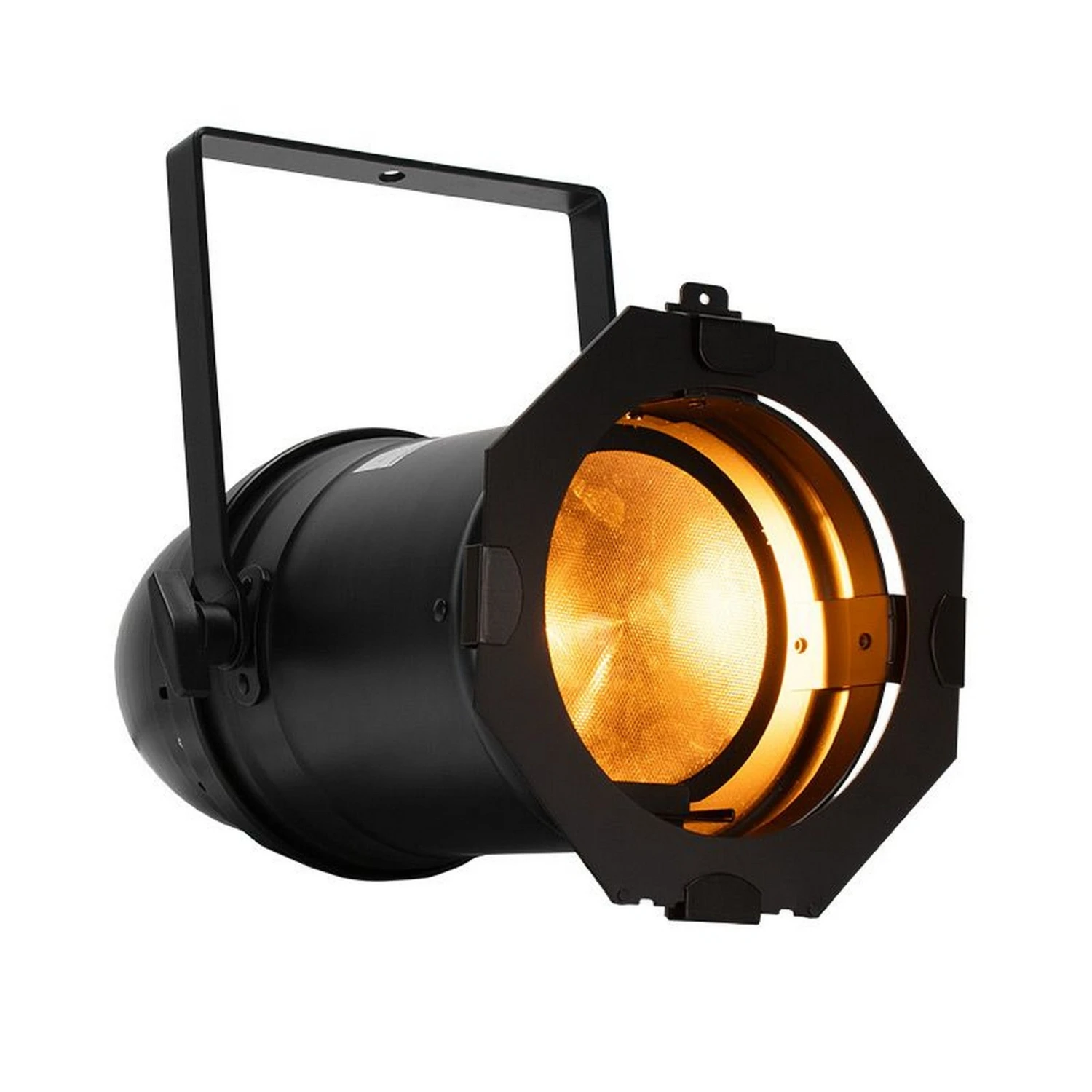

ADJ PAR-Z300 RGBA – High-Performance LED PAR Light

The ADJ PAR-Z300 RGBA is a powerful and versatile LED PAR light designed for professional use in a wide range of lighting applications. This fixture features a 300-Watt Quad RGBA Chip On Board (C.O.B.) LED, offering vibrant and rich colors across red, green, blue, and amber spectrums. With a life expectancy rated at 50,000 hours, this durable unit is built to last, delivering exceptional performance through long periods of use. The PAR-Z300 RGBA is ideal for concerts, theater productions, and large events where high-quality lighting is essential for creating stunning visual effects.

Engineered for flexibility, the PAR-Z300 RGBA includes manual zoom with multiple angle options (9°, 15°, 20°, 25°, 30°, 35°, and 40°), providing fine control over your lighting coverage. The zoom ratio is 4.4:1, allowing for precise adjustments from a narrow beam to a wide wash. Photometrically, it offers impressive light output with 5230 Lux when zoomed in to 9° and 597 Lux when zoomed out to 40°. The high Color Rendering Index (CRI) of over 90 ensures excellent color accuracy, making this fixture a must-have for professionals looking to achieve true-to-life hues on stage or in any event setting.

In terms of connectivity and control, the PAR-Z300 RGBA supports both DMX-512 and Aria X2 Wireless DMX, offering multiple control modes and compatibility with modern wireless networks. It also features an intuitive 4-summary DMX menu display and an OLED display for easy navigation of settings. Additionally, the unit includes 64 built-in color macros, 13 internal programs, and electronic dimming capabilities ranging from 0-100%. The adjustable latch allows you to manually change the beam angle, while the gel frame lets you add diffusion filters to soften the light (filters sold separately). Whether you’re controlling it manually or via DMX, this fixture provides excellent flexibility for all lighting needs.

Key Features

• 300-Watt Quad RGBA C.O.B. LED for bright and vibrant color output.
• Manual Zoom: Adjustable beam angles from 9° to 40°.
• Long Life Expectancy: Rated at 50,000 hours of operation.
• High CRI: Color Rendering Index of over 90 for true-to-life colors.
• Control Compatibility: Supports DMX-512, Aria X2 Wireless DMX, and multiple DMX control modes.
• 64 Built-in Color Macros and 13 built-in internal programs for creative lighting design.
• Electronic Dimming: 0-100% with 6 dim modes and 4 dim curves.
• Adjustable Beam Angle with manual latch for quick adjustments.
• Included Gel Frame for adding diffusion filters (sold separately).
• Power Draw: 320W, with a multi-voltage range of AC 100-240V, 50/60Hz.

Technical Specifications

Optical:
• 300-Watt Quad RGBA C.O.B. LED (Chip On Board – Red, Green, Blue & Amber)
• Life expectancy: rated at 50,000 hrs.
• Manual Zoom: 9°, 15°, 20°, 25°, 30°, 35° or 40-degrees
• Zoom Ratio: 4.4:1

Photometrics:
• 5230 Lux (Zoomed In to 9°)
• 597 Lux (Zoomed Out to 40°)
• CRI: >90

Connections:
• DMX: 5-pin DMX In/Out
• With Wired Digital Communication Network
• Locking power In/Out connections

Control:
• DMX-512 and Aria X2 Wireless DMX / APP
• 9 DMX control modes: (4/5/9A/9B/13 & 15 Ch. modes)
• RDM and RDM Net Compatible
• Primary/Secondary, stand-alone mode
• On-board manual control mode

Features:
• Aria X2 Compatible
• Linear white color temperature control (2300K ~ 9900K)
• Color Temperature Presets (2300K ~ 9900K)
• 4-summary DMX menu display on rear panel
• OLED display
• Adjustable latch to manually change beam angle
• Includes gel frame for diffusion filters (Diffusion filter sold separately)
• 64 Built-in Color Macros
• 13 Built-in Internal Programs
• Strobe Rate: 0.6Hz to 7.5Hz
• Selectable Refresh Rates: 900Hz, 1000Hz, 1100Hz, 1200Hz, 1300Hz, 1400Hz, 1500Hz, 2500Hz, 4000Hz, 5000Hz, 10KHz, 15KHz, 20KHz, 25KHz
• Electronic Dimming: 0 – 100%
• 6 Dim Modes
• 4 Dim Curves
• On-board, color balance feature for each color (RGBA)

Electrical:
• Power Draw Total (All LED’s @ Full On): 320W
• Power Consumption: 2.7A @ 120V/60Hz ; 1.5A @ 220V/50Hz
• Multi-voltage operation: AC 100-240V, 50/60Hz
• Daisy chain: 2 fixtures @ 120V; 4 fixtures @ 230V
• Fuse protected: 8A/250V

Ambient Temperature Range (For Use):
• -4°F ~ 104°F (-20°C ~ 40°C)

Storage Temperature Range:
• -22°F ~ 113°F (-30°C ~ 45°C)

Dimensions / Weight:
• Dimensions (LxWxH): 20.08” x 15.33” x 10.14”
• Weight: 13.23 lbs.

IP Rating / Approvals:
• IP20
• CE & FCC
• ETL (Pending)

What’s Included

• Gel Frame

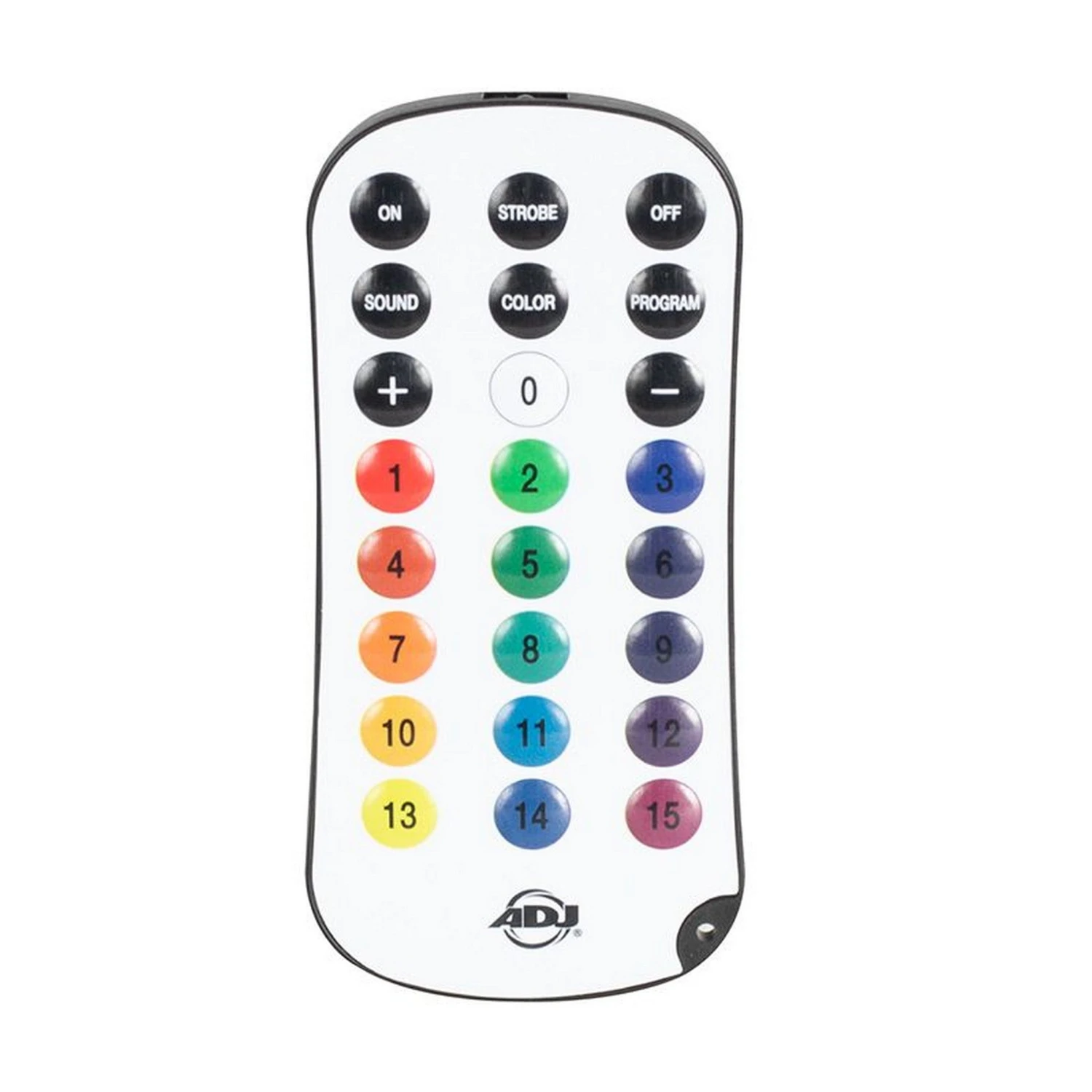

• UCIR24 Wireless Remote
• Power Cord
