ADJ Scene Setter 48 48ch DMX Theatrical Stage Dimmer(American Dj Scene Setter 48 48ch Dmx Theatrical Stage Dimmer)

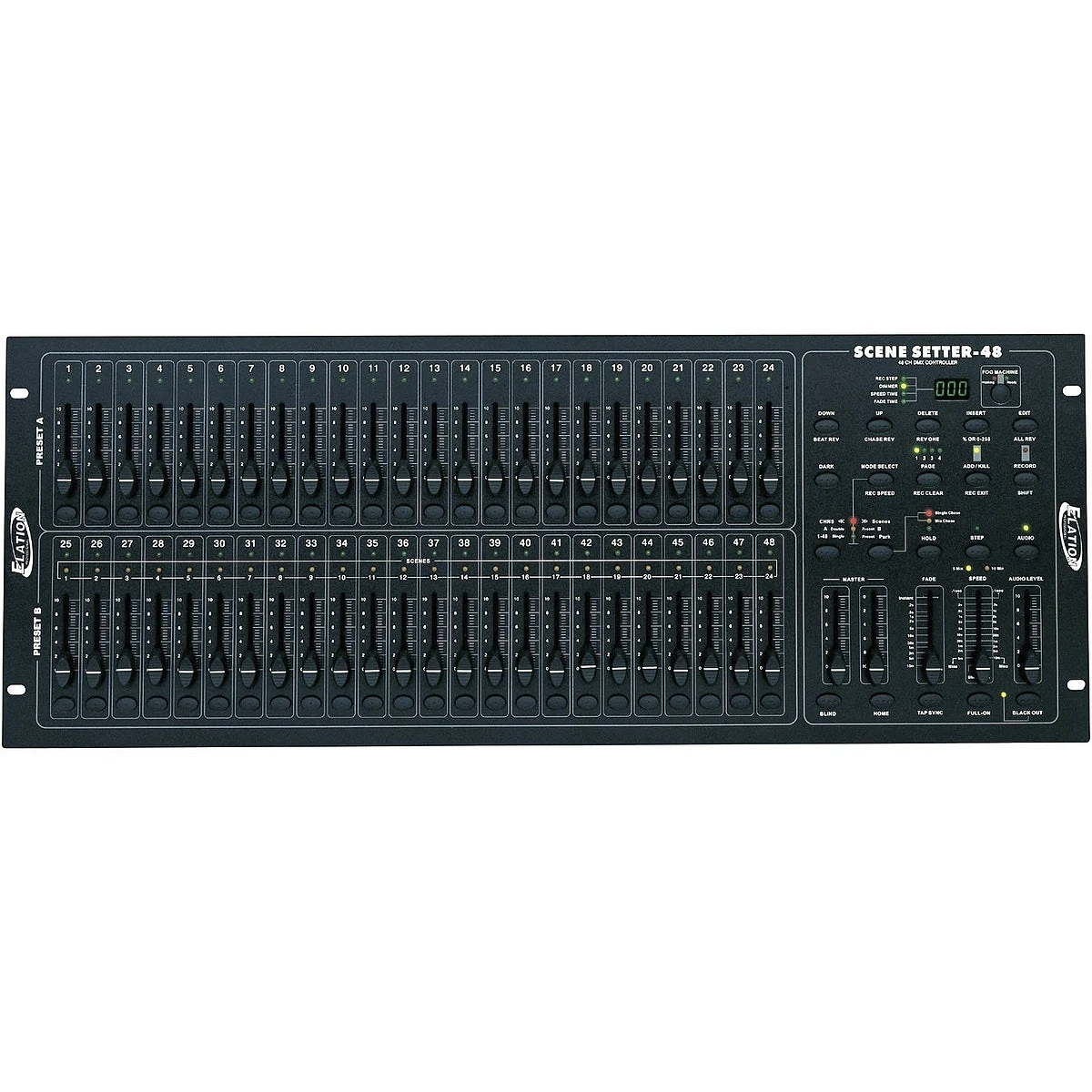

American DJ Scene Setter 48 48ch DMX Theatrical Stage Dimmer

The American DJ Scene Setter 48 Lighting Controller has all the same great features like the 24 channel Scene Setter… the only difference is that it incorporates 24 more individual faders

Key Features

• For larger Stages
• 48 Channels DMX
• Easy Programmabliltiy ( same as Scene Setter 24ch)
• 96 recordable programs with 4200 scenes
• Midi In/Out Through
• Standard 2 scene operation (2 x 24)
• USITT DMX 512 Standard Protocol with 3 pin XLR
• Fade and Speed Control
• Independent fog output summary for Vaporizer, Stallion, MB-700 & MB-1000
• Blind Function override chases on the FLY
• Sound active via built in Microphone or line in
• Mix Chases
• Dark and Black out summarys
• Use in Conjunction with DP-DMX20,DP-DMX20L or DP-DMX620
• Optional Foot controller for Dark or Full on

Technical Specifications

Power Input
DC 12~20V, 500 mA min.
DMX Output
3 pin female XLR
MIDI Signal
5 pin standard interface
Audio Input
100 mV~1Vpp
Fuse(internal)
F0.5A 250V 5x20mm
Dimensions
711x264x85mm
Weight
7.2 kg / 15.87 lbs
