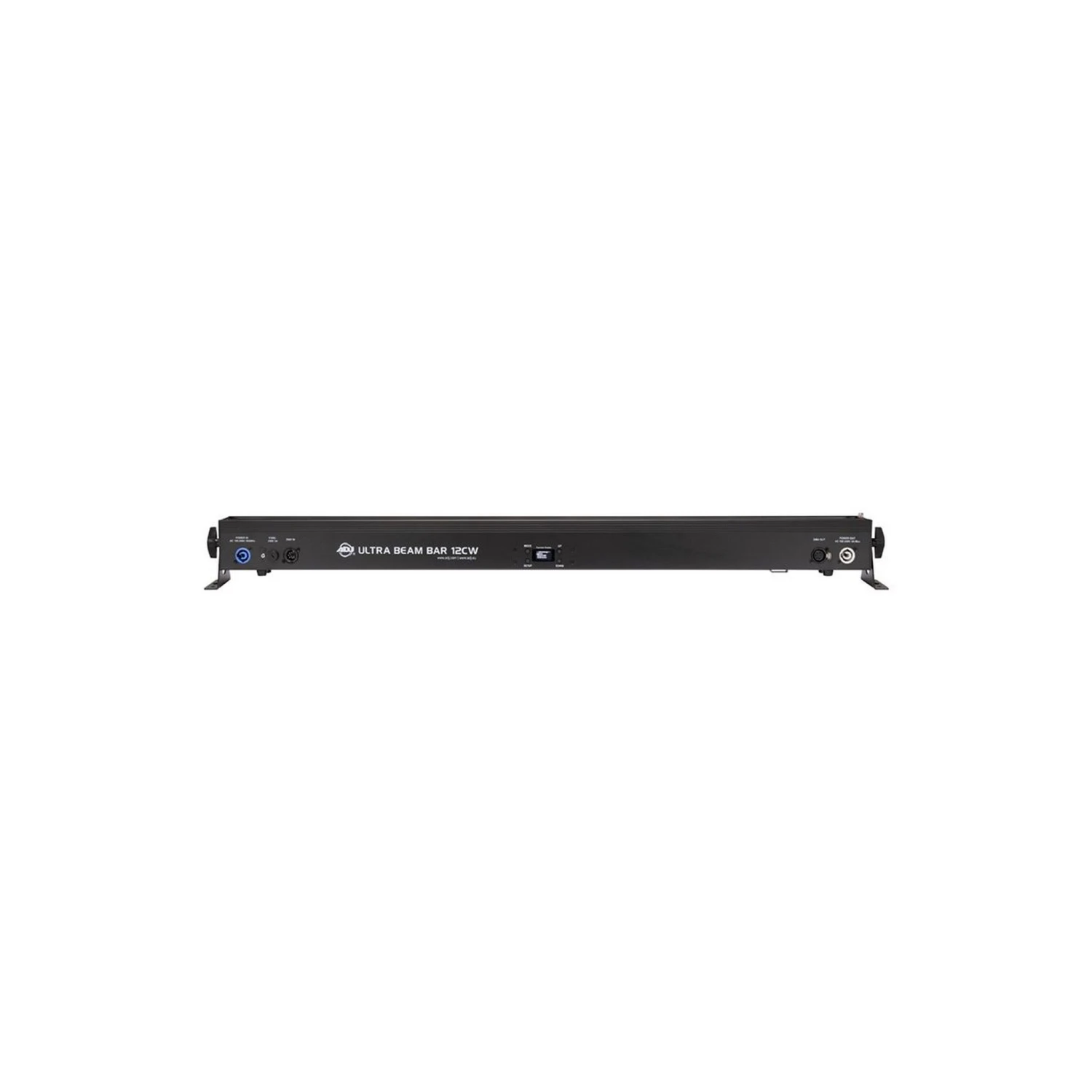

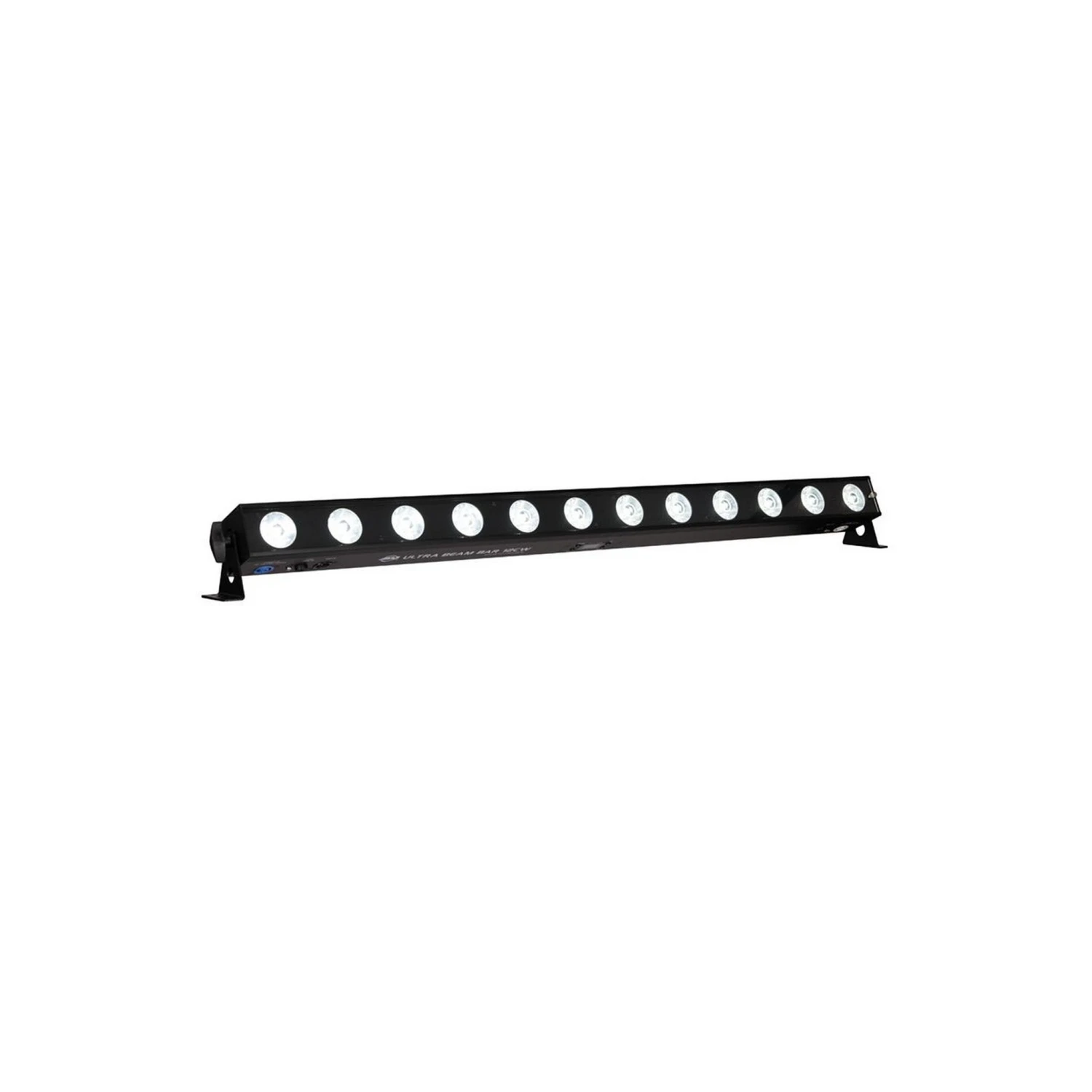

ADJ Ultra Beam Bar 12CW, 6200K 20W

The ADJ Ultra Beam Bar 12CW is a state-of-the-art lighting fixture designed for professional use, featuring 12 ultra-bright 20W LEDs that emit a cool white light at 6200K. With a long lifespan of approximately 50,000 hours and a powerful output of 1340 lumens, this fixture is perfect for creating sharp beams and stunning visual displays. Its compact design allows for easy integration into any lighting setup, while its advanced control features provide versatility for various applications.

Equipped with a 5° beam angle and pixel pitch of 85.5mm, the Ultra Beam Bar 12CW offers precise control over lighting effects. It supports multiple DMX channel modes and includes built-in programs for easy operation. The fixture is also compatible with the ADJ UC-IR remote, allowing for wireless control from up to 32.8 feet away. With features like horizontal magnetic alignment and individual pixel control, this fixture stands out in any lighting rig.

Key Features:

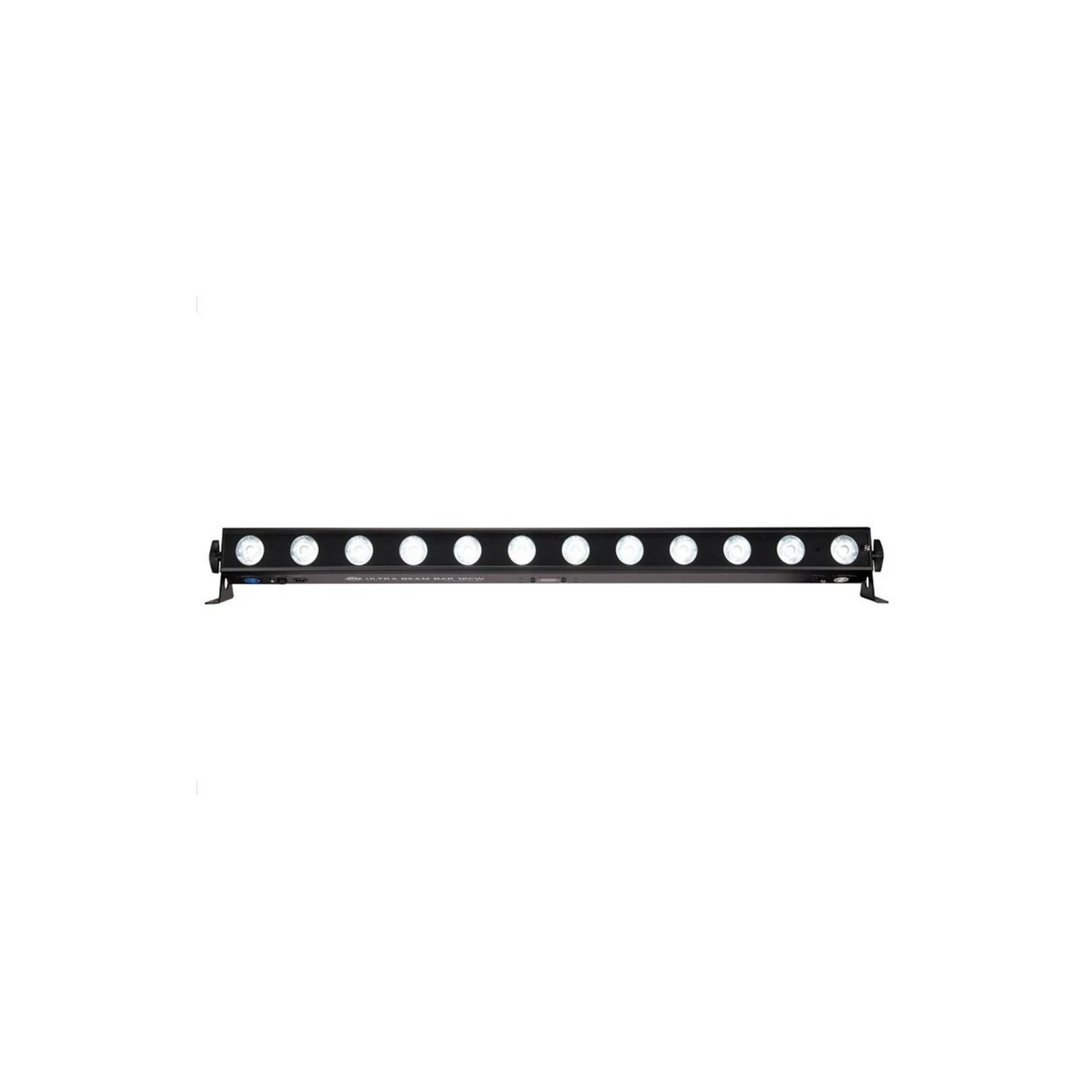

• Ultra Bright LEDs: 12 x 20W LEDs with a total output of 1340 lumens.
• Control Modes: 5 DMX channel modes (1, 3, 12, 14, & 19 channels) with individual pixel control.
• Built-In Programs: 13 built-in programs for easy operation.
• Remote Control: Compatible with ADJ UC-IR remote, operates up to 32.8 feet (10 meters).
• DMX Compliance: DMX, RDM, and RDM NET compliant.
• Electronic Dimming: 0-100% dimming capability with 6 selectable dim modes.

Technical Specifications

• Measuring System: Metric and Imperial
• Dimensions: 2.96″” x 42.60″” x 4.2″” (75 x 1082 x 106.7 mm)
• Material: Metal housing
• Finish: Black
• Lock Type: Safety loop
• Power Draw: 60W

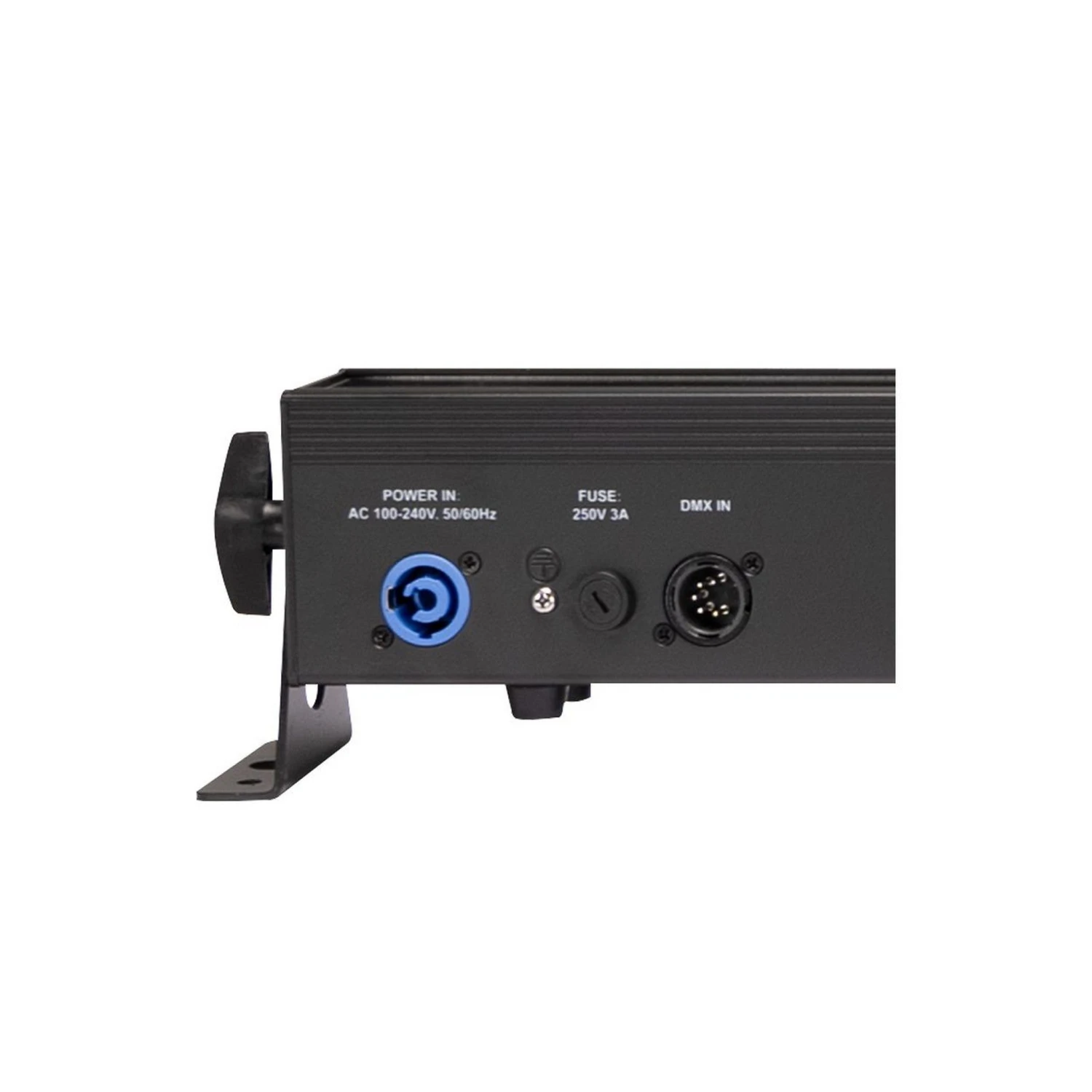

• Voltage: AC 100V-240V 50/60Hz
• Weight: 7.50 lbs. (3.4 kg)
• IP Rating: IP20
• Operational Temperature Range: -1°F ~ 113°F (-20°C ~ 45°C)
• Storage Temperature: -22°F ~ 113°F (-20°C ~ 45°C)

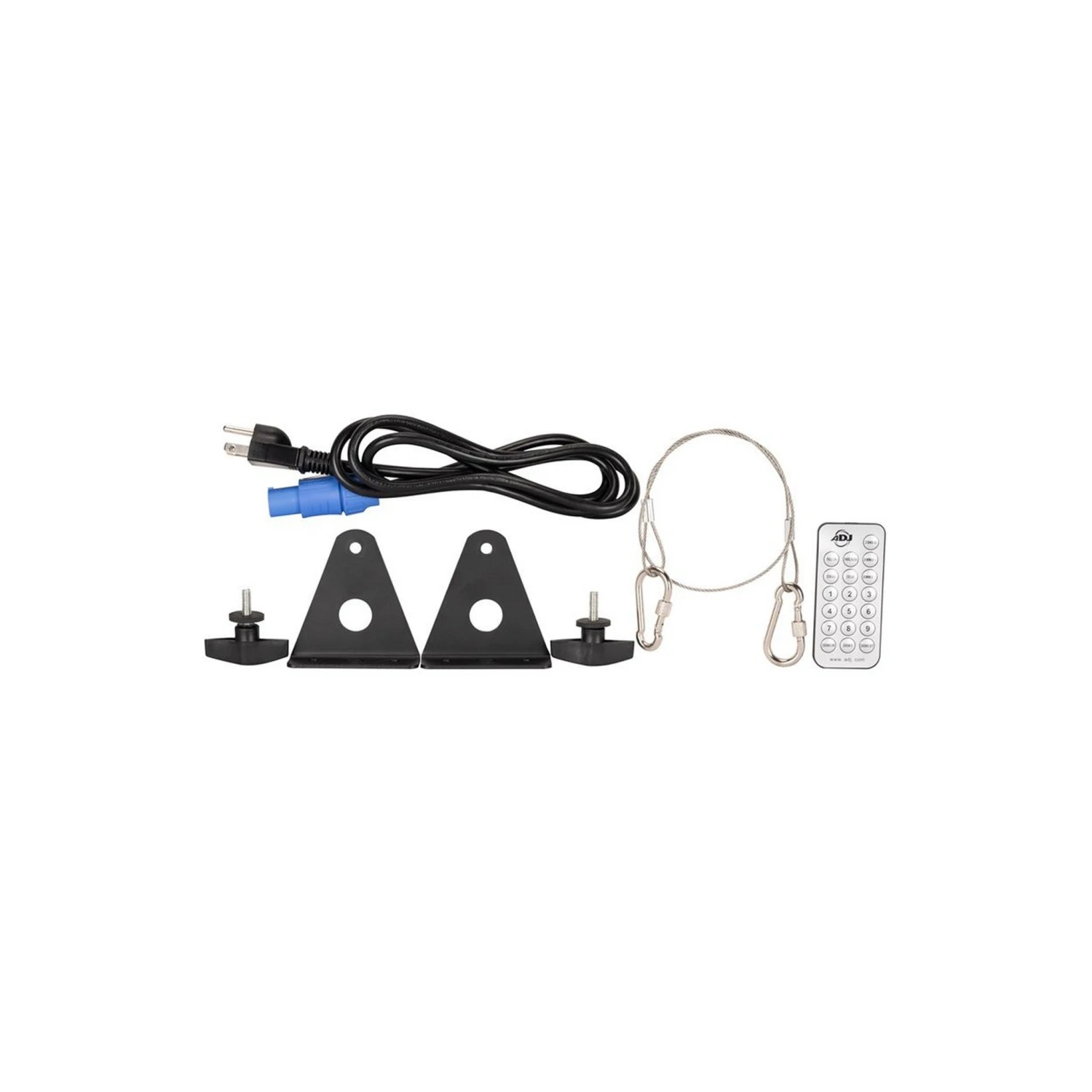

What’s in the Box

• (1) Indoor Locking Power Cord
• (1) UC-IR Remote
• (1) 5° Beam Filter
• (1) Safety Cable
• Mounting brackets for ground or truss mounting
