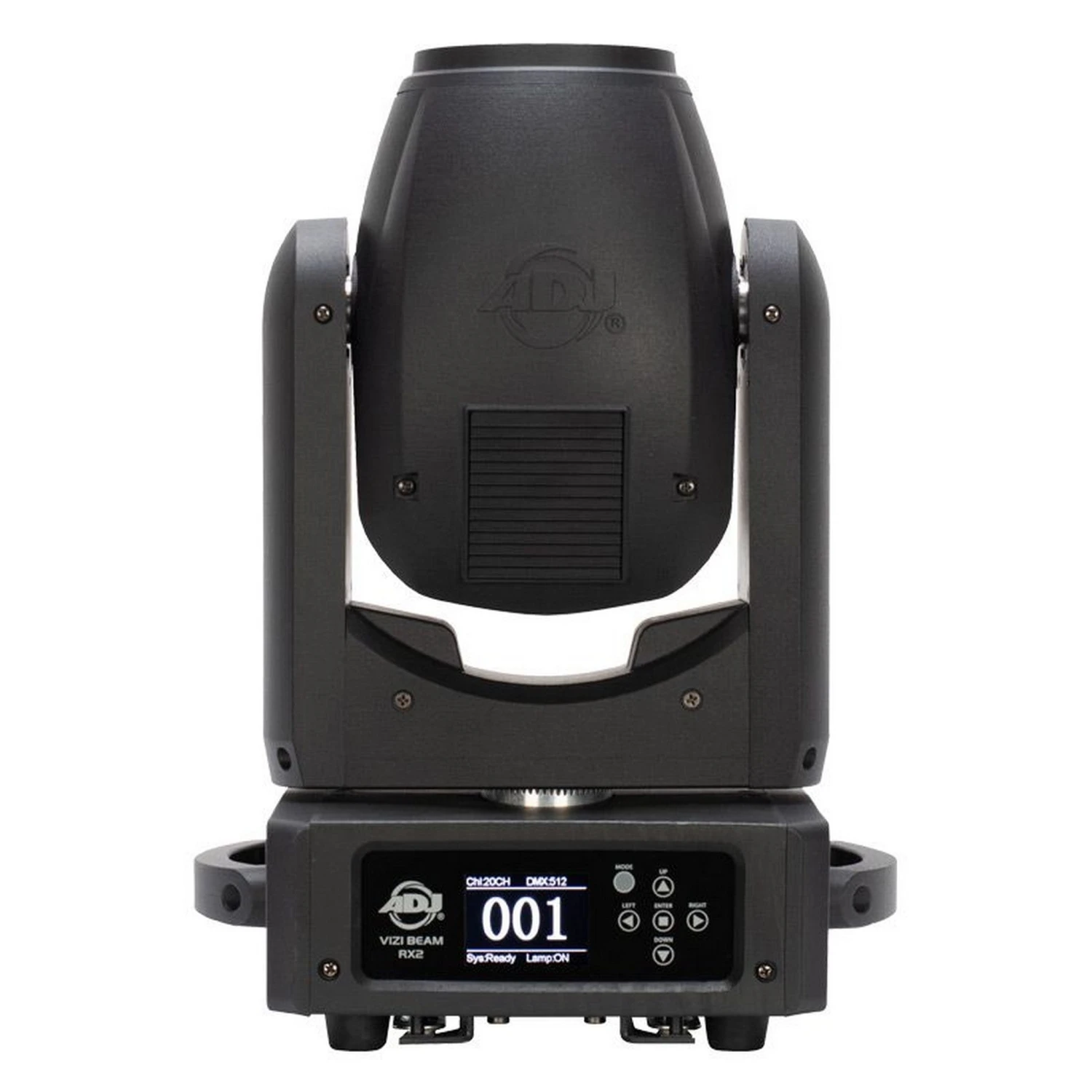

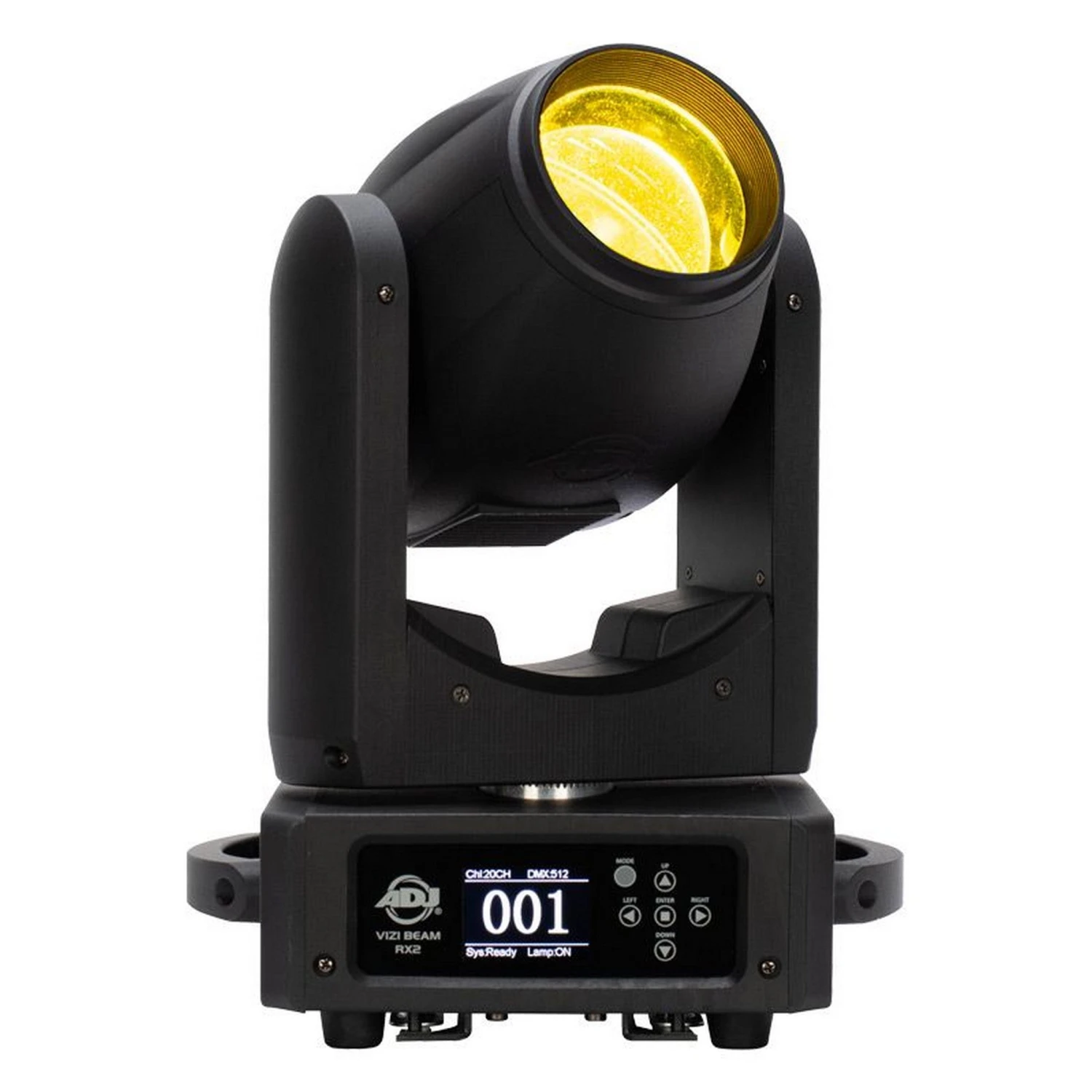

ADJ Vizi Beam RX2 100W LED Beam Fixture With Wired Digital Communication Network(Adj Vizi Beam Rx2 100w Led Beam Fixture With Wired Digital Communication Network)

Upgrade your lightshows with the ADJ Vizi Beam RX2 100W LED Beam Fixture with Wired Digital Communication Network, a compact moving head beam fixture designed for modern lighting designers. This powerhouse packs a sharp 2-degree beam angle, a long-life 100W Osram Sirius HRI discharge lamp (lasting an impressive 6,000 hours), and high-speed 3-phase pan/tilt motors for dynamic effects. Despite its compact size, the Vizi Beam RX2 is designed to make a big impact, fitting perfectly into live events and venues with limited space.

The Vizi Beam RX2 unlocks a feature-rich lighting experience. Achieve seamless integration with wireless DMX control. Craft unique beam effects with dual prism wheels, featuring a 16-facet circular prism and a 4-facet linear prism. When you need to soften the beam and create wash effects, simply utilize the frost filter. For razor-sharp visuals, the motorized focus boasts impressive 16-bit precision. Expand your color palette with a 14-color dichroic wheel that includes CTO, CTB, and UV filters. And to add another layer of creativity, the fixture includes 15 static GOBOs (including 3 beam reducers) that allow you to project graphics and patterns.

The ADJ Vizi Beam RX2 boasts advanced functionality as well. Two rotating prisms, a 16-facet circular and a 4-facet linear with an overlay option, provide even more dynamic effects possibilities. The frost filter offers added versatility for different lighting needs. Pan/tilt locks ensure secure transport and setup, while the color LCD display provides intuitive control. Take full command of your lighting with 0-100% smooth dimming and variable strobe speeds for precise light control.

Convenience is built into the ADJ Vizi Beam RX2. Efficient power distribution is achieved with outdoor-rated power daisy-chaining. Easy signal routing is enabled via 5-pin DMX In/Out connections. Finally, the user-friendly color LCD display with a 4-summary function menu makes operation effortless.

The ADJ Vizi Beam RX2 is your versatile and reliable lighting solution, guaranteed to bring high-energy impact to any event.

Key Features

• On-Board Wireless DMX
• Motorized Focus + 16-bit fine focus
• 2-degree beam angle
• Frost Filter to create wash effect
• High quality glass lens
• 2 Rotating prisms:
• 0-100% smooth dimming
• Various strobe speeds
• OTA, wireless, firmware updates
• Fan cooled

Technical Features

Light Source:
OSRAM Sirius HRI 100W Discharge Lamp (6,000 hr.)
Color temperature: 9000K (+/- 300K)

Color Wheel:
14 dichroic colors + white (Includes CTO (3200K), CTB (9000k) & UV)
Indexable color wheel for split colors

GOBO Wheel:
15 static GOBOs + open (3 GOBOs are beam reducers)
GOBO Shake Effect

Prism Wheels:
2 Rotating prisms
16 facet circular and 4 facet linear prisms

Control:
Protocols: DMX512 & RDM
Control Mode: DMX512 & Manual (On-board Controls)
2 DMX Channel Modes: 12/16 Channels
Aria X2 Wireless Management / DMX System
Color LCD display with 4-summary function menu
0-100% smooth dimming
Various strobe speeds
With Wired Digital Communication Network

Pan/Tilt:
Pan: 540 degrees (plus 16-bit fine pan)
Tilt: 270 degrees (plus 16-bit fine tilt)
3 Phase, High Speed, Pan/Tilt motors

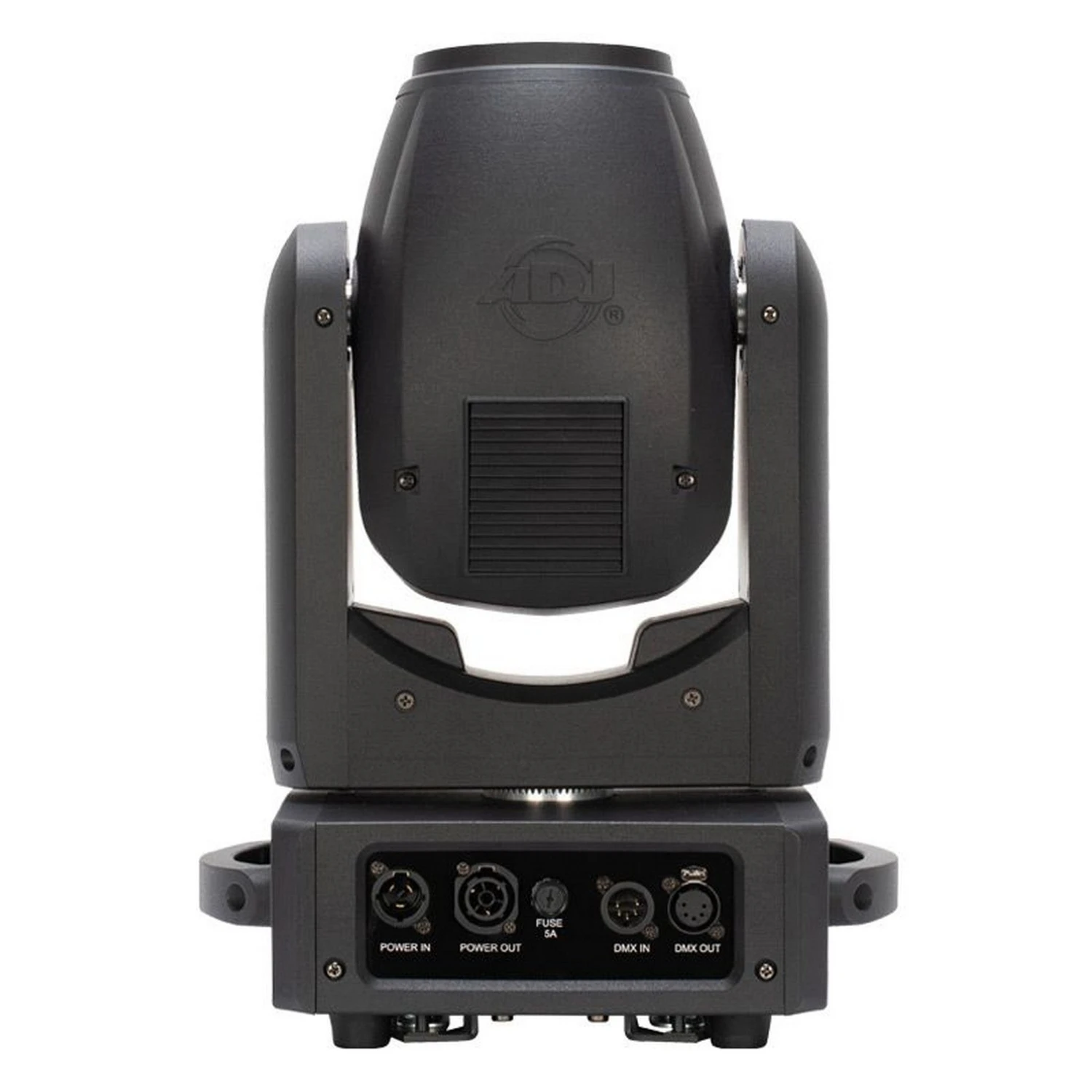

Connections:
DMX Connections: 5-pin DMX In/Out (Data link max: 32 fixtures)
Power Connections: Outdoor locking In/Out connections to daisy chain power

Electrical:
Multi-voltage operation: 100-240V, 50/60Hz
Max power consumption: 168W (@120V), 157W (@230V)
Fuze Protected: 3.15A

Dimensions & Weight:
Dimension: 9” (L) x 12” (W) x 16.3” (H) (230 x 304 x 416mm)
Weight: 16.5 lbs. / 7.5 kg.

Approvals / Ratings:
CE
cETLus (Control # 5028947)

What’s Included:
2x Omega Brackets (107 Type)
2M, outdoor locking 14AWG power cord

Specifications are subject to change without notice.
