ADJ VS1 Flex45 4-In-1 MiniLED 1.95mm Pixel Pitch LED Video Panel(Adj Vs1 Flex45 4 In 1 Miniled 195mm Pixel Pitch Led Video Panel)

ADJ VS1 Flex45 4-In-1 MiniLED 1.95mm Pixel Pitch LED Video Panel

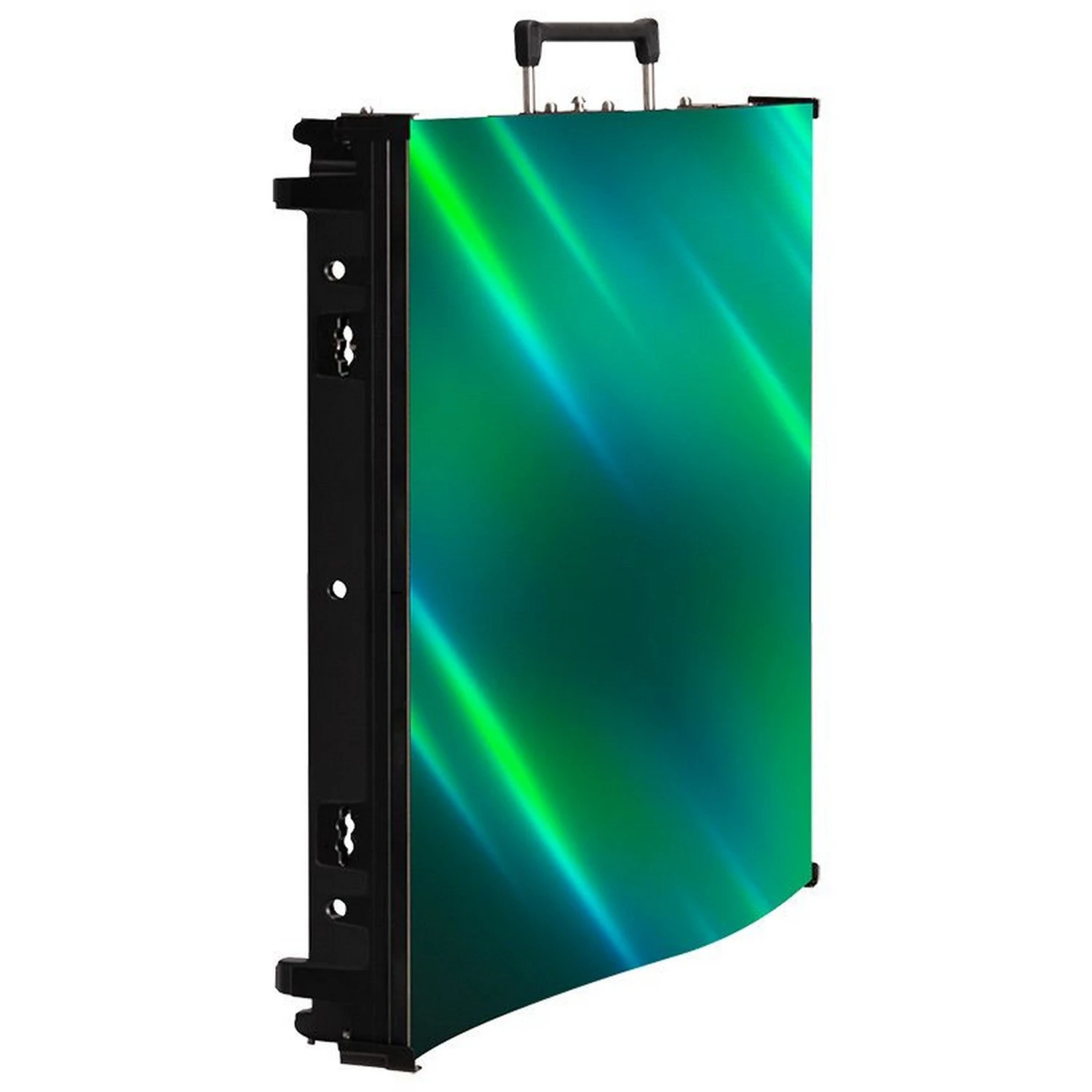

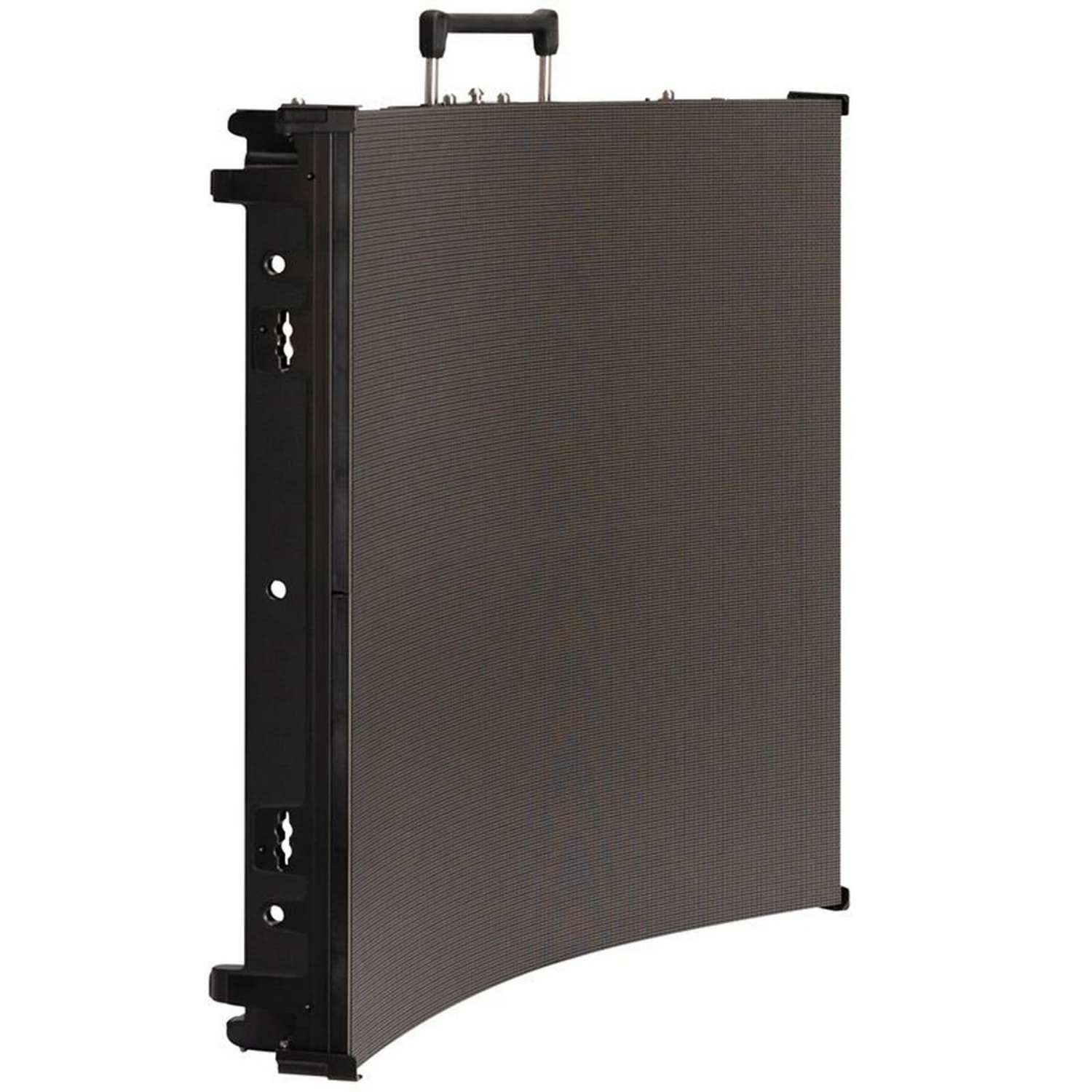

The ADJ VS1 Flex45 is a premium LED video panel designed to deliver stunning visuals with unparalleled flexibility. Featuring a precise 1.9mm pixel pitch and MiniLED 4-in-1 configuration, this panel ensures sharp, vibrant images for professional video wall installations. Its 19.68” x 19.68” x 3.15” frame is lightweight at 18.3 lbs., enabling effortless setup, transport, and integration across diverse applications.

Engineered for durability and convenience, the VS1 Flex45 boasts Memory on Module (MOM) technology for seamless operation, corner protectors for added safety during handling, and rear serviceability for quick maintenance. With a brightness of 1500 NITS, a wide viewing angle of 160° horizontal and 140° vertical, and a high contrast ratio of 10,000:1, this panel excels in delivering vivid, immersive visual experiences in any environment.

The Nova Star Synchronous Control System ensures smooth and intuitive operation with versatile input compatibility, including DVI, HDMI, and HD-SDI. The 7680Hz refresh rate guarantees flicker-free visuals, while advanced brightness adjustment and correction features offer precise customization. Whether for live events, digital signage, or permanent installations, the ADJ VS1 Flex45 is the ultimate choice for exceptional performance and reliability.

Key Features

• 1.9mm pixel pitch with MiniLED 4-in-1 technology for ultra-clear visuals.
• Memory on Module (MOM) for enhanced functionality and seamless operation.
• Corner protectors to safeguard against damage during transport and setup.
• Rear serviceable design for easy maintenance and module replacement.
• Brightness of 1500 NITS with a 10,000:1 contrast ratio for vivid imagery.
• Nova Star Synchronous Control System for smooth and versatile operation.
• Lightweight, compact design for flexible deployment in diverse applications.

Technical Specifications

LED: MiniLED 4-in-1
Pixel Pitch: 1.9mm (0.07″)
Drive IC: ICN2153S
Pixel Density: 262,144 per square meter
Size: 19.68” x 19.68” x 3.15”
Module Quantity: 4
Module Size: 19.68” x 4.92”
Module Resolution: 256 x 64 pixels
Panel Resolution: 256 x 256 pixels
Weight: 18.3 lbs.

Mechanical Ratings:
• Surface Flatness: Gaps <0.5mm

Optical Ratings:
• Brightness: 1500 NITS
• Viewing Angle: Horizontal 160° / Vertical 140° @ 9.75 ft.
• Gray Scale: ≥14-bit
• Display Color: 256
• Brightness Adjustment: 0~100% with 100 levels
• Contrast Ratio: 10,000:1
• Processing: 16-bit
• Operating Life / MTBF: 50,000 Hours / 5,000 Hours

Power Supply:
• Operation Power: 100~240V 50-60Hz
• Max. Power Consumption: 150W per panel
• Ave. Power Consumption: 60W per panel
• Connections Power/Data: Power-Power Lock In/Out; Data Lock In/Out

Control System:
• Control Mode: Nova Star Synchronous System with DVI Control
• Frame Update Frequency: 50-75Hz
• Scan Mode: 1/16
• Refresh Rate: 7680Hz
• Supported Inputs: Composite, S-Video, Component, VGA, DVI, HDMI, HD-SDI
• Control Distance: Ethernet Cable <120m or Fiber Optic >120m
• Support VGA Mode: Various resolutions supported
• Brightness Correction: Pixel, Module, Cabinet

Environmental:
• Operating Temperature: -4° to 104°F
• Operating Humidity: 10 – 90% (No Condensation)
• Storage Temperature: -40° to 176°F
• Storage Humidity: 10-90% (No Condensation)

What’s Included

• EVSF45FC Flight Case – Fits up to 8 Flex45 Video Panels
• FLEX45RB Rigging Bar – Supports up to 20 vertically hung panels
• Power and Data Link Cables
• Optional Processors and Playback Software
• Certifications: cETLus (Pending)
