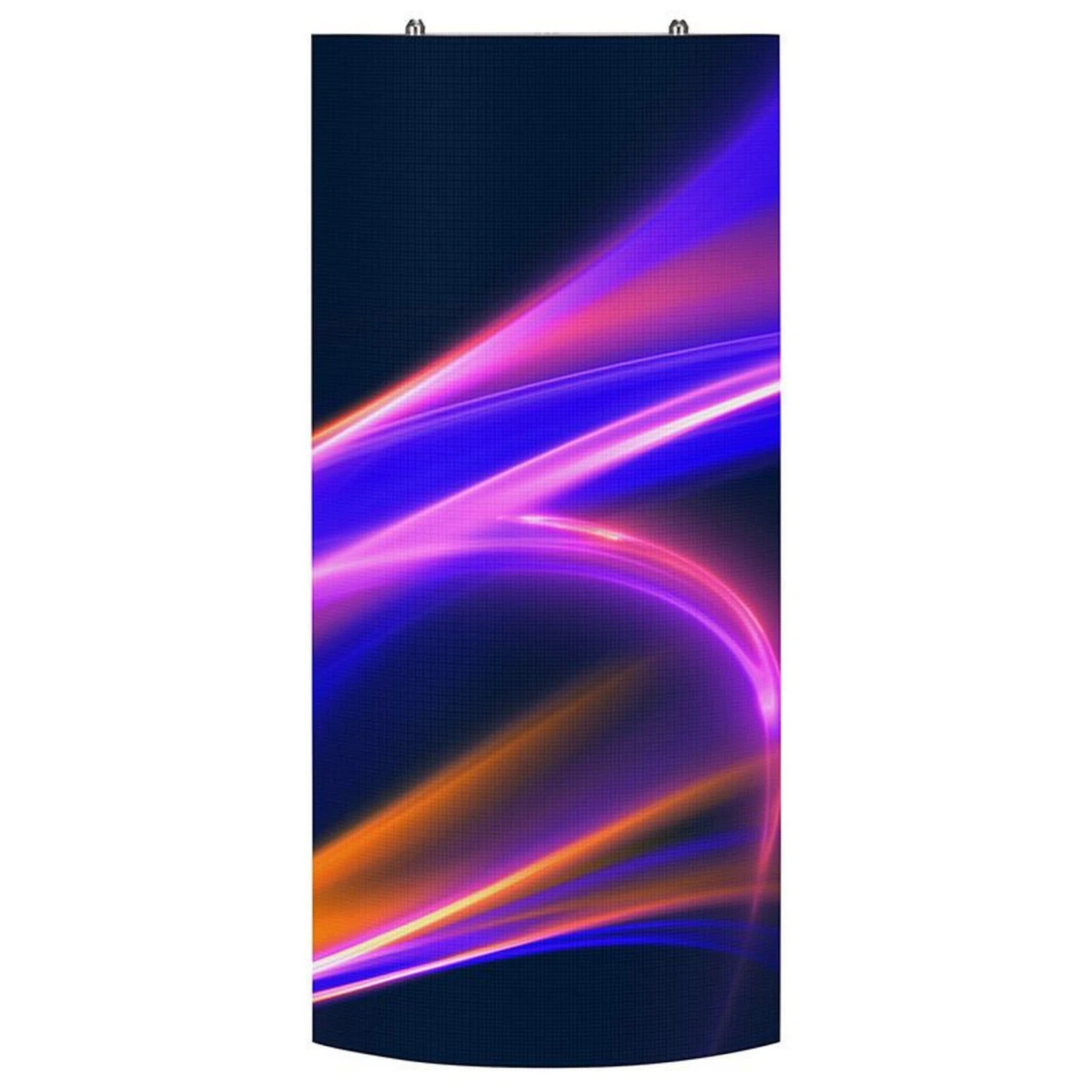

ADJ VS1C 4-In-1 MiniLED 1.95mm Pixel Pitch Curved LED Video Panel(Adj Vs1c 4 In 1 Miniled 195mm Pixel Pitch Curved Led Video Panel)

ADJ VS1C 4-In-1 MiniLED 1.95mm Pixel Pitch Curved LED Video Panel

The ADJ VS1C is an innovative LED video panel designed for superior image quality and versatile functionality. With its 1.95mm pixel pitch and MiniLED 4-in-1 configuration, the VS1C delivers crisp, vibrant visuals, making it ideal for professional video walls in live events, digital signage, and broadcast applications. Its compact size of 9.8” x 19.68” x 3.86” and lightweight design at just 9.5 lbs. ensure easy handling and seamless integration into any setup.

The VS1C panel is engineered for convenience and efficiency, featuring rear serviceability and quick-lock mechanisms for fast assembly with compatible VS2 panels. Each panel contains four replaceable modules, enabling full box maintenance and ensuring continuous operation with minimal downtime. Additionally, the independent power box simplifies installation and maintenance, enhancing user experience and reducing setup time.

With 1500 NITS brightness, a 110° viewing angle, and a contrast ratio of 5000:1, the VS1C guarantees dynamic visuals and a smooth viewing experience. Its advanced Nova Star Synchronous Control System ensures reliable performance with versatile input options, including HDMI, DVI, and HD-SDI. The panel’s robust design and energy-efficient power consumption make it an ideal choice for professionals seeking high-quality, low-maintenance LED video solutions.

Key Features

• 1.95mm pixel pitch with MiniLED 4-in-1 configuration for high-definition visuals.
• Rear serviceable design for quick and easy module replacement.
• Quick-lock mechanisms enable fast assembly with VS2 panels.
• Independent power box for simplified installation and maintenance.
• Compact and lightweight for effortless handling and integration.

Technical Specifications

Pixel Pitch: 1.95mm (0.07″)
LED Configuration: MiniLED 4-in-1
Pixel Density: 256 x 256; 262,144 per square meter
Size: 9.8” x 19.68” x 3.86”
Module Quantity: 4
Weight: 9.5 lbs.

Mechanical Ratings:
• Surface Flatness: Gaps <0.2mm

Optical Ratings:
• Brightness: 1500 NITS
• Viewing Angle: Horizontal 110° / Vertical 110°
• Gray Scale: ≥14-bit
• Display Color: 256
• Brightness Adjustment: 0~100% with 100 levels
• Contrast Ratio: 5000:1
• Processing: 14-bit

Power Supply:
• Operation Power: 100~240V 50-60Hz
• Max. Power Consumption: 75W per panel
• Ave. Power Consumption: 30W per panel
• Connections Power/Data: PowerLock In/Out; DataLock In/Out

Control System:
• Control Mode: Nova Star Synchronous System with DVI Control
• Frame Update Frequency: 50-75Hz
• Scan Mode: 1/21
• Refresh Rate: 3840Hz
• Supported Inputs: Composite, S-Video, Component, VGA, DVI, HDMI, HD-SDI
• Control Distance: Ethernet Cable <120m or Fiber Optic >120m
• Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
• Brightness Correction: Pixel, Module, Cabinet

Environmental:
• Operating Temp / Humidity: -4° to 104°F / 10-90% (No Condensation)
• Operating Life / MTBF: 50,000 Hours / 5,000 Hours
• Protection Level: IP20 (Front and Back)
• Out of Control Rate: <0.02%
• Listings: cETLus (Pending)

What’s Included

• VS1C LED Video Panel
• Optional Accessories: Novastar VX4S, MCTRL-300, Nova Pro HD Video Processors
• Arkaos Media Master and GrandVJ 2.0 Video Software
• Cabinet to Cabinet Data Link Cables
• Power Locking Link Cables
• Power Locking Main Power Cables
