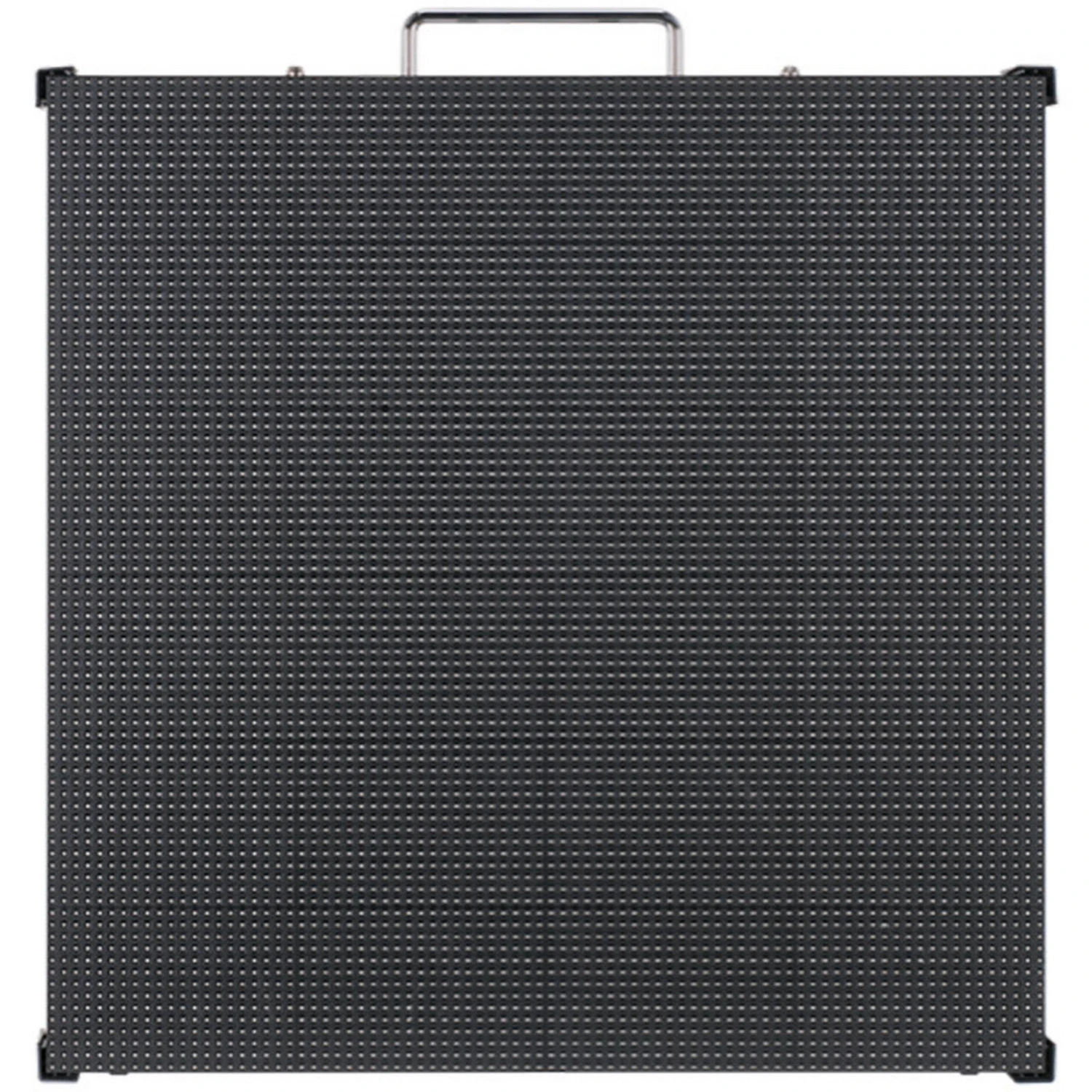

ADJ VS3 3.9mm 128×128 LED Video Wall Panel

ADJ’s Vision Series video panels offer the highest quality LED binning and bright, clear output. All models are front and rear serviceable. Each model has 4 individual mini modules for quick and easy servicing. All models are built on the same frame allowing panels with different resolutions to be used together. The Vision Series panels use the same rigging bar and all fit into the same road case. All models have moveable corner protects that safe guard the corners while they are not connected. There are magnets on the top and bottom of the panels that allow users to temporary connect two panels together, let go of the panels, then securely latch them on the rear. This allows for a single user to install a full wall of panels.

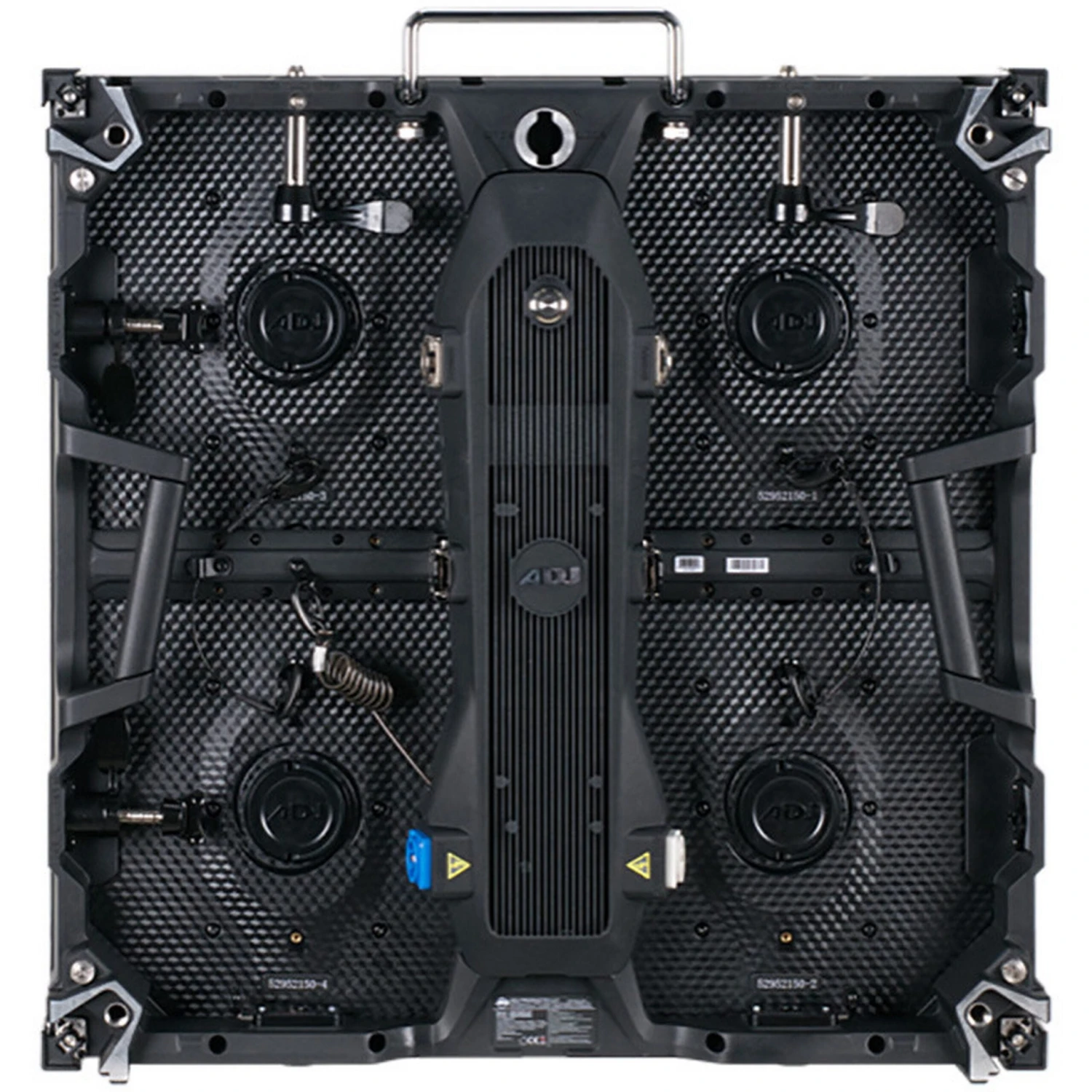

The VS3 is a high-resolution video panel with a pixel pitch of 3.91mm with a configuration of a 3-in-1 RGB SMD2121 LED, and a brightness of 1000 NITS. There are 4 LED modules per panel. This allows for easy serviceability. The VS3 connections include PowerLock In/Out and DataLock In/Out. Each panel features the Novastar A5s receiving card built-in. Up to 8 VS3 video panels fit inside the VSFC8 flight case. Hang up to 20 VS Series Video Panels vertically with the VSRB1 rigging bar.

ADJ offers full packages with video processors, software, cabling, rigging bars and flight cases so that you have everything you need to get up and running.

Technical Specifications

SPECIFICATIONS:
Pixel Pitch: 3.91mm (0.15”)
LED Configuration: 3-in-1 SMD2121 LED
Pixel Density: 128×128; 65536 per square meter
Size :19.68” x 19.68” x 2.75” / 500 x 500 x 69.6mm
Module Quantity: 4
Weight: 17 lbs. / 7.7kg.
FEATURES:
Corner Protectors to protect the corners of the VS3 during transport, set-up and teardown
Front and rear serviceable: 4 easy to replace video modules on each panel
MECHANICAL RATINGS:
Surface Flatness: Gaps<0.5mm
OPTICAL RATINGS:
Brightness: 1000 NITS
View Angle: Horizontal 160/Vertical 140 @ 9.75 ft. (3m)
Gray Scale: >=14-bit
Display Color: 256
Brightness Adjustment: 0~100% 100 Levels
Contrast ratio: 5000:1
Processing: 14-bit
POWER SUPPLY:
Operation Power: 100~240V 50-60Hz
Max. Power Consumption: 170W/per panel
Ave. Power Consumption: 68W/per panel
Connections Power/Data: Power-PowerLock In/Out; DataLock In/Out
CONTROL SYSTEM:
Control Mode: Nova Star Synchronous System with Control via DVI
Frame Update Frequency: 50-75Hz
Scan Mode: 1/16
Refresh Rate: 3840Hz
Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Control Distance: Ethernet Cable <120m or Fiber Optic>120m
Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
Brightness Correction: Pixel, Module, Cabinet
ENVIRONMENTAL:
Operating Temp / Humidity: Fahrenheit: -4 + 104 / Celsius: -20 + 40/ 10-90% (No Condensation)
Operating Life / MTBF: 50,000 Hours / 5,000 Hours
Protection Level: IP20 (Front and Back)
Out of Control Rate: <0.02%
Listings: cETLus (Pending)
OPTIONAL ACCESSORIES:
VSFC8 (VS8100): Flight Case – Fits 8 VS Series Video Panels
VSRB1 (VS1100): Rigging Bar – Hang up to 20 VS Series Video Panels vertically
VSMRT (VSM111): Module Removal tool – Magnetically assists the tech in removing modules from the front side when servicing.
VSRQR (VSM210): Quick Rig – Attaches and locks on to the rear of any Vision series panel so it can be fastened to a 2″ pipe or truss
Novastar VX4S: Video Processor
Novastar MCTRL-300: Video Processor
Novastar Nova Pro HD: Video Processor
Arkaos Media Master: Video Software
Arkaos GrandVJ 2.0: Video Software
CABLES:
Cabinet to Cabinet Data Link Cables (Ethernet Locking Connectors)
Power Locking Link Cables
Power Locking Main Power Cables
