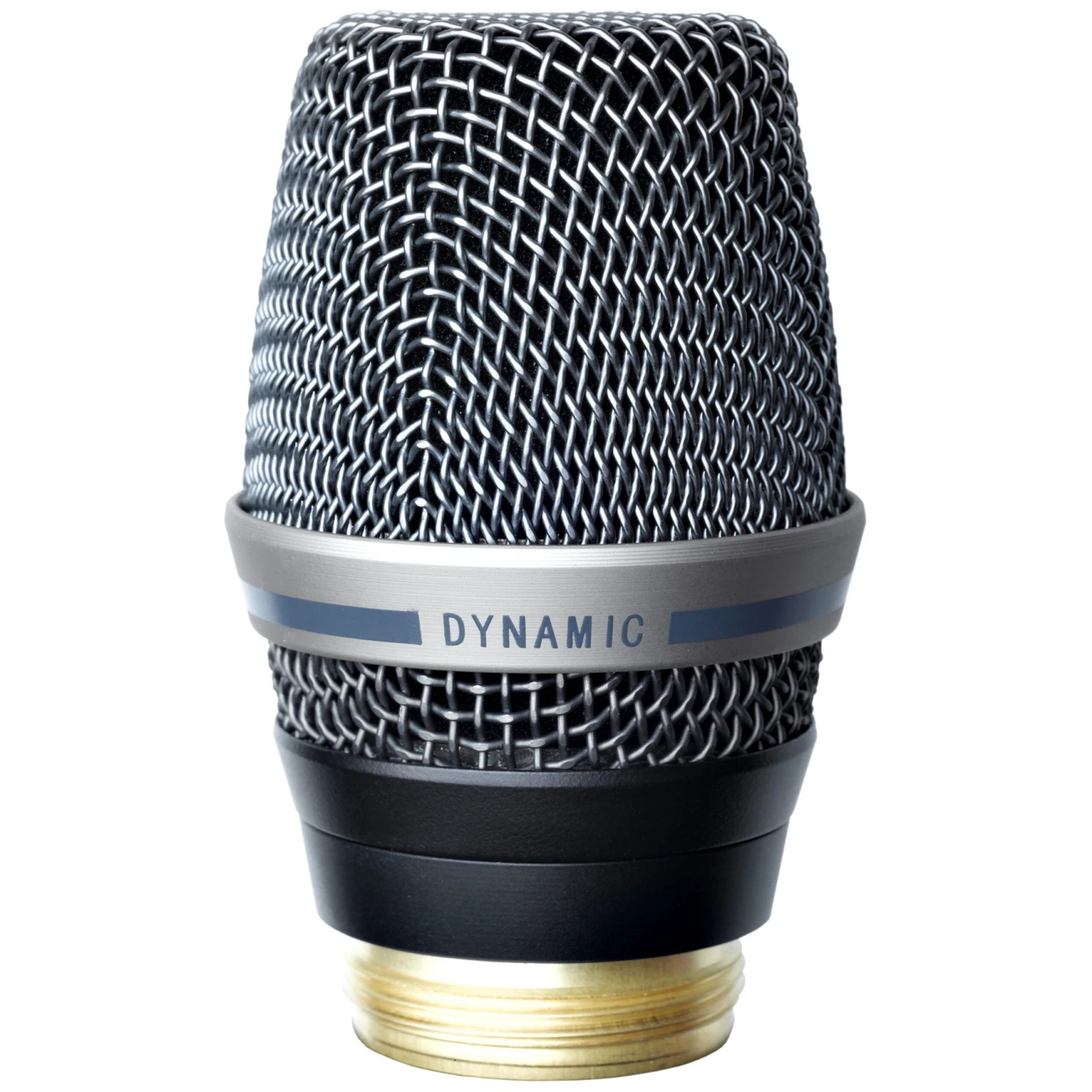

AKG D7 WL1 Reference Dynamic Microphone Head(Akg D7 Wl1 Reference Dynamic Microphone Head)

AKG D7 WL1 Reference Dynamic Microphone Head

The D7 WL1 reference dynamic vocal microphone head creates the subtle and opened sound of a condenser capsule with the powerful resonance of a dynamic microphone. The patented dual layer Varimotion diaphragms can vibrate unhindered which results in an extraordinary crisp and clean sound. The unique laminated material damps high resonance peaks in the frequency response. In combination with the tight, supercardioid polar pattern enables the D7´s outstanding high gain before feedback. The D7 WL1 features a precision metal dust filter that provides a consistent protection for the diaphragm, ensuring an extra long life. It is designed to fit the HT4500 and DHT800 handheld transmitters.

Key Features

• Dual thickness Varimotion diaphragm
• Highest feedback suppression
• Integrated hum compensation coil
• Precision metal dust filter
• Self-cleaning contacts

Technical Specifications

AKG Wireless System Compatibility
DMS800 and WMS4500 wireless systems (DHT800 and HT4500 handheld transmitters)
Type
Dynamic
Polar Pattern
Supercardioid
Capsule
Patented dual-layer Varimotion diaphragm
Isolation
Dual shock mount capsule and integrated humbucking coil
Grille
Spring-steel wire-mesh
Frequency response
70 – 20000 Hz w/ internal 80Hz high pass filter
Sensitivity
2.6 mV/Pa
Maximum SPL
147dB @ 1% / 156dB @ 3%
Equivalent Noise Level
18dB(A) to IEC 60268-4
