Allen & Heath GR4 4 Channel Rack Mount Zone Mixer(Allen Heath Gr4 4 Channel Rack Mount Zone Mixer)

Allen & Heath GR4 4 Channel Rack Mount Zone Mixer

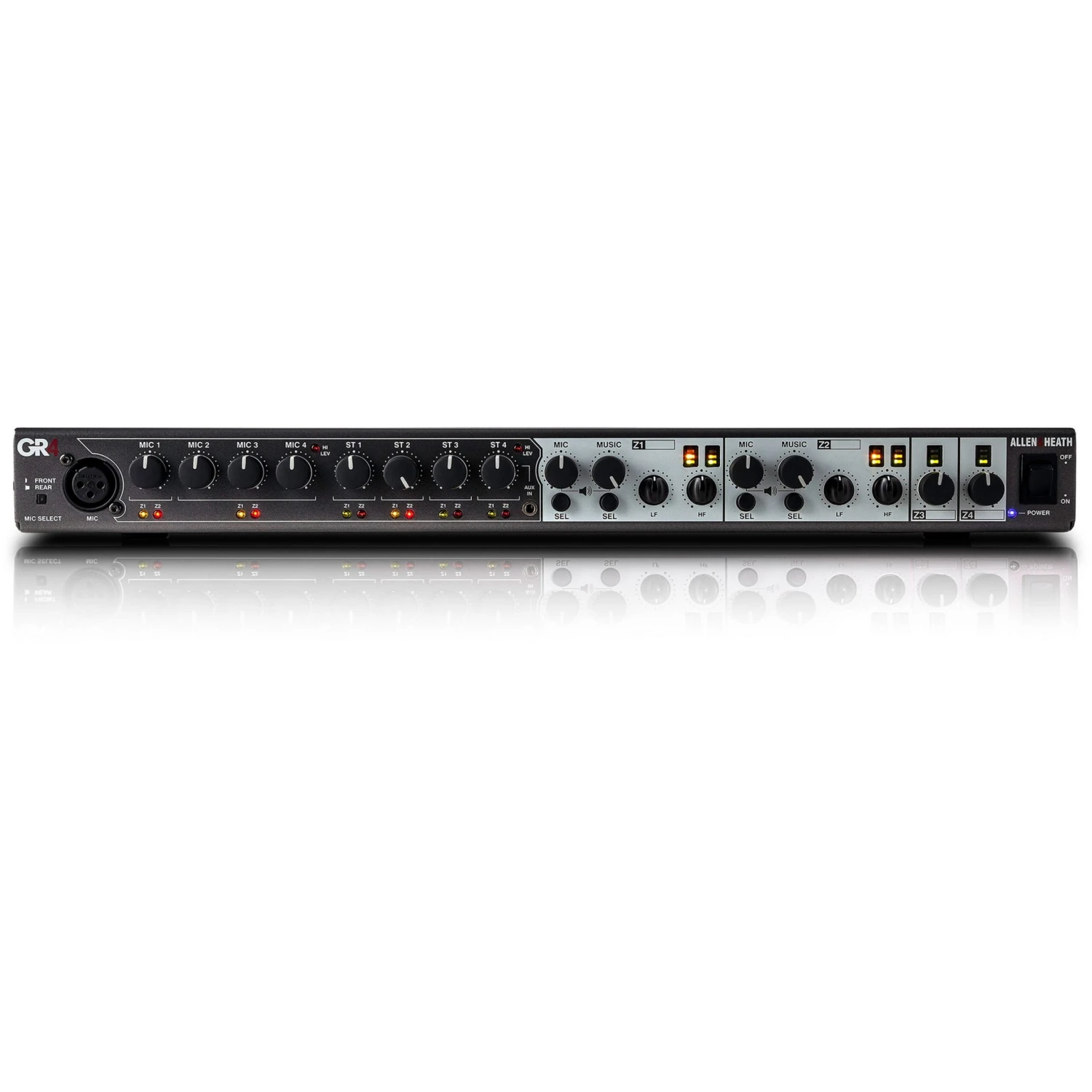

The Allen & Heath GR4 4 Channel Rack Mount Zone Mixer is a versatile and powerful audio solution for bars, restaurants, stores, and other leisure or retail environments. With a sleek 1U rack-mounting or desktop design, this mixer offers comprehensive control over background music and paging, making it an essential tool for managing multiple audio sources. The GR4 stands out with its optional remote wallplates, front panel microphone input, and additional 3.5mm jack for portable music sources, ensuring that users have complete flexibility over their audio configurations.

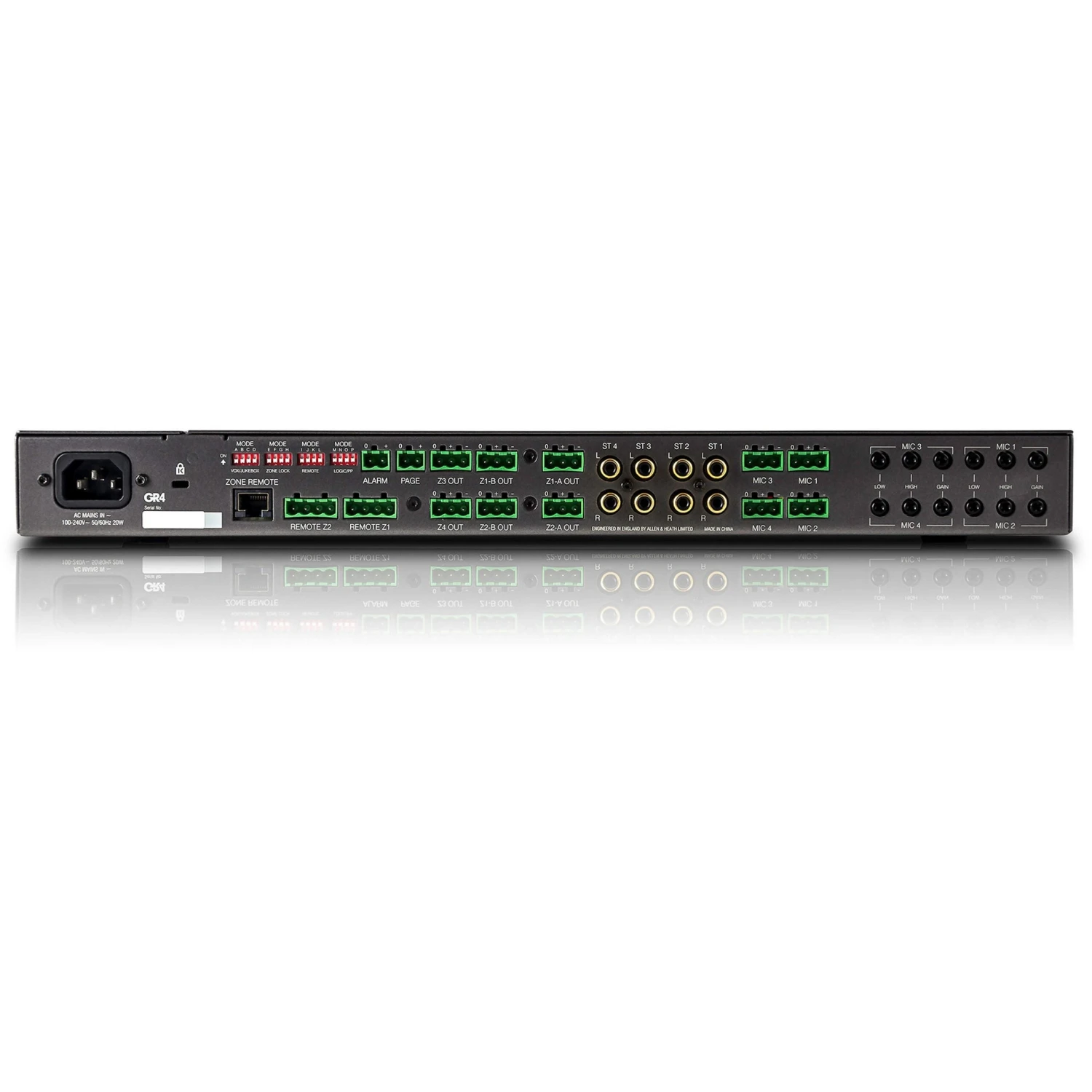

Designed for easy integration and intuitive use, the GR4 comes equipped with four mic inputs on rear-mount Phoenix connectors, and an additional option for a front-mounted XLR microphone input. Its four stereo inputs on rear-mount phono connectors, combined with a front-mounted 3.5mm jack, provide a vast array of input options for different audio sources. Additionally, the mixer features two stereo zones, which can be selected as mono via internal jumpers, and two additional mono zone outputs, offering detailed control over audio distribution. The inclusion of paging and alarm contact inputs allows seamless integration with third-party paging stations and fire alarm systems, enhancing safety and functionality.

The remote control capabilities of the GR4 are a highlight, with options for PL-14 Remote connectivity via RJ45 or custom/third-party analogue remotes via Phoenix connectors. This ensures that audio management can be handled remotely, offering convenience in various installation scenarios. Whether you are managing a busy bar or creating a relaxing ambiance in a retail store, the Allen & Heath GR4 is designed to deliver pristine audio quality and versatile control, making it a top choice for professional audio management.

Key Features

• Four mic inputs on rear mount Phoenix connectors with MIC1 selectable to an optional front mounted XLR
• Four stereo inputs on rear mount phono connectors and front mounted 3.5mm jack socket
• Two stereo or mono-selectable zones via rear mount Phoenix connectors
• Additional two mono zone outputs with mix output selectable via internal jumpers
• Paging and Alarm contact inputs for integration with 3rd party systems
• Remote control options via rear mounted RJ45 or Phoenix connectors

Specifications

• Form Factor: Rack Mount / Desktop
• Mic Inputs: 4 rear mount Phoenix connectors, optional front XLR
• Stereo Inputs: 4 rear mount phono connectors
• Additional Input: Front mounted 3.5mm jack
• Zone Outputs: 2 stereo, 2 mono
• Remote Control: PL-14 Remote, custom/3rd party analogue remotes
• Integration: Paging and alarm contact inputs

Package Contents

• Allen & Heath GR4 4 Channel Rack Mount Zone Mixer
• Power Adapter
• User Manual
• Mounting Hardware
