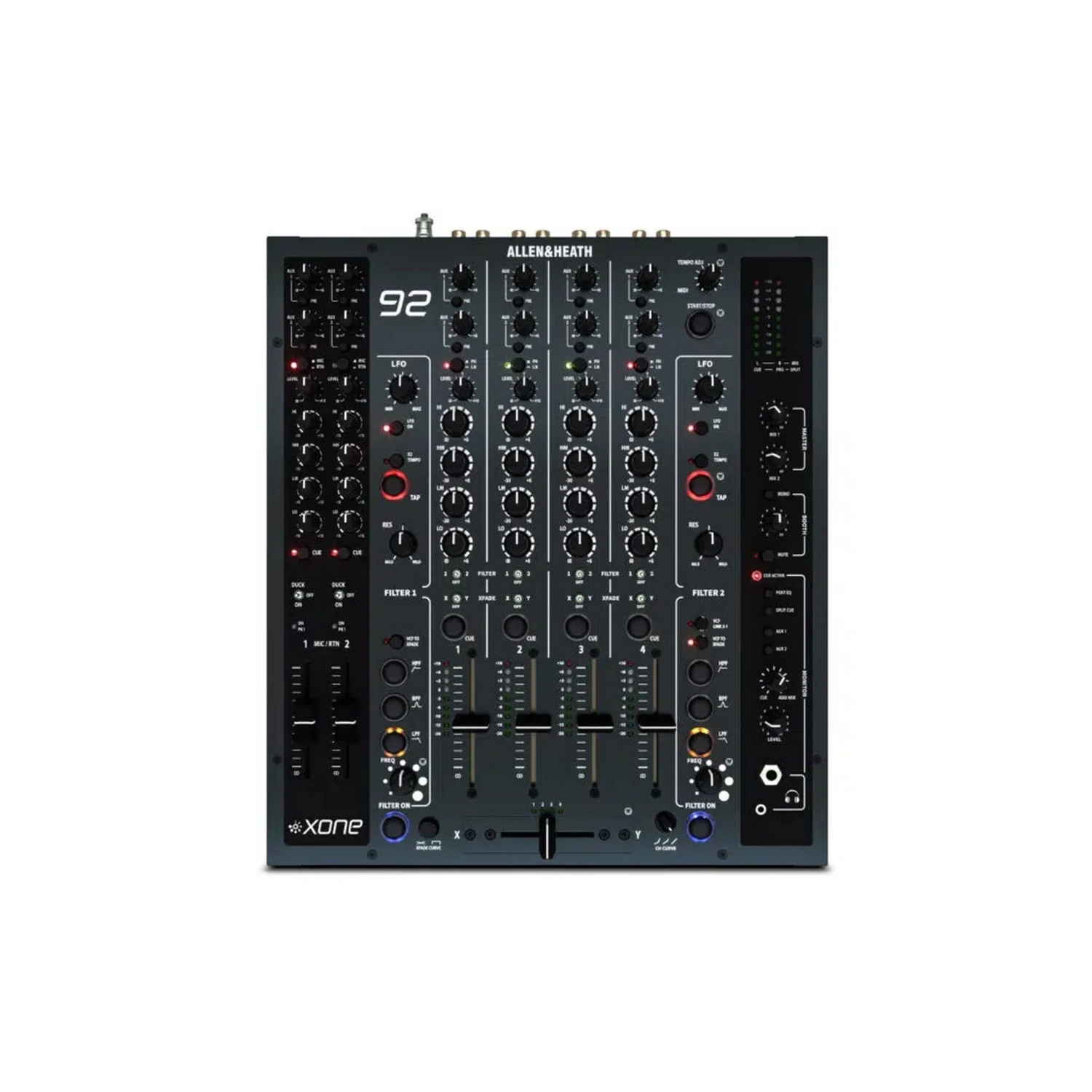

Allen & Heath XONE:92 MK2 Analog 4-Channel DJ Mixer

The Allen & Heath XONE:92 MK2 is not just a mixer; it’s a landmark in club music history, having defined the soundscape for a generation. Now, this iconic device returns to set new standards in audio performance, tailored for the next wave of underground innovators and Big Room stars. Combining analog warmth, precision control, and bulletproof reliability, the XONE:92 MK2 is designed to elevate your mixing experience to new heights.

With its four phono/line channels and two mic/line channels, the XONE:92 MK2 provides unmatched versatility for DJs of all styles. Its 100% analog circuitry and mix bus summing ensure that every note resonates with clarity and depth. The mixer features dual analog filters with silent switching, allowing for smooth transitions and creative effects without disrupting the flow of your set. The precision 4-band EQ control, with a total kill on high and low frequencies, provides the surgical accuracy needed to shape your sound just the way you want it.

This latest iteration of the XONE:92 includes the custom mini innoFADER® Pro for a smoother mixing experience, enhancing your ability to execute intricate cuts and blends. The updated storm grey colorway features enhanced UV printing and a refocused legend, making it easier to see the essential controls in low light environments. A new 3-way global channel fader curve switch has been added, offering improved input level matching for channels 1-4, while the refined Xone:VCF tapers allow for enhanced control over your performance.

Key Features

• 4 Phono/Line Channels + 2 Mic/Line Channels
• 100% analogue circuitry and mix bus summing
• Dual analogue Filters with silent switching
• Precision 4-band EQ control
• Custom mini innoFADER® Pro for smoother mixing
• Updated storm grey colourway and refocused UV legend
• New 3-way, global Channel fader curve switch
• Improved Channel 1-4 Input Level and source-matching
• Refined Xone:VCF tapers for enhanced control
• Optimized RIAA preamps

Technical Specifications

Model
XONE:922
Type
Analogue
Channels
6 + 2

EQ
4-Band: CH 1 – 4 ¦ MIC/RTN 1 ¦ MIC/RTN 2
BOOTH
STEREO/MONO ¦ MUTE ¦ Level

Phono Inputs
4 x RCA: CH 1 – 4
Earth Ground Terminals
x 1 + 2 [Dual Ground Terminal adapter]

Stereo Line Inputs
4 x RCA [CH 1 – 4] 2 x 1/4″ TRS [RTN 1 / RTN 2] Mono/Stereo

Mic Input
2 x XLR [MIC 1 / MIC 2]

MIX 1 Output
1 x XLR [Balanced] MIX 2 Output
1 x 1/4″ TRS [Unbalanced]

BOOTH Output
1 x 1/4″ TRS [Unbalanced] RECORD Output
1 x RCA [Unbalanced]

Stereo Send/Return I/O
2 x 1/4″ TRS: AUX1 ¦ AUX2 [Mono/Stereo] 2 x 1/4″ TRS: RTN 1 ¦ RTN 2 [Mono/Stereo]

Aux Sends
2 x CH 1 – 4 ¦ MIC/RTN 1 ¦ MIC/RTN 2 [selectable Pre/Post]

Filters
2 x Stereo analogue Voltage Controlled Filters
HPF / BPF / LPF Response Select
¦ ON/OFF [soft switched]

Adjustable FREQ / RES / LFO
Assignable CH 1-4
[soft switched]

Channel 1 – 4 Faders
60mm linear Voltage Controlled Amplifier
Channel 1 – 4 Fader Curve
Switched ¦ 3-way Global

Cross Fader
mini innoFADER Pro standard ¦ 45mm linear VCA ¦ User replaceable
Cross Fader Curve
Rotary ¦ Progressive transition to Fast-cut

MIDI Assignable
Yes: MIDI CC ¦ MIDI Note ON/OFF
MIDI Out
1 x 5-pin DIN

Power Supply
Internal switch mode power unit [SMPS] with auto sensing mains input
AC Mains
100 to 240V AC ¦ 50/60Hz

Consumption
30W max
Rear panel mounted ON/OFF switch

Mains Adaptor
3 pin IEC socket with cable clamp. Molded AC plug [supplied]

Output Levels; Nom (0VU) / Max
MIX 1 + 4dBu / + 25dBu
MIX 2 + 6dBu / + 21dBu
BOOTH + 8dBu / + 21dBu
RECORD – 10dBu / + 12dBu

Internal headroom
Channels + 22dB
Frequency response
LINE IN to MST out +1/-0.5dB from 20Hz to 30kHz

Distortion
Typically 0.01% @ 1kHz 0dBu (THD+Noise 22Hz to 22kHz)
Crosstalk
< -90dB inter-channel @ 1kHz +10dBu

Residual Noise (22Hz – 22kHz)
MASTER 1 – 85dBu
MASTER 2 – 85dBu
BOOTH – 85dBu

Mix Noise (22Hz – 22kHz)
Master 1 – 81dBu
Master 2 – 81dBu
Booth – 81dBu
Record RCA – 90dBu

Mic Gain
+30dB, EIN = -126dB (@ 40dB gain with 150R source)
RIAA Gain
+35dB @ 1kHz (14mV RMS= 0VU @ 1kHz)

Channel Meters
9 LED – 20dBu to + 10dBu
Master Meters
9 LED – 20dBu to + 10dBu

Channel EQ MIC/RTN
HI 12kHz +/-15dB
HM 2.7kHz +/-15dB
LM 270Hz +/-15dB
LO 60Hz +/-15dB

Channel EQ 1-4
HI 2.4kHz + 6/-∞dB
HM 1.8kHz + 6/-30dB
LM 320Hz + 6/-30dB
LO 220Hz + 6/-∞dB

Channel faders 1-4
60mm VCA control individually replaceable.
Cross-fader
45mm innoFADER VCA control.
Plug in replacement – user replaceable (A&H part#: AI11470)

Filters
Dual, stereo, analogue Voltage Controlled Filters.
Panels
Steel

PSU
Internal. Switch-mode
Mains Input
3 pin IEC socket Power Lead: country dependant.
AC mains
100V to 240V AC @ 47/63Hz

Consumption
30W max
Fuse rating
100-240V AC T500mA L[0dBu = 0.775 Volts rms / +4dBu = 1.23V rms / 0dBV = 1 Volt rms / -10dBV = 316mV rms]
