Allen & Heath ZED-22FX 16 Mono 4 Stereo Channel Neutrik XLR Mic 1/4 Inch FX Mixer(Allen Heath Zed 22fx 16 Mono 4 Stereo Channel Neutrik Xlr Mic 1 4 Inch Fx Mixer)

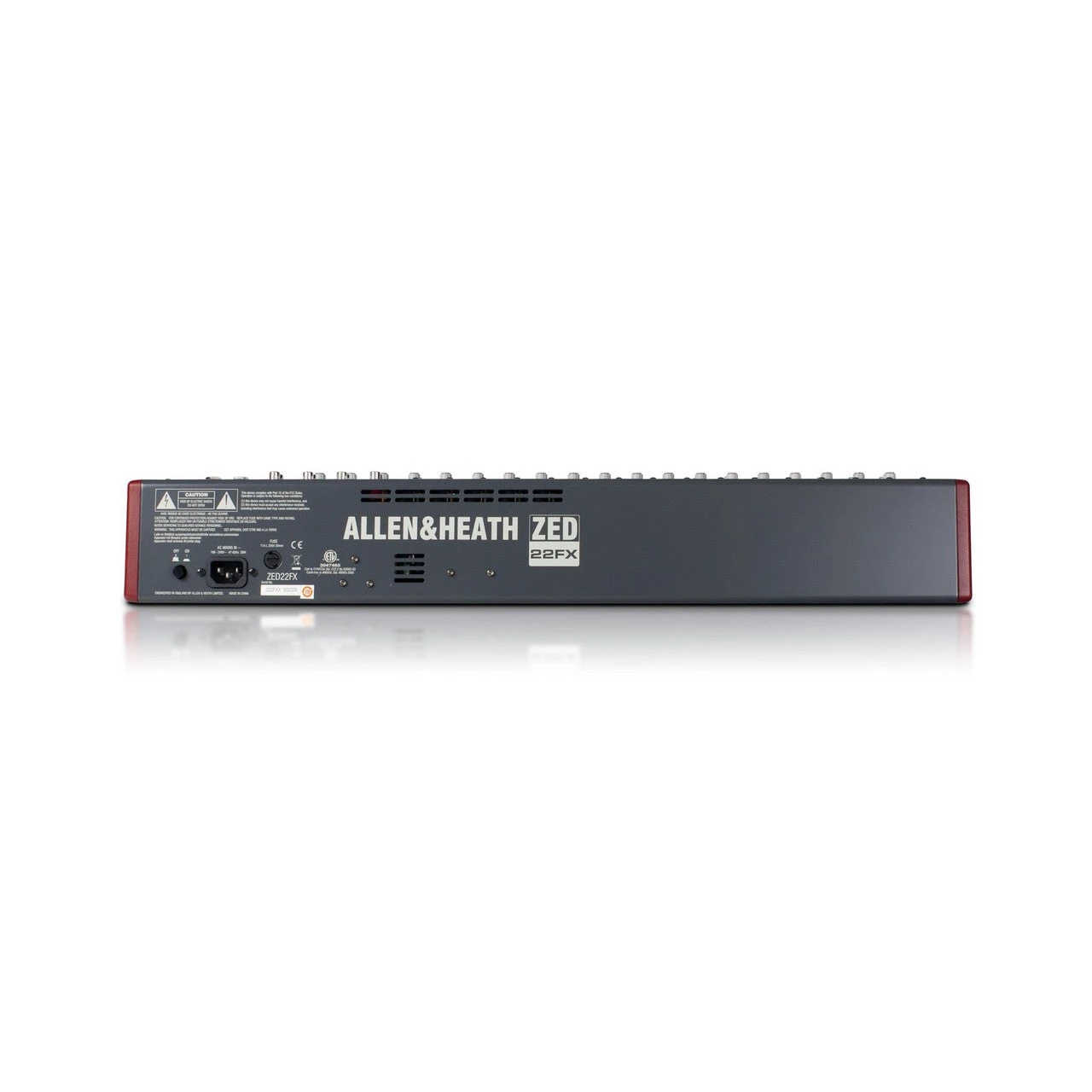

Allen & Heath ZED-22FX | 16 Mono 4 Stereo Channel Neutrik XLR Mic 1/4 Inch FX Mixer

The Allen & Heath ZED-22FX mixer is the ultimate choice for musicians and bands who need a reliable, high-quality mixing solution in a compact form. Whether you’re performing live, recording in the studio, or simply need a versatile mixer for your gig, the ZED-22FX has you covered. It is designed with 16 mono channels and 4 stereo channels, making it highly flexible for various audio setups. One of its standout features is the built-in 16 internal time-delay effects, which can add depth and texture to your performances or recordings.

This mixer includes configurable USB audio in/out, making it easier than ever to capture and play back stereo recordings. Musicians will particularly appreciate how user-friendly this mixer is, with its dedicated FX bus and channels that offer superior sound quality for vocals, drums, guitar, bass, and keys. The integrated Neutrik mic XLR and 1/4 inch jacks ensure robust connectivity, while channel inserts make it simple to integrate external processors. The ZED-22FX is bundled with Cakewalk SONAR LE, providing an excellent start for your recording projects.

Key Features

• 16 mono channels
• 16 internal time-delay effects
• Neutrik mic XLR
• Neutrik 1/4 inch jacks
• Channel insert
• Super wide gain DuoPre mic line input
• 3-band EQ with MusiQ
• 2 pre-fade Aux sends
• 1 post-fade Aux send
• 1 internal FX send
• Illuminated mute
• Sound image pan
• Illuminated PFL & peak warning indicator
• ALPS 100mm faders
• 4 stereo channels with 2-band EQ and inputs for extra sources
• Stereo returns & playback
• All inputs with level control
• 12-bar meters
• Mono/stereo function on auxes 1 & 2
• Monitor output section
• Alt stereo output source
• Configurable USB stereo audio in/out
• Cakewalk SONAR LE bundled with mixer

Specifications

• Operating Levels Input
• Mono channel (XLR) Input: +6 to -63dBu for nominal (+17dBu in max)
• Mono channel Line Input (Jack socket): +10 to -26dBu (+30dBu maximum)
• Insert point (TRS Jack socket): 0dBu nominal +21dBu maximum
• Stereo Input (Jack sockets): 0dBu nominal (control = Off to +10dB)
• Stereo input (phono sockets): 0dBu nominal (control = Off to +10dB)
• Output
• L, R & Mono Outputs (L & R XLR, Mono Jack): 0dBu nominal. +21dBu maximum
• Aux Outputs (Jack sockets): 0dBu nominal. +21dBu maximum
• Alt Outputs (phono sockets): 0dBu nominal. +21dBu maximum
• Rec Outputs (phono sockets): 0dBu nominal. +21dBu maximum
• Frequency Response
• Mic in to Mix L/R Out, 30dB gain: +0.5/-1dB 20Hz to 20kHz
• Line in to Mix L/R out 0dB gain: +0.5/-1dB 10Hz to 30kHz
• Stereo in to Mix L/R out: +0.5/-1dB 10Hz to 30kHz
• THD+n
• Mic in to Mix L/R Out, 0dB gain 1kHz +10dBu out: 0.004%
• Mic in to Mix L/R Out, 30dB gain 1kHz: 0.014%
• Line in to Mix L/R out 0dB gain 0dBu 1kHz: 0.005%
• Stereo in to Mix L/R out 0dB gain +10dBu 1kHz: 0.003%
• Headroom
• Analogue Headroom from nominal (0Vu): 21dB
• USB in & out headroom from nominal (0Vu): 14dB
• USB Audio CODEC (Coder/Decoder)
• USB Audio In/Out: USB 1.1 compliant 16bit
• Sample Rate: 32, 44.1, or 48kHz
• Noise
• Mic Pre EIN @ max gain 150R input Z 22-22kHz: -127dBu
• Mix L/R out, L/R faders = 0, 22-22kHz ZED-12FX: -88dBu
• Mix L/R out, L/R faders = 0, 22-22kHz ZED-16FX: -86dBu
• Mix L/R out, L/R faders = 0, 22-22kHz ZED-22FX: -84dBu
• Width: 25.4 inches
• Height: 3.6 inches
• Length: 18.3 inches
• Unpacked Weight: 23.1 lb
• Packed Weight: 33 lb

Package Contents

• Allen & Heath ZED-22FX Mixer
• Cakewalk SONAR LE Software
• Power Cable
• User Manual
