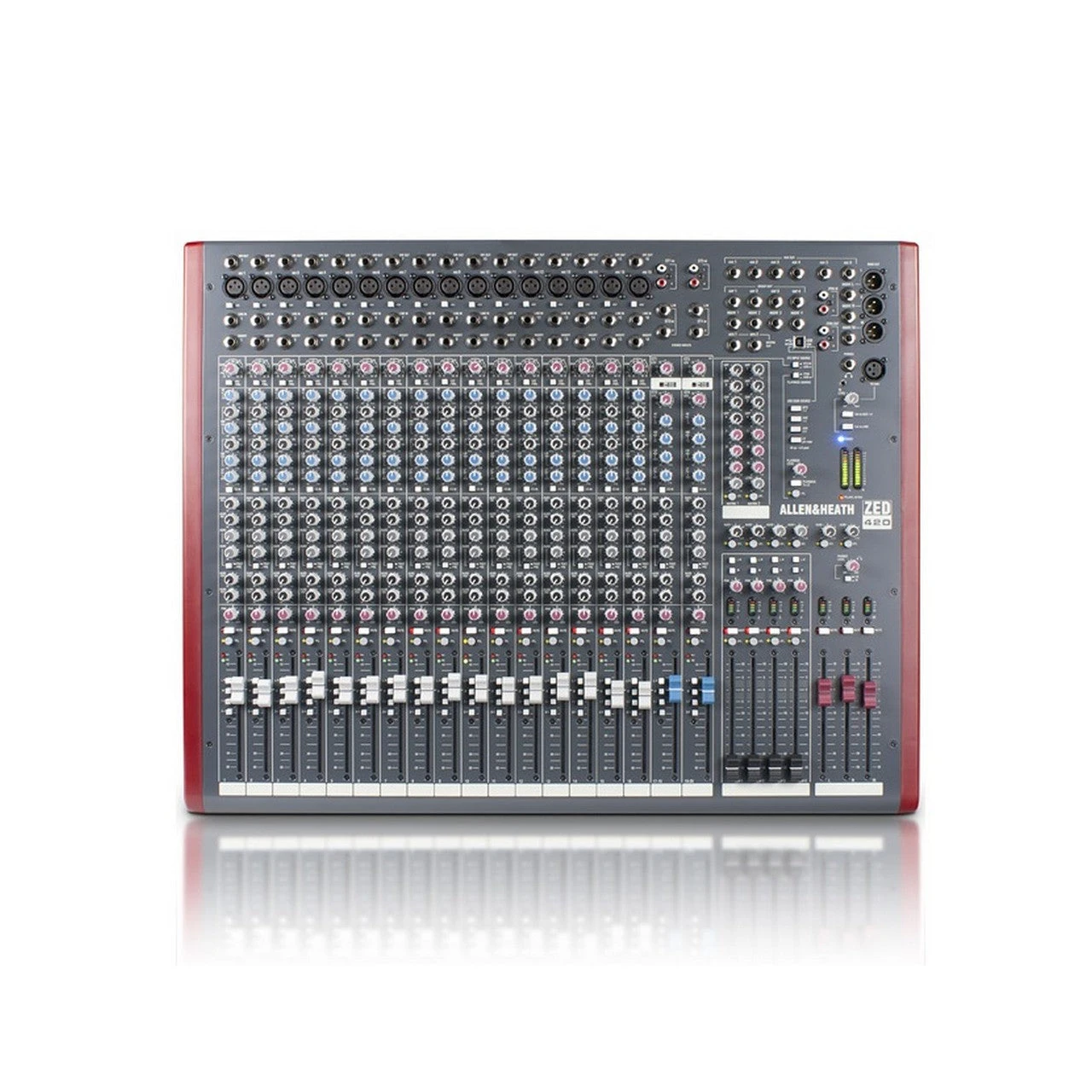

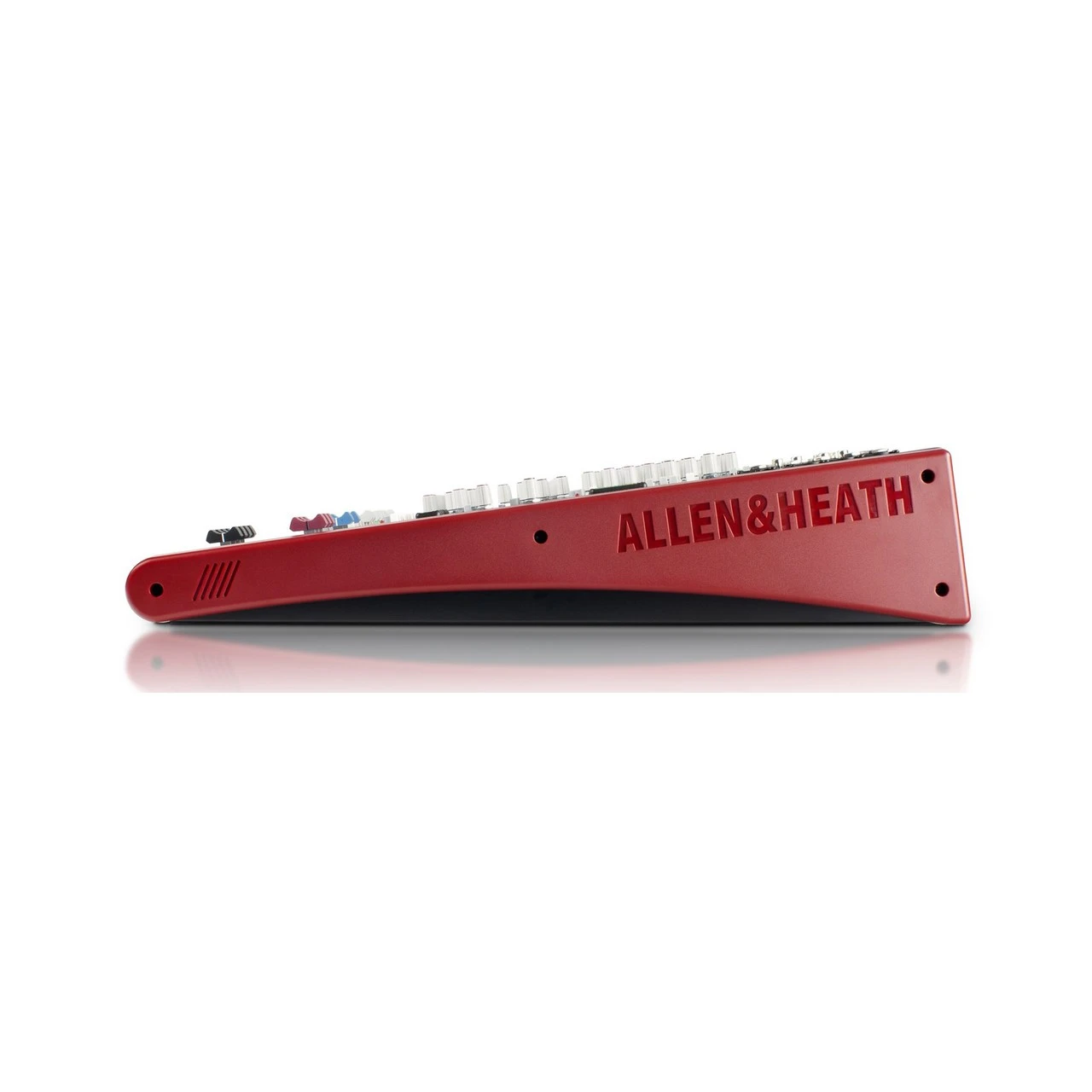

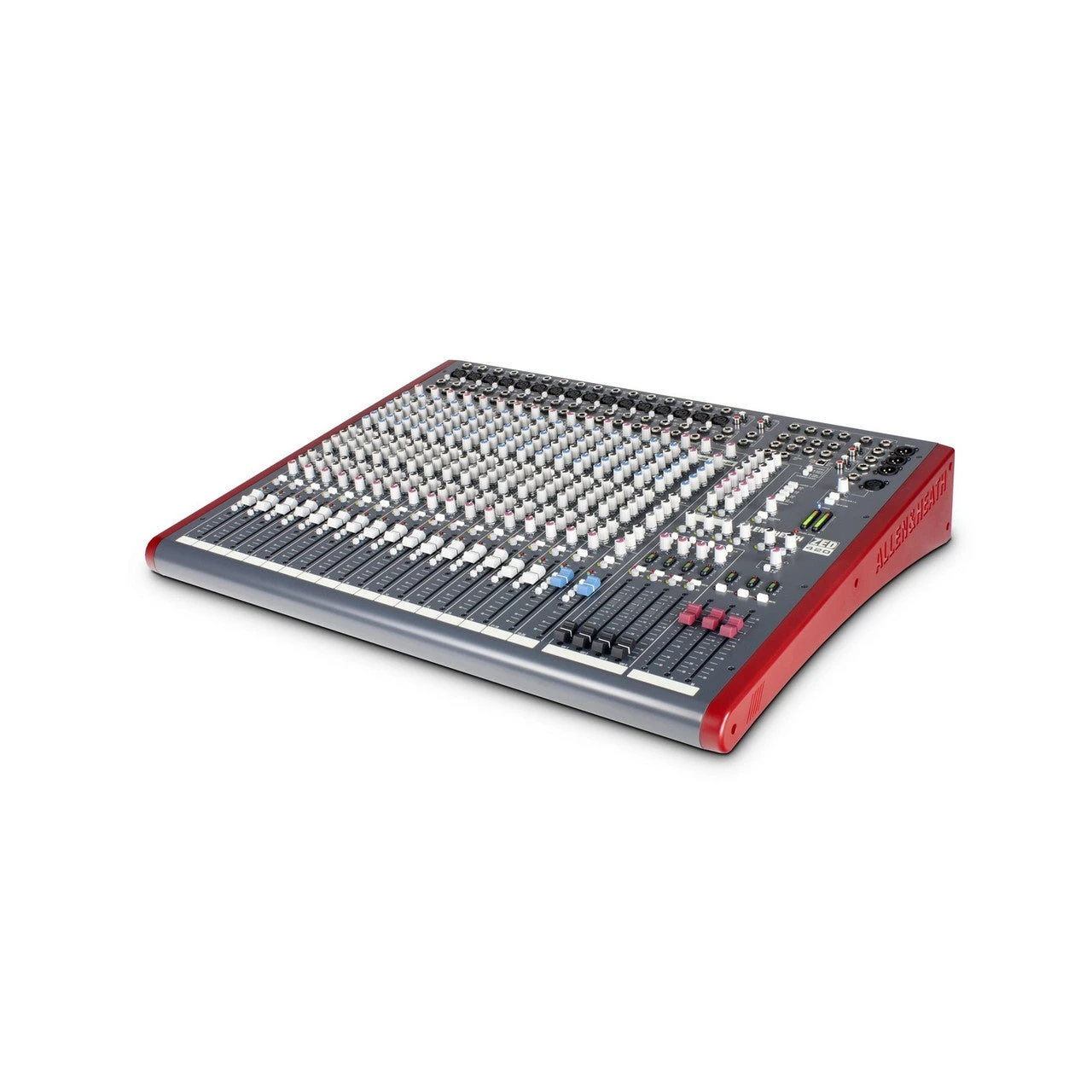

Allen & Heath ZED-420 16 Mono Channel 2 Dual Stereo Input 4 Bus Neutrik XLR Mic 1/4 Inch Mixer(Allen Heath Zed 420 16 Mono Channel 2 Dual Stereo Input 4 Bus Neutrik Xlr Mic 1 4 Inch Mixer)

Allen & Heath ZED-420 | 16 Mono Channel 2 Dual Stereo Input 4 Bus Neutrik XLR Mic 1/4 Inch Mixer

The Allen & Heath ZED-420 mixer is an exceptional audio mixing console that is perfect for a variety of applications, from live band performances to houses of worship, theaters, and AV setups. This versatile mixer offers a robust set of professional features designed to deliver premium sound quality and remarkable flexibility, making it an excellent addition to any professional audio setup.

With its 16 mono channels and 2 dual stereo inputs, the ZED-420 is capable of handling complex audio configurations with ease. It boasts an intuitive layout, which ensures that all connections and controls are easily accessible on the top surface. The configurable USB stereo audio in/out capability simplifies the process of capturing stereo recordings, while the comprehensive EQ and gain options make it possible to fine-tune every aspect of your sound. Whether you need reliable audio support for a live performance or advanced mixing capabilities for a recording studio, the Allen & Heath ZED-420 is designed to meet your needs.

This mixer is equipped with high-quality Neutrik XLR mic and 1/4-inch jack inputs, ensuring robust connectivity and sound integrity. The inclusion of 4-band EQ with MusiQ, 4 sub-groups, 6 auxiliary sends, and a 7-2 matrix means you have all the tools necessary to produce professional-grade audio output. Moreover, the ZED-420’s illuminated mute, PFL, and peak warning indicators, combined with ALPS 100mm faders, provide an unparalleled user experience that guarantees precise control over your audio environment.

Key Features

• 16 mono channels
• 2 dual stereo inputs with 4-band EQ
• Neutrik mic XLR and 1/4 inch jacks
• Channel insert
• Super wide gain DuoPre mic line input
• 4-band EQ with 2 swept mids and in/out switch
• Illuminated mute
• Sound image pan
• Illuminated PFL & peak warning indicator
• ALPS 100mm faders
• 6 auxiliary sends (2 pre, 2 post, 2 pre/post)
• 4 sub groups fed from each channel
• All inputs with level control
• 12 bar meters
• L, R and M main mix outputs
• 2 matrix sections available; can send output to USB
• Individual channel 48V phantom power
• Direct output on every mono channel
• Peak and signal indication on every channel
• Configurable USB stereo audio in/out
• Master level controls on all outputs
• Easy to use layout with all connections and controls on top surface

Specifications

• Mono channel (XLR) Input: +6 to -63dBu for nominal (+17dBu in max)
• Mono channel Line Input (Jack socket): +10 to -26dBu (+30dBu maximum)
• Insert point (TRS Jack socket): 0dBu nominal +21dBu maximum
• Stereo Input (Jack sockets): 0dBu nominal (control = Off to +10dB)
• Stereo input (phono sockets): 0dBu nominal (control = Off to +10dB)
• 2 Track Input (phono sockets): 0dBu nominal +21dBu maximum
• L, R & Mono Outputs (XLR): +4dBu nominal. +27dBu maximum.
• L, R & M Insert (TRS Jack socket): -2dBu nominal +21dBu maximum
• Group Outputs (Jack sockets): +4dBu nominal. +27dBu maximum.
• Group Insert (TRS Jack socket): -2dBu nominal +21dBu maximum
• Aux Outputs (Jack sockets): -2dBu nominal +21dBu maximum (Bal Option +4)
• Matrix Outputs (TRS Jack socket): -2dBu nominal. +21dBu maximum. (Bal Option +4)
• 2 Track Output (phono sockets): 0dBu nominal. +21dBu maximum.
• Direct Out (TRS Jack socket): 0dBu nominal. +21dBu maximum.
• Analogue Headroom from nominal (0Vu): 21dB
• USB in & out headroom from nominal (0Vu): 14dB
• Frequency Response:
  • Mic in to Mix L/R Out, 30dB gain: +0.5/-1dB 20Hz to 20kHz.
  • Line in to Mix L/R out 0dB gain: +0.5/-1dB 10Hz to 30kHz
  • Stereo in to Mix L/R out: +0.5/-1dB 10Hz to 30kHz
• THD+n:
  • Mic in to Mix L/R Out, 0dB gain 1kHz +10dBu out: 0.004%
  • Mic in to Mix L/R Out, 30dB gain 1kHz: 0.014%
  • Line in to Mix L/R out 0dB gain 0dBu 1kHz: 0.005%
  • Stereo in to Mix L/R out 0dB gain +10dBu 1kHz: 0.003%
• USB Audio CODEC:
  • USB Audio In/Out: USB 1.1 compliant 16bit
  • Sample Rate: 32, 44.1, or 48kHz
• Noise:
  • Mix Noise, LR out, 16 channels routed, Ref +4dBu, 22-22kHz: -90dB (-86dBu)
  • Mix Noise, LR out, 24 channels routed, Ref +4dBu, 22-22kHz: -89dB (-85dBu)
  • Mix Noise, LR out, 32 channels routed, Ref +4dBu, 22-22kHz: -88dB (-84dBu)
  • Mic Pre EIN @ max gain 150R input Z 22-22kHz: -127dBu
• Width: 28.2 Inches
• Height: 4.7 Inches
• Length: 22.1 Inches
• Unpacked Weight: 31 lb
• Packed Weight: 38.5 lb

Package Contents

• Allen & Heath ZED-420 Mixer
• Power Supply
• User Manual
