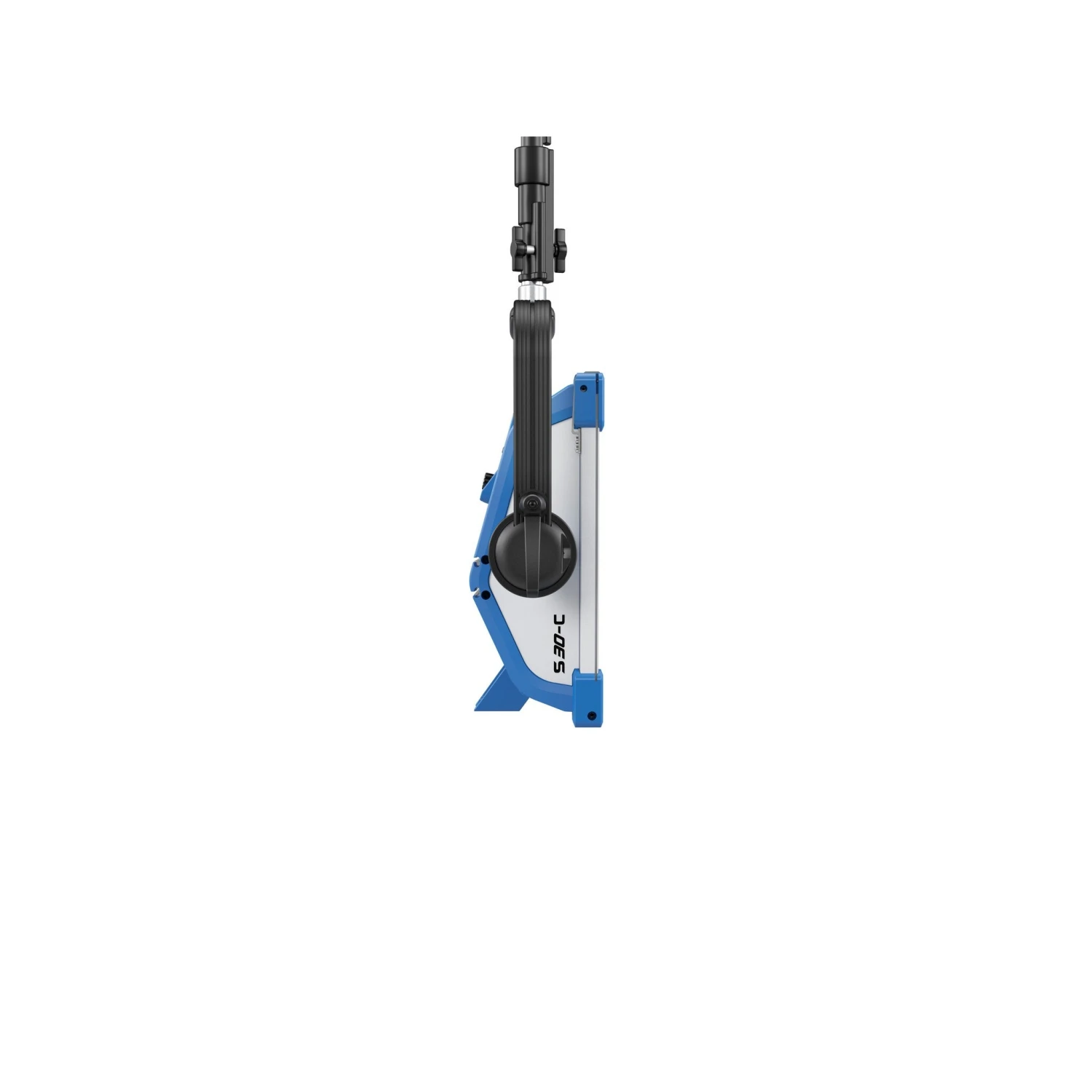

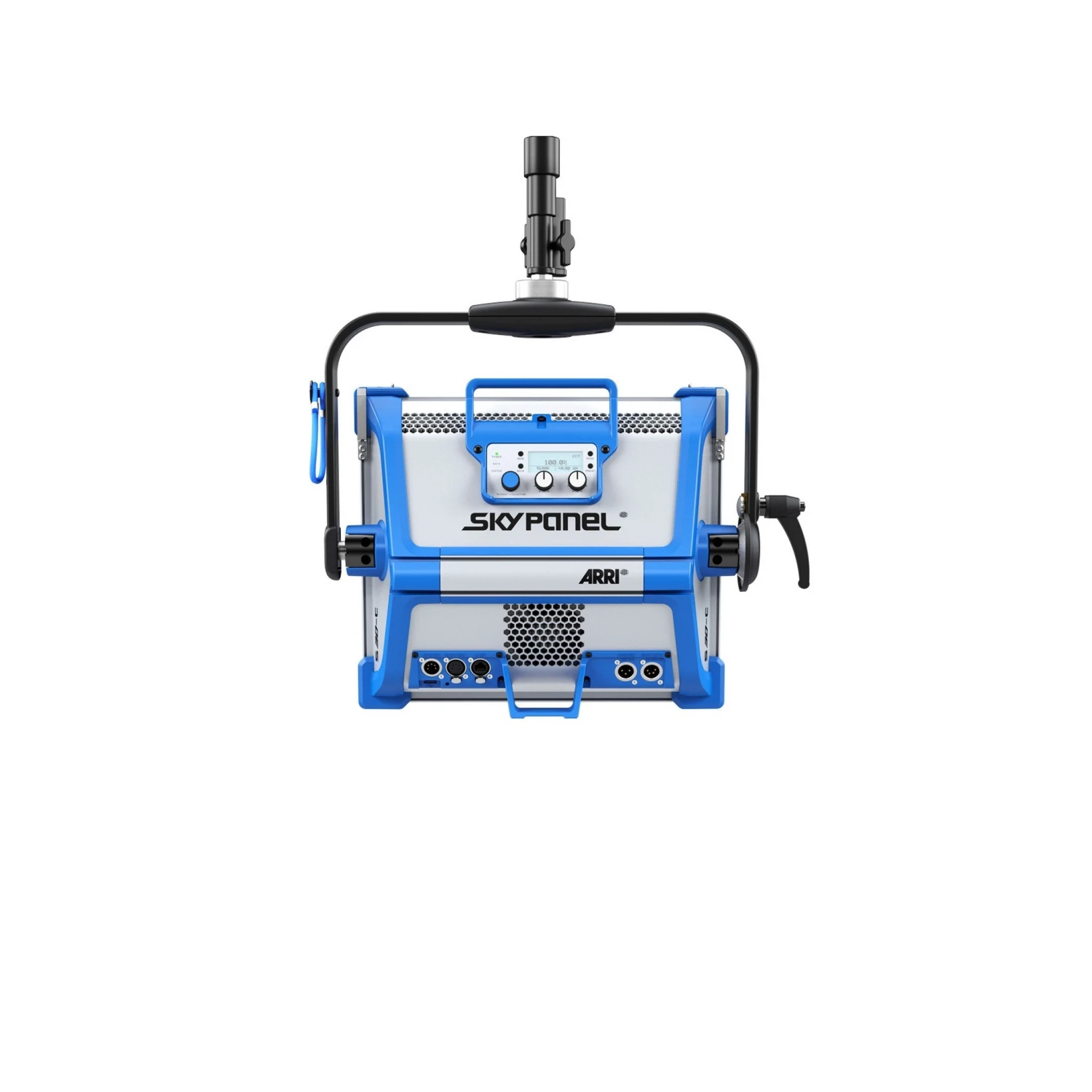

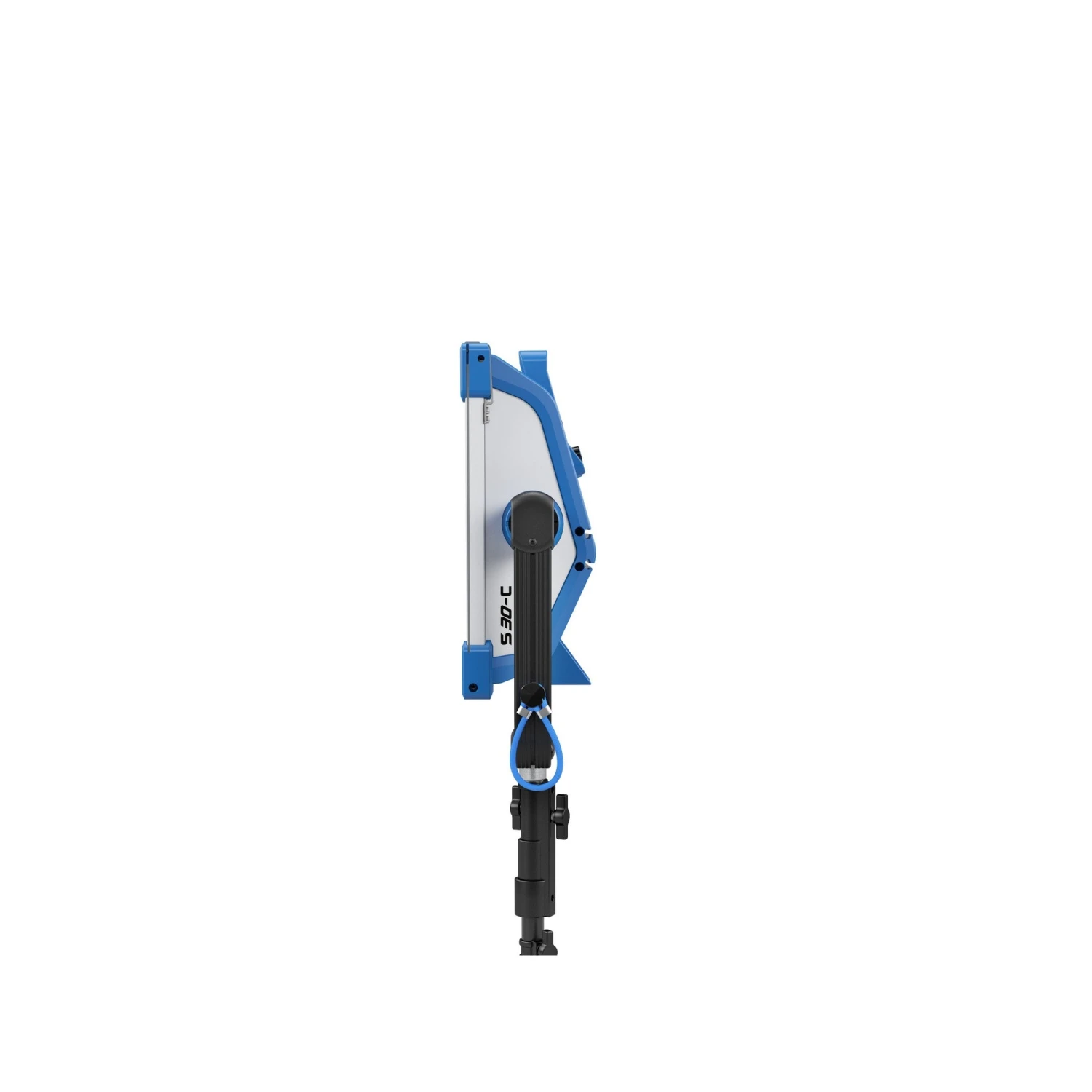

ARRI SkyPanel S30-C Color Standard Diffusion Light Panel, Blue/Silver, Manual (L0.0007711)(Arri L0 0007711 Skypanel S30 C Color Standard Diffusion Light Panel Blue Silver Manual)

ARRI L0.0007711 SkyPanel S30-C Color Standard Diffusion Light Panel, Blue/Silver, Manual

The ARRI L0.0007711 SkyPanel S30 is the smallest, more portable version of the SkyPanel; half the length of the S60, it is perfect for on-the-go mobile applications. The S60 and the S30 are available in fully color tuneable and remote phosphor versions. Unlike other tuneable fixtures, SkyPanel makes no sacrifice when it comes to light output. SkyPanel puts out a tremendous amount of light, in a soft and uniform beam field. Brighter than a 1 kW tungsten soft light or a 3-kW tungsten space light, the SkyPanel S30 has more than enough light for most applications. At the same time, the lamphead is able to perform beautifully at lower light levels. This range of illumination and color gives users an unprecedented amount of control.

SkyPanel is a compact, ultra-bright and high-quality LED soft light that sets a new standard for the industry. With a design focused on form, color, beam field and output, SkyPanel represents the culmination of more than a decade of research and development of LED technology at ARRI. SkyPanel perfectly mixes some 2,000 calibrated red, green, blue and white LEDs into one homogeneous beam of soft light. In addition to providing excellent light, the SkyPanel also provides excellent shadows. The shadows are soft in nature and do not exhibit multiple edges or strange colors, making SkyPanel one of the best LED soft lights for shadow rendition on the market.

Incorporating features of ARRI’s successful L-Series LED Fresnels, SkyPanel is one of the most versatile soft lights on the market, as well as one of the brightest. Like the L-Series, SkyPanel ‘C’ (Color) versions are fully tuneable; correlated color temperature is adjustable between 2,800 K and 10,000 K, with excellent color rendition over the entire range. Full plus and minus green correction can be achieved with the simple turn of a knob, and in addition to CCT control, vivid color selection and saturation adjustment is also possible. The remote phosphor versions of SkyPanel are roughly 10% brighter than the color versions and have a lower price point.

Made in Germany to the high standards for which all ARRI products are known, SkyPanel is Built-to-last – constructed from resilient materials and assembled by hand with great care. Other features include an on-board battery input for mobile applications, LAN port for network connectivity, USB-A port for firmware updates via thumb drive, and many more.

The state-of-the-art light engines and electronics built into every SkyPanel have paved the way for a powerful new feature in SkyPanel Firmware 3.0: lighting effects. With SkyPanel Lighting Effects users can now choose and manipulate 12 effects without the need for a lighting console or hours of programming. Each effect has several parameters that allow for customization of the effect to fit your needs. The lighting effects include: candle, clouds passing, club lights, color chase, cop car, fire, fireworks, light strobe, lightning, paparazzi, pulsing, and television. SkyPanel Lighting Effects changes the game for on-set lighting effect generation.

Key Features

• Fully Tuneable from 2,800 K – 10,000 K
• Plus/Minus green correction
• Vibrant Color Selection (RGB+W Color Gamut)
• Hue and Saturation Control
• High Color Rendering
• Low Power Consumption (200 W Nominal)
• Tremendous Output – Brighter than 1kW Tungsten Soft Light
• Fully Dimmable from 0 – 100%
• Lightweight and Compact
• Beautiful Soft Beam of Light
• Interchangeable Diffusion Panels
• Wide Range of Accessories Available
• Thin Profile
• On-Board Battery Connection (23 – 36V DC)
• Onboard Simple Control Panel
• Onboard DMX In and Out
• RDM Implementation
• USB-A Connection for Firmware Updates
• EtherCon port for network connectivity
• Available in Blue/Silver and Black
• Fan Mode Selection
• External Lightweight PSU
• powerCON TRUE1 Power Connector

Technical Specifications

Lamphead
S30-C
Optical System
Soft Diffusion Panel
Light Aperture
355 x 300 mm / (14 x 11.8 inches)
Beam Angle
115 Degrees (Half Peak Angle)
Weight
Manual Version
7.4 kg (16.3 lbs)
Pole Op Version
9.0 kg (20 lbs)
Handling
Aluminum Yoke, High Strength Tilt Lock
Pole Operation Option (Pan & Tilt)
Mounting
16 mm / 28 mm Combo Pin (Baby 5/8 inch / Junior 1-1/8-inch Combo Pin)
Tilt Angle
+/- 90 Degrees
Lamphead Voltage Input
48 V DC
Power Consumption
200 W Nominal, 220 W Maximum
Lamphead Power Connection
Male 3-Pin XLR – 15 amp (Pin 1
Negative / Pin 2
Positive)
Battery Connector
Male 4-Pin XLR – 10 Amp (Pin 1
Negative / Pin 4
Positive)
Battery DC Voltage Range
23 – 36 V DC
Battery Mode Light Output
100% of Total Output
White Light
2,800K – 10,000K Continuously Variable Correlated Color Temperature
Colored Light
Full RBG+W Color Gamut with Hue and Saturation Control
Color Temperature Tolerance
+/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal)
Color Rendition
CRI Average > 95
TLCI Average > 91
Green-Magenta Adjustment
Continuously Adjustable (Full Minusgreen to Full Plusgreen)
Dimming
0 – 100% Continuous
Control
On-Board Controller, 5-Pin DMX In and Through, EtherCon LAN Network Connectivity, USB-A
Remote Device Management (RDM*)
DMX Setup, Hour Counter and Standard RDM Commands
Software Interface
Ethernet
DMX Setup, Fixture Status and Firmware Upgrade Through PC, Mac USB-A
Software upgrade via flash drive
Housing Color
Blue/Silver, Black
Ambient Temperature Operation
-20 – 45 Degrees C (-4 – 113 Degrees F)
Protection Class
IP 20
Estimated LED Lifetime (L70)
50,000 hours
Estimated Color Shift Over Lifetime
+/- 5% K
Certifications
CE, CB, ENEC, cNRTLus, FCC, PSE
Power Supply Unit
S30 PSU
Power Supply Input Range
110- 240 V AC, 50/60 Hz
Power Supply Output Range
48 V DC
Power Input Connection
powerCON TRUE1 (Bare Ends / Schuko / Edison Cables Available)
Power Output Connection
Female 3-Pin XLR – 10 Amp (Pin 1
Negative / Pin 2
Positive) powerCON TRUE1 (mains power through)
Weight
2.1 kg (4.6 lbs.)
Dimension
383 x 116 x 90 mm (15 x 4.6 x 3.5 inch)
Control
On-Board On/Off Switch
Mounting
Super Clamp Attachment / SkyPanel PSU Rail Mount
