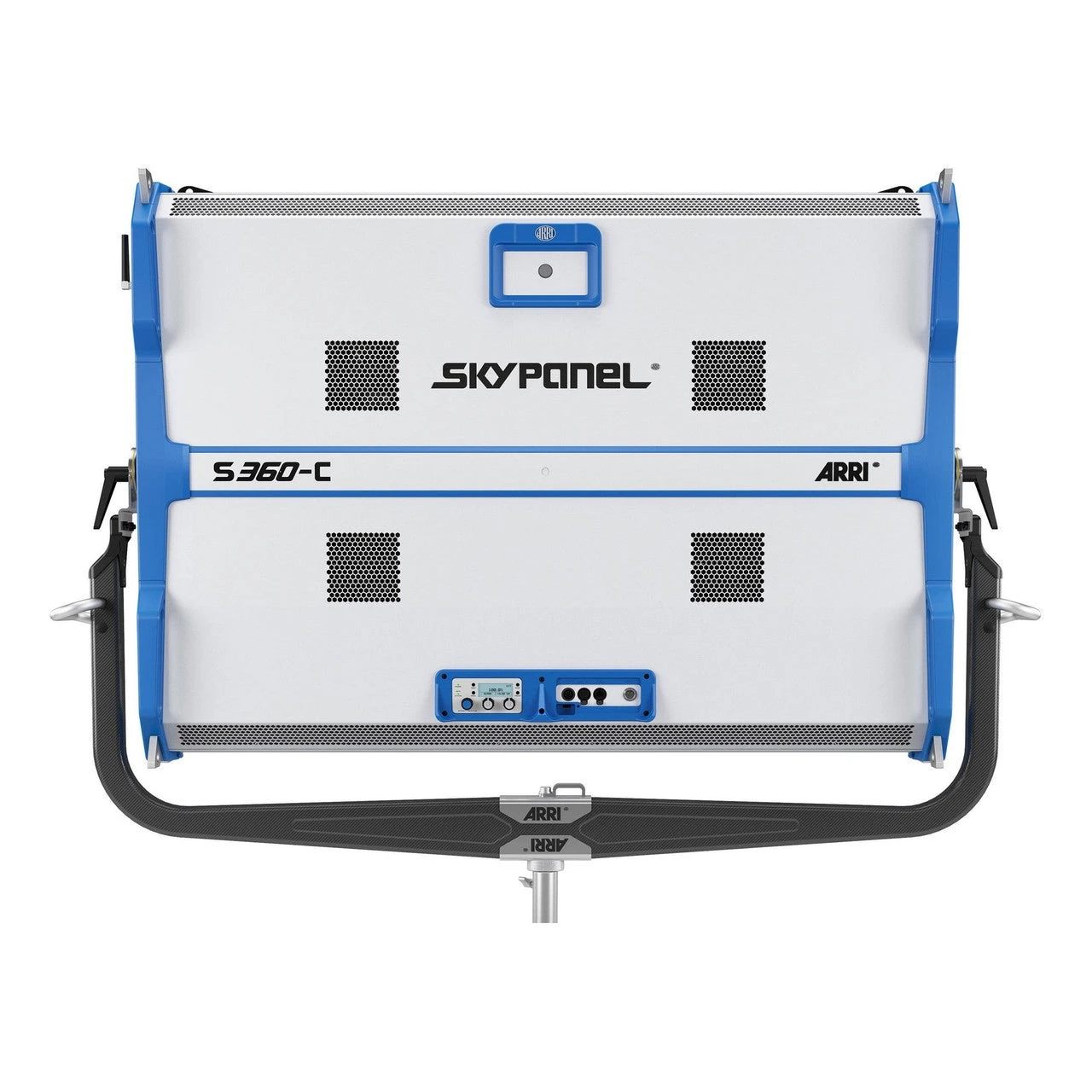

ARRI SkyPanel S360-C Blue/Silver S360 PSU With Super Clamp Adapter Standard Diffusion Panel(Arri Skypanel S360 C Blue Silver S360 Psu With Super Clamp Adapter Standard Diffusion Panel)

ARRI SkyPanel S360-C Blue/Silver S360 PSU with Super Clamp Adapter Standard Diffusion Panel

The ARRI SkyPanel has always been known for its tremendous output and large light aperture. The L0.0016325 S360-C has expanded ARRI’s LED soft light range with the largest and brightest SkyPanel to date. Not only is the S360-C powerful, but it is packed full of exciting features, making it one of the most versatile LED fixtures on the market. Features include full color control, lighting effects on a huge aperture, wireless DMX built in, a unique carbon fiber yoke, and much more. The S360-C is truly a beast of a light.

Key Features

• Fully Tuneable from 2,800 K to 10,000 K
• Vibrant Color Selection (RGB+W Color Gamut)
• High Color Rendering
• Enormous Aperture (1290 x 870 mm)
• LumenRadio Wireless DMX Built In
• Tremendous Output – Over 120,000 Lumens
• Fully Dimmable from 0 to 100 %
• Light Weight Carbon Fiber Yoke
• Beautiful Soft Beam of Light
• Interchangeable Diffusion Panels
• Wide Range of Accessories Available
• Thin Profile
• Onboard Simple Control Panel
• Onboard DMX In and Out
• RDM Implementation
• USB-A Connection for Firmware Updates
• EtherCon port for network connectivity
• Available in Blue/Silver
• Fan Mode Selection
• External PSU
• powerCON 32 A Power Connector

Technical Specifications

Optical System
Swappable Soft Diffusion Panels
Light Aperture
1280 x 870 mm / 50.4 x 34.4″
Beam Angle
105 (Half Peak Angle)
Weight
41 kg / 90.4 lbs (incl. Carbon Fiber Yoke and Spigot)
Handling
Carbon Fiber Yoke, Dual High-Strength Tilt Lock
Mounting
28 mm Spigot (Junior Pin)
Tilt Angle
+/- 90
Lamphead Voltage Input
54 V DC
Power Consumption
1,500 W Nominal, 1,600 W Maximum
Lamphead Power Connection
Male 4-Pin Metal Locking – 30 Amp
White Light
2,800 K to 10,000 K continuously variable correlated color temperature
Colored Light
Full RBG+W color gamut with Hue and Saturation control
Lamphead Power Connection
Male 3-Pin XLR to 15 Amp (Pin 1: Negative / Pin 2: Positive)
Battery Connector
Male 4-Pin XLR to 10 Amp (Pin 1: Negative / Pin 4: Positive)
Battery DC Voltage Range
23 to 36 V DC
Battery Mode Light Output
50 % of total output
White Light
2,800 K to 10,000 K continuously variable correlated color temperature
Colored Light
Full RBG+W color gamut with Hue and Saturation control
Color Temperature Tolerance
+/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal)
Color Rendition
CRI Average > 95 TLCI Average > 90
Green-Magenta Adjustment
continuously adjustable (Full Minusgreen to Full Plusgreen)
Dimming
0 to 100 % continuous
Control
On-Board Controller, 5-Pin DMX In and Through, EtherCon LAN network connectivity, USB-A, Art-Net
Wireless Control
LumenRadio CRMX (DMX & RDM)
Remote Device Management (RDM)
DMX Setup, Hour Counter and Standard RDM commands
Software Interface Ethernet
DMX Setup, Fixture Status & Control, and Firmware Upgrade through PC or Mac
USB-A
Software Upgrade via flash drive
Housing Color
Blue/Silver
Ambient Temperature Operation
-20 to +45 C (minus4 to +113 F)
