ATEN UH3237 USB-C Multiport Dock with Power Pass-Through

The ultra-sleek ATEN USB-C Multiport Dock is a one-step total upgrade for your laptop that provides all the extra expansion capabilities that you need. Simply use one cable to add up to 13 devices, with power delivery pass-through to boost your productivity with extra HDMI, VGA, USB 3.2 Gen 1, USB 2.0, SD/MicroSD, Ethernet and Audio connections.

Enjoy stunning 4K video or a dual HD monitor setup with HDMI, and VGA functionality. The UH3237 routes video from a source computer to a HDMI monitor via a single cable while maintaining the highest quality 4K resolution. You can also mirror or extend your Windows USB-C laptop to two monitors at 1920 x 1080@60hz.

The UH3237 also supports USB-C Power Delivery Pass-Through up to 85W, which means it can provide power to your device via a USB-C PD power adapter with the PD profile specifications of 5V, 9V, 12V, 15V, 20V.

The integrated USB 3.2 Gen 1 Type-A port supports data transfer rate up to 5Gbps, giving seamless access to USB flash drive. The USB 2.0 Type-A port are designed for keyboard and mouse to minimize the signal interference. The equipped Type-C data port can be used for the latest USB-C devices.

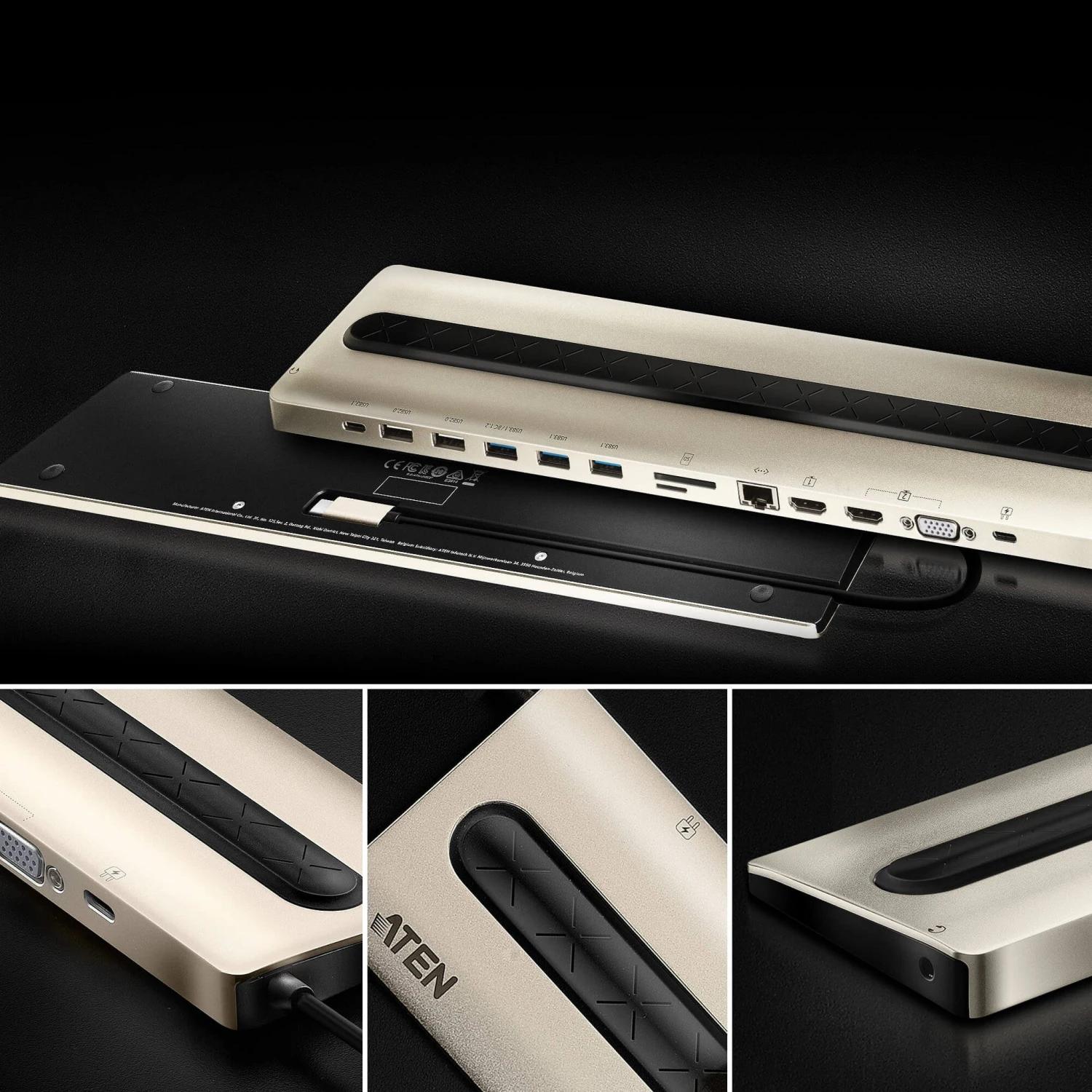

This ergonomic, plug-and-play device (no software drivers are needed) is compatible with all major operating systems (Windows, OS X and iPad Pro). Save space on your desktop by placing your laptop directly on top of the lightweight yet rugged dock or display the dock next to your monitors for a stylish, minimalist workstation.

Key Features

• Expands up to 13 devices instantly through a USB-C cable
• Supports USB power delivery 3.0 (PD3.0) for laptop charging up to 85W via USB-C PD power adapter – power profiles include 5V, 9V, 12V, 15V, 20V
• Supports single display output resolution up to 4K@30 (3840×2160@30Hz) on a single HDMI or dual display output at 1080p (1920 x 1080 @ 60Hz)
• 1 x USB 3.2 Gen 1 Type-A port supports Battery Charging Specification Revision 1.2 (BC 1.2) for fast-charging device
• 1 x USB 3.2 Gen 1 Type-C data port for latest USB-C device
• Stylish and ultra slim design allows user to place a 15” laptop directly on the top of the docking station and save more desk space*
• Enhanced EMI protection by increasing the cable braid density and adding conductive foam
• Built-in memory card readers (SD/MMC/Micro SD)
• Works with all major operating systems: Windows, OS X, and iPad Pro
• Compatible with Thunderbolt 3 (USB-C)
• 3.5mm Stereo 4-Pole Audio Jack with Microphone
• Gigabit Ethernet
• Apple M1 chip compatible

Technical Specifications

Computer Connections
1
Connectors
Computer

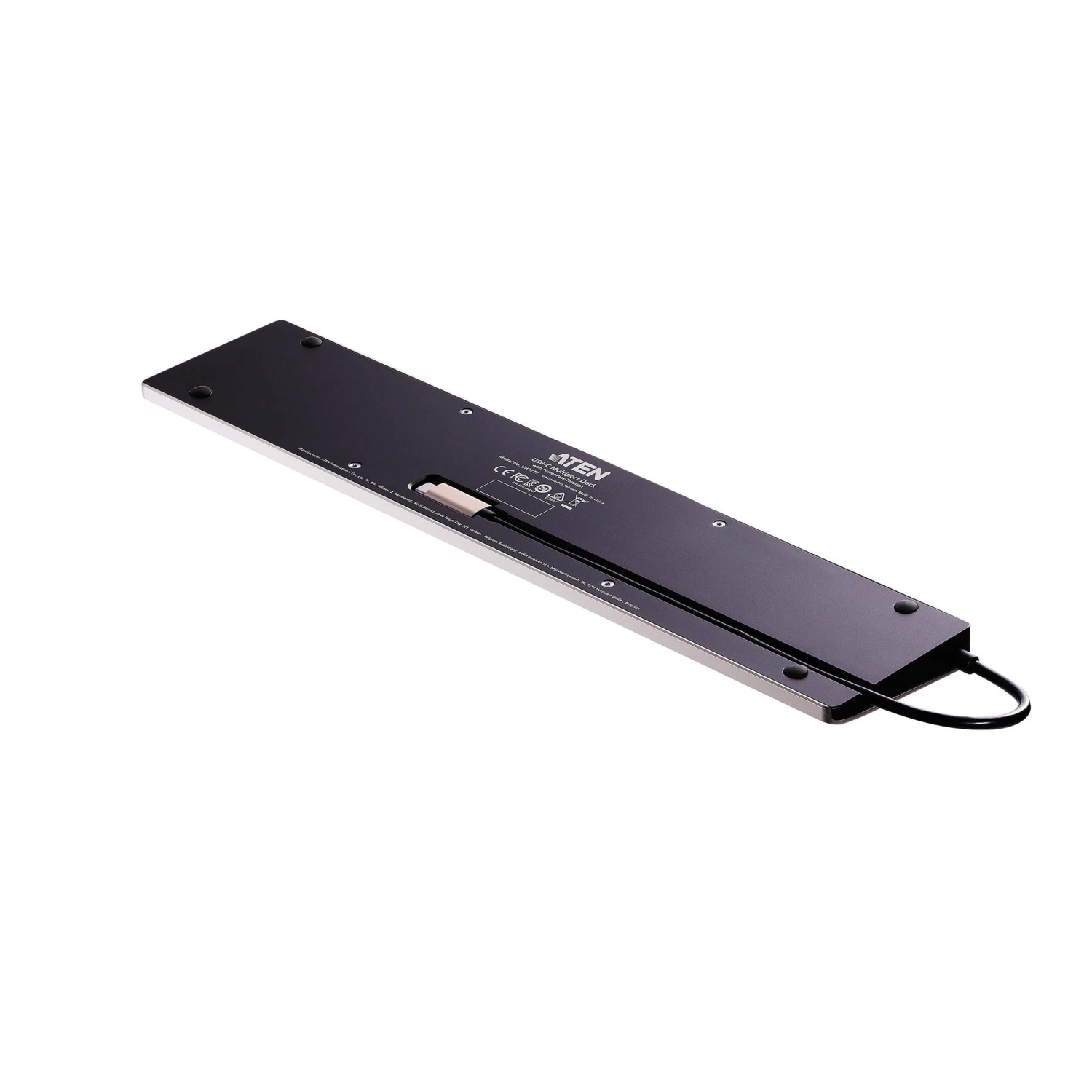

30 cm USB 3.1 Gen1 Type-C tethered cable
Device
2 x USB 2.0 Type-A Female (Black)*
3 x USB 3.2 Gen 1 Type-A Female (Blue)*
1 x USB 3.2 Gen 1 Type-C Female (Data Only) *
*The total output of 6 USB Ports is max. 5V, 10W.
Video Output
2 x HDMI Female
1 x VGA Female
LAN Ports
1 x Gigabit Ethernet Female (Black)
Audio
1 x 3.5mm stereo 4-pole microphone and headphone jack
Power
1 x USB Type-C Female*
* Supports USB Power Delivery 3.0 for charging up to 85W, power profiles include 5V, 9V, 12V, and 20V.
* For device charging, a Limited Power Source (LPS) certified single port USB-C PD power adapter over 65 Watt is recommended.
* The minimum system power requirement for basic USB functions and video output should be at least 5V, 15W.
Performance
Flash Memory
1 x SD Card Slot (SD/SDHC/SDXC)
1 x Micro SD Card Slot (Micro SD/SDHC/SDXC up to 128G)
Video Resolution
Single View
HDMI – 3840x 2160@30hz or VGA -1920 x 1080@60hz
Dual View*
2 x HDMI – 1920 x 1080@60hz
* For Dual-View to work, a computer’s graphics card must support MST technology. Mac computers only support a single-view output.
Power Consumption
DC5V:15W:66BTU
System Requirements
Windows 10 and above, USB-C enabled computer with DP Alt Mode*
Mac OS X 10.12 and above, USB-C enabled computer
iPadOS 13.1 and above, iPad Pro (USB-C) *
*iPad Pro only supports single view in mirror mode
Environmental
Operating Temperature
0-40 Degrees C
Storage Temperature
-20-60 Degrees C
Humidity
0-80% RH, Non-condensing
Physical Properties
Housing
Top Cover – Aluminum
Bottom Panel – Plastic
Weight
0.37 kg (0.81 lb)
Dimensions (L x W x H)
35.03 x 7.50 x 1.48 cm (13.79 x 2.95 x 0.58 in.)
Note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
