AtlasIED 16×16 I/O Breakout Boxes for BlueBridge DSP Systems

The AtlasIED BB-1616 and BB-1616DT are professional-grade breakout boxes engineered to extend I/O flexibility in BlueBridge DSP-based installations. Housed in a compact 1RU chassis, these rugged units are ideal for fixed AV systems in commercial, government, and performance spaces requiring scalable analog signal integration. Each unit features 16 balanced analog inputs and 16 balanced analog outputs on standard DB-25 connectors, enabling efficient connection to XLR/TRS panels or cabling systems. Both models ship fully assembled and ready for rack installation, supporting quick integration and simplified system design.

While both models offer identical analog I/O functionality, the BB-1616DT adds native Dante™ network audio compatibility, enabling seamless audio-over-IP connectivity with other Dante-enabled devices. This makes the BB-1616DT ideal for modern networked audio infrastructures, while the BB-1616 provides a streamlined, DSP-integrated breakout solution for traditional BlueBridge systems. Each model includes a locking external power supply and a rear-panel USB port for easy configuration and service access.

Key Features (All Models)

• 16 analog audio inputs and 16 analog audio outputs
• Balanced line-level connections via DB-25 connectors
• 1RU rack-mountable chassis for space-saving installation
• Designed for integration with BlueBridge DSP systems
• External locking power supply included
• Rear-panel USB port for system access

Model Comparison and Technical Specifications

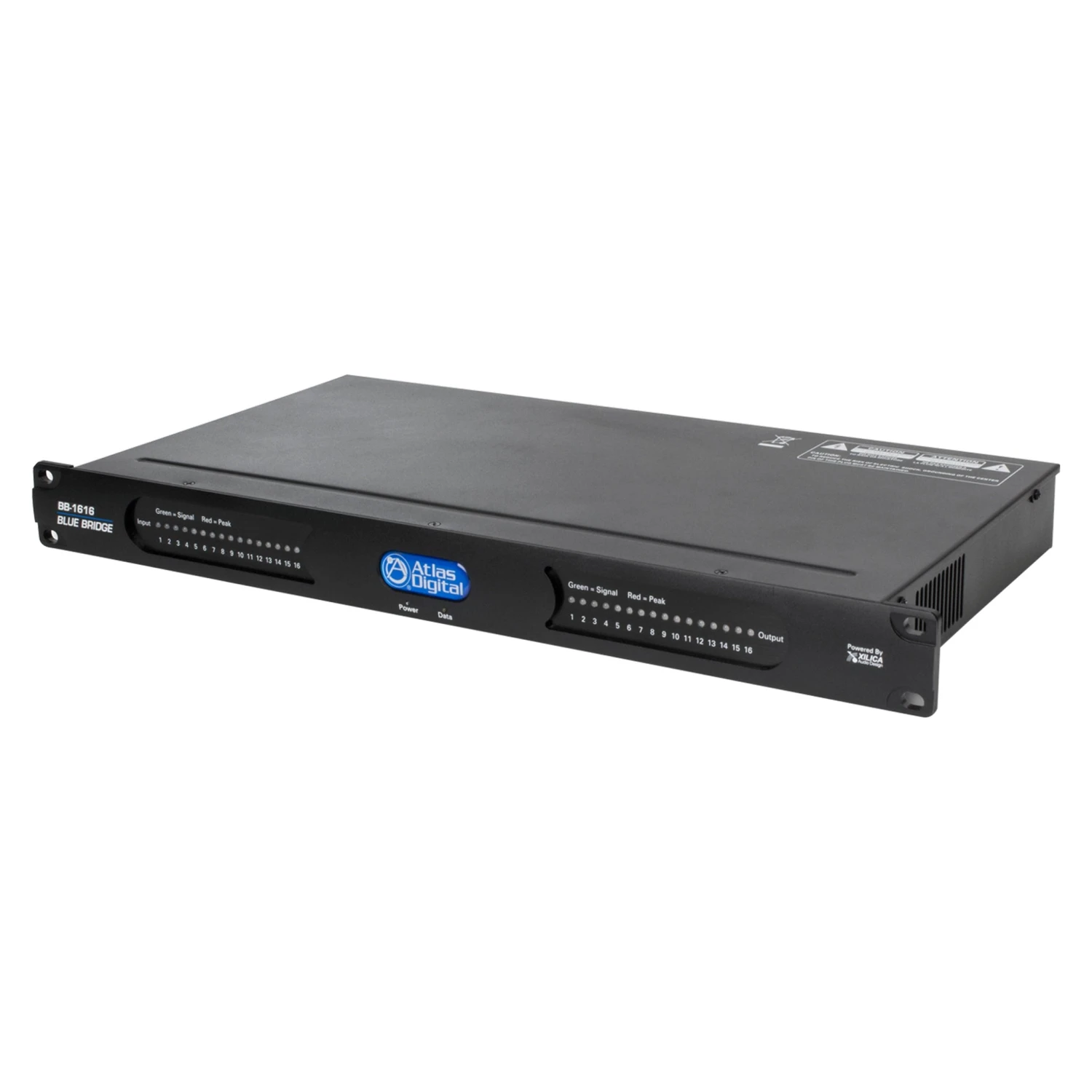

Model: AtlasIED BB-1616

• Network Connectivity: None
• Inputs: 16 analog line-level (DB-25)
• Outputs: 16 analog line-level (DB-25)
• Height: 1.75-Inch
• Width: 19.0-Inch
• Depth: 10.0-Inch
• Weight: 7.5 lbs
• Power Supply: External (included)

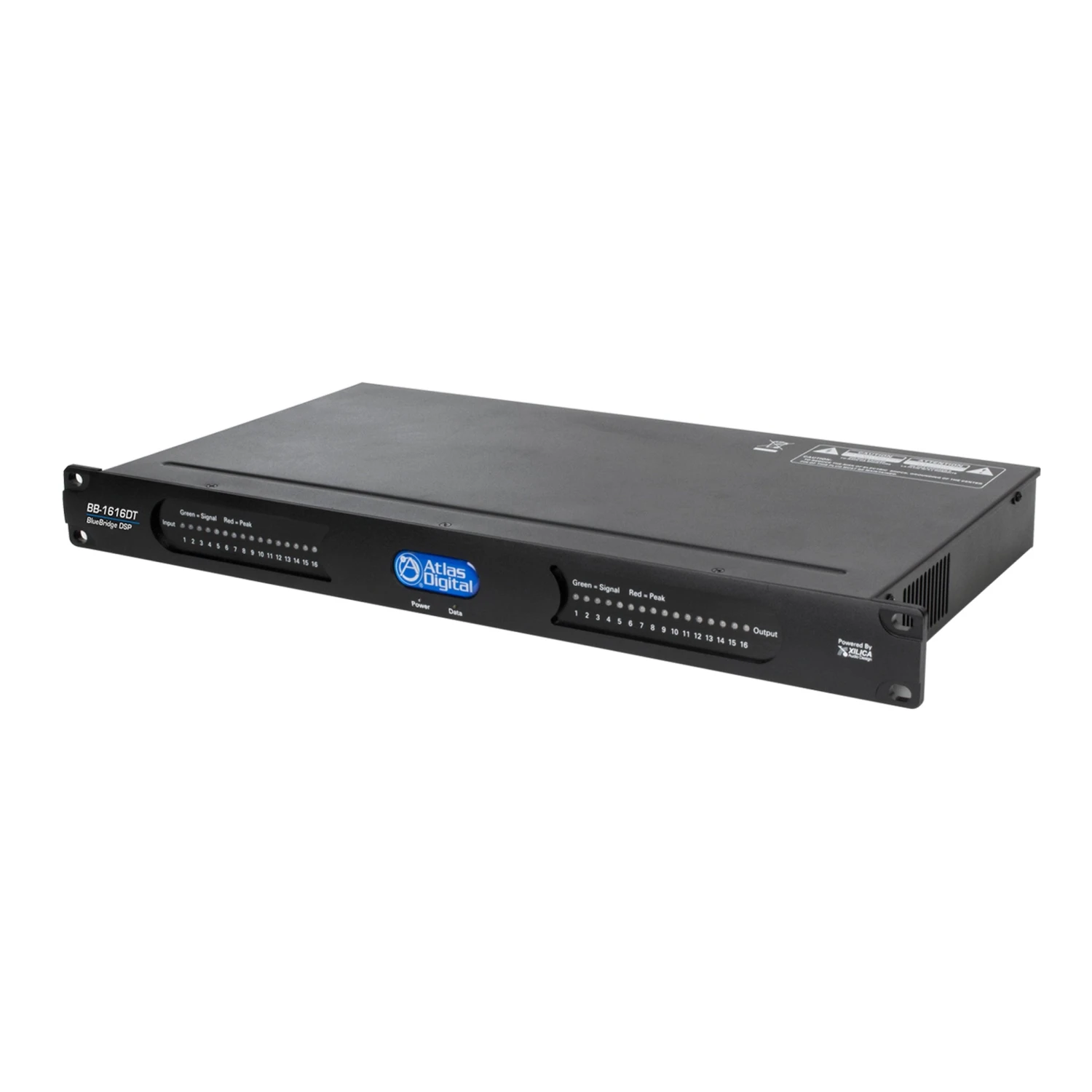

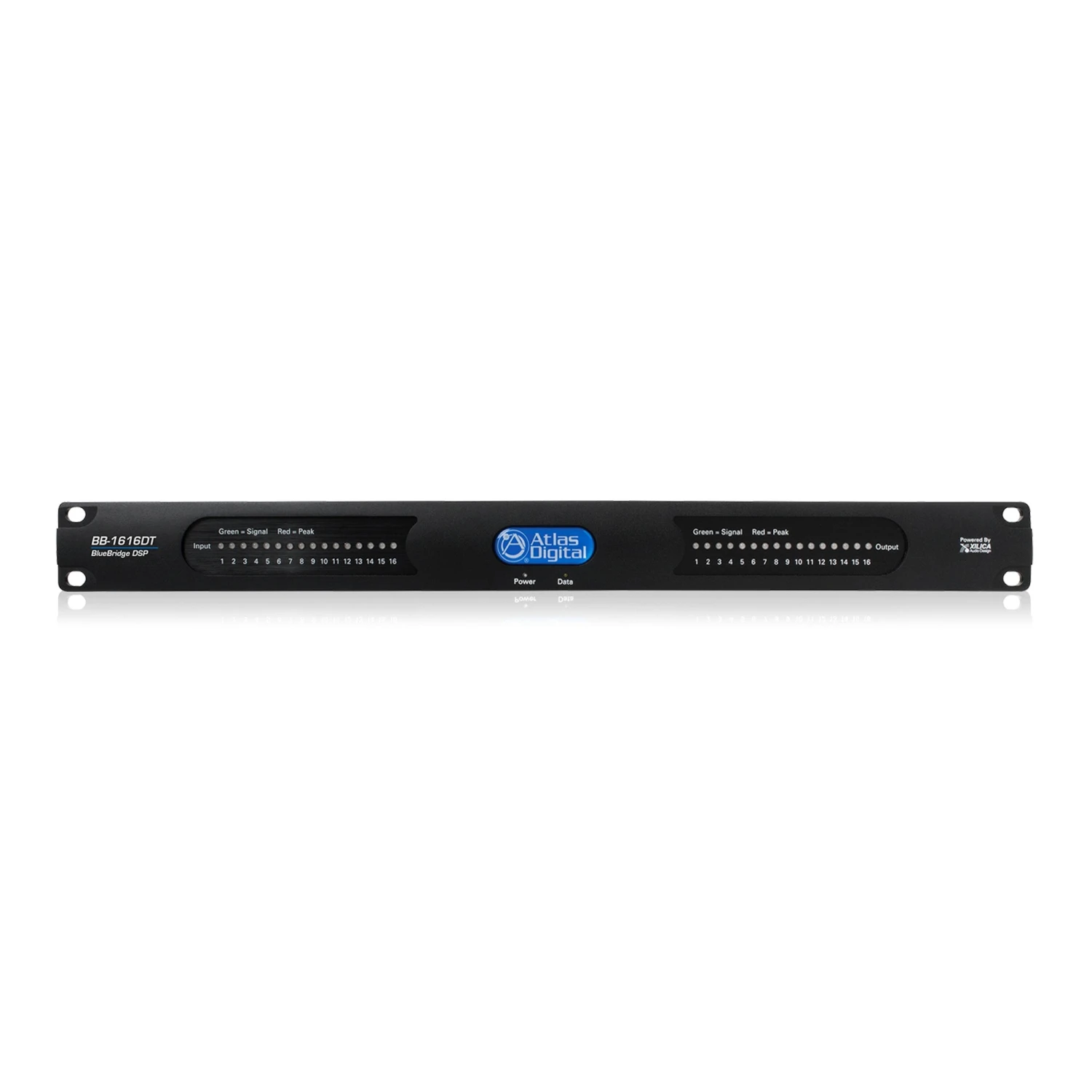

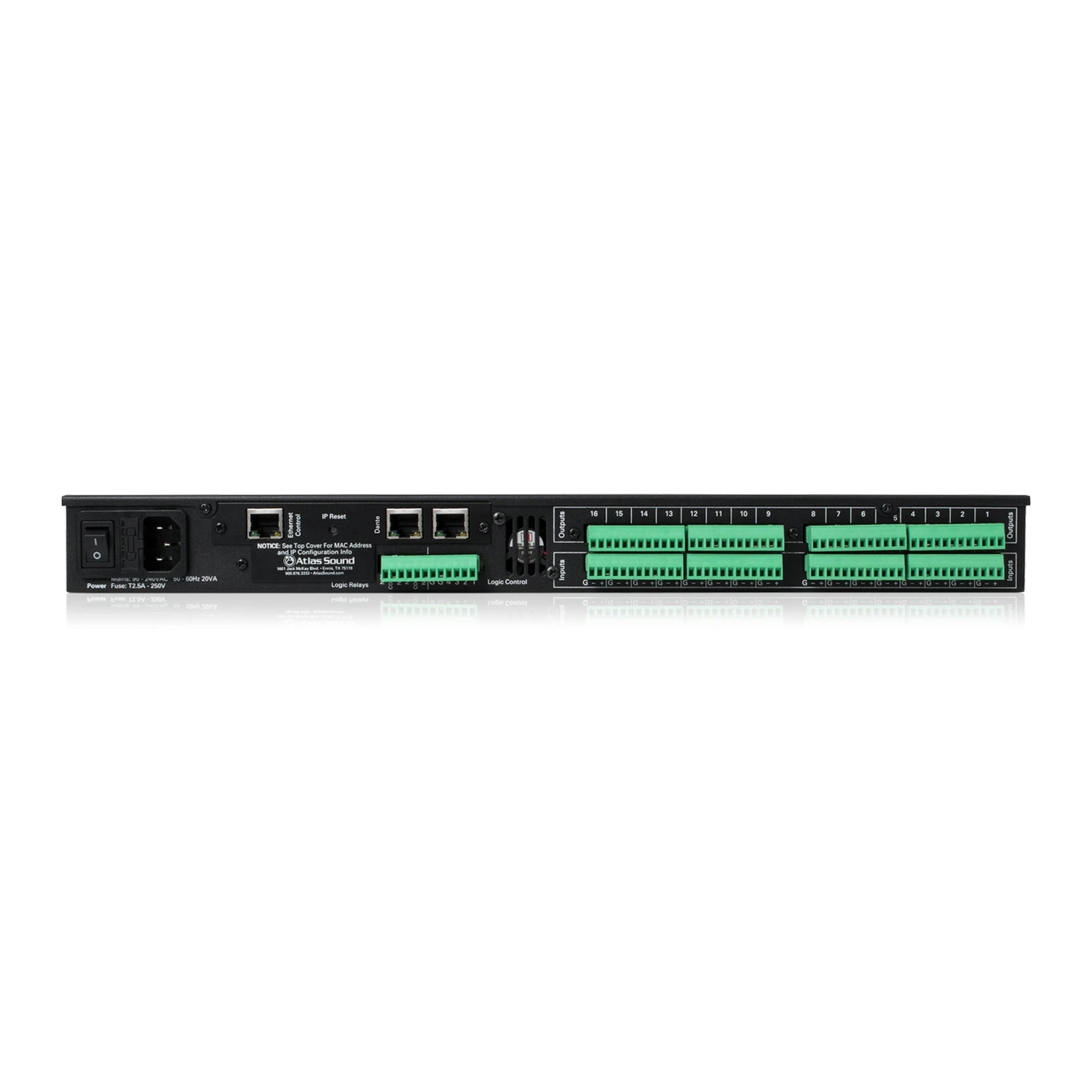

Model: AtlasIED BB-1616DT

• Network Connectivity: Dante™ Audio-over-IP
• Inputs: 16 analog line-level (DB-25)
• Outputs: 16 analog line-level (DB-25)
• Height: 1.75-Inch
• Width: 19.0-Inch
• Depth: 10.0-Inch
• Weight: 7.5 lbs
• Power Supply: External (included)

What’s Included (All Models)

• BB-1616 or BB-1616DT Breakout Box (pre-assembled)
• External Locking Power Supply
• Rear USB Port for Configuration
