AtlasIED 316‑12 19-Inch Wall‑Mount Rack Cabinet, 16RU(Atlasied 316 12 19 Inch Wall Mount Rack Cabinet 16ru)

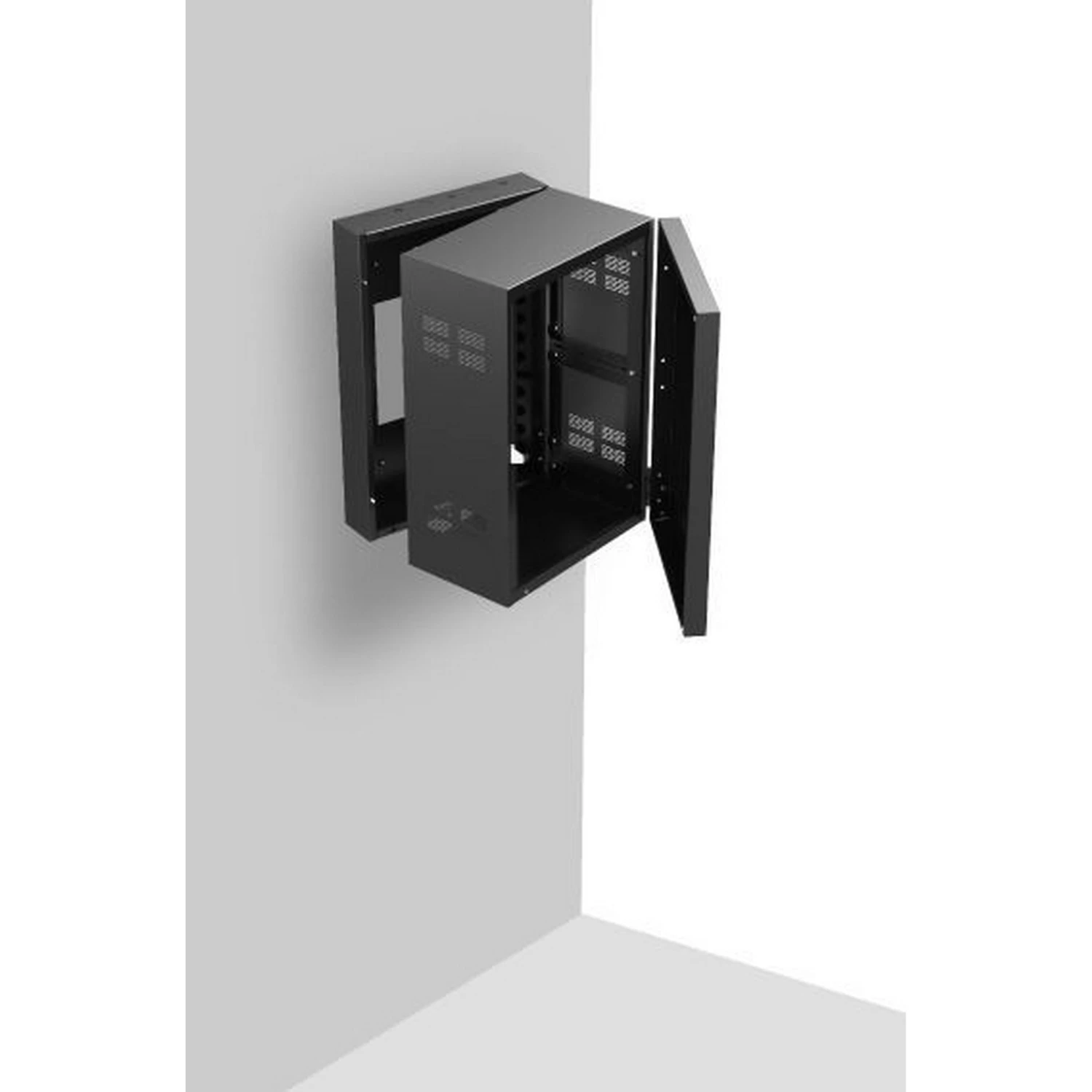

AtlasIED 316‑12 19-Inch Wall‑Mount Rack Cabinet, 16 RU

The AtlasIED 316‑12 offers a rugged, professional-grade solution for secure equipment mounting in AV, IT, and security environments. Constructed from 16‑gauge cold-rolled steel with a black epoxy finish, this welded three-section wall cabinet incorporates a 2″ solid front door, a 12″ deep center section with adjustable rails, and a 4½″ rear door. Its reinforced frame flanges, corner‑brace supports, and electric-welded seams provide superior structural integrity for heavy-duty installations

Ideal for high-density setups, the 316‑12 delivers 16 RU of 19″ rack space with EIA-standard adjustable rails tapped 10‑32. The internal wire management raceways, perforated side vents (top and bottom), and 20 conduit knockout ports ensure efficient cable routing and heat dissipation. The guide plate reinforcement supports the center section, preventing sagging and enabling smooth door alignment under load.

Included in the Box

• Fully assembled three‑section wall cabinet (2″ front door, 12″ center section, 4½″ rear door)
• One pair of adjustable 10–32 tapped EIA rack rails

Key Features

• 16 RU of 19″ rack space for high-density mounting
• 12″ deep center section supports deeper equipment
• Adjustable front rails with standard 10–32 EIA spacing
• Punched side vents at top and bottom for optimized airflow
• Reinforced welded construction with flanges, braces, and seam welds
• Internal wire management raceways for clean cabling
• 20 conduit knockouts on rear and flanges for versatile cable entry
• Center guide plate prevents sag and ensures door alignment

Technical Specifications

• Rack Units: 16 RU
• Height: 34″
• Width: 20.625″
• Total Depth: 18.5″
• Center Section Depth: 12″
• Shipping Weight: 80 lbs
• Finish: Black epoxy
• Conduit Knockouts: 20 (rear section and flanges)
• Rack Rail Spacing: EIA 0.5″, tapped 10–32
