AtlasIED 8×16 I/O Breakout Boxes for BlueBridge DSP Systems

The AtlasIED BB-816 and BB-816DT are professional breakout boxes designed to expand the analog I/O capabilities of BlueBridge DSP-based audio systems. Housed in a space-saving 1RU chassis, each unit provides 8 balanced analog inputs and 16 balanced analog outputs using industry-standard DB-25 connectors. These breakout boxes are ideal for AV installations that require higher output channel counts for distributed audio or multi-zone configurations. Engineered for reliability and simplicity, both models ship fully assembled and ready for rack integration, with external locking power supplies and rear-panel USB ports for service and setup.

The BB-816 delivers all analog I/O functionality for standard BlueBridge DSP systems, while the BB-816DT adds integrated Dante™ digital audio networking. The Dante-enabled version supports plug-and-play compatibility with Dante ecosystems, enabling seamless multi-channel audio-over-IP routing across standard Ethernet infrastructure. These versatile breakout boxes are perfect for applications where a higher output-to-input ratio is required and where network audio integration may or may not be needed.

Key Features (All Models)

• 8 analog inputs and 16 analog outputs via DB-25 connectors
• Balanced line-level audio for professional AV integration
• 1RU rack-mountable design for compact installations
• Rear-panel USB port for configuration and diagnostics
• External locking power supply included

Model Comparison and Technical Specifications

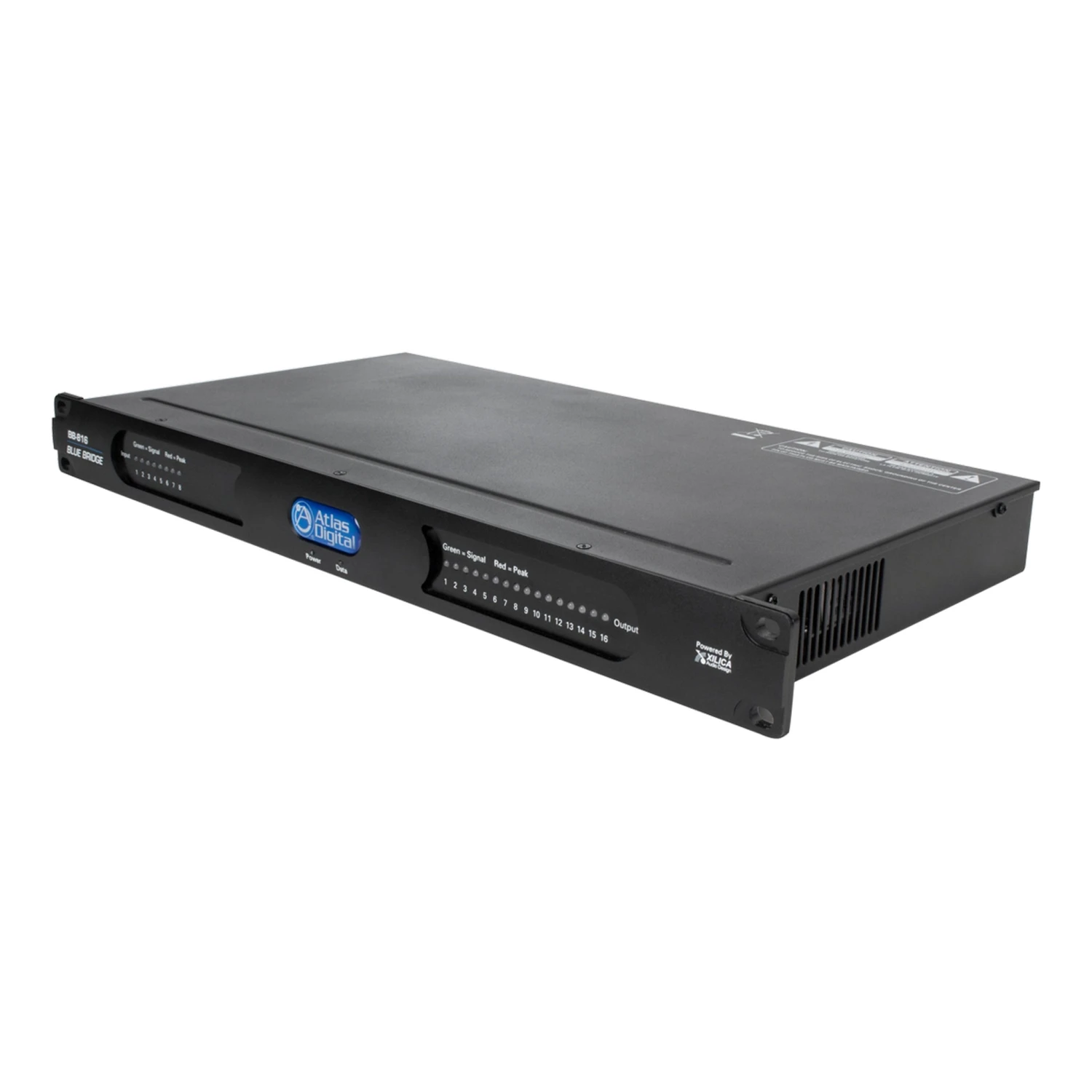

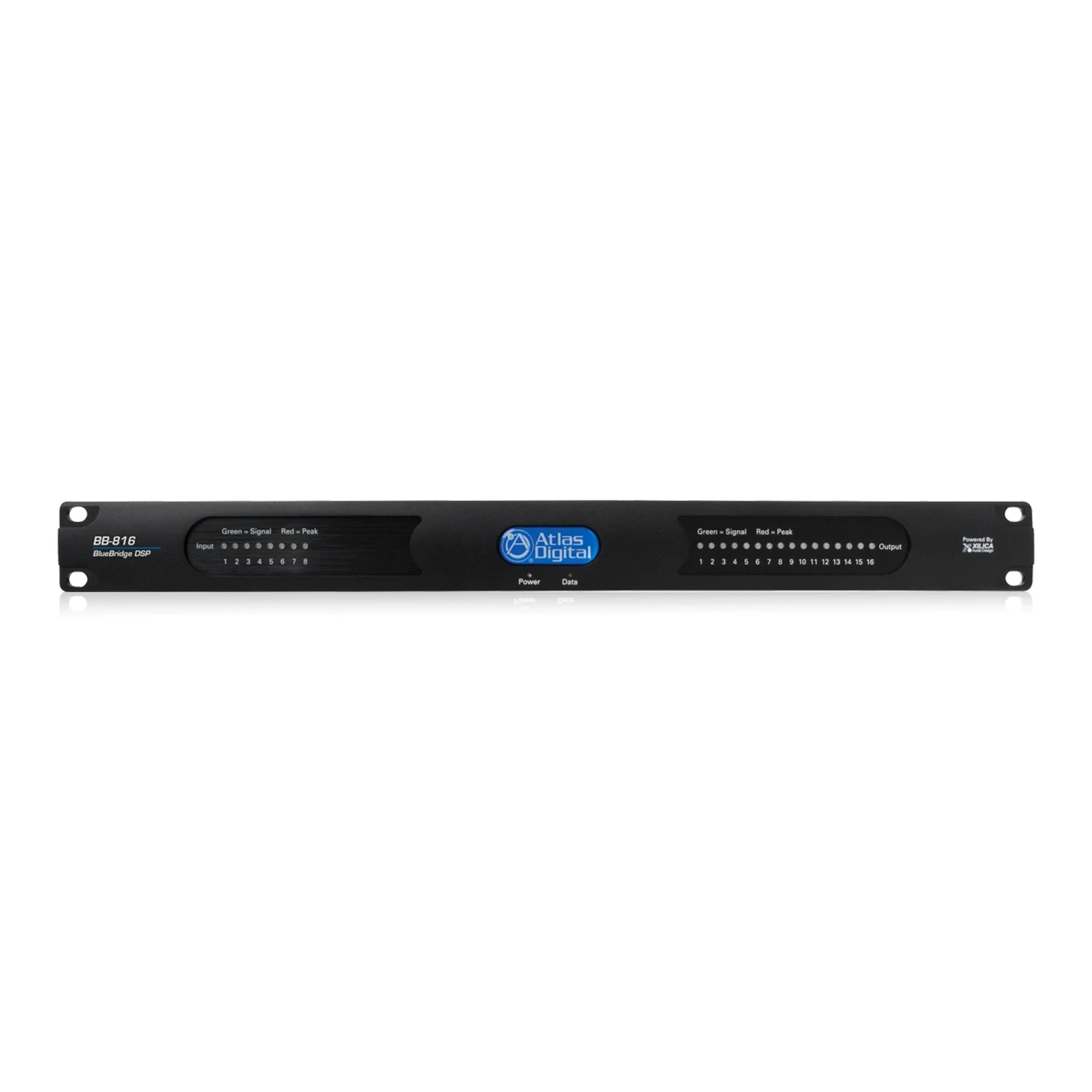

Model: AtlasIED BB-816

• Network Connectivity: None
• Inputs: 8 analog line-level (DB-25)
• Outputs: 16 analog line-level (DB-25)
• Height: 1.75-Inch
• Width: 19.0-Inch
• Depth: 10.0-Inch
• Weight: 7.5 lbs
• Power Supply: External (included)

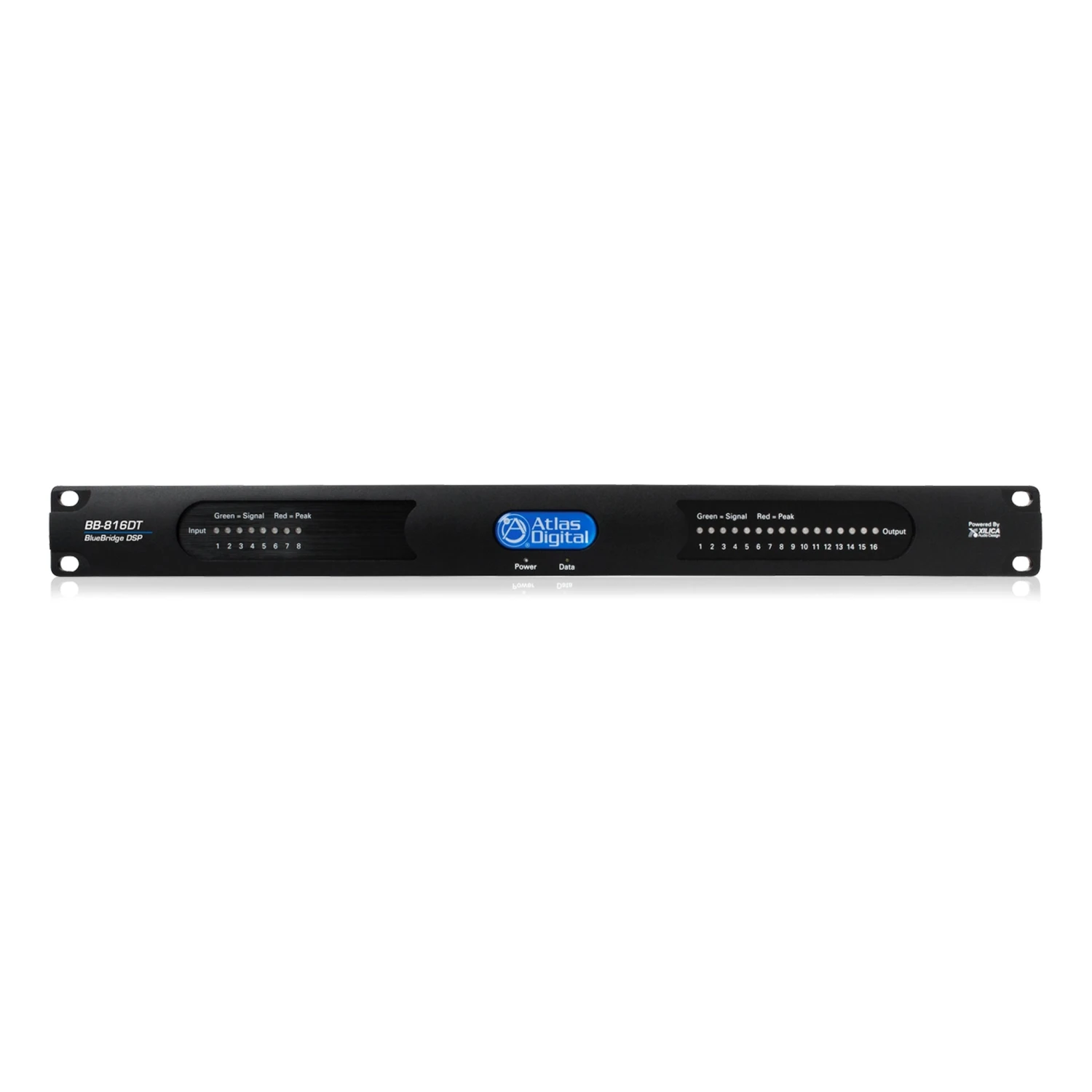

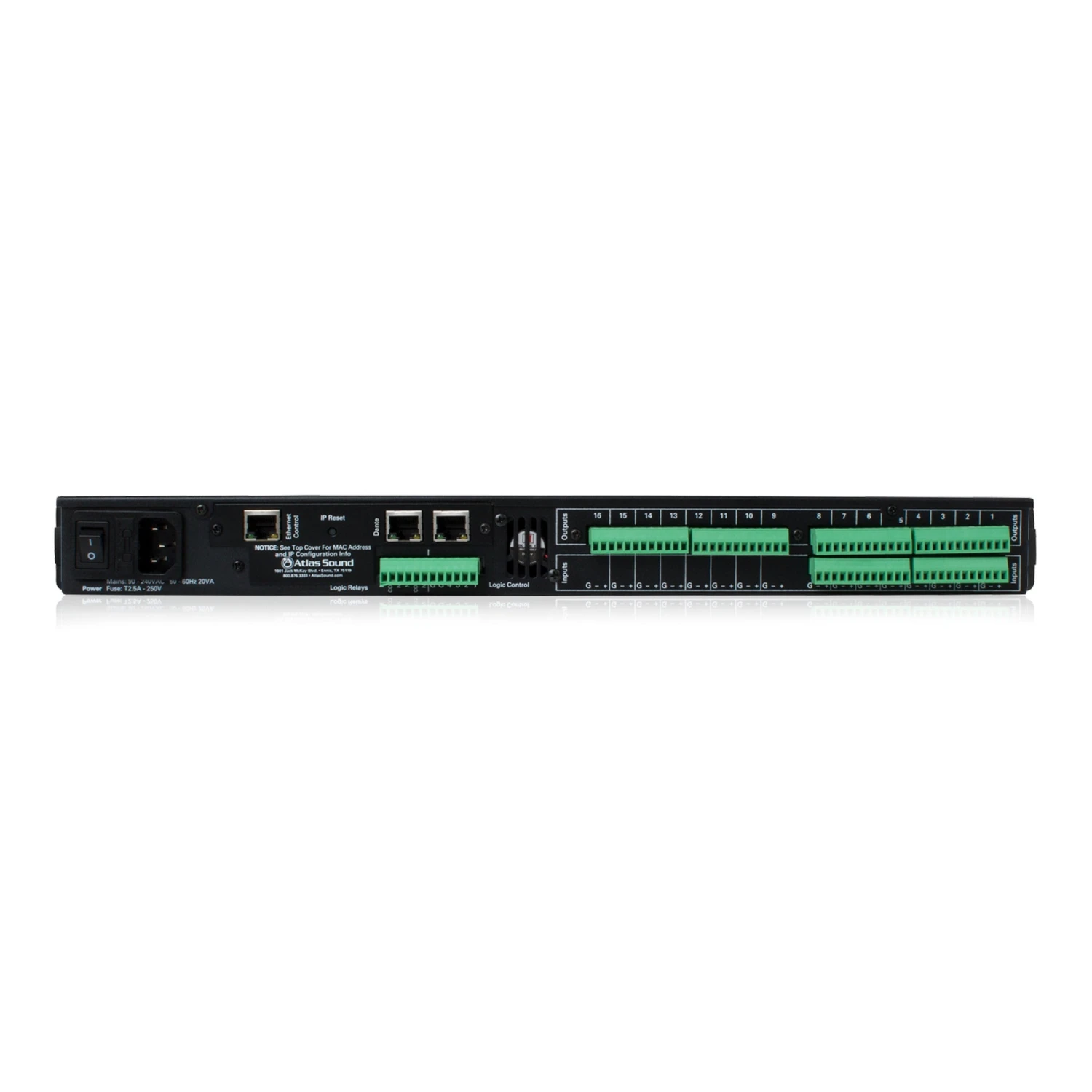

Model: AtlasIED BB-816DT

• Network Connectivity: Dante™ Audio-over-IP
• Inputs: 8 analog line-level (DB-25)
• Outputs: 16 analog line-level (DB-25)
• Height: 1.75-Inch
• Width: 19.0-Inch
• Depth: 10.0-Inch
• Weight: 7.5 lbs
• Power Supply: External (included)

What’s Included (All Models)

• BB-816 or BB-816DT Breakout Box (pre-assembled)
• External Locking Power Supply
• Rear USB Port for Configuration
