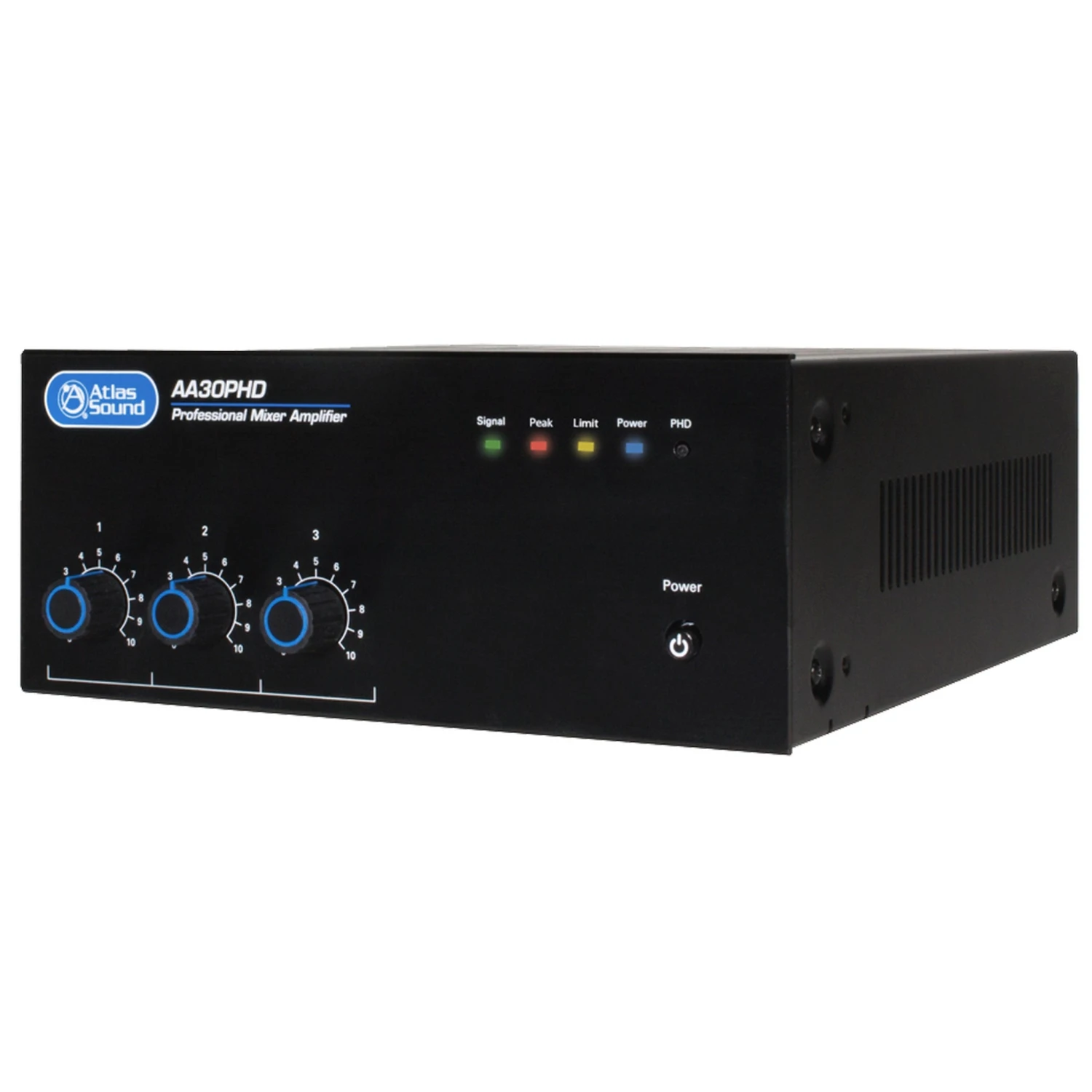

AtlasIED AA30PHD 30W  Mixer Amplifier with Push‑Here Diagnostics

The AtlasIED AA30PHD is a compact yet powerful 30 W mixer amplifier, ideal for commercial paging, background music, and music-on-hold applications. It supports a balanced mic/line input with switchable phantom power plus dual stereo auxiliary inputs, allowing seamless integration of microphones, VOIP systems, and media players. The standout feature, Push‑Here Diagnostics (PHD), enables one-summary verification of speaker wiring and impedance—ensuring reliable system performance before deployment.

This flexible amplifier offers outputs for 4 Ω, 25 V, and 70.7 V distributed speaker systems, along with VOX and contact-closure muting to prioritize pages or announcements. The inclusion of a Zone 2 output makes it suitable for auxiliary audio sources or secondary speakers. With its rack-ready 1U design, detachable power cord, and ETL listing to UL 60065, the AA30PHD provides professional-grade functionality in a compact form factor.

Key Features

• 30 W Multi‑Load Output – supports 4 Ω, 25 V, or 70.7 V speaker systems
• Push‑Here Diagnostic (PHD) – automated speaker line impedance check
• Three Input Channels – one balanced mic/line with phantom power; two stereo auxiliary
• VOX & Contact‑Closure Muting – paging priority and external control flexibility
• Zone 2 Output – secondary output for MOH or additional speaker zones

Technical Specifications

• Power Output – 30 W RMS at 0.5% THD on 4 Ω, 25 V, 70.7 V
• Frequency Response – 50 Hz–15 kHz
• Input Connectors – Phoenix for mic/line; RCA for auxiliary
• Control Features – front-panel level, rear DIP switches for muting/zone control
• Certifications – ETL listed for UL 60065
• Warranty – 36 months from date of purchase

What’s Included in the Box

• 1 × AtlasIED AA30PHD 30 W mixer amplifier (1U chassis)
• 1 × Detachable IEC power cord
• 1 × User manual and warranty documentation
