AtlasIED FS12T-BT60 12-Inch 2-Way Multipurpose Nearfield Horn Speaker System, 90-Degree Symmetrical Dispersion(Atlasied Fs12t Bt60 12 Inch 2 Way Multipurpose Nearfield Horn Speaker System 90 Degree Symmetrical Dispersion)

AtlasIED FS12T-BT60 12-Inch 2-Way Multipurpose Nearfield Horn Speaker System, 90-Degree Symmetrical Dispersion

The AtlasIED FS12T-BT60 is a robust, weather-resistant 2-way loudspeaker system designed for high-performance nearfield applications. Featuring a 12″ LF woofer and 1″ HF driver mounted coaxially, the FS12T-BT60 delivers precise 90° conical coverage ideal for voice and music reinforcement in outdoor or industrial environments.

Constructed from molded linear low-density polyethylene (LLDPE), the enclosure is strong yet lightweight. A built-in 70.7V transformer with 8Ω bypass and multiple power taps ensures system flexibility. A rugged U-bracket and fly points offer secure mounting options, while the IP45-rated housing and UV-resistant finish guarantee durability under harsh conditions.

Key Features

• Durable Design: Molded LLDPE enclosure with UV-resistant finish
• All-Weather Protection: IP45 rated for long-term outdoor reliability
• Coaxial Driver: 12″ LF and 1″ HF driver with high-directivity waveguide
• 90° Conical Coverage: Uniform sound dispersion for nearfield clarity
• Built-In Transformer: 200W 70.7V with 8Ω bypass and multiple tap settings

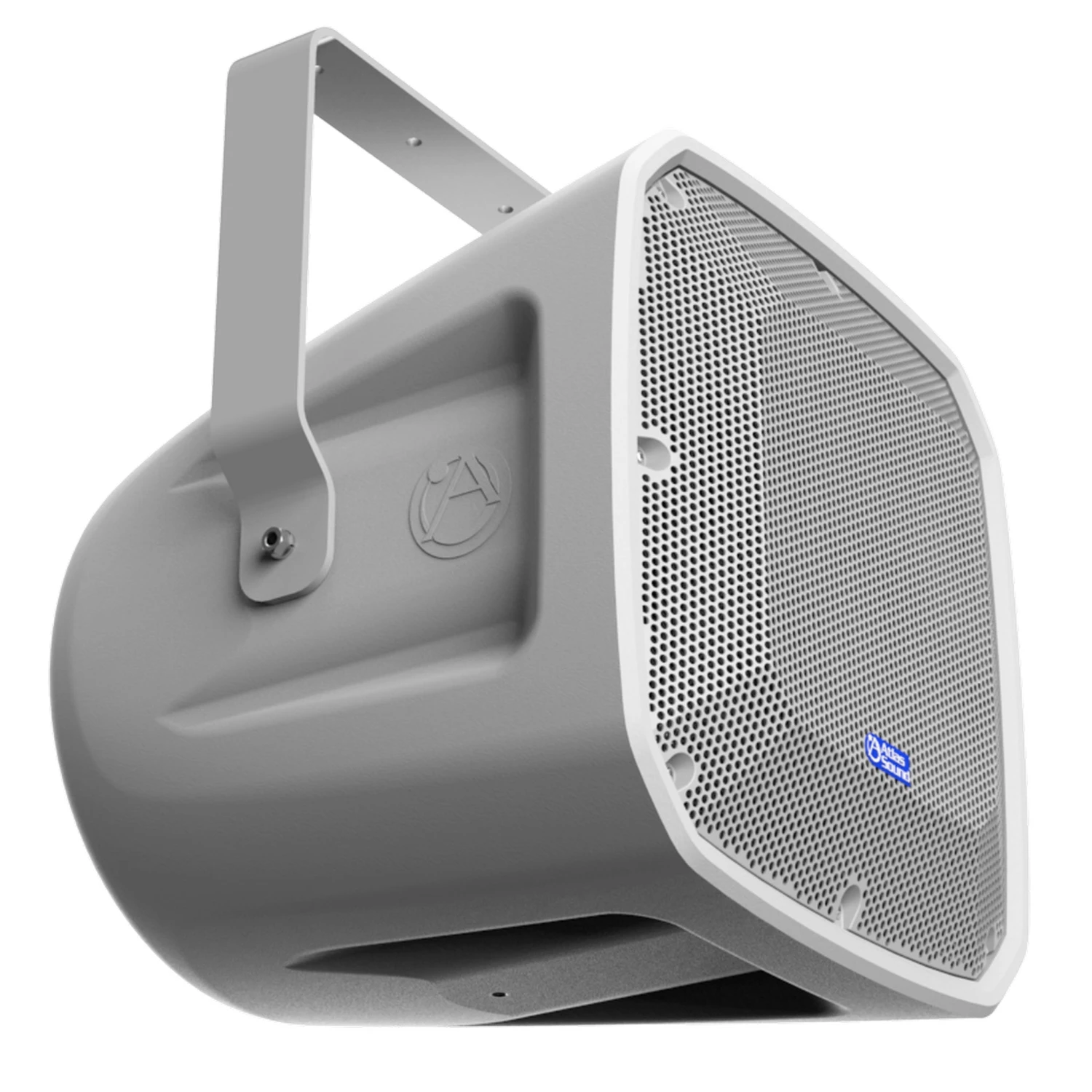

• Mounting Included: Stainless steel U-bracket and fly-points

Technical Specifications

• Model: FS12T-BT60
• Dimensions: 19.56 x 18.5 x 18.5 inches (497 x 470 x 470 mm)
• Weight: 39 lbs (17.69 kg)
• Power Taps: 200W, 100W, 50W, 25W, 8Ω bypass
• Frequency Response: 62Hz – 14kHz
• Sensitivity: 93.5dB SPL
• Max SPL: 116.5dB
• Coverage: 90° Conical
• Ingress Protection: IP45
• Color: Pantone 423 C (RAL 7045)
