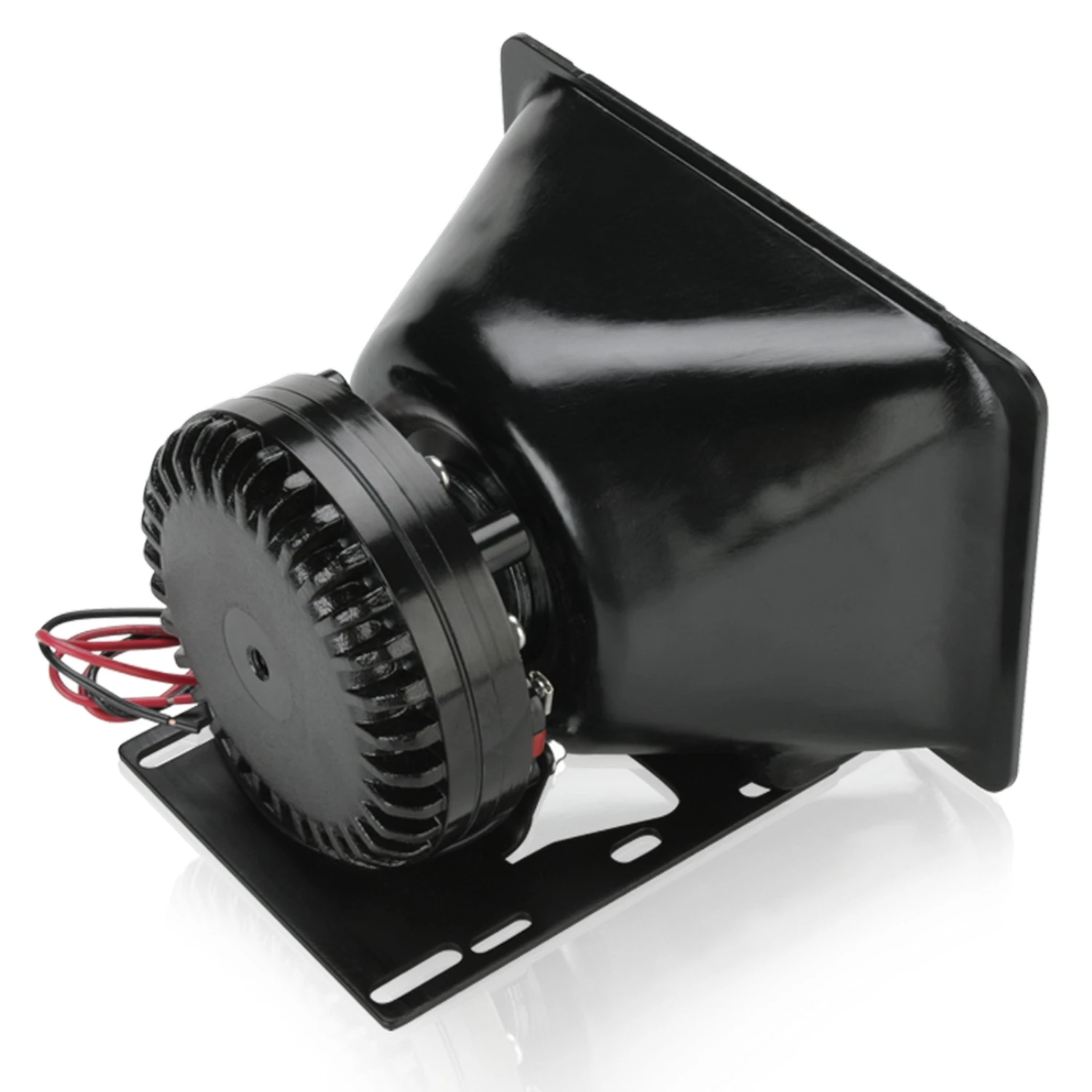

AtlasIED HPG-100N 100W Rectangular Electronic Siren Loudspeaker(Atlasied Hpg 100n 100w Rectangular Electronic Siren Loudspeaker)

AtlasIED HPG-100N 100W Rectangular Electronic Siren Loudspeaker

The AtlasIED HPG-100N is a powerful siren-style loudspeaker delivering 100 W RMS and up to 120 dB SPL at 3 m. Designed for emergency and public safety vehicles—including ambulances, fire, law enforcement, and utility fleets—it installs easily in bumpers, light bars, or engine compartments.

Featuring a durable steel mounting bracket and field-replaceable driver-head, the HPG-100N ensures hassle-free field service. Clear, intelligible voice and siren output is supported by 80°×105° dispersion and 450 Hz–3.5 kHz frequency response, engineered to meet CHP, GSA, and SAE specifications.

Key Features

• 100 W RMS Power: Delivers up to 120 dB SPL in electronic siren applications
• Vehicle-Ready: Built-in steel bracket and field-replaceable driver assembly
• Certified Compliance: Meets Class A CHP, GSA KKK-A-1822D, SAE J1849 standards

Technical Specifications

• Power Rating: 100 W RMS
• Impedance: 11 Ω nominal
• Frequency Response: 450 Hz–3.5 kHz (±10 dB)
• Dispersion: 80° × 105° @ 1 kHz octave band
• Max Output: 120 dB SPL (3 m, rated power)
• Dimensions (HxWxD): 5.3 × 7.47 × 6.46 in (135 × 190 × 164 mm)
• Shipping Size: 6 × 10 × 7.5 in (152 × 254 × 191 mm)
• Weight: 7 lb (3.2 kg)
• Warranty: 5 years
