AtlasIED M1000A35 8-Inch Powered Active Sound Masking System(Atlasied M1000a35 8 Inch Powered Active Sound Masking System)

AtlasIED M1000A35 8-Inch Powered Active Sound Masking System

The AtlasIED M1000A35 is a self-contained, 8″ powered speaker specifically engineered for active sound masking—boosting speech privacy and acoustic comfort in open-plan offices and meeting spaces. Equipped with an internal 5 W Class-D amplifier and a 30 W output to drive additional passive masking speakers, it delivers tailored pink noise across wide areas.

Designed for practicality and code compliance, the unit is UL2043 plenum-rated, includes a hi‑cut filter for customizing frequency response, and features a VCA remote-level control port. Its compact 12″ × 12″ × 6″ enclosure with suspension brackets and external 24 VDC power supply simplifies installation and system tuning.

Key Features

• Speaker: 8″ wide-range driver (80 Hz–16 kHz)
• Amplifiers: 5 W internal + 30 W line output
• Sound Masking: Non‑repeatable pink-noise with adjustable hi‑cut EQ
• Remote Control: VCA port for external level adjust (e.g., ATMASKSC)
• Plenum Rated: Meets UL2043 for ceiling/air space use
• Mounting: Two removable hanger brackets; single-point suspension
• Power Supply: Included UL‑rated 24 VDC inline PSU

Technical Specifications

• Dimensions: 12″ W × 12″ D × 6″ H (30.5 × 30.5 × 15.2 cm)
• Frequency Response: 80 Hz–16 kHz
• Sensitivity: 97 dB peak / 94 dB avg
• Internal Amp Power: 5 W Class‑D
• External Amp Output: 30 W to drive passive speakers
• Coverage: Up to 225 ft² per unit; expandable to 12,000 ft² with satellites
• Tap Settings: 0.25/0.5/1/2/4 W at 70.7 V line
• Housing: Metal, plenum-rated
• Power Input: 24 VDC via included PSU
• Controls: Separate gain knobs for internal/external amps
• Warranty: 5 years

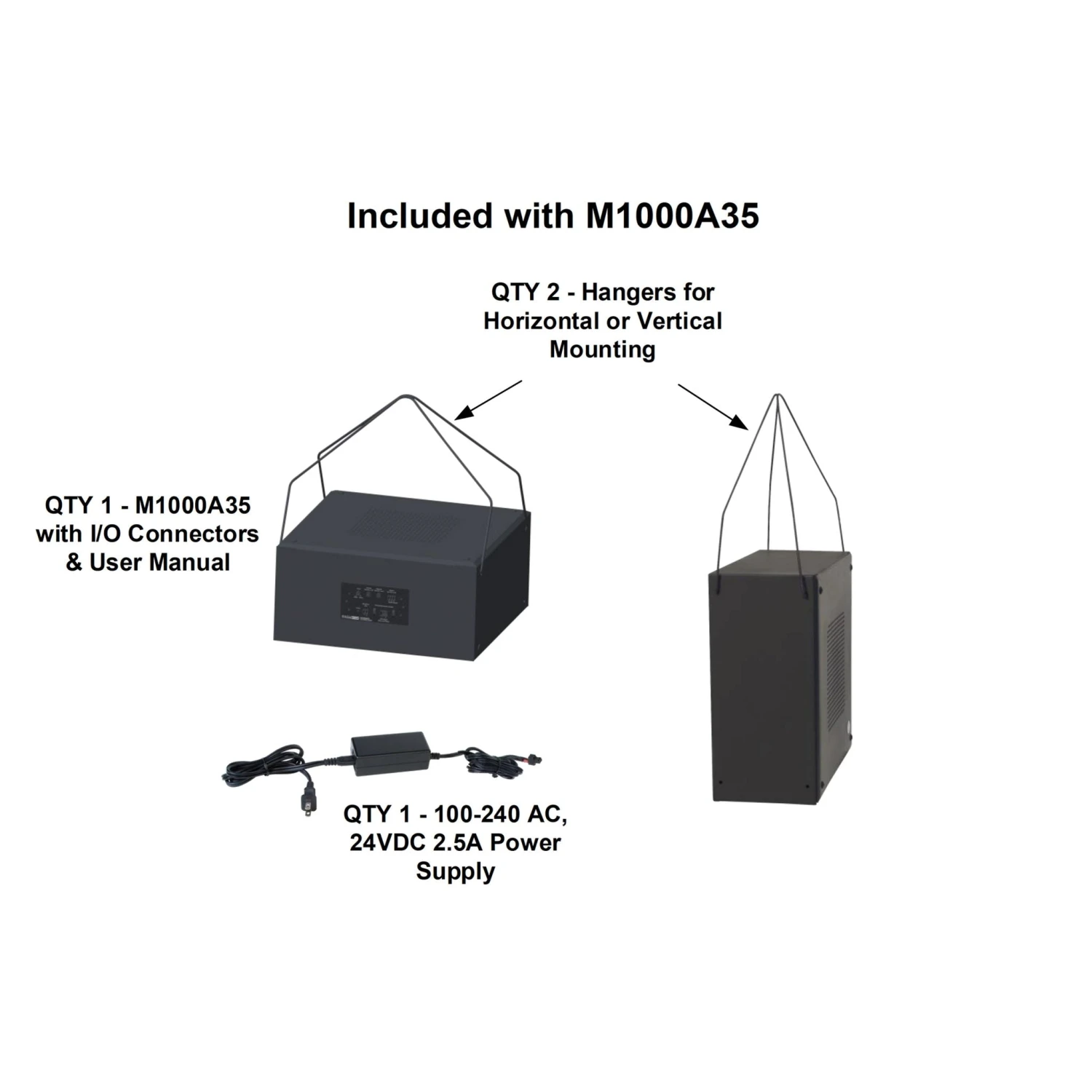

What’s Included

• AtlasIED M1000A35 unit
• 24 VDC inline UL-rated power supply
• 2 × removable suspension handles
• Removable grille
