AuviTran AVDT-BOB Audio Video Distribution Transformer Box

The AuviTran AVDT-BOB is an exceptional audio and video distribution transformer box, meticulously designed for professional-grade signal management. It stands out with its versatile connectivity options and compact form factor, making it a perfect fit for various professional environments including broadcasting, live sound, and other high-demand applications. This transformer box ensures seamless integration and reliable performance, thanks to its high-quality construction and advanced features. The AVDT-BOB offers extensive input and output options, making it an ideal choice for complex audio and video routing tasks.

With its durable build and user-friendly interface, the AuviTran AVDT-BOB is engineered to withstand the rigors of professional use. Its robust design is complemented by comprehensive connectivity options, including Euroblock, SUBD, XLR, and RJ45 connectors. Whether you need analog or digital signal distribution, the AVDT-BOB provides the flexibility and reliability required to handle demanding signal distribution tasks with ease. Experience superior signal management and distribution with the AVDT-BOB, a valuable addition to any professional audio and video setup.

Key Features

• Versatile connectivity options including Euroblock, SUBD, XLR, and RJ45 connectors
• Supports both analog and digital signal distribution
• Robust design for professional use in various environments
• Seamless integration with existing setups
• Compact form factor for easy installation in 1U, 1/3 of 19” rack

Technical Specifications

General
Size: 144 mm x 100 mm x 42 mm – regular 1U, 1/3 of 19’’ rack
Main Power Supply: PoE (12W) via “Main” Port
Auxiliary Power Supply: +12Vdc ±15% 1A max via 6.4mm lockable DC Jack Plug
Storage Temperature / Humidity: 5°C to 70°C / 0% to 95% (non-condensing)
Operating Temperature / Humidity: 0°C to 50°C / 5% to 90% (non-condensing)

Connectors for version “-AE-” and “-ADE-”
4x, 6x or 8x 3pts Euroblock connectors (3.81mm pitch) for analog or AES/EBU inputs and outputs
1x 6pts Euroblock connectors (3.81mm pitch) for GPIO (-AEG and ADE- versions only)
2x RJ45 Gigabit connectors “Aux” and “Main” with PoE capability on “Main” connector

Connectors for version “-AS-” and “-ADX-”
1x SUBD 25 connector for analog inputs and outputs with Yamaha pin-out DB25-XLR M/F (-AS- version only)
1x SUBD 25 connector for GPIO and AES/EBU inputs and outputs with proprietary pin-out (-ADX- version only)
2x XLR Female + 2x XLR Male connectors for analog inputs and outputs on front face (-ADX- version only)
1x Neutrik EtherCon connector “Main” with PoE capability
2x SFP cages to plug up to 2x Gigabit Media converters Optical Fiber or RJ45

Audio Inputs/Outputs
Number of Inputs: 2x to 4x analog mic/line or AES/EBU inputs and 4x digital inputs from Dante network
Number of Outputs: 2x to 4x analog or AES/EBU outputs and 4x digital outputs to Dante network

MIC / Line Audio Inputs Technical Specifications (All measures at fs=48kHz & 22kHz BW)
Sampling Frequency: 44.1 kHz / 48 kHz
A/D Resolution: 24 bits
Input Specification: Balanced MIC/Line inputs on Euroblock or SUBD connectors
Input Maximum Level: +12 dBu
Analog Gain Range: 0 to +60 dB (20 values, 3dB step)
Input Sensibility: +12 dBu to -48 dBu
Input Impedance: 3.5 kΩ (balanced)
E.I.N. @Rs=150Ω G=+60dB: -123 dBu
Dynamic Range: > 97 dB A-weighted
THD+N @1KHz, +8dBu, G=0dB: < -82 dB (0.0079%)
Frequency Response: 20Hz – 20kHz (+0 / -1 dB)
Phantom Power: +48 V (individually controllable for each channel)

Line Audio Outputs Technical Specifications (All measures at fs=48kHz & 22kHz BW)
Sampling Frequency: 44.1 kHz / 48 kHz
A/D Resolution: 24 bits
Output Specification: Balanced analog outputs on Euroblock or SUBD connectors with <100Ω impedance
Output Level at 0dBfs: +12dBu
Frequency Response: 20Hz – 20kHz (+0 / -1 dB)
Dynamic Range: >102dB A-weighted
THD+N @1KHz, -4dBFS, G=0dB: < -88 dB (0.004%)

Remote Control Environment
OS Supported: Web 2.0 Interface compatible HTML5 (iOS, Android, Mac OS, Windows, Linux, …)

References / Part Number

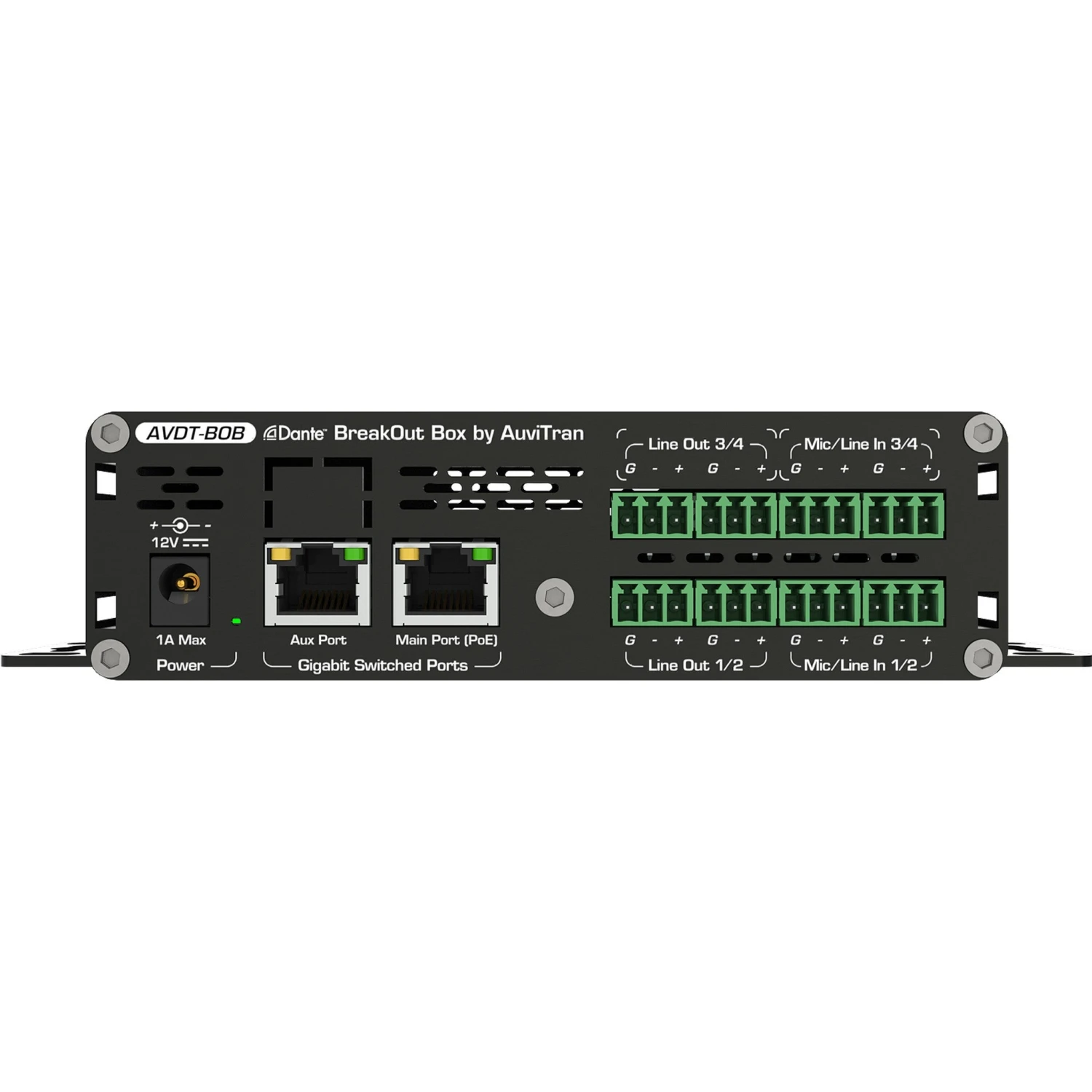

AVDT-BOB-AE4io: 2xRJ45 (1xPOE) and 2x Mic/Line Inputs + 2x Line Outputs on Euroblock

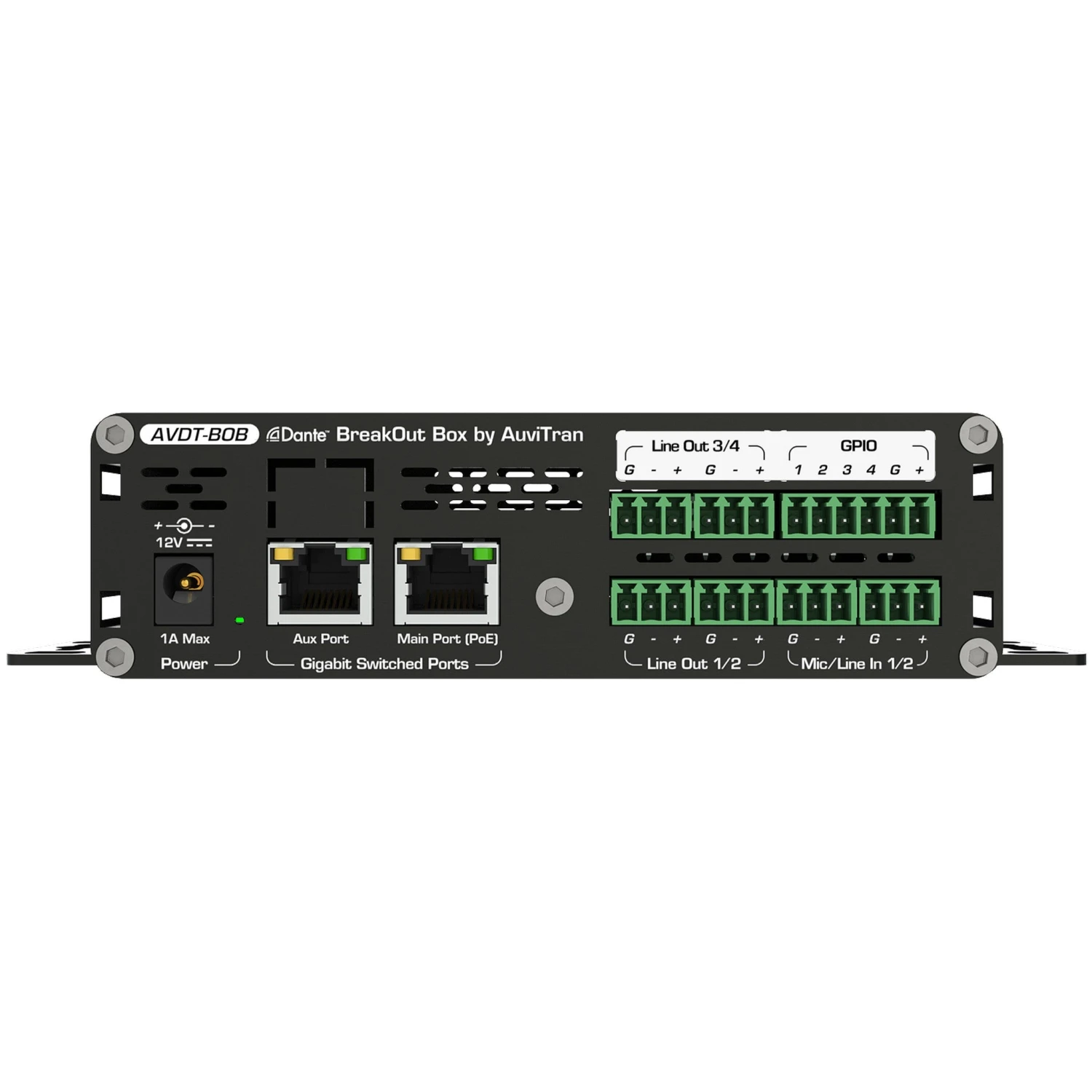

AVDT-BOB-AEG6io: 2xRJ45 (1xPOE) and 2x Mic/Line Inputs + 4x Line Outputs + 4x GPIO on Euroblock
AVDT-BOB-AE8io: 2xRJ45 (1xPOE) and 4x Mic/Line Inputs + 4x Line Outputs on Euroblock

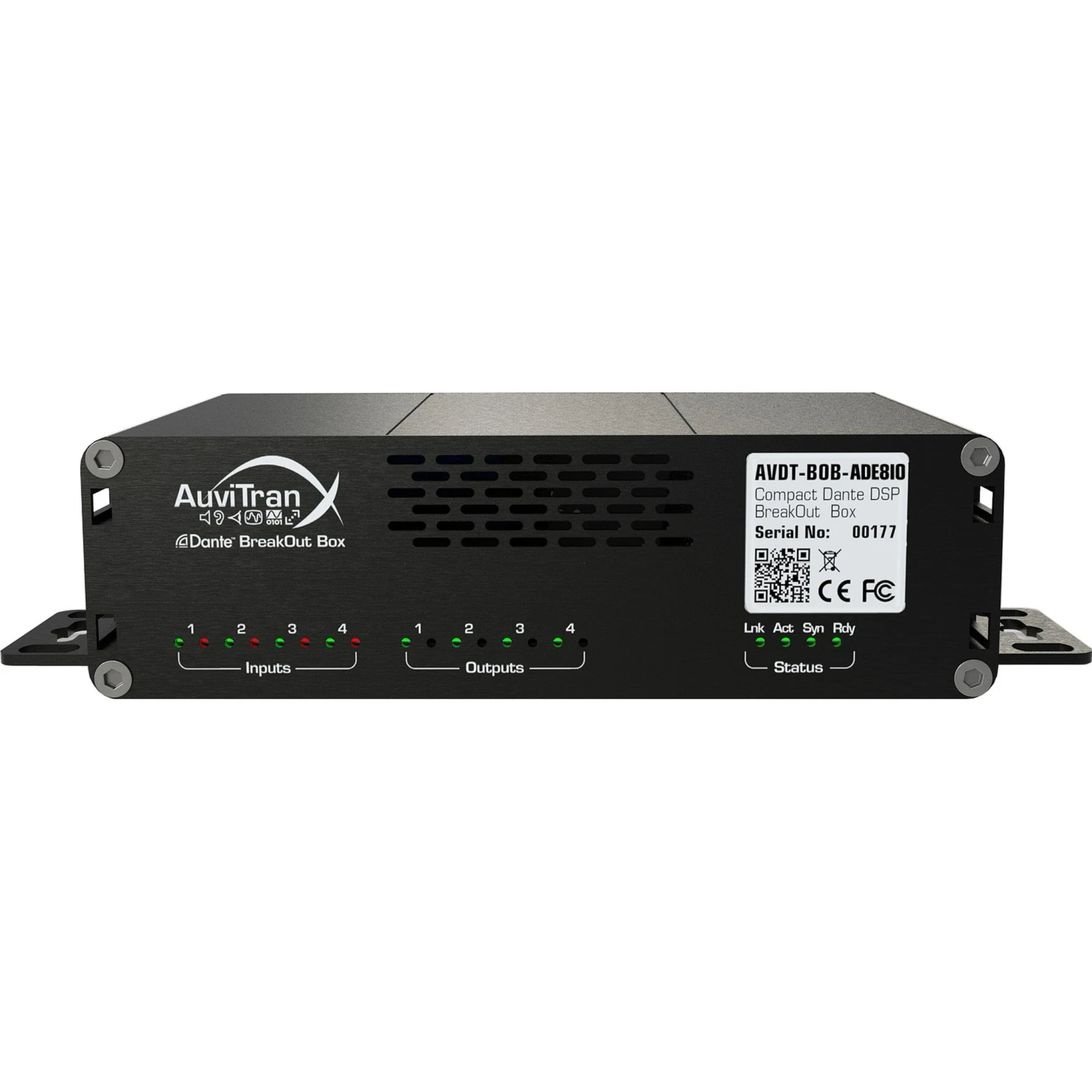

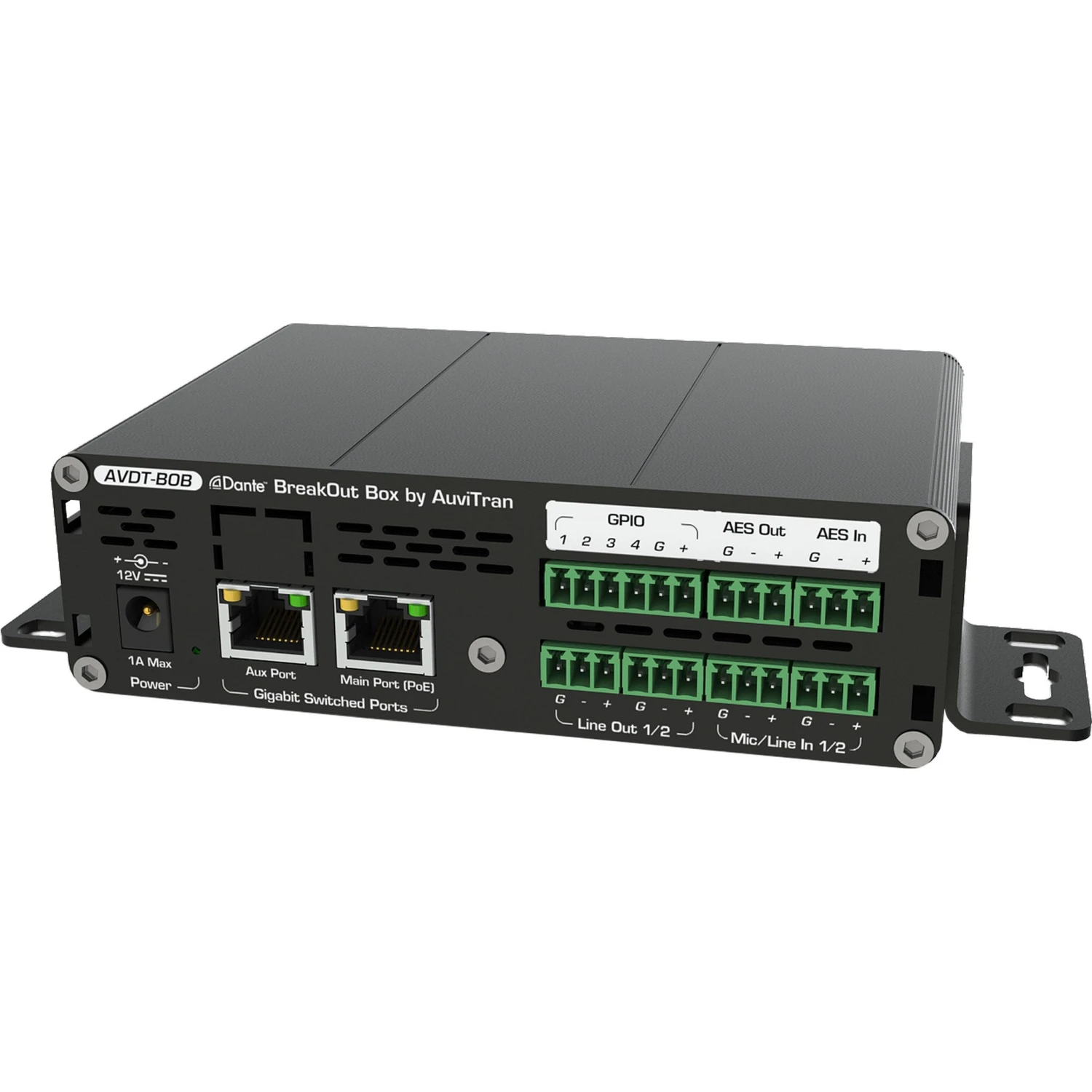

AVDT-BOB-ADE8io: 2xRJ45 (1xPOE) and 2x Mic/Line Inputs + 2x Line Outputs + 4x GPIO + 1x stereo AES3 Input + 1x stereo AES3 Output on Euroblock
AVDT-BOB-AS8io: 1x Neutrik EtherCon (PoE) + 2x SFP cages and 4x Mic/Line Inputs + 4x Line Outputs on DSub
AVDT-BOB-ADX8io: 1x Neutrik EtherCon (PoE) + 2x SFP cages and 1x stereo AES3 Input + 1x stereo AES3 Output + 4x GPIO on DSub on rear side and 2x Mic/Line Inputs + 2x Line Outputs on XLR3 on front side
