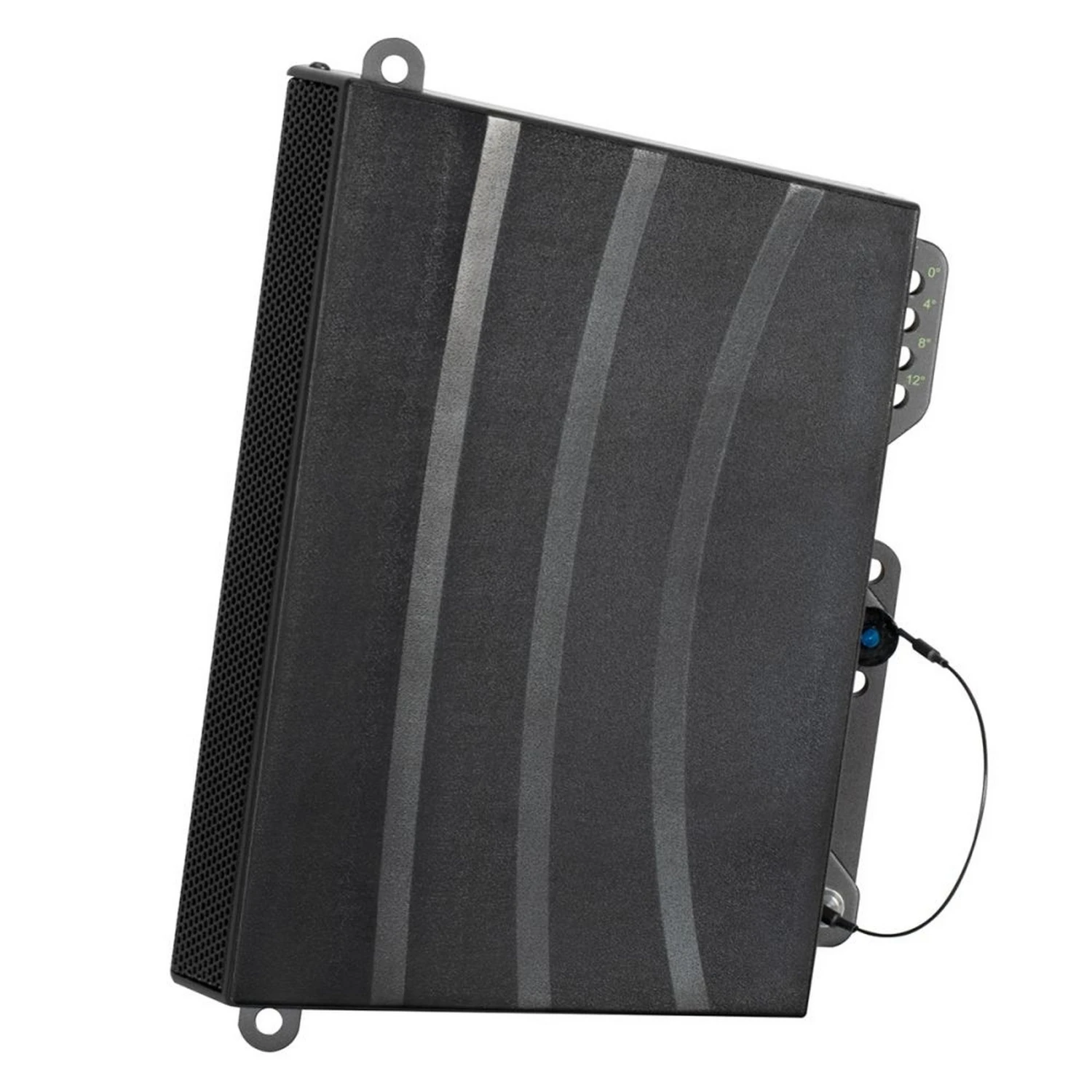

Avante IMPERIO PRO Avante 2-Way Active Cabinet(Avante Imperiopro Avante 2 Way Active Cabinet)

The Avante IMPERIO PRO Avante 2-Way Active Cabinet enhances the accomplishments of Avante Audio’s original Imperio Series. Engineered for rapid deployment and adaptability, the Imperio Pro IMP205 is a compact and lightweight active line array system featuring cutting-edge neodymium components: Dual 5-inch Low-Mid transducers and Six 1.75″ IDVAT HF drivers (Inverted Dome Vertical Array Technology). Each module of the IMP205 array is powered by a 440W RMS (1700W Peak) Class-D Power Amplifier with PFC Switching power supply.

Key attributes of the Imperio Pro IMP205 encompass a 32-bit DSP integrated with advanced FIR digital filter technology. Noteworthy controls include selectable DSP and input sensitivity. The rigging system offers the flexibility of seven Splay Angles: 0, 2, 4, 6, 8, 10, & 12 degrees. Moreover, the Imperio Pro IMP205 cabinets are configurable as either a flown array with the sub atop or ground stacked on subs.

Accessories for the Imperio Pro line (sold separately): The Imperio Pro NEW Flybar (IFB205), Imperio Flybar LG (IMP265), Imperio Flybar Small (IMP496), Imperio Pole (IMP194), Link-pin 2 (IMP340), Imperio Pro T-Adapter (IMP224), Imperio QRC Road case (IMP670), Imperio Pro Ground Stack mount and base (IGS205).

Technical Specifications

AMPLIFIER:
440W RMS, 1700W Peak Class D Amplifier Module
Switching Power Design
LED Power / Signal / Clip Indicator
32-bit DSP with FIR digital filters
Selectable System Configurations
Input: 1x XLR and IP Locking Power Connector
Output: 1x XLR and IP Locking Power Connector
Gain: Selectable Input Sensitivity
Power Input: 100-240V ~ 50/60Hz

SPEAKER:
2x 5.0″ Neodymium Low-Mid transducers.
6x 1.75″ IDVAT HF Neodymium drivers (Inverted Dome Vertical Array Technology)
Type: 2-Way Active Closed Design
Frequency Response: 100Hz – 20KHz
Max Output SPL: 128dB (single box measured on Axis @1m)
Selectable Input Sensitivity: -3dB, 0dB, 3dB, 6dB
Cabinet: ABS Plastic
Grille: Powder coated Steel
Splay Angles: 0, 2, 4, 6, 8,10, & 12-degrees
Integrated Rigging: Yes
Horizontal Dispersion Angle: 100⁰
Dimensions (LxWxH) 8.8” x 7.3” x 12.8” / 224mm x 185mm x 324mm
Weight: 12.5 lbs. / 5.6 kg.

INCLUDED ITEMS:
(1) IMP205 line-source speaker
(1) IP Locking power link cable
(1) Link-pin set
(1) XLR link cable
(1) User Manual
