Blackmagic Design Micro Converter BiDirectional SDI/HDMI 3G With Power Supply(Blackmagic Design Micro Converter Bidirectional Sdi Hdmi 3g With Power Supply)

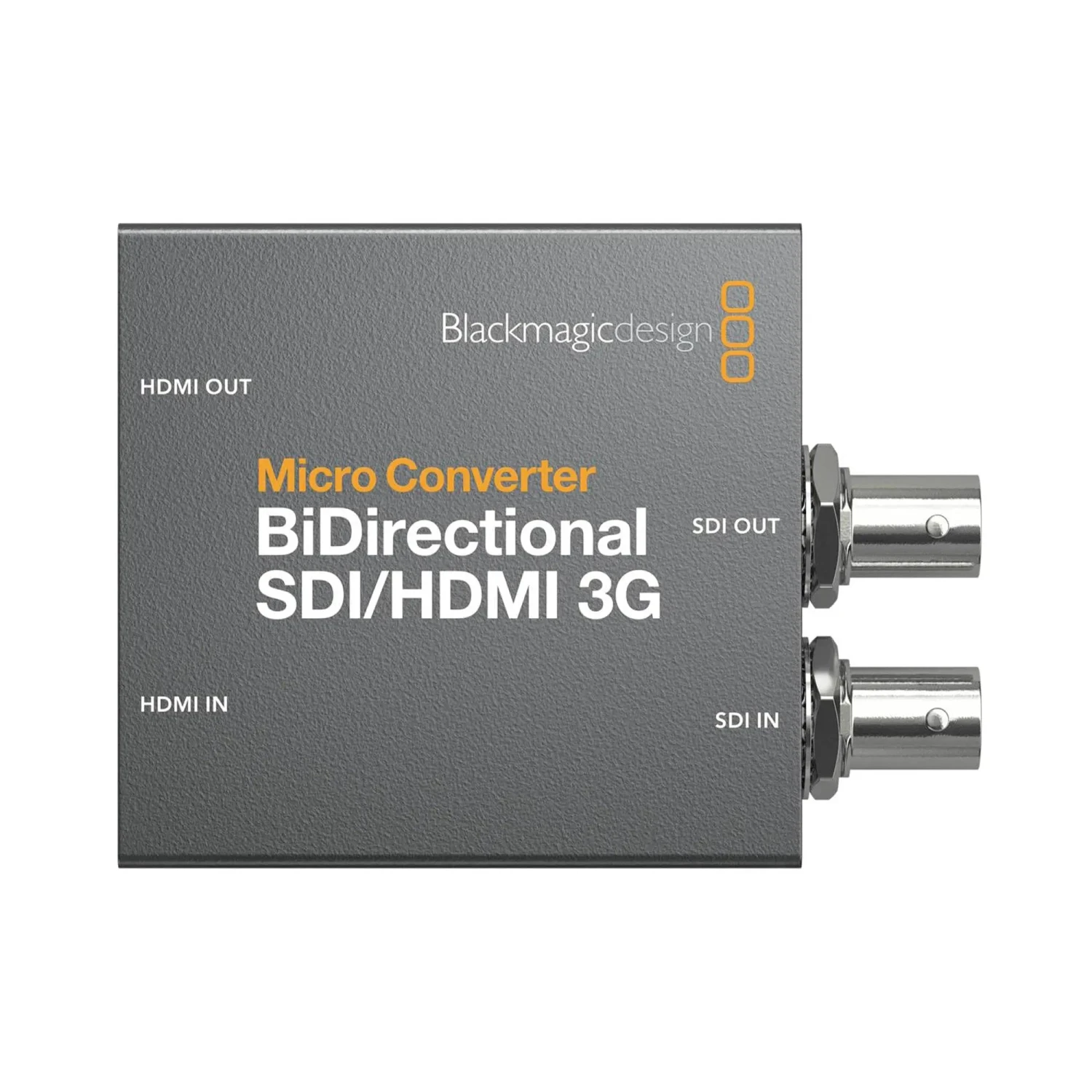

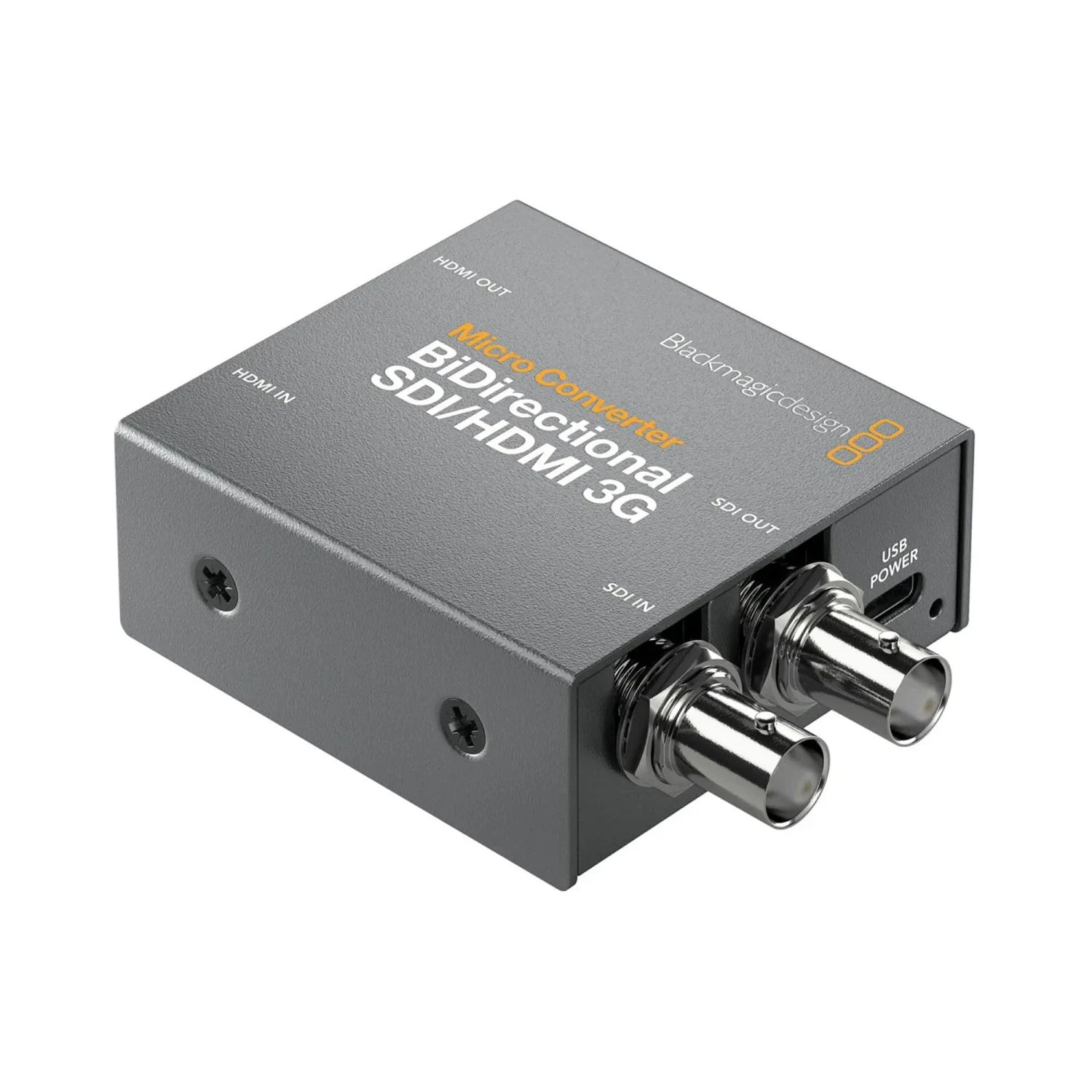

Blackmagic Design Micro Converter BiDirectional SDI/HDMI 3G with Power Supply

Introducing the Blackmagic Design Micro Converter BiDirectional SDI/HDMI 3G with Power Supply, a versatile and compact converter perfect for professional and amateur videographers alike. This device is the world’s smallest bidirectional broadcast quality converter, capable of converting SDI to HDMI and HDMI to SDI simultaneously, even in different formats! Its bidirectional feature ensures seamless integration of Blackmagic Pocket Cinema Cameras with professional SDI live production switchers. This powerful tool includes a 100 to 240V AC power supply with international socket adapters, making it ideal for travel and international use.

The Blackmagic Design Micro Converter BiDirectional SDI/HDMI 3G delivers outstanding performance and features that cater to a wide range of video production needs. Whether you are working on live events, studio productions, or field shoots, this converter provides the necessary capabilities to ensure high-quality video output. It supports camera control protocol conversion, allowing for advanced camera control and tally integration

With its compact design and robust build, the Blackmagic Design Micro Converter BiDirectional SDI/HDMI 3G is easy to transport and implement in various setups. Its ability to adapt to different video formats and its auto-detection of SD or HD standards make it a versatile tool in any video production kit. Whether you’re a professional in the industry or a hobbyist looking to upgrade your gear, this converter is a top-notch solution for seamless video signal conversion.

Key Features

• World’s smallest bidirectional broadcast quality converter
• Simultaneous SDI to HDMI and HDMI to SDI conversion
• Supports different formats for bidirectional conversion
• Camera control protocol conversion for Blackmagic Pocket Cinema Cameras
• Includes 100 to 240V AC power supply with international socket adapters
• Auto-detection of SD or HD input
• Portable and robust design

Specifications

• SDI Video Inputs: 1 x SD, HD, or 3G-SDI
• SDI Video Outputs: Automatically matches HDMI video input
• HDMI Video Inputs: HDMI Type A in
• HDMI Outputs: HDMI Type A out
• Multi Rate Support: Auto-detection of SD or HD
• Updates, Configurations, and Power: USB Type-C
• Reclocking: Yes
• SDI Video Standards: 525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60, 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
• SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
• SDI Video Rates: Automatically switchable between standard definition and high definition, user selectable for level A or B
• SDI Color Precision: 4:2:2
• SDI Color Space: YUV
• SDI Auto Switching: Automatically detects SD, HD, and 3G-SDI
• HDMI Video Standards: 525i29.97 NTSC, 625i25 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
• HDMI Color Precision: 4:2:2
• HDMI Color Space: YUV
• Power Supply: +5V universal power supply
• Power Consumption: 2.5W
• Operational Voltage Range: 4.4 to 5.25V DC
• Operating Temperature: 0 to 40°C (32 to 104°F)
• Storage Temperature: -20 to 60°C (-4 to 140°F)
• Relative Humidity: 0% to 90% non-condensing

Package Contents

• Blackmagic Design Micro Converter BiDirectional SDI/HDMI 3G

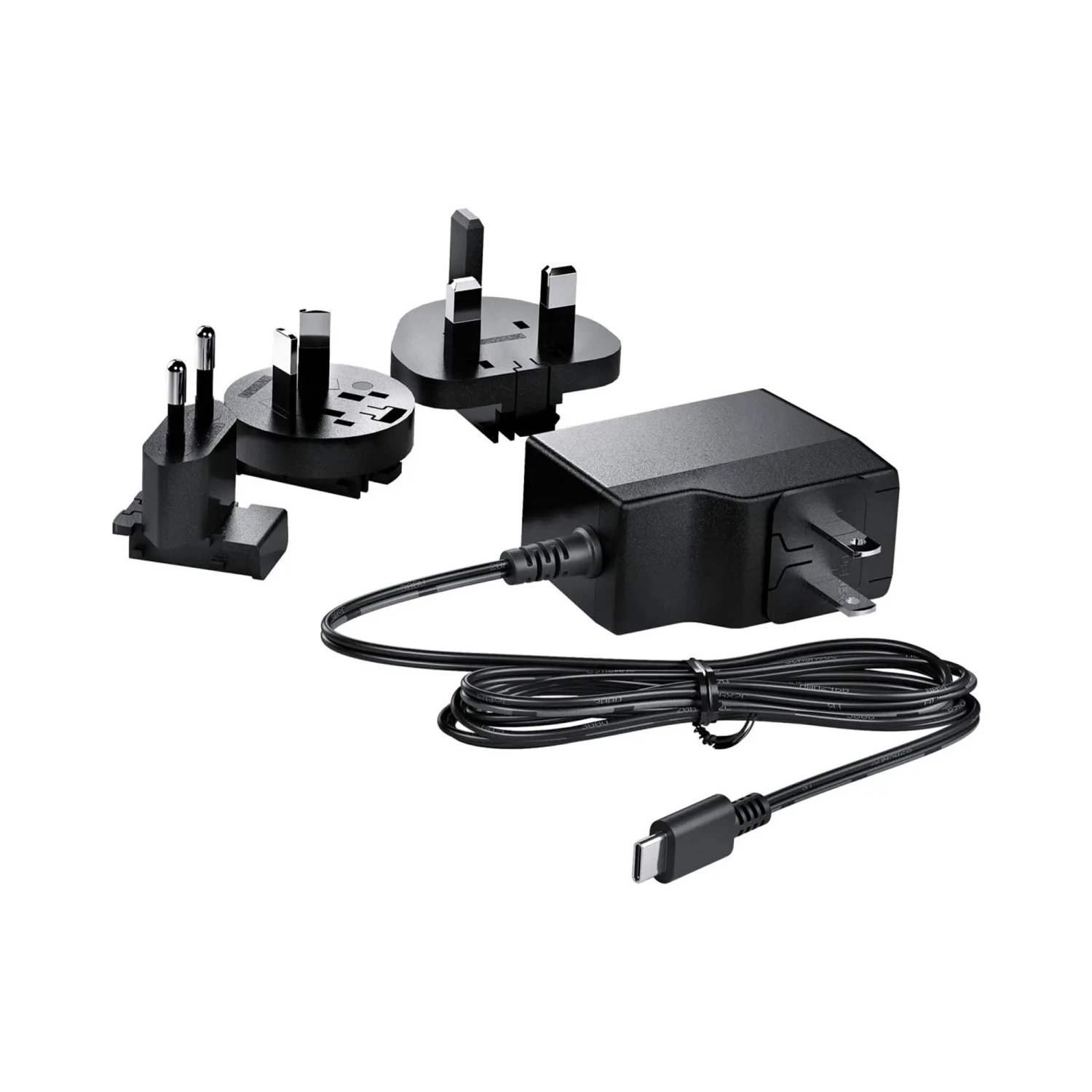

• 100 to 240V AC power supply
• International socket adapters
