Blackmagic Design Micro Converter BiDirectional SDI/HDMI 3G Without Power Supply(Blackmagic Design Micro Converter Bidirectional Sdi Hdmi 3g Without Power Supply)

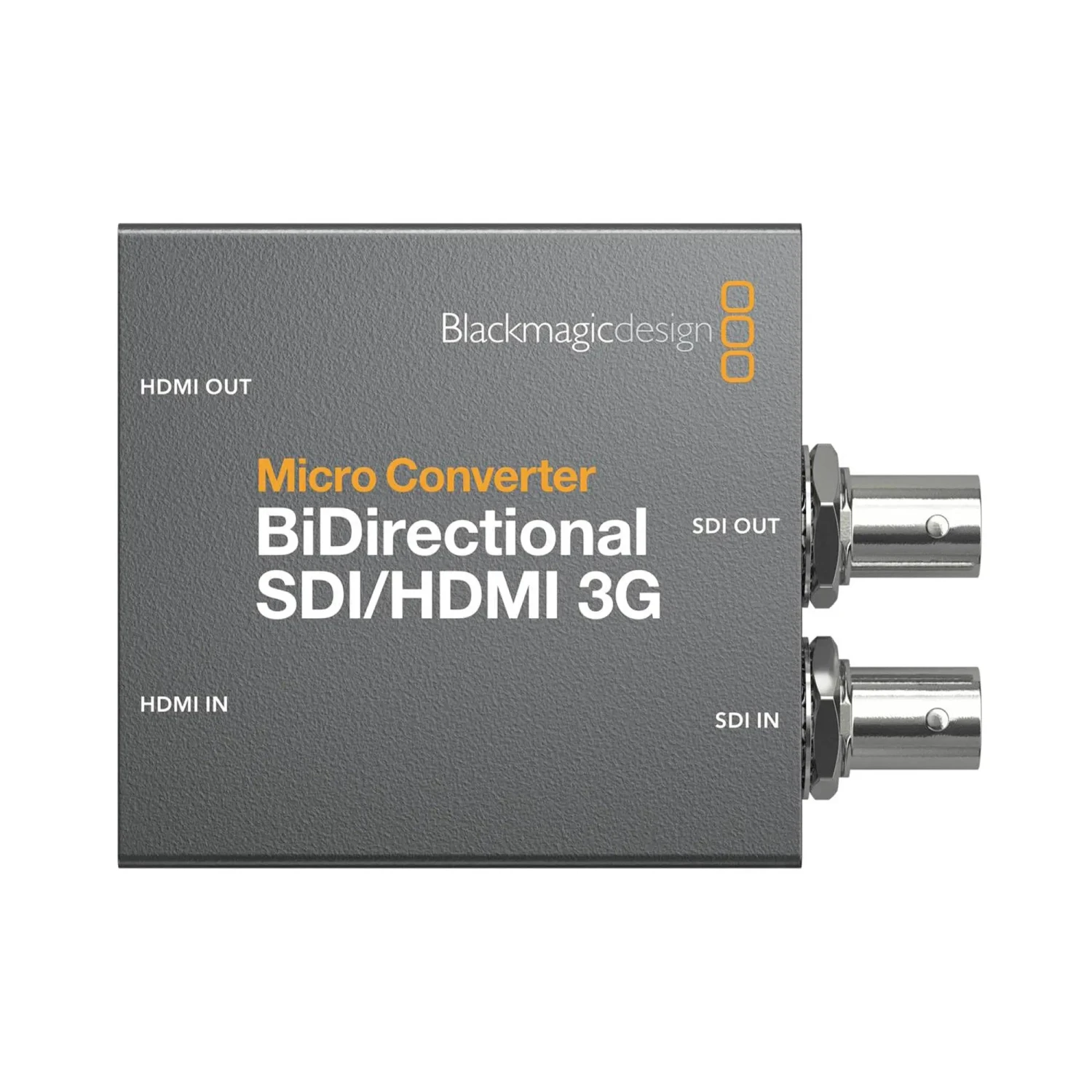

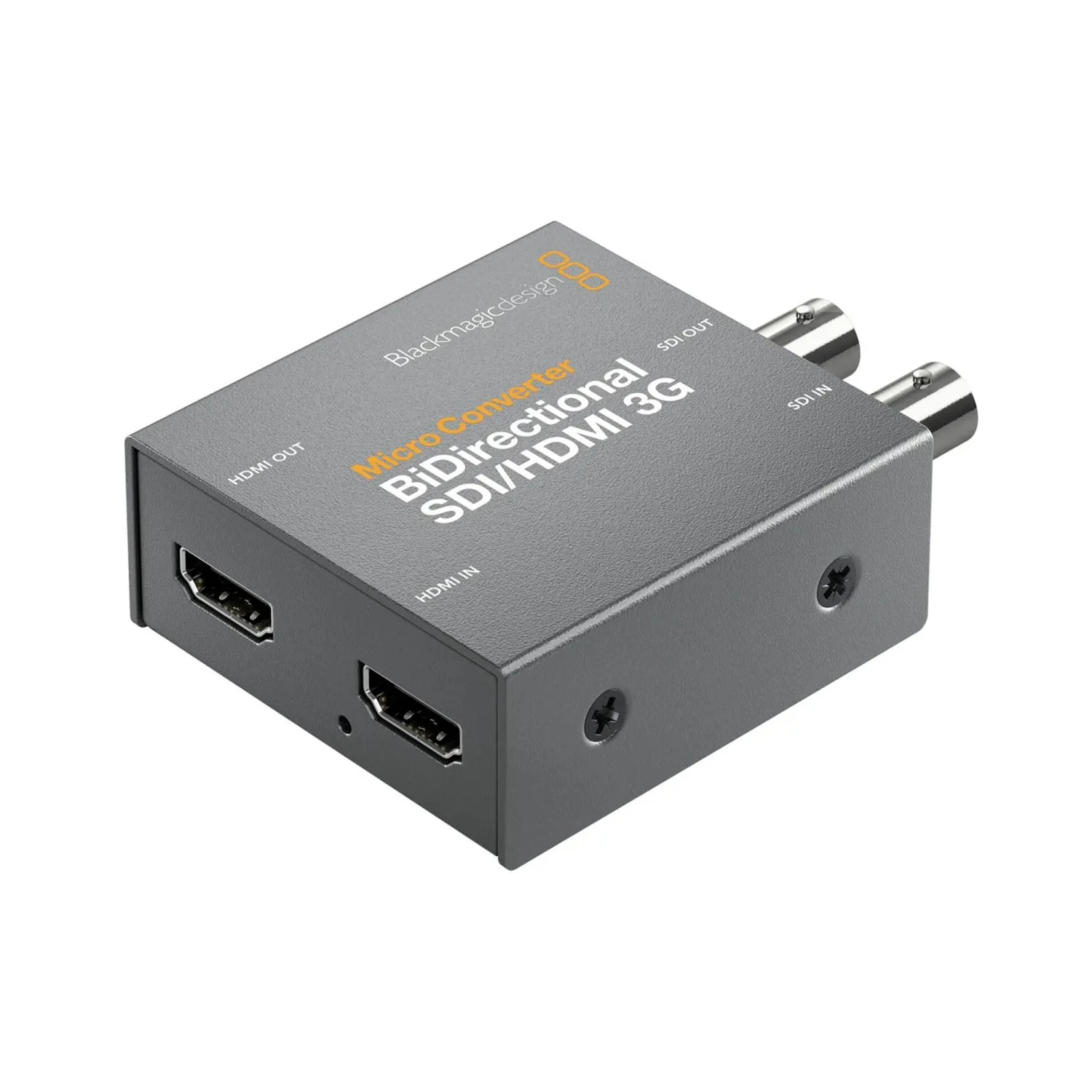

Blackmagic Design Micro Converter BiDirectional SDI/HDMI 3G without Power Supply

The Blackmagic Design Micro Converter BiDirectional SDI/HDMI 3G without Power Supply is a groundbreaking tool for any professional in the video production industry. This ultra-compact converter allows for seamless conversion between SDI and HDMI formats, making it an indispensable asset for live broadcasts, post-production environments, and on-location shoots. What sets this converter apart is its ability to handle both SDI to HDMI and HDMI to SDI conversions simultaneously, even in different formats. The device also supports camera control protocol conversion, making it perfectly compatible with Blackmagic Pocket Cinema Cameras when used with professional SDI live production switchers.

Whether you are producing content for a television studio, broadcasting a live event, or working on a complex film set, the Blackmagic Design Micro Converter BiDirectional SDI/HDMI 3G is engineered to deliver high performance and reliability. The converter boasts auto-detection capabilities for SD or HD signals, ensuring that it adapts to various media formats effortlessly. Additionally, it supports a wide range of video standards, including NTSC, PAL, 2K DCI, and multiple HD formats, making it a truly versatile piece of equipment.

This bidirectional converter is elegantly designed for both functionality and convenience. Not only does it support USB Type-C for updates, configurations, and power, but it also ensures robust signal integrity with built-in reclocking. Plus, its compact form factor makes it highly portable, providing professional-grade conversion capability wherever you go. With the Blackmagic Design Micro Converter BiDirectional SDI/HDMI 3G, you can enhance your production quality, streamline your workflow, and unlock unprecedented flexibility.

Key Features

• World’s smallest bidirectional broadcast-quality converter
• Simultaneous SDI to HDMI and HDMI to SDI conversion
• Supports camera control protocol conversion
• Auto-detection of SD or HD signals
• Wide range of video standards supported
• USB Type-C for updates, configurations, and power
• Built-in reclocking for signal integrity
• Compact and portable design

Specifications

• SDI Video Inputs: 1 x SD, HD or 3G-SDI
• SDI Video Outputs: Automatically matches the HDMI video input
• HDMI Video Inputs: HDMI Type A
• HDMI Outputs: HDMI Type A
• Multi Rate Support: Auto detection of SD or HD
• Updates, Configurations and Power: USB Type-C
• Reclocking: Yes
• Operating Systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later, Windows 10
• Power Consumption: 2.5W
• Operational Voltage Range: 4.4 to 5.25V DC
• Operating Temperature: 0° to 40° C (32° to 104° F)
• Storage Temperature: -20° to 60° C (-4° to 140° F)
• Relative Humidity: 0% to 90% non-condensing

Package Contents

• Blackmagic Design Micro Converter BiDirectional SDI/HDMI 3G
• User Manual
• Note: Power Supply Not Included
