Blackmagic Design Micro Converter HDMI To SDI 3G With Power Supply (Used)(Blackmagic Design Micro Converter Hdmi To Sdi 3g With Power Supply Used 2)

Good: Signs of usage with the possibility of minor dents. Accessories not included

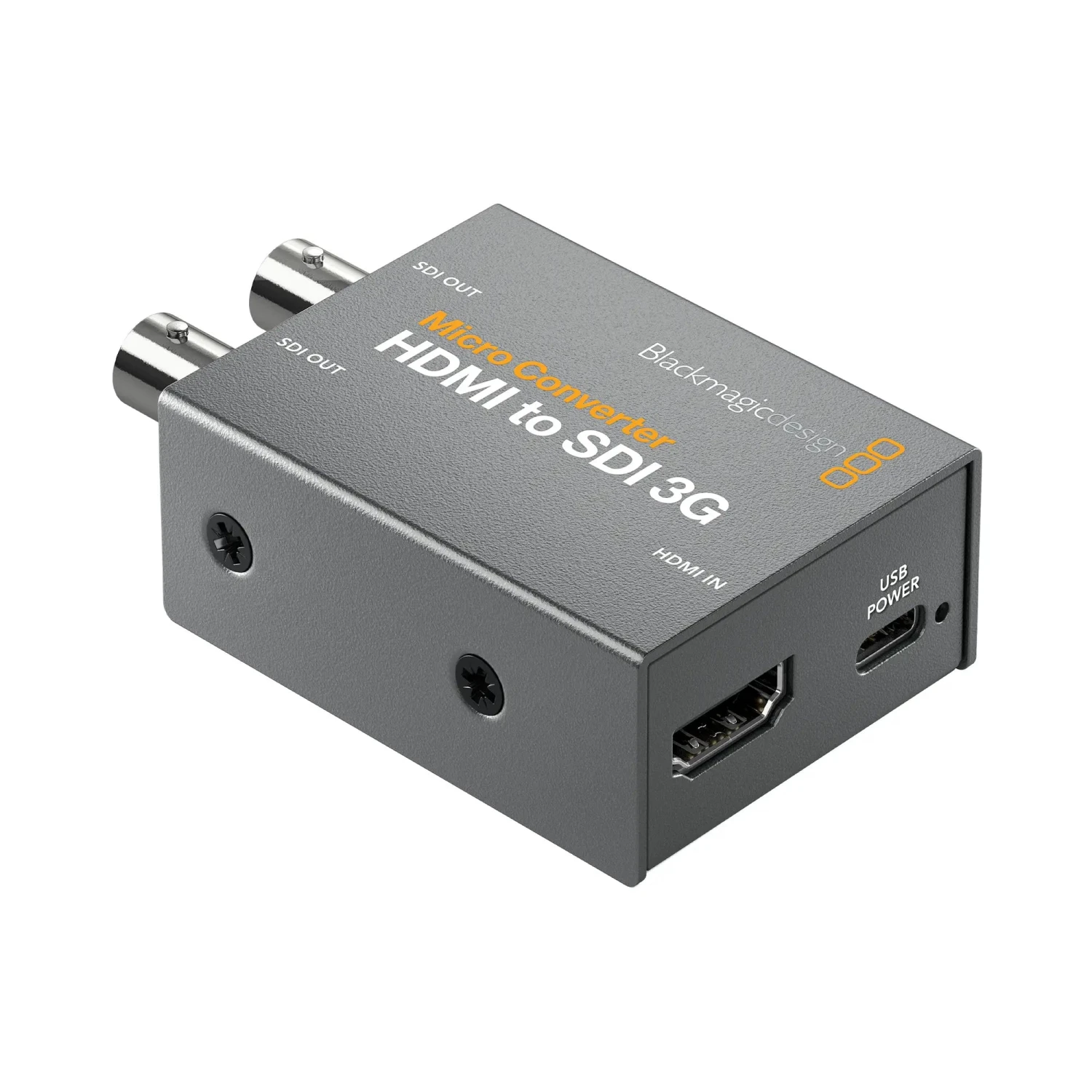

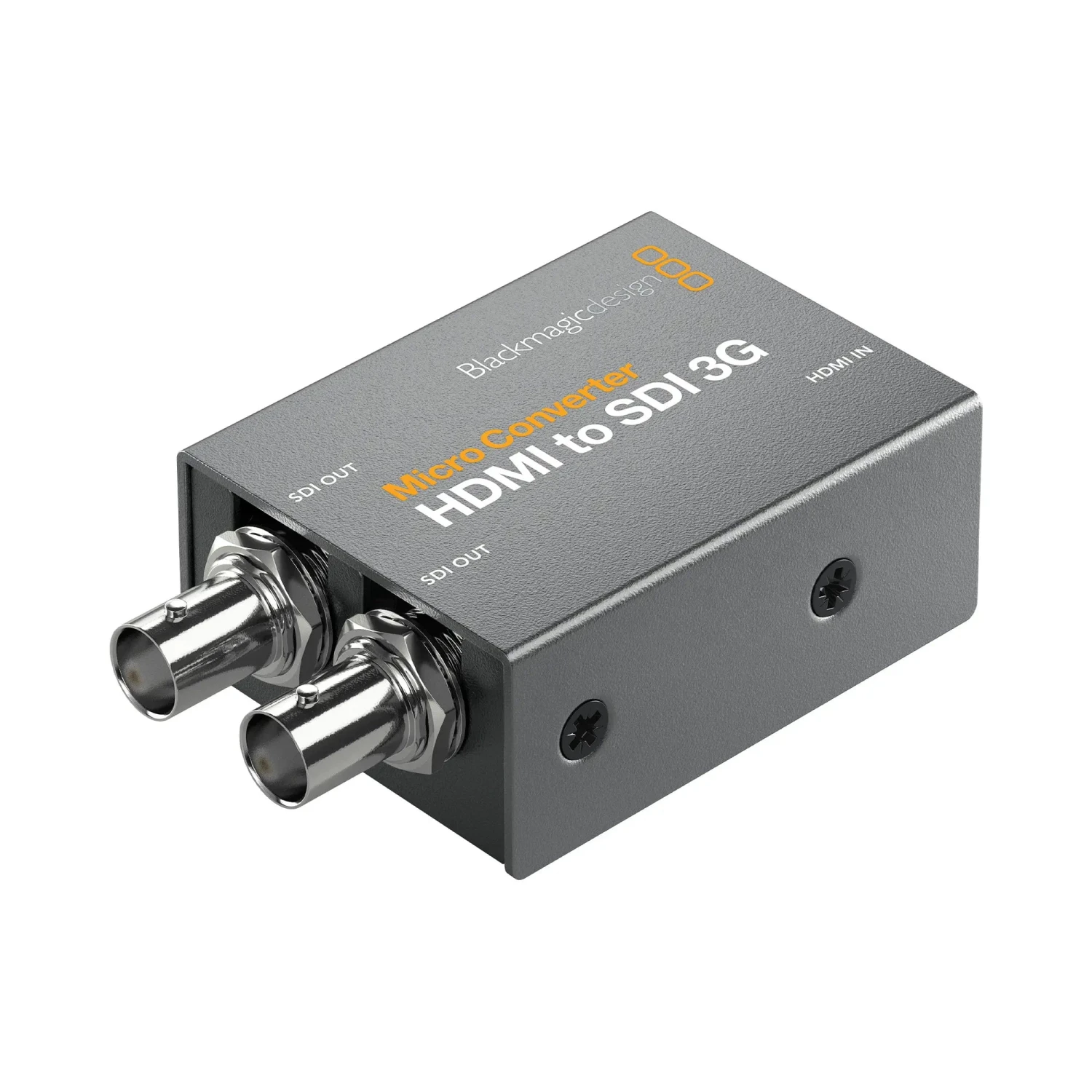

Blackmagic Design Micro Converter HDMI to SDI 3G with Power Supply

The Blackmagic Design Micro Converter HDMI to SDI 3G with Power Supply is the ultimate tool for connecting HDMI cameras and computers to professional SDI equipment. This robust and reliable converter offers two 3G-SDI outputs that can seamlessly switch between level A or level B formats. Unlike other converters, this model supports a wide array of feature film video formats, such as 1080p24, 1080p47.95, and 1080p48, making it an excellent choice for filmmakers and broadcast professionals. Included with the converter is a 100 to 240V AC power supply with international socket adapters, ensuring you’re powered up no matter where you are.

This versatile converter is designed to automatically match the HDMI input, making setup a breeze. With capabilities to auto-detect standard definition (SD) and high definition (HD) signals, it ensures smooth and efficient operation. In addition, the USB Type-C port allows for updates, configurations, and powering the device. The robust design handles various standards such as SMPTE 259M, SMPTE 292M, and SMPTE 425M, ensuring you’re covered for virtually any professional video format.

Key Features

• Connects HDMI cameras/computers to SDI equipment.
• Two 3G-SDI outputs with level A or level B formats.
• Supports feature film formats: 1080p24, 1080p47.95, 1080p48.
• Includes 100 to 240V AC power supply with international adapters.
• Auto-detects HDMI input.
• Auto-switching for SD, HD, and 3G-SDI.
• USB Type-C for updates and configuration.
• Mac OSX and Windows software control.

Specifications

• SDI Video Outputs: 2 x SD, HD, or 3G-SDI
• HDMI Video Inputs: HDMI Type A
• Multi Rate Support: Auto-detection of SD or HD
• Reclocking: Yes
• SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
• SDI Color Precision: 4:2:2
• SDI Color Space: YUV
• HDMI Video Standards: Up to 1080p60
• HDMI Color Precision: 4:2:2
• Copy Protection: Cannot capture copy-protected HDMI sources
• Software Control: Mac OSX and Windows via USB
• Power Supply: +5V universal power supply included
• Power Consumption: 2 W
• Operational Voltage Range: 4.4 to 5.25V DC
• Operating Temperature: 0 to 40°C (32 to 104°F)
• Storage Temperature: -20 to 60°C (-4 to 140°F)
• Relative Humidity: 0% to 90% non-condensing

Package Contents

• Blackmagic Design Micro Converter HDMI to SDI 3G
• 100 to 240V AC Power Supply
• International socket adapters
