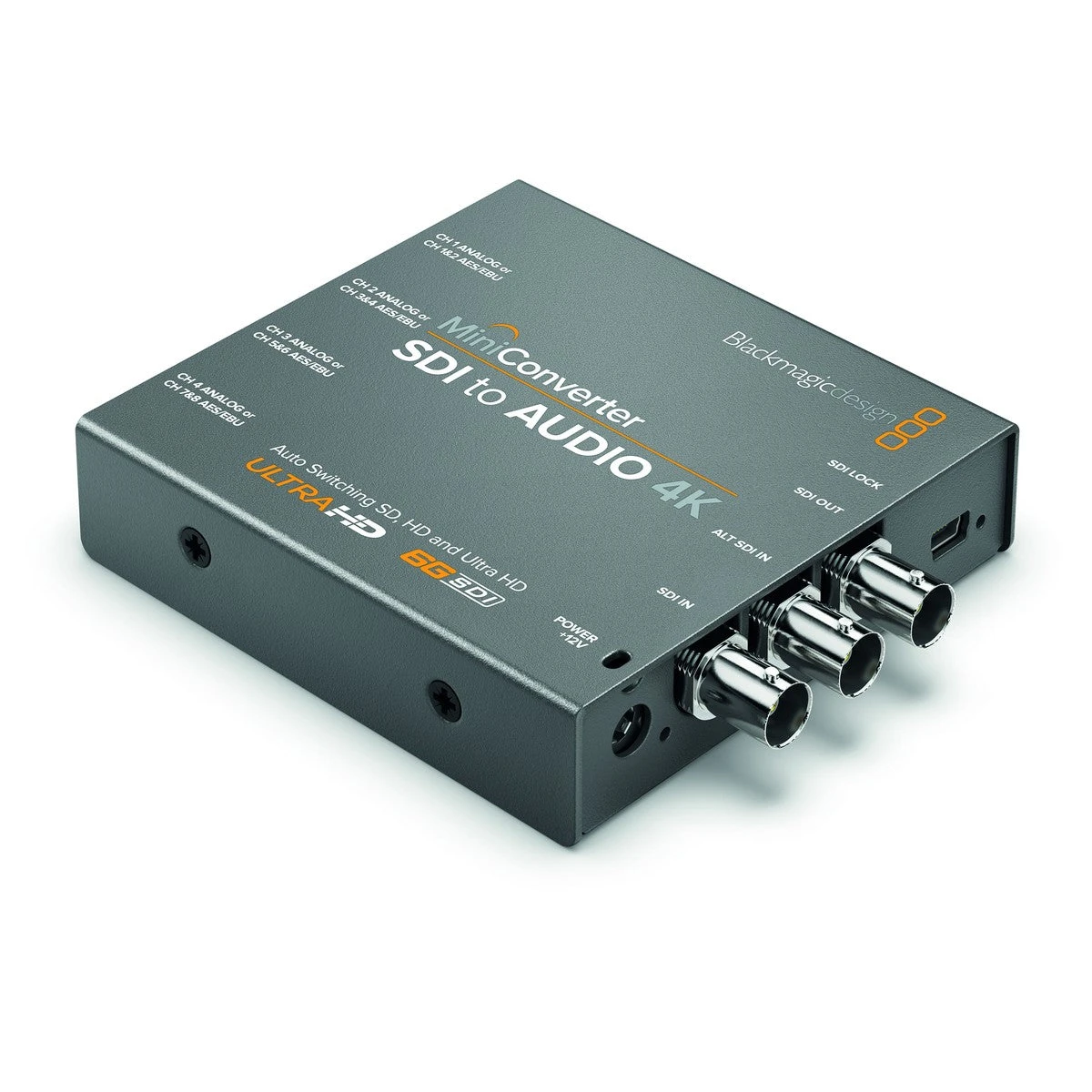

Blackmagic Mini Converter | SDI to Audio 4K

The Blackmagic Mini Converter SDI to Audio 4K is a highly versatile and essential tool for professional video production environments. This powerful mini converter is designed to de-embed 4 channels of analog audio or 8 channels of AES/EBU digital audio from any SDI video connection, providing unmatched flexibility for accessing audio from any SDI source. Whether you need to output the audio to a variety of equipment such as audio mixers, broadcast decks, or audio monitors, this mini converter ensures seamless integration and superior performance.

Engineered with cutting-edge technology, the Blackmagic Mini Converter SDI to Audio 4K is compatible with multiple formats including 4K, UHD, 2K, HD, and SD. It supports auto-detection of various SDI inputs and automatically adjusts for optimal performance. This makes it an invaluable asset for broadcast, post-production, and professional AV applications. With robust construction and a compact design, it offers a practical solution for both studio and on-location setups. The mini converter’s reliable performance and ease of use make it an indispensable tool for audio and video professionals seeking to enhance their production quality.

Key Features

• De-embeds 4 channels of analog audio or 8 channels of AES/EBU digital audio from SDI video connections
• Supports auto detection and switching between 4K, UHD, 2K, HD, and SD SDI inputs
• Compatible with a wide range of audio equipment including audio mixers and monitors
• Multi-rate support with automatic adjustment for optimal performance
• Robust and compact design suitable for both studio and on-location setups

Specifications

• SDI Video Input: Switchable between SD, HD, 3G, and 6G-SDI
• SDI Video Output: Automatically matches SD, HD, 3G, and 6G-SDI video input
• SDI Redundant Input: Automatically switches over if main SDI input is lost
• Analog Audio: 4 channels of professional balanced analog audio with standard 1/4 inch jack connections
• AES/EBU Digital Audio: 8 channels of professional balanced digital audio with standard 1/4 inch jack connections
• Multi-Rate Support: Auto detection of 4K, UHD, 2K, HD, or SD SDI inputs
• Updates and Configuration: USB
• Reclocking: Yes
• SDI Compliance: SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M, ITU-R BT.656, ITU-R BT.601, SMPTE ST-2036
• SDI Video Rates: Switchable between standard definition and high definition
• SDI Video Sampling: 4:2:2, 4:4:4
• SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit
• SDI Color Precision: 4:2:2, 4:4:4
• SDI Color Space: YUV, RGB
• SDI Auto-Switching: Automatically selects between SD, HD, 3G, and 6G-SDI
• SDI Format Support: Extensive range including 525/29.97 NTSC, 625/25 PAL, 720p, 1080i, 1080p, 2048x1080p, and 4096x2160p
• Software Control: Mac OS X and Windows software upgrade via USB
• Internal Software Upgrade: Via included updater application
• Power Supply: +12V universal power supply included with international socket adapters
• Power Consumption: 5.52 Watts
• Operational Voltage Range: 12V – 31V DC
• Physical Specifications: 0.90 x 3.63 x 4.52 inches, 7.61 oz
• Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
• Storage Temperature: -20 to 60 degrees C (-4 to 140 degrees F)
• Relative Humidity: 0% to 90% non-condensing

Package Contents

• Mini Converter SDI to Audio 4K
• 12V universal power supply with international socket adapters
• 3 Year Limited Manufacturer’s Warranty
