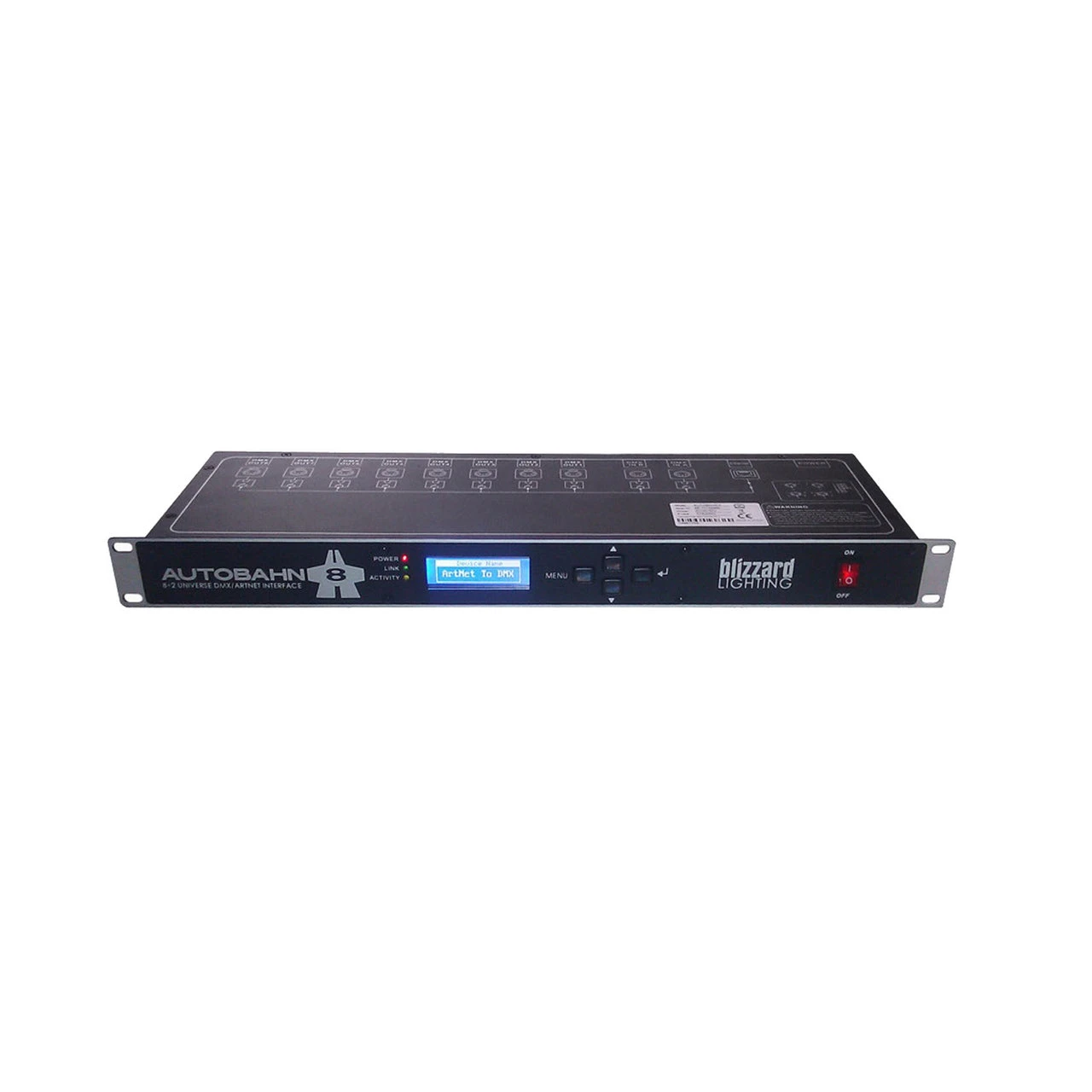

Blizzard Lighting AutoBahn 8 19 Inch Rack Mount 8 Port DMX to Artnet Interface

With usage of multiple LED fixtures and video mapping, many occasions require thousands of DMX channels. It’s important to have fast DMX response and proper network load management, and the AutoBahn 8 will do just that. It not only provides instant response, but also a lower network load. The AutoBahn 8 will allow you to increase the number of DMX universes and easily place DMX universes remotely on any TCP/IP Ethernet network. It can also be used as a DMX merger, DMX splitter, or backup device!

Key Features

• ArtNet/DMX bilateral signal conversion
• 1x RJ45 Neutrik EtherCON Ethernet LAN port, 10/100M, supports TCP/IP protocol
• 2x DMX inputs and 8x DMX outputs, each photoelectrically isolated
• Auto MDI/MDI-X ethernet connector
• Supports standard DMX-512 and ArtNet protocol
• DMX input/outputs can be set to enabled or disabled
• Each DMX output can be set to single, zero, HTP, or LTP mode
• Each DMX input can be set to normal or backup mode
• DMX splitter/merger functionality
• Manual IP address settings
• LCD display indicates each DMX input/output status
• Ethernet LED status indicator
• Quick and easy to set user presets

Technical Specifications

Dimensions
Length: 19 inches (482 mm)
Height: 1.75 inches (44 mm)
Depth: 6.1 inches (155 mm)
Weight: 5.1 lbs (2.3 kg)

Warranty
2-year limited warranty.
