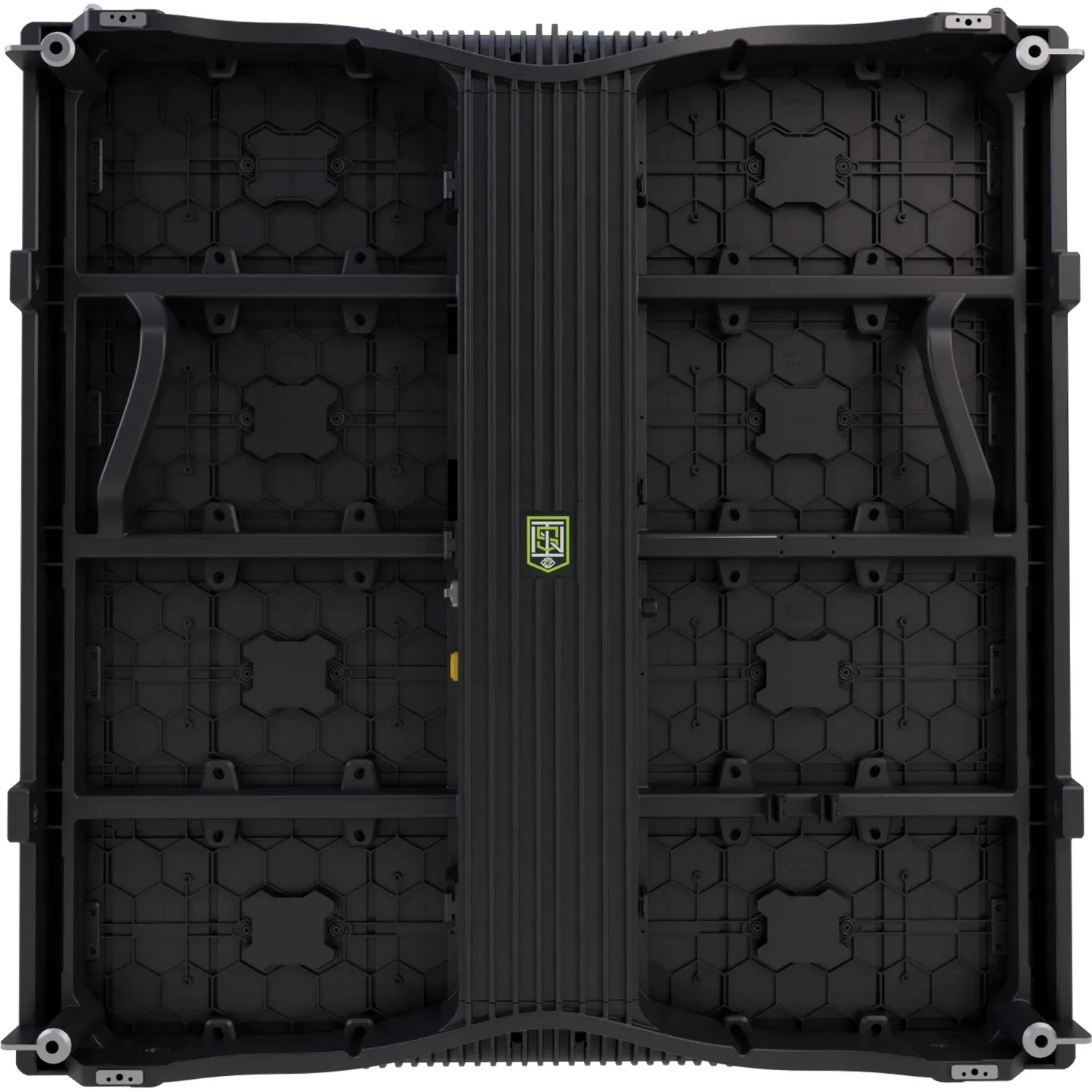

IRis Insignia IP 4.8, 7.8, 10.4mm LED Video Wall Panel – High-Brightness Outdoor Display

The IRis Insignia 4.8, 7.8, and 10.4mm LED video wall panels are high-performance display solutions designed to excel in outdoor environments. These panels deliver exceptional image quality, brightness, and durability, making them ideal for applications such as digital billboards, stadium displays, drive-thru menus, and outdoor advertising.

With a range of pixel pitch options, the Insignia series offers flexibility to suit various project requirements and viewing distances. The 4.8mm pixel pitch provides excellent image detail for close-up viewing, the 7.8mm offers a balance of resolution and visibility, while the 10.4mm is suitable for larger displays and wider viewing angles.

The Insignia panels feature high brightness levels, ranging from 5000 to 6500 nits, ensuring clear and vibrant visuals even in direct sunlight. The panels are equipped with advanced technology, including NovaStar A8s receiving cards that support HDR10 and HLG formats, delivering accurate colors and enhanced contrast for lifelike images.

Designed for outdoor use, the Insignia series is built to withstand harsh weather conditions. The panels are IP65 rated for front protection and IP64 rated for rear protection, ensuring resistance to water, dust, and other environmental factors.

Key Features

4.8, 7.8, 10.4 mm Pixel Pitch Options
5000, 6000, 6500 Nit Brightness Options
IP65 (front) / IP64 (rear)
NovaStar A8s receiving cards with HDR10 / HLG support
90-degree splicing capability
Outdoor rated
High brightness for sunlight readability
Weatherproof design

Technical Specifications

Brightness: 5000, 6000, 6500 Nit

Certifications: FCC, ETL, CE, RoHS

Color Depth: 14 Bit

Curvature: 0 – 90 Degrees

Grayscale: 14 Bit

HDR: HDR10-Optima / HLG

IP Rating: IP65 (front) / IP64 (rear)

LED Configuration: SMD 2727 LEDs

Lifespan: 100,000 Hours

Module Quantity: 2 x 4

Receiving Card: NovaStar A8s-N (Customizable with Brompton processing)

Refresh Rate: Greater than or equal to 3840

Scan Mode: 1/2

Primary Usage: Signage

Serviceability: Front and Rear

Special Features: Wide curvature capabilities

Warranty: 7 Year

Working Humidity: 10% – 90% RH

Working Temperature: -10 Degrees Celsius to +40 Degrees Celsius
