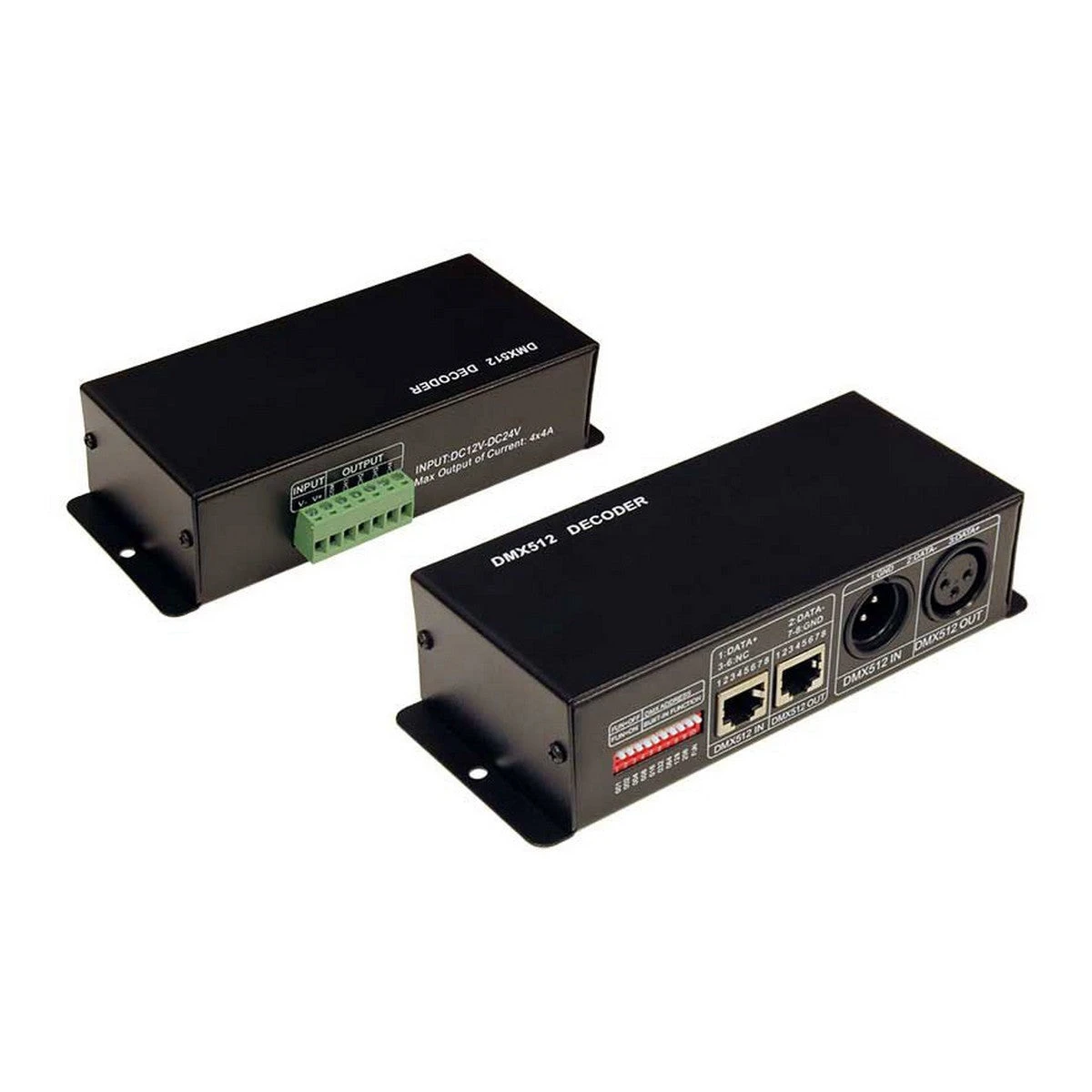

Blizzard Lighting Komply DMX 4-Channel RGB(W) Dimmer & Strobe DMX Controller(Blizzard Lighting Komply Dmx 4 Channel Rgbw Dimmer Strobe Dmx Controller)

Blizzard Lighting Komply DMX 4-Channel RGB(W) Dimmer & Strobe DMX Controller

Low voltage DMX Decoder (12/24VDC). The Blizzard’s Kontrol DMX converts to the universal standard DMX512/1990 signal into analog signal. Uses 4 channels and can also be used to dim single color with 256 shades of brightness.

Technical Specifications

Operating Temperature
-20 to 50 C Indoor (dry location)
Supply Voltage
5V to 24VDC
Output
4 channels
Grayscale
256/channel
External Dimensions
6.5″ x 2.7″ x 1.6″ (165 mm x 68 mm x 40 mm)
Weight
.71 lbs. (320g)
Static power consumption
Output Current
each channel 3 Amps (max)
Maximum Input
5 Amps 12VDC / 8 Amps 24VDC
Output Power
5VDC: Certifications
CE, Rohs
