Brainstorm SR-112 Time Code Distripalyzer Time Code Reshaped and Distributed

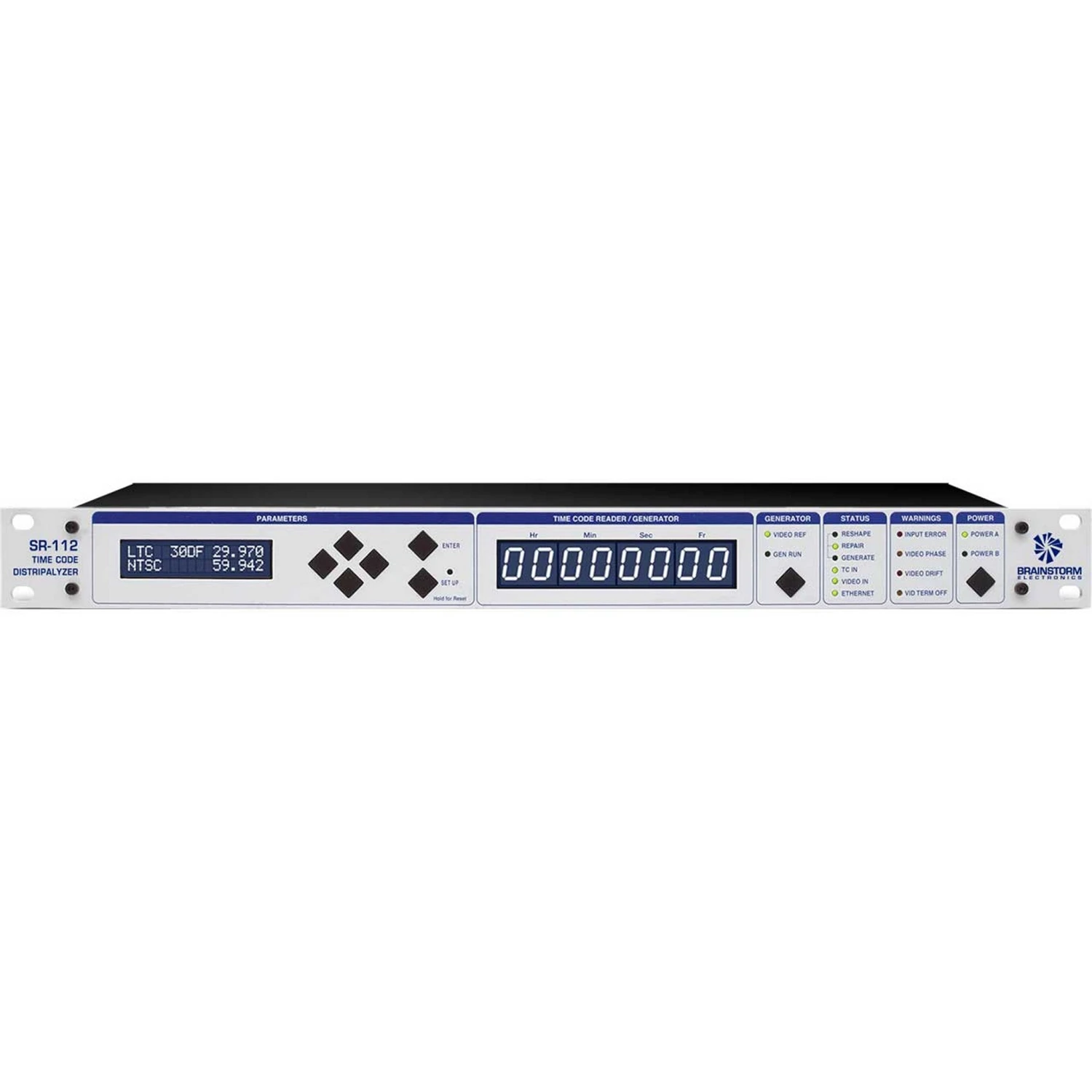

The Brainstorm SR-112 will instantly identify time code problems, and with the optional time code generator, fix them supporting all modern SMPTE and EBU SD/HD rates are supported. The industry standard Brainstorm SR-112 is designed to reshape and distribute time code through its 12 buffered outputs while analyzing it. The reshaper sends clean time code, even over long cables, making it ideal for live environments. The front panel includes a large 8 digit reader and an LCD display showing the units status and reporting errors as they are detected.

Key Features

• Time Code Analyzer
• Identify Time Code errors (drop outs…)
• Monitor video phase (HD & SD)
• Display format and frame rate
• Comprehensive report including all errors
• Large 8 digit time code reader
• 1×12 time code distributor
• Individually adjustable output levels
• Level fluctuations eliminated
• Amplitude distortions eliminated
• Buffered outputs
• Set parameters and load firmware updates
• Output a comprehensive time code report
• Dual redundant power supply

Technical Specifications

TC Distributor
1×12
TC Input Connector
XLR Female

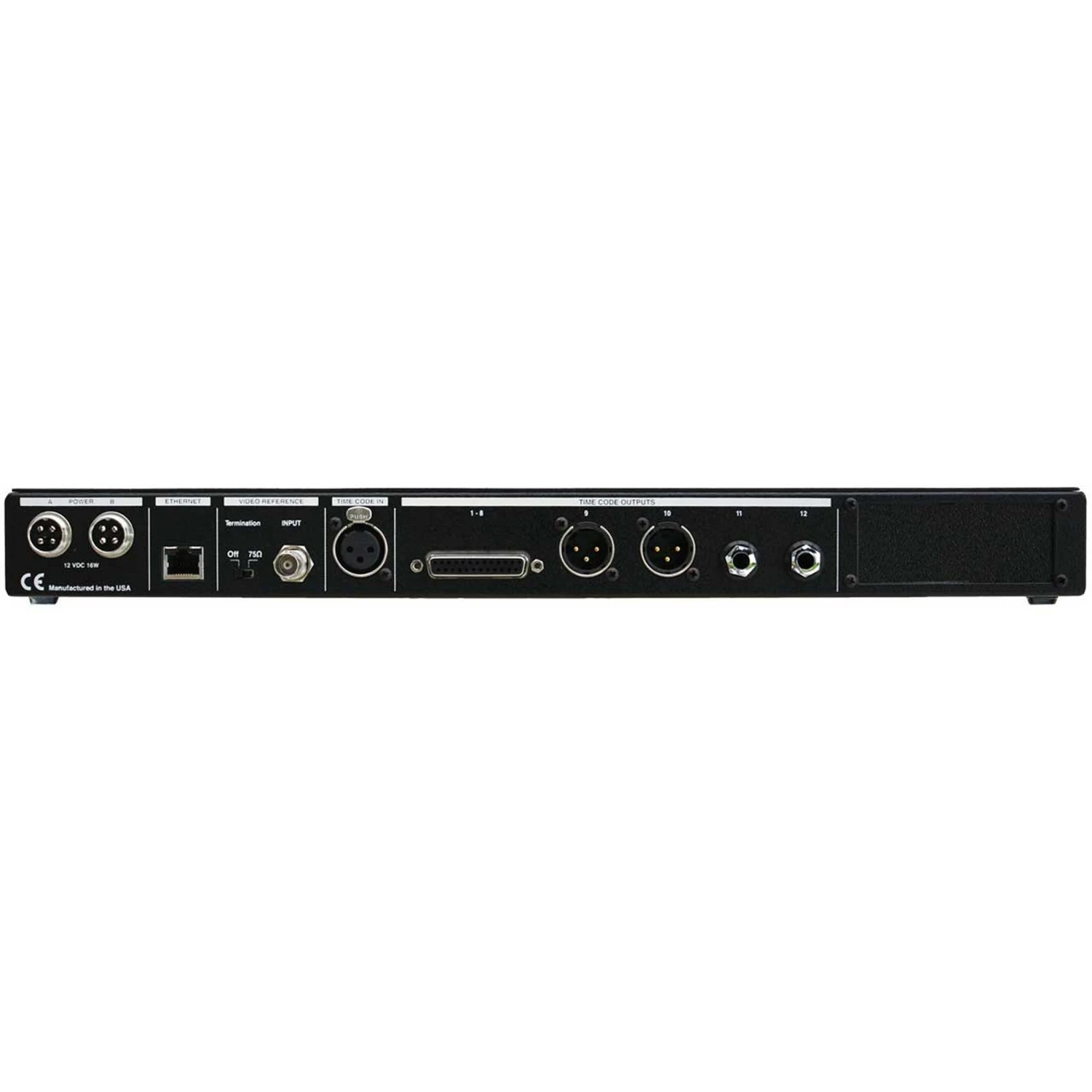

TC Output Connectors
1x DB-25 Female (8 outputs – Tascam/Avid analog pin configuration)
2x XLR Male
2x 1/4″ TRS
Input Signal
SMPTE/EBU Longitudinal Time Code
Impedance
20k bal.; 10k unbal.
Level
-30dbU min; +20dbU max
Output Signal
Waveform: switchable rise time: 1us (square); 25us (SMPTE); 50us (EBU)
Impedance
600 bal.; 300 unbal.
Level
Adjustable: full off to +8dbU bal.; to + 2dbU unbal.
Amplitude Distortion
less than 2%
Status LEDs
Reshape
Generate (TCG option)
Video In
Repair (TCG option)
TC In
Ethernet
Dimensions
19″ x 8.13″ x 1.75″ (48.26cm x 20.64cm x 4.45cm)
