BZBGEAR Long Range Digital/Analog Audio Extender Kit, Over Cat5e/6/7(Bzbgear Long Range Digital Analog Audio Extender Kit Over Cat5e 6 7)

BZBGEAR Long Range Digital/Analog Audio Extender Kit – Over Cat5e/6/7 up to 950ft

The BZBGEAR BG-AUD-TCS audio extender kit offers an efficient solution for transmitting high-quality digital and analog audio over extended distances. Supporting multiple audio formats such as PCM, Dolby, and DTS, this kit allows audio signals to travel up to 950 feet over Cat5e/6/7 cables. It’s designed for a range of professional and residential audio systems, providing flexible connectivity options and reliable performance for various setups.

Ideal for home theaters, commercial audio systems, and complex AV installations, the kit ensures clear audio transmission with minimal latency, maintaining high fidelity for 2.0-7.1 channel setups. Its Power over Cable (PoC) technology simplifies the setup process, as it powers the receiver over the same cable used for the audio signal, eliminating the need for additional power adapters. This makes the BG-AUD-TCS perfect for installations in areas where space or convenience is a priority.

With a rugged design suitable for harsh environments, the BZBGEAR BG-AUD-TCS operates in temperatures ranging from 14°F to 131°F, ensuring reliability in diverse conditions. Whether for home or commercial use, this extender kit guarantees performance and flexibility, offering one of the best solutions for long-distance audio transmission.

Key Features

• Supports TOSLINK, COAX, and 3.5mm stereo/RCA input and output formats.
• Transmits audio up to 950 feet (290 meters) with CAT5e/6/7 cables.
• Power over Cable (PoC) technology for simplified installation.
• Supports audio formats including PCM, Dolby, DTS, and up to 7.1 surround sound.
• Compact and rugged design for long-lasting durability.
• Ideal for both residential and commercial applications.

Technical Specifications

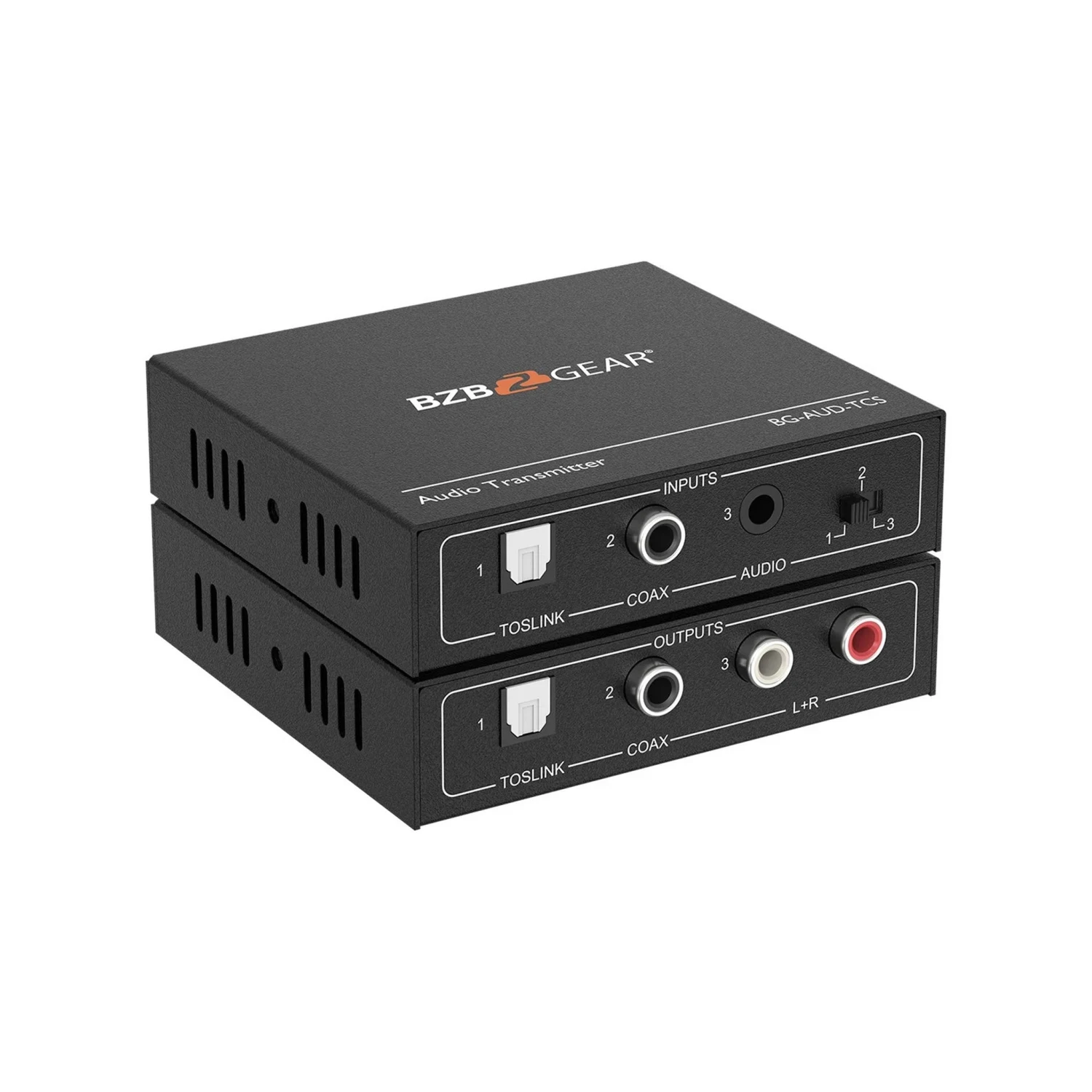

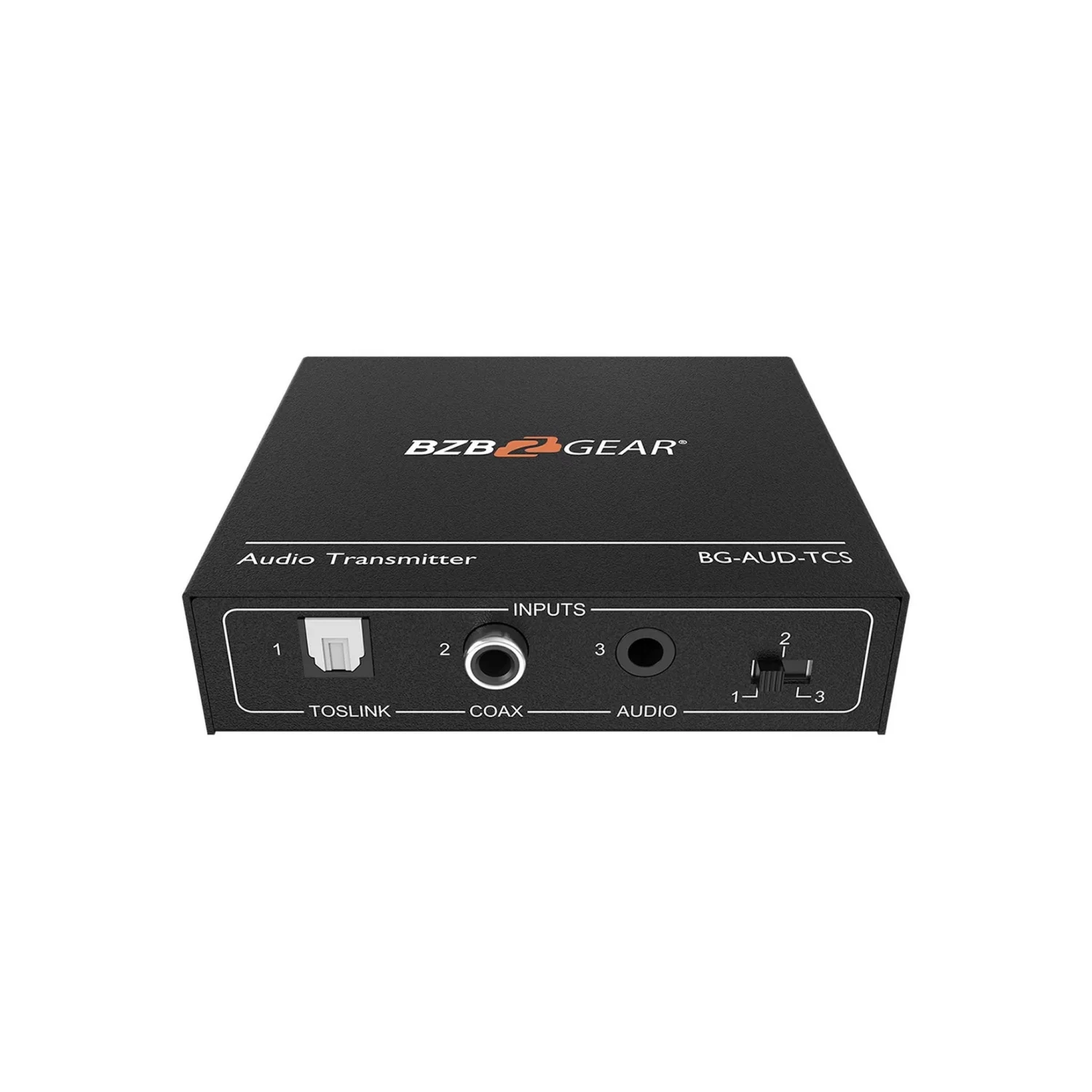

Transmitter Input: TOSLINK, COAX, or AUDIO

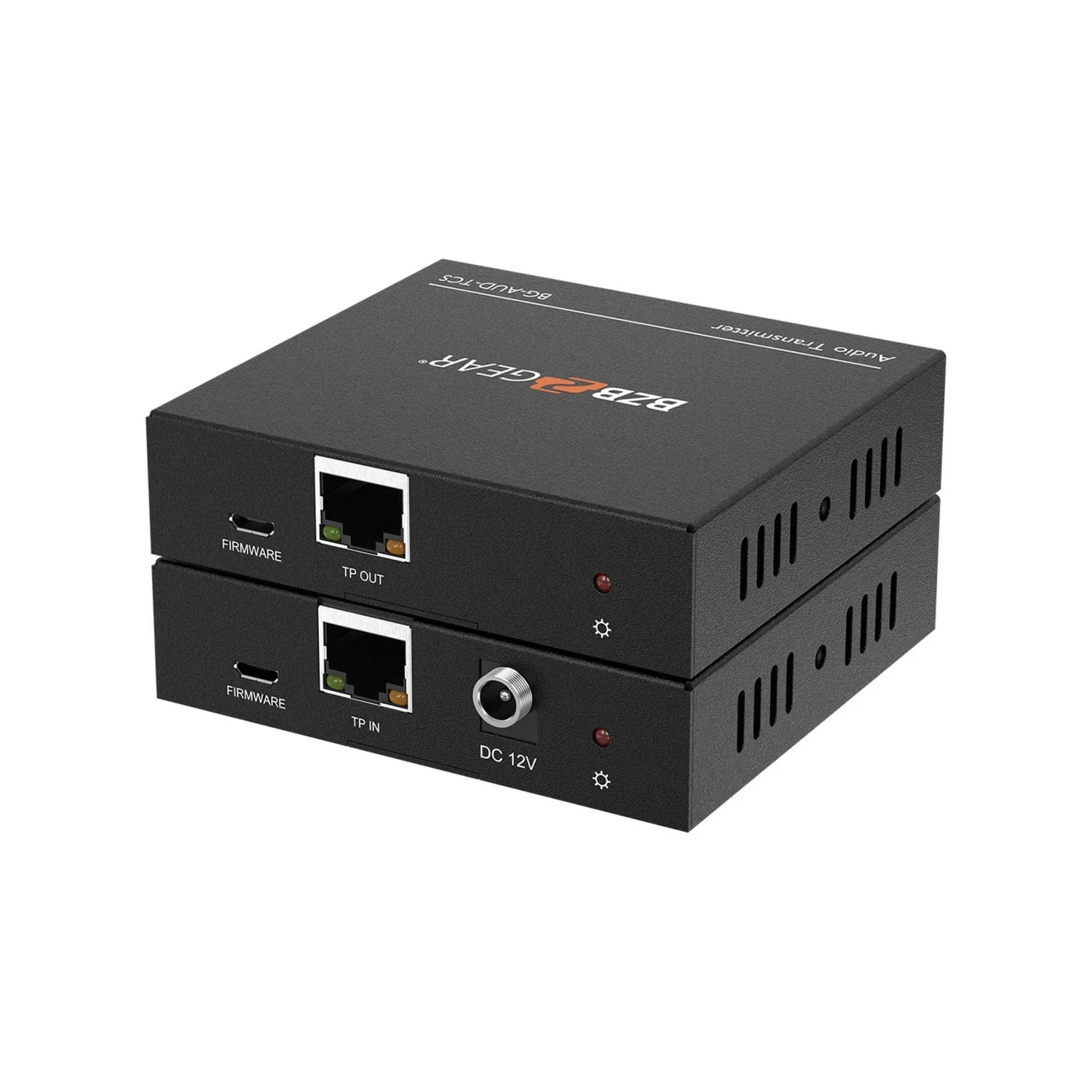

Output: TP OUT

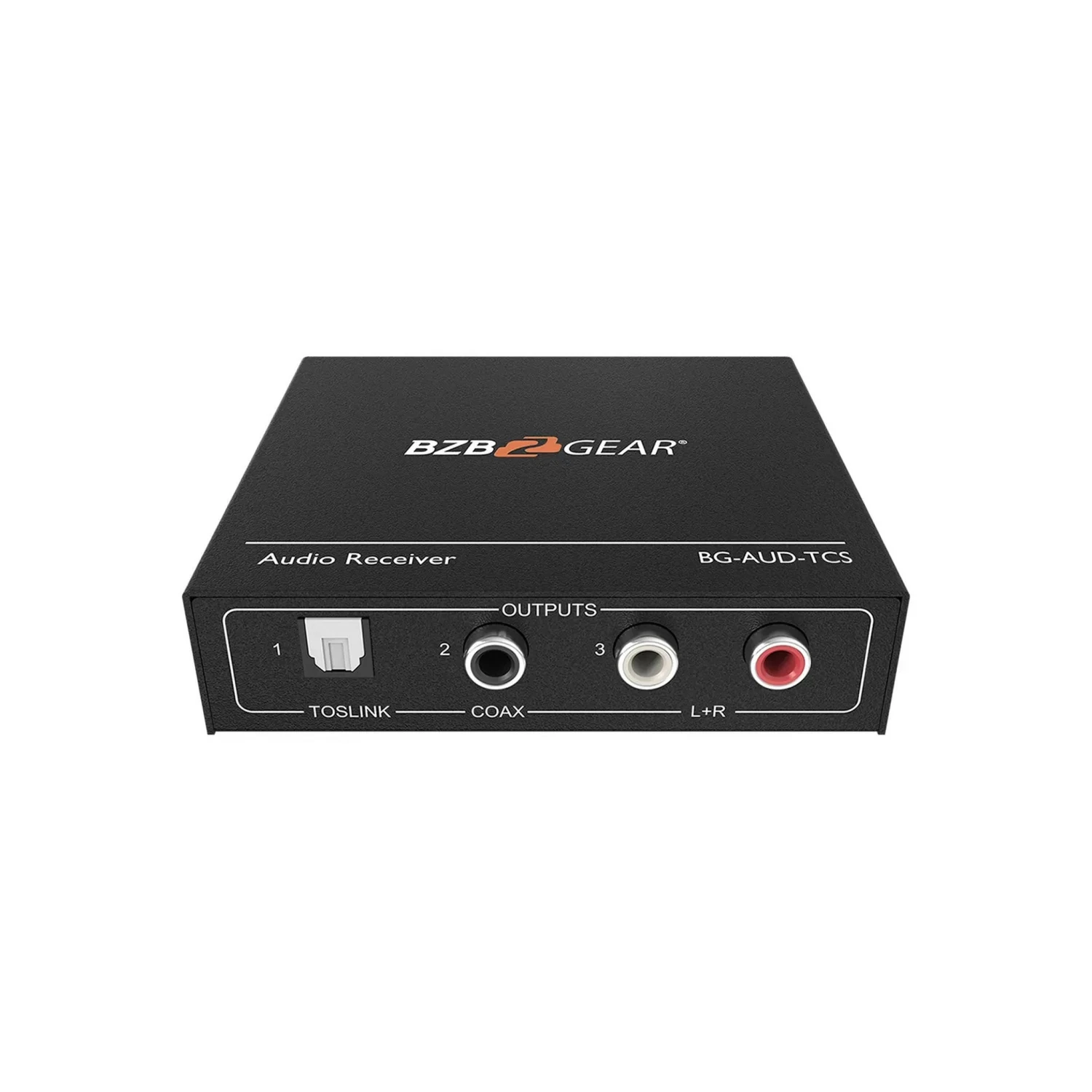

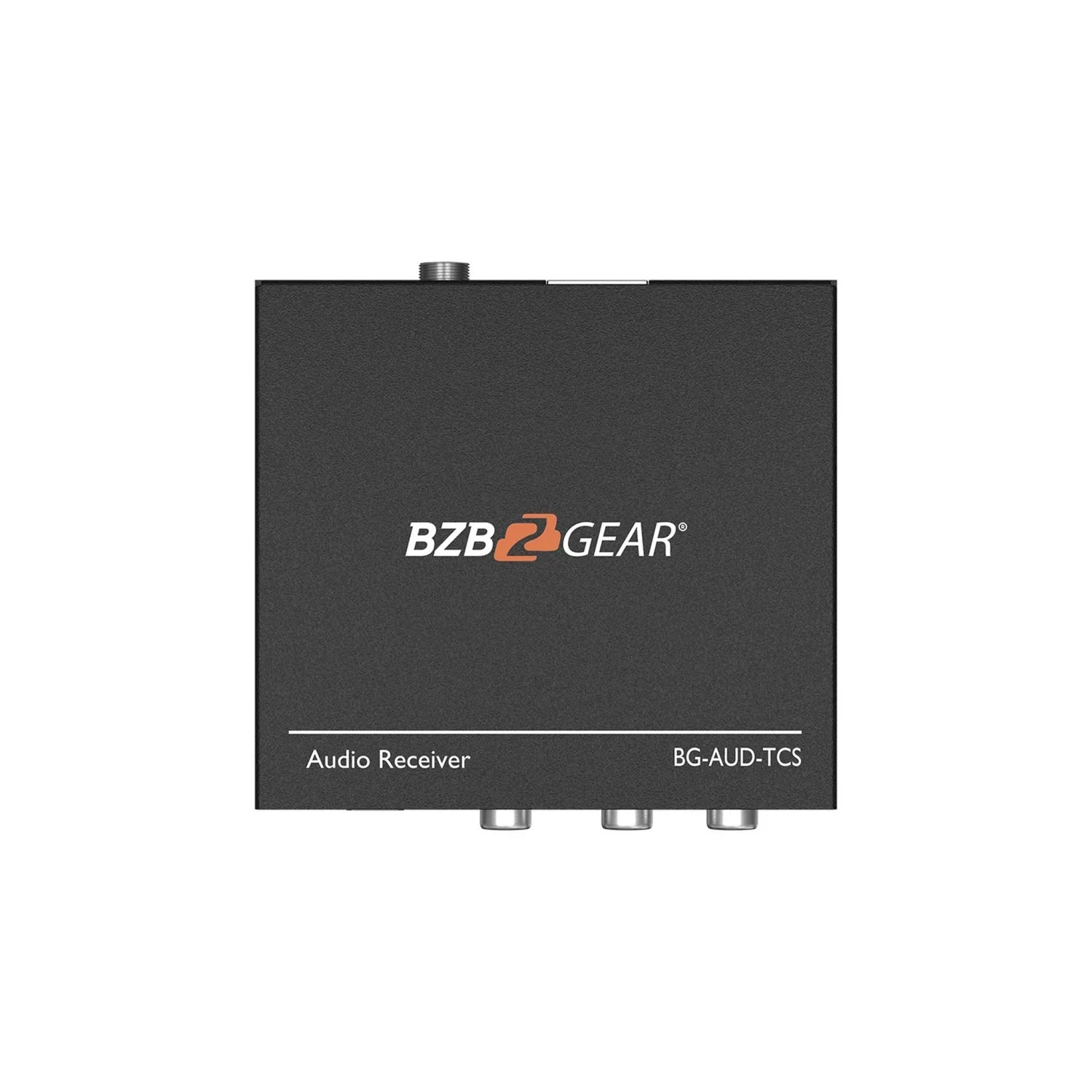

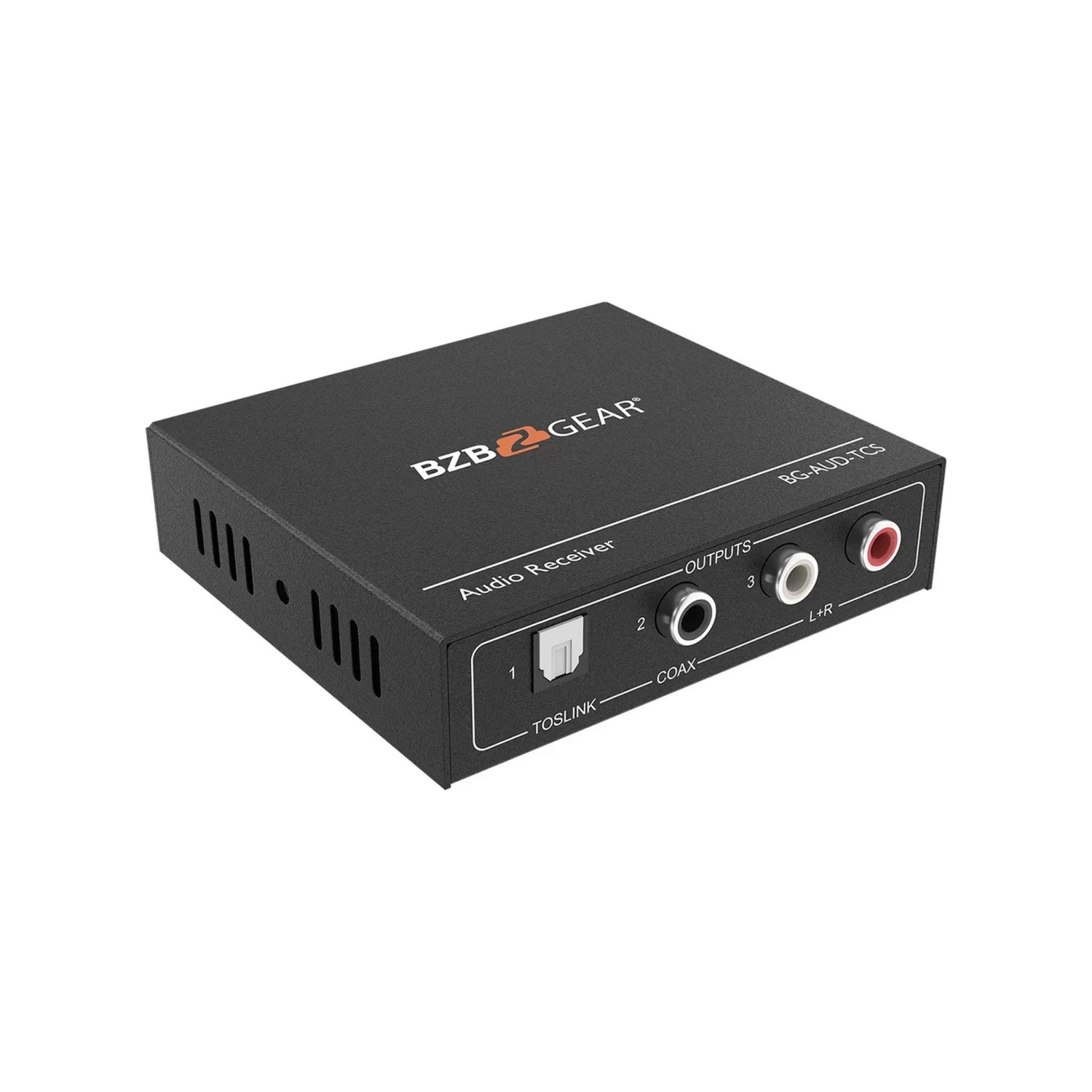

Receiver Input: TP IN
Output: TOSLINK, COAX & RCA (L+R)

Audio Format: TOSLINK & COAX: PCM/Dolby/DTS; AUDIO: Stereo
Sound Channel: TOSLINK & COAX: 2.0-7.1
Frequency Response: 20 Hz to 20 kHz, ±3 dB
Sample Rate: TOSLINK & COAX: 48k/96k/192k 16bit/18bit/24bit

Transmission Distance: Stereo: Up to 170m (558 feet) (CAT5e/6/7); TOSLINK/COAX: Up to 290m (950 feet) (CAT5e/6/7)
Power Supply: Input: 100VAC~240VAC, 50/60Hz; Output: 12VDC, 1A
Power Consumption: 2.5W (Max)
Work Temperature: 14°F ~ 131°F / -10°C ~ +55°C
Humidity: 10% ~ 90%

Net Weight: Transmitter: 0.24 lbs (110g); Receiver: 0.26 lbs (119g)
Dimensions (WxHxD): 3.5 x 3.1 x 0.85in (88 x 80 x 21.5mm)

What’s Included

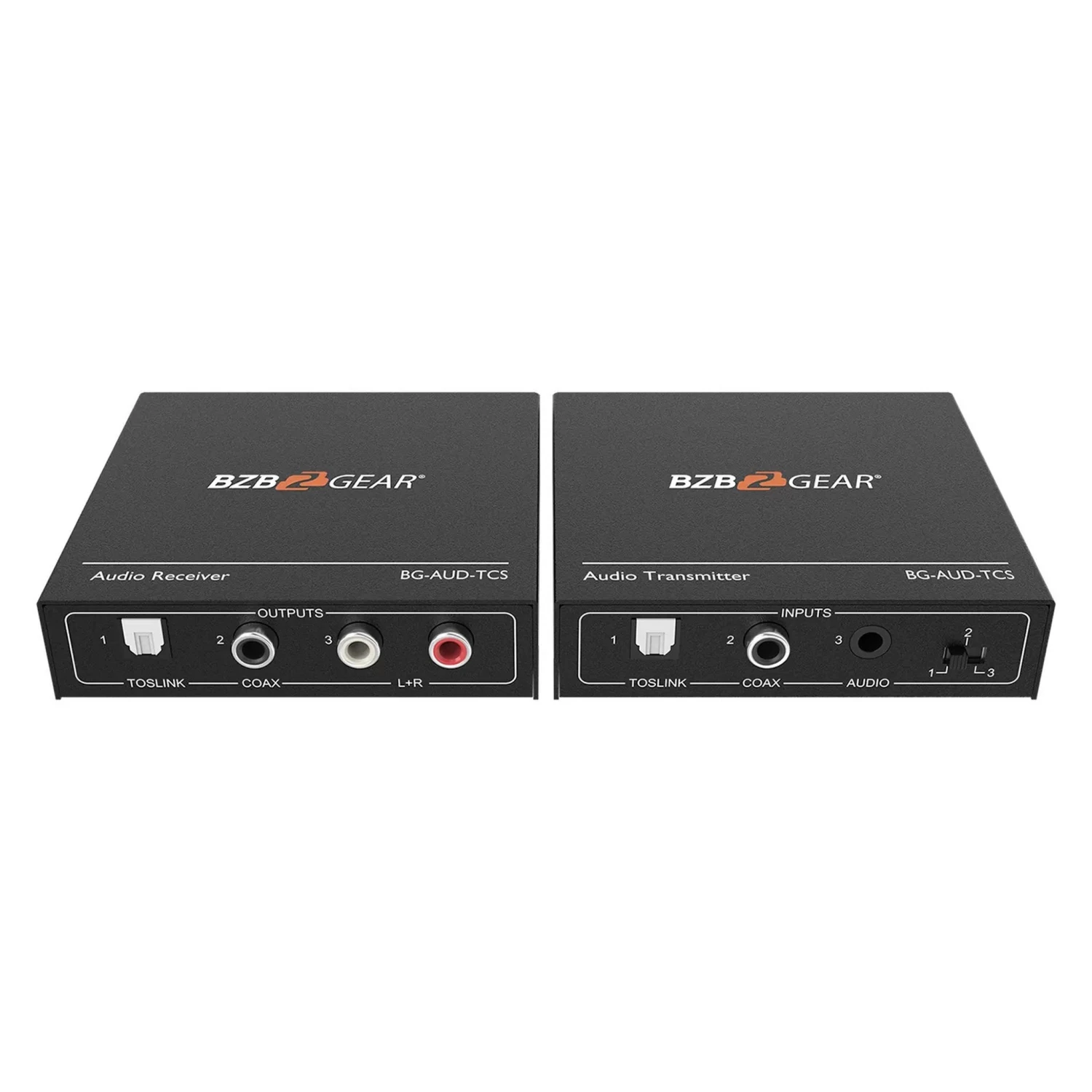

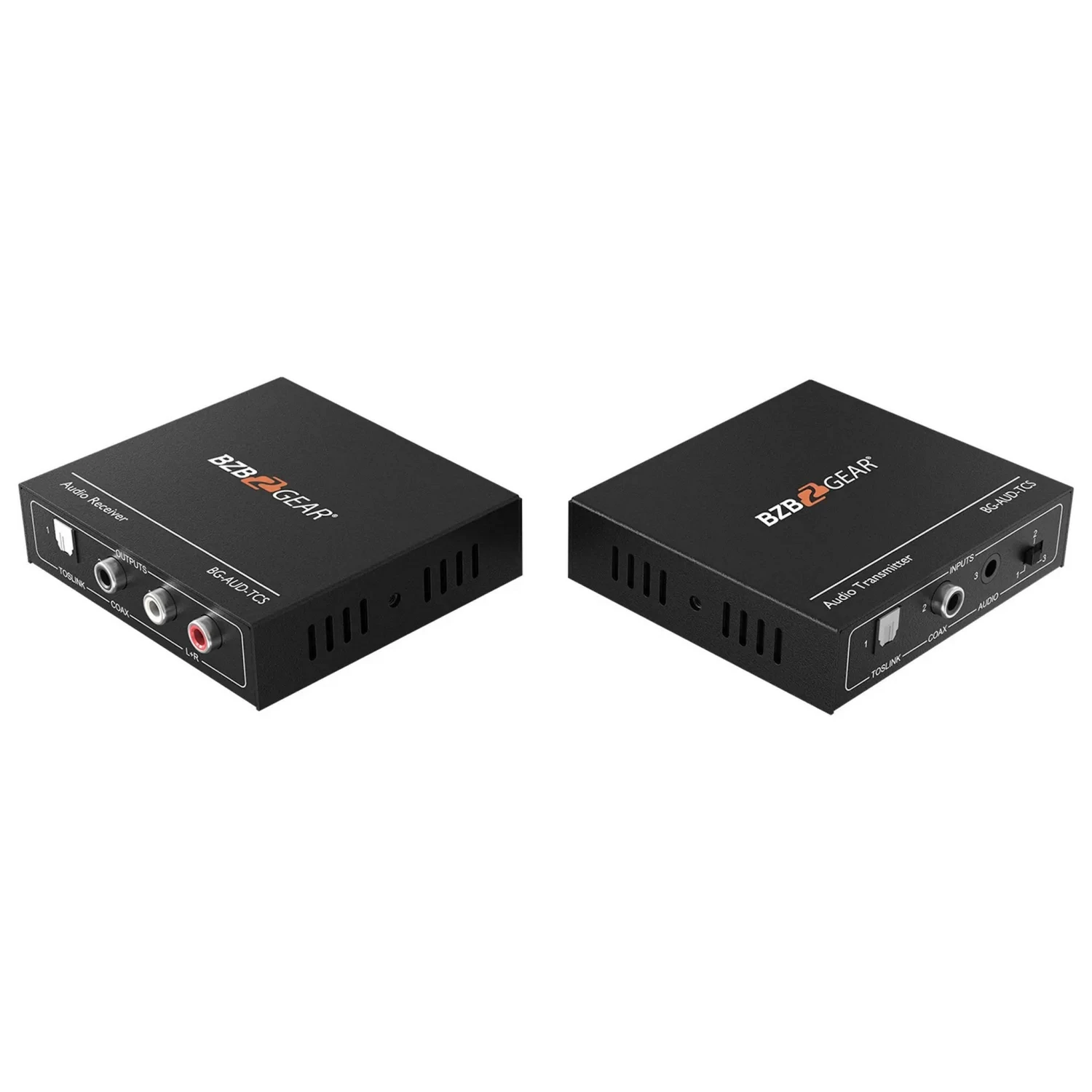

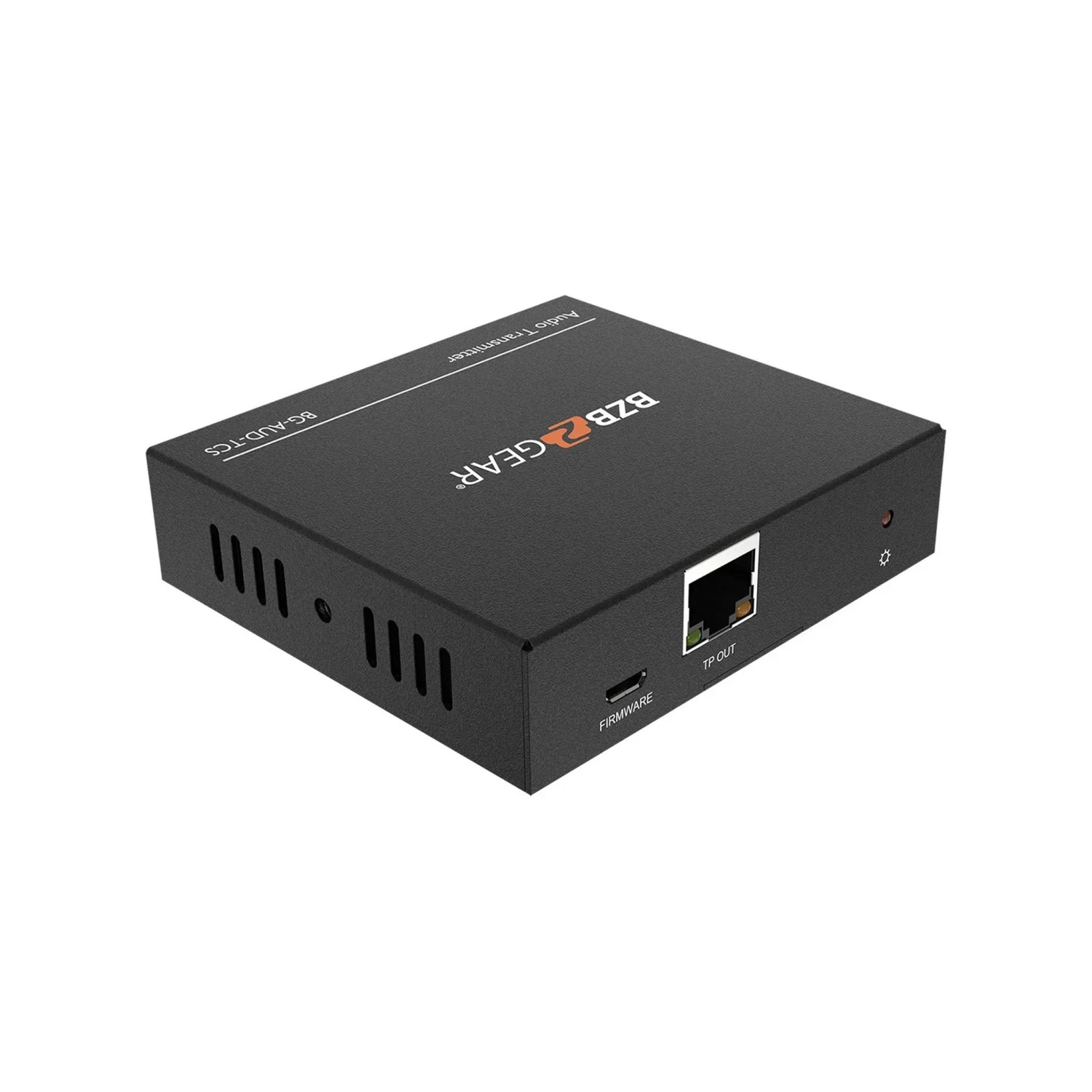

• 1x Transmitter
• 1x Receiver
• 1x Power Adapter (12VDC, 1A)
• 8x Screws
• 8x Plastic Cushions
• 1x User Manual
