C2G 29880 Retractable Table Box Mount 4K HDMI Adapter Ring With Color Coded Mini DisplayPort, DisplayPort And USB-C(C2g 29880 Retractable Table Box Mount 4k Hdmi Adapter Ring With Color Coded Mini Displayport Displayport And Usb C)

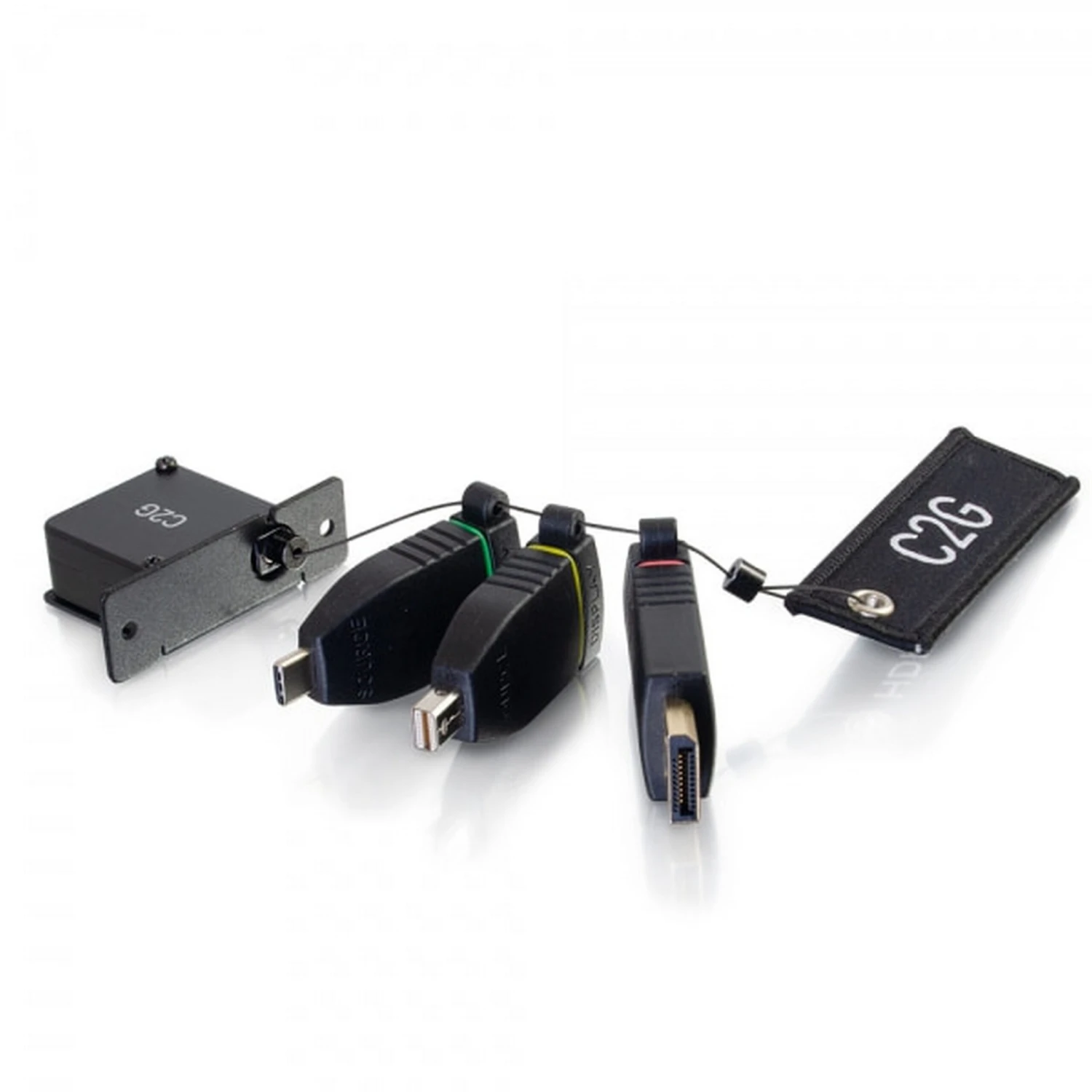

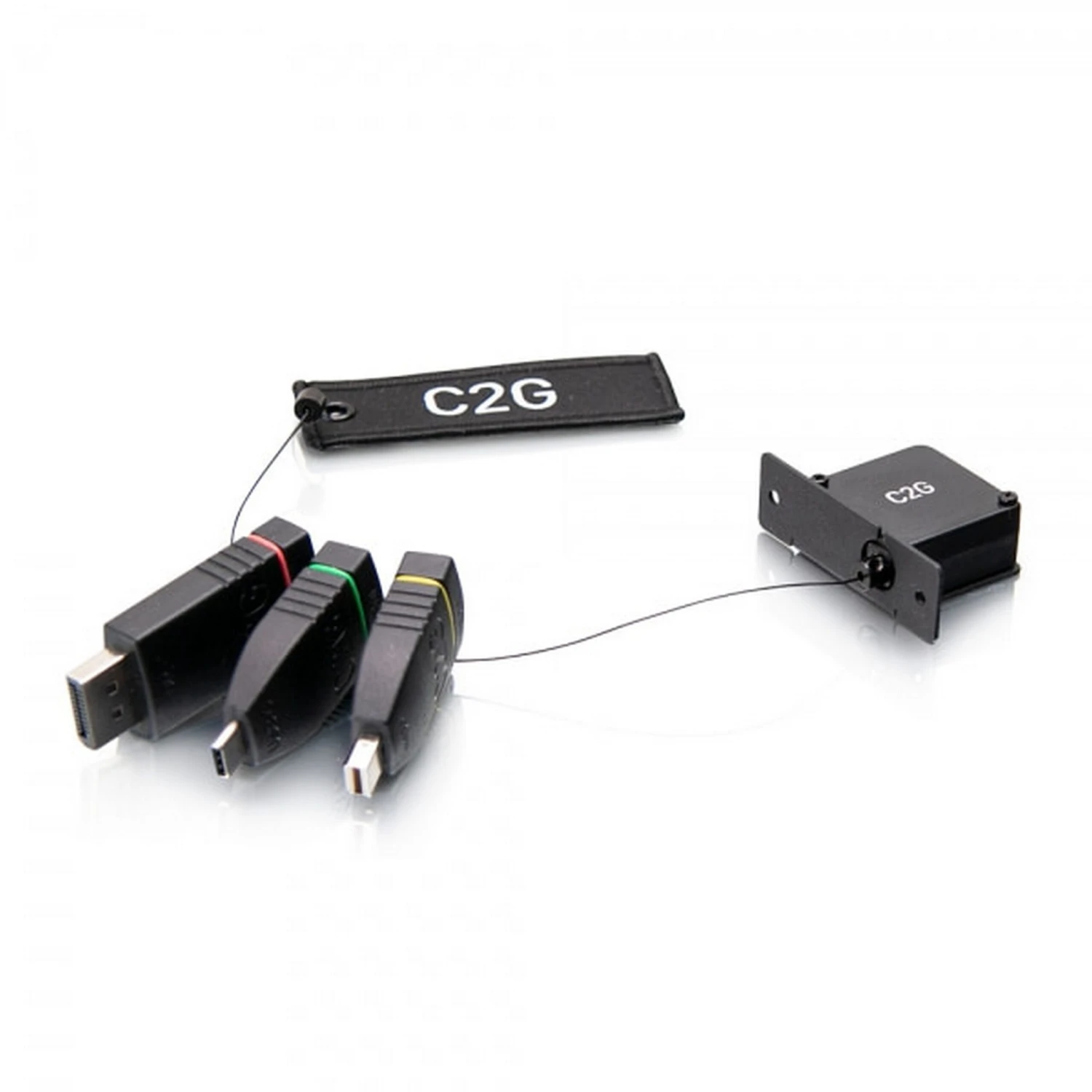

C2G 29880 Retractable Table Box Mount 4K HDMI Adapter Ring with Color Coded Mini DisplayPort, DisplayPort and USB-C

The Patent Pending Retractable Table Box Mount 4K HDMI Adapter Ring is the perfect addition to conference rooms, huddle spaces, lecture halls or classrooms to make sure that anyone can connect. The standard configuration includes the adapters to connect nearly any device to the in-room display, while supporting up to a 4K video resolution. Standard configuration includes HDMI to DisplayPort, Mini DisplayPort, or USB-C adapters to meet connectivity challenges.

Color Coded Adapters
Each adapter is color coded with a band that saves time and frustration by making it easy to quickly identify the adapter you need.

Integrated Pull Tab
Easily grab the adapters when you need them with the integrated Pull Tab that is also available to be customized to feature your company or organization logo. Minimum order quantities apply to customized Pull Tabs.

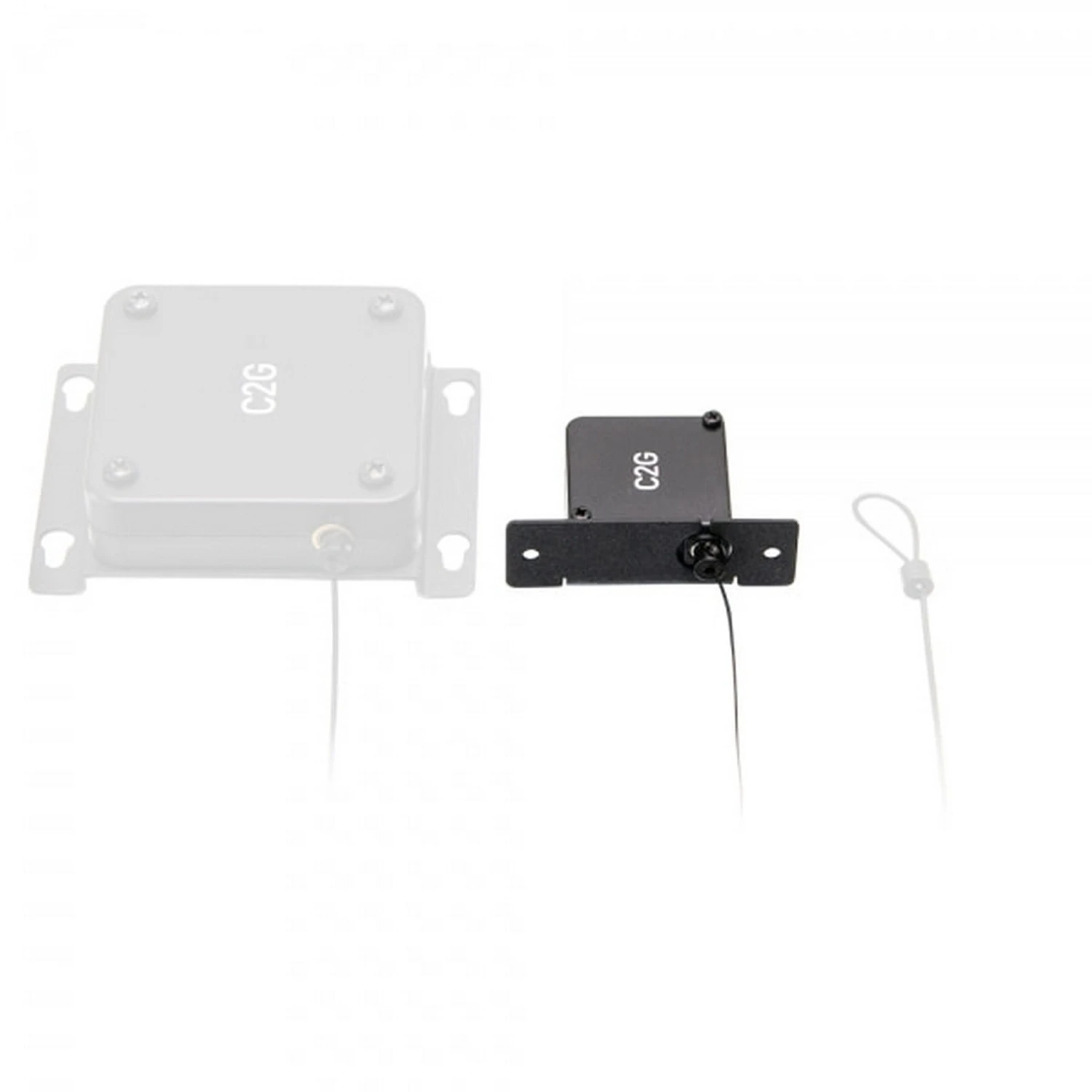

Retractable Table Box Mount
The Retractable Table Box Mount attaches to a Wiremold AVIP, Extron MAAP, or FSR IPS opening in a table box, providing mounting flexibility to best fit your environment. The retractor extends out to 4.9ft, ensuring that the adapters are always within reach when needed, and the retractor is tested to over 20,000 extension cycles for a long service life.

Tools Included

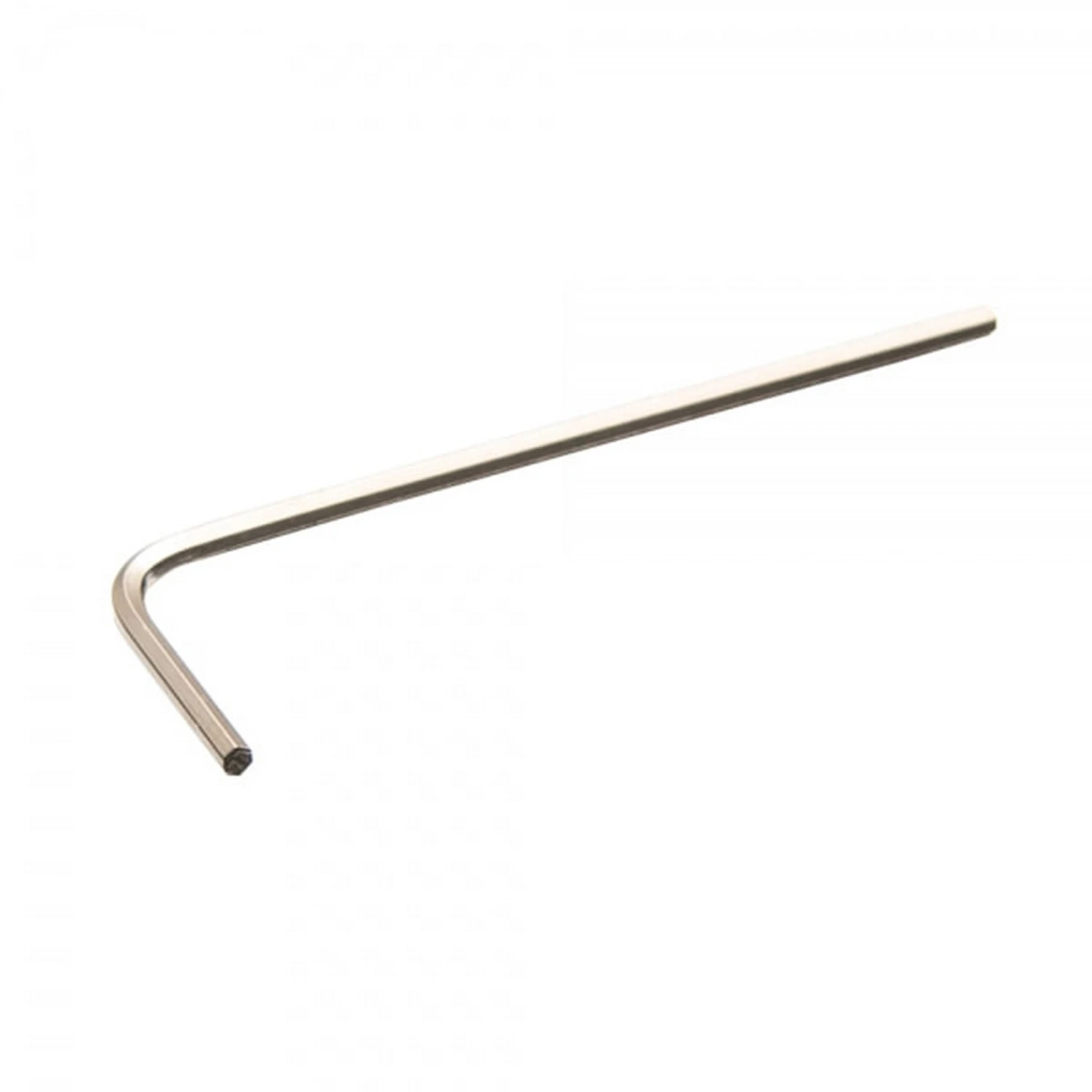

To simplify the process, the installation tool is included.

Key Features

• Adapters support up to a 4K video resolution, so meeting attendees will be able to see the displayed content for improved comprehension and detailed decision making.
• Adapters are color coded, so no more frustration trying to find the adapter that you typically use for your laptop.
• Integrated pull tab, so the adapters can be accessed quickly or easily reached when they are tucked away.
• Installation tools are included, so you save time and money by not needing to purchase any additional tools.

Technical Specifications

Signal Specifications
USB Type-C to HDMI Adapter: 100% Functional Test at 4K/60Hz/4:4:4 Resolution with Standard AV Test Equipment
DisplayPort to HDMI Adapter: 100% Functional Test at 4K/30Hz Resolution with Standard AV Test Equipment
Mini DisplayPort to HDMI Adapter: 100% Functional Test at 4K/30Hz Resolution with Standard AV Test Equipment
Electrical Specifications
USB Type-C to HDMI Adapter Power Consumption: 1050mW (210mA/5.0V)
DisplayPort to HDMI Adapter Power Consumption: 396mW (120mA/3.3V)
Mini DisplayPort to HDMI Adapter Power Consumption: 396mW (120mA/3.3V)
Physical Specifications
Operating Temperature: 0C – 40C (0% – 90%RH)
Storage Temperature: -10C – 60C (0% – 90%RH)
Physical Characteristics
HDMI 19pin Female Connector: Solder Type, Contacts: Brass, Gold Flash, Housing: LCP, Black, Shell: Nickel Plated
USB Type-C Male Connector: Solder Type, Contacts: Brass, Gold Flash, Housing: LCP, Black, Shell: Nickel Plated
DisplayPort Male Connector: Solder Type, Contacts: Brass, Gold Flash, Housing: LCP Black, Shell: Nickel Plated
Mini DisplayPort Male Connector: Solder Type, Contacts: Brass, Gold Flash, Housing: LCP Black, Shell: Nickel Plated
Adapter Hood: Molded Black (Pantone/#Black 6C) PVC

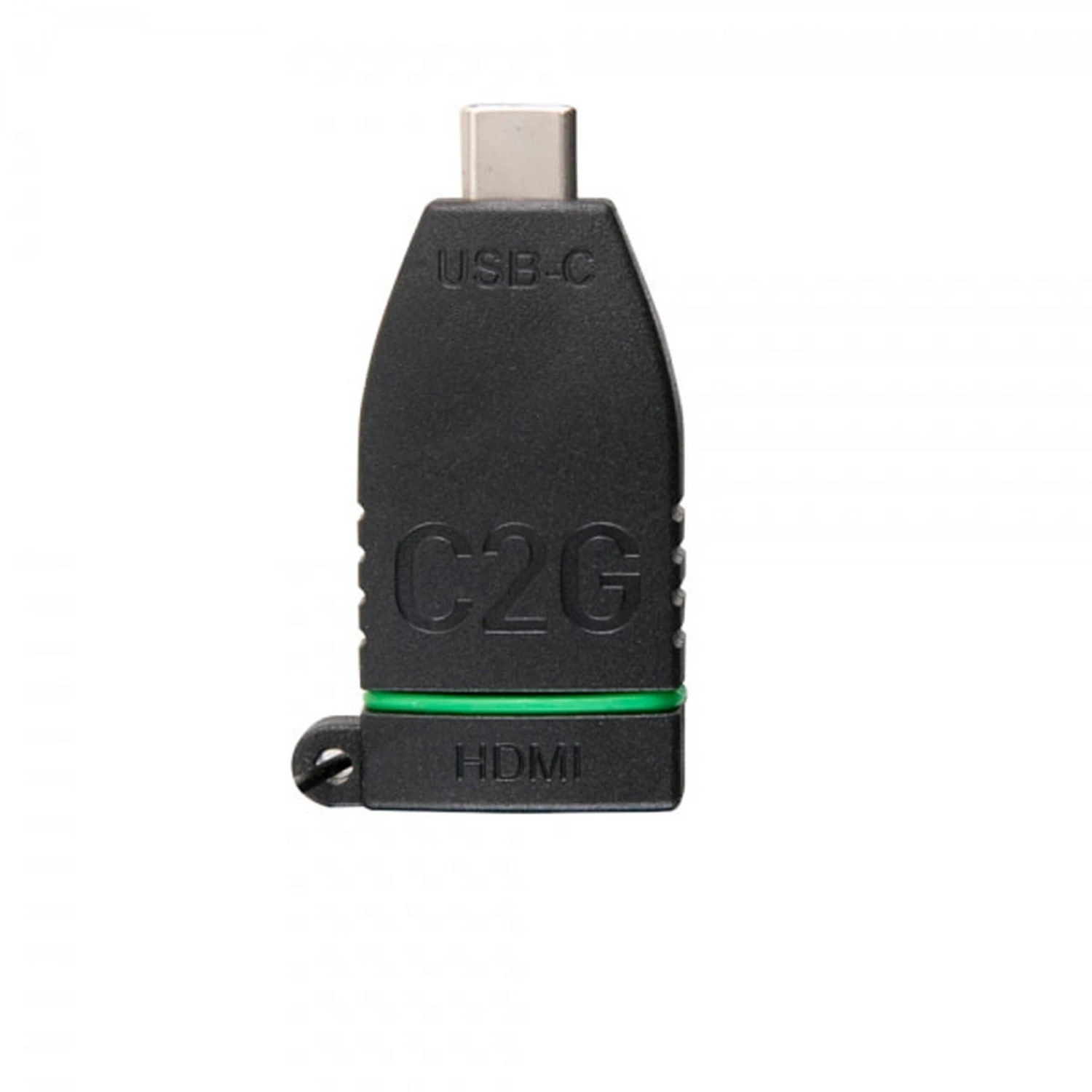

USB Type-C to HDMI Adapter Color Band: Green (Pantone#354C) 12 x 1.5mm

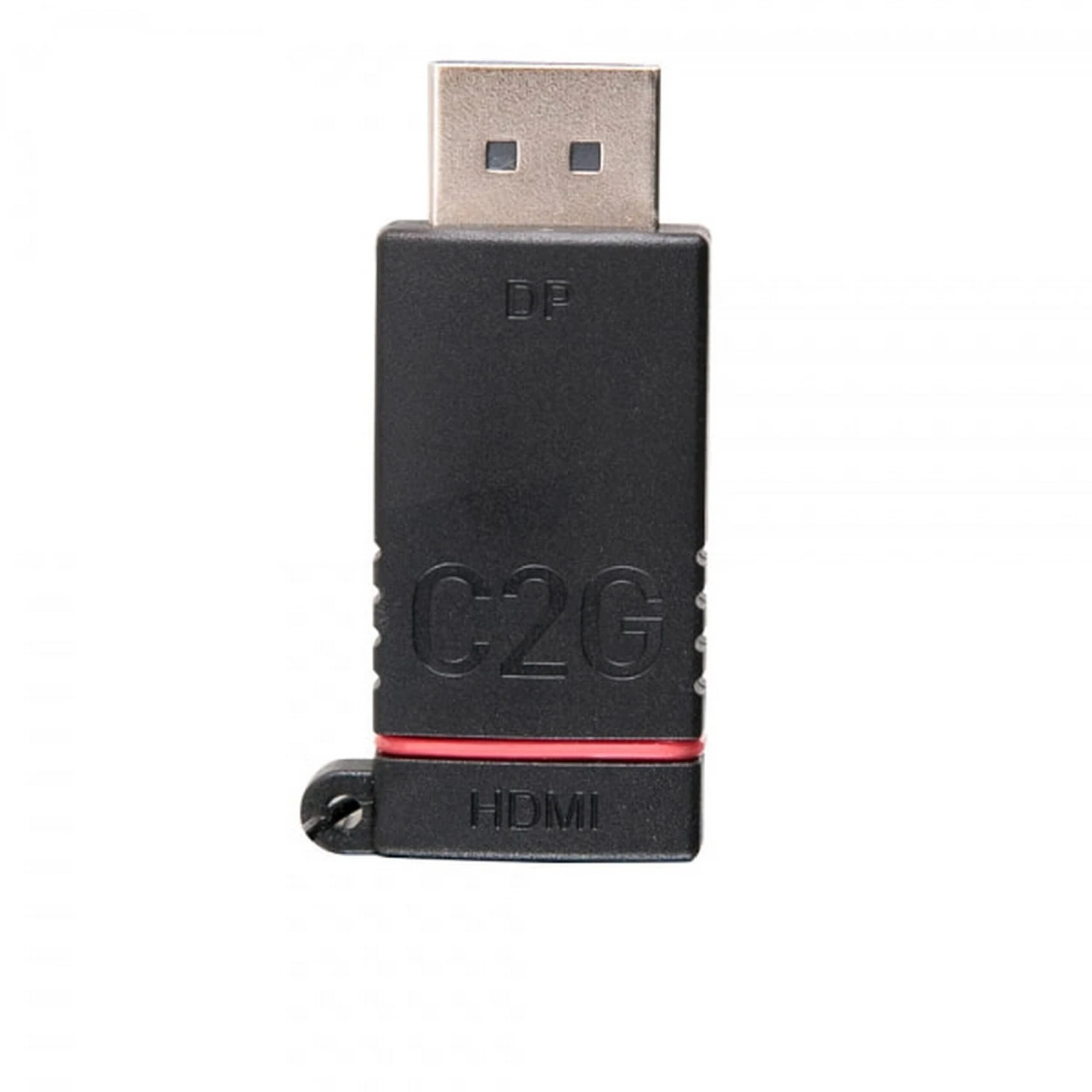

DisplayPort to HDMI Adapter Color Band: Red (Pantone#032C) 12 x 1.5mm
Mini DisplayPort to HDMI Adapter Color Band: Yellow (Pantone#012C) 12 x 1.5mm
