C2G USB-C 6-In-1 Mini Dock With HDMI And Ethernet(C2g Usb C 6 In 1 Mini Dock With Hdmi And Ethernet)

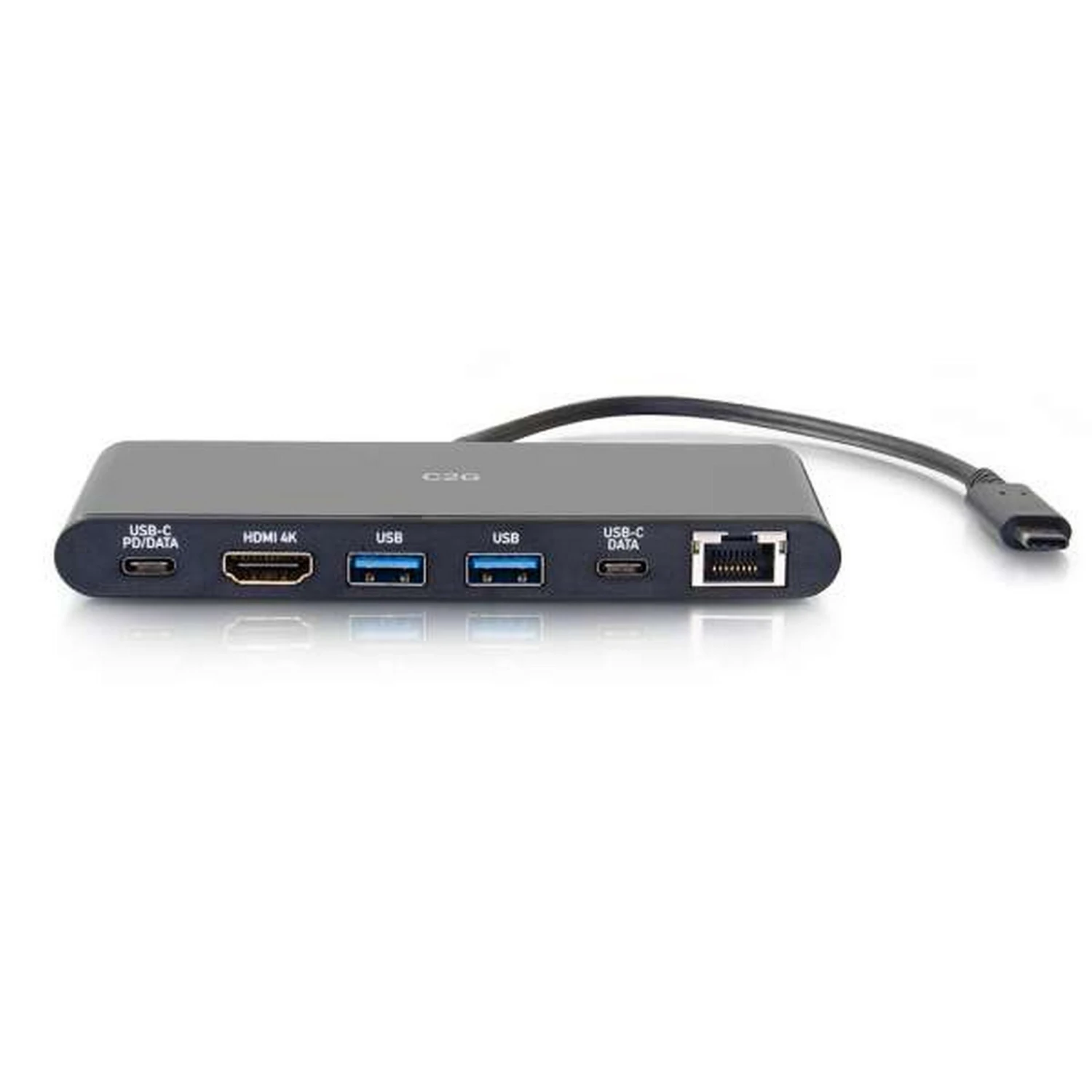

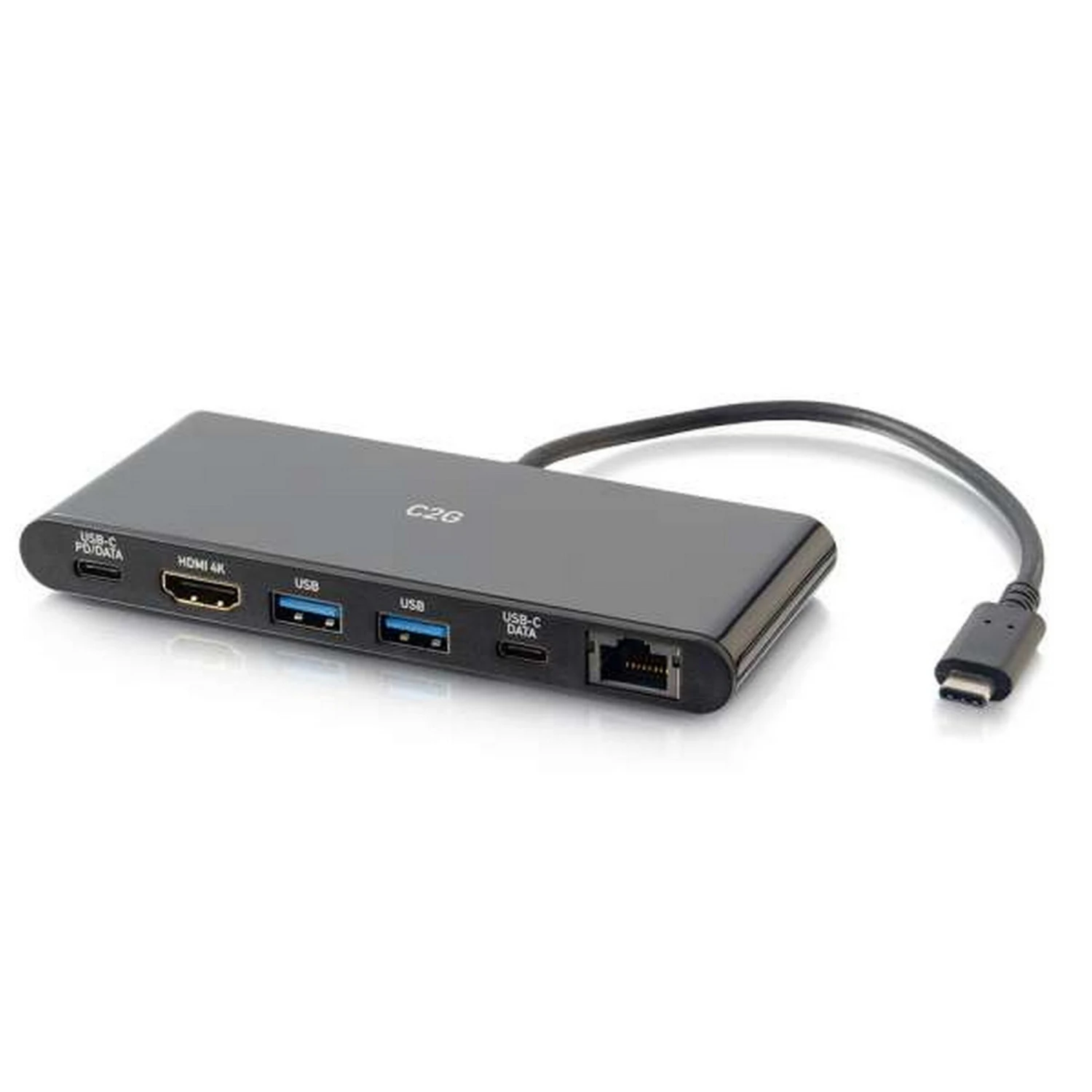

C2G USB-C 6-In-1 Mini Dock with HDMI and Ethernet

The USB-C 6-in-1 Mini Dock with HDMI, Ethernet with PXE Boot, USB and Power Delivery connects to USB-C or Thunderbolt 3 enabled laptops and is perfect for contributing to a desktop solution – making it ideal for inside reps that need essential connectivity while in the office or when working from home. This USB-C mini dock supports up to 60W of power delivery to charge and power mobile laptops when using the USB-C power adapter that is included with the laptop. The maximum power capacity depends on how much power the connected adapter can supply. The right amount of power is necessary to keep the laptop battery charged, for all connected devices to function, and for the dock to provide that connectivity.

Key Features

• Supports up to 60W of power delivery to keep your laptop charged
• Supports resolutions up to 4K, for viewing your screen content at full HD
• USB-A and USB-C ports for fast data transferring
• Hard wired Ethernet port for when security requires it or when WiFi is not available
• Supports PXE (Preboot Execution Environment) booting, to have a computer boot from the network adapter
• Reversible, symmetrical USB-C connector, so no guessing how to plug it into your laptop
• Compatible with the Apple MacBook, MacBook Air, and MacBook Pro
• Compatible with the Microsoft Surface Book 2 and Surface Go
• 5 year warranty, for peace of mind with the highest quality docking stations

Technical Specifications

Electrical
Maximum Resolution
HDMI – 4K (4096 x 2160 at 30Hz)
Connections
USB 3.1 Gen 1 Type-C Male x 1: Sync
USB 3.1 Gen 1 Type-A Female x 2: Support 5V/0.9A
USB 3.1 Gen 1 Type-C Female x 1: Data only, Supports 5V/0.9A
USB 3.1 Gen 1 Type-C Female x 1: Data <(>&<)> Charging 60W
HDMI Female x 1: Supports HDMI 2.0, HDCP 1.4/2.2
RJ45 Female x 1: Supports 10/100/1000M
Power Delivery
60W: 20V@3A
45W: 15@3A / [email protected] / [email protected]
36W: 12V@3A
27W: 9V@3A
37.5W: [email protected]
15W: 5V@3A
Physical
Operating Temperature
0C to 35C
Operating Humidity
10% to 90% non-condensing
Storage Temperature
-20C to 70C
Housing
Plastic
Approvals
CE Marked and Conforms to 2011/65/EU ROHS2
Dimensions
133 x 55.2 x 14mm
Pig-Tail Cable
Jacket
PVC, Black / Shield: AL-Mylar Wrap, Braid-16/9/0.08TC, 85% coverage
Cable Dimensions
17cm
