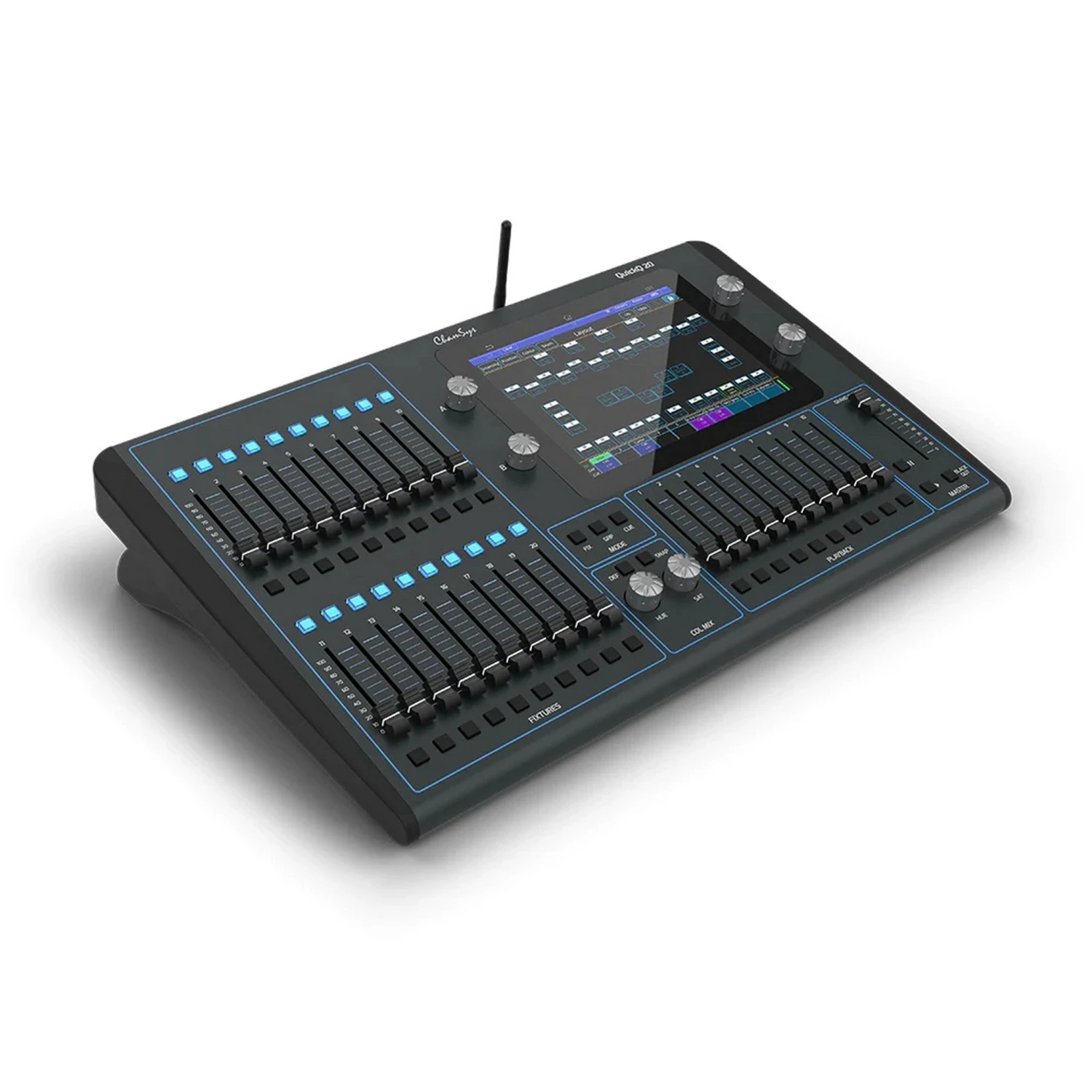

Chamsys QuickQ 20 2-Universe Lighting Console

QuickQ 20 is part of ChamSys QuickQ range of user friendly and affordable lighting control consoles. The QuickQ 20 is the perfect choice console for control of dimmer, LED color mixing and moving light fixtures. The console features a large 9.7-inch touch screen utilizing a smart phone like interface for setup, programming and playback of your show.

The console can automatically detect and patch RDM compliant fixtures and features in-built WIFI capabilities enabling remote connection to the free QuickQ app available on iOS, Andoid and Windows tablets and phones. Easily connect the app by simply scanning the QR code on the console display.

The console has easy-to-understand summarys and faders, simple color selection and intensity control tools, a large touch screen with zooming and scrolling at your fingertips, as well as a simple cue/chase system for playback. Specifically aimed at the novice user, the QuickQ interface easily leads you through setup, programming and operation of the console.

The console has a free to download offline programming software available for Mac and Windows. You can program your show on your computer, save it onto a flash drive and load it onto the QuickQ console.

QuickQ uses ChamSys extensive and continuously updated personality library with over 30,000 personalities.

QuickQ shows are compatible can be loaded onto any MagicQ system allowing future progression onto ChamSys more advanced MagicQ range of consoles.

Key Features

• Modelled on smartphone icon interfaces for ease of use
• Intuitive interface allowing simple control of all fixture attributes
• The interface supports gestures such pinch zoom and scrolling
• Easily connect to the remote app on iOS & Android devices via inbuilt Wi-Fi
• 20 multi-function fixture faders with 3 different modes – Fixture, Group and Cue
• 10 multi-cue Playback faders, which are leg ended on screen
• The console features a dedicated Grand Master fader for overall level control
• A dedicated “color control area” with Hue and Saturation encoders
• Select from inbuilt palettes and gel libraries using the touch screen
• Built in color picker for use with LED fixtures
• QuickQ supports output of DMX over network via ArtNet/sACN/Pathport
• Remote triggering of Playbacks and Execute items via OSC

Technical Specifications

Hardware
Universes supported
2
Direct DMX Outputs 5-Pin XLR
2
Master Playback Faders
10
Multi-Function Fixture Faders
20
Bump Buttons
Yes
Attribute Encoders
4
Dedicated Hue/Saturation Encoders
Yes
Inbuilt 9.7” Multi-touch Display
Yes
External Monitor
1920 x 1080 HDMI
Inbuilt Wi-Fi
Yes
Network Port
1
USB Ports
2
Audio Input
1
Audio Output
1*
MIDI Ports in/out
Yes*
Software
Max Number of DMX Channels
1024
Max Number of Fixtures Supported
1024
Max Number of Cue Stacks
10
Max Number of Chases
10
Midi & Midi Timecode Supported
Yes
OSC Supported
Yes
RDM Autopatch for fast show patching
Fixture library of over 30,000 fixture files
Built in FX generator
Color picker and Gel inbuilt Gel library
Offline designer software available for Windows and Mac
Console Weights and Dimensions
Width
565mm (22.2 inches)
Depth
350mm (13.8 inches)
Height
106mm (4.2 inches)
Weight
5.2kg (11.46 lb)
Boxed Weights and Dimensions
Width
720mm (28.3 inches)
Depth
420mm (16.5 inches)
Height
230mm (9 inches)
Weight
8kg (17.63 lb)
Flight Cased Weights and Dimensions
Width
650mm (25.6 inches)
Depth
490mm (19.3 inches)
Height
210mm (8.3 inches)
Weight (console in flightcase)
16kg (35.27 lb)
Included Accessories
USB Desk light
1
Dust cover
1
Tablet stand
1
Wi-Fi Antenna
1
12V power supply
1
IEC power cable
1
