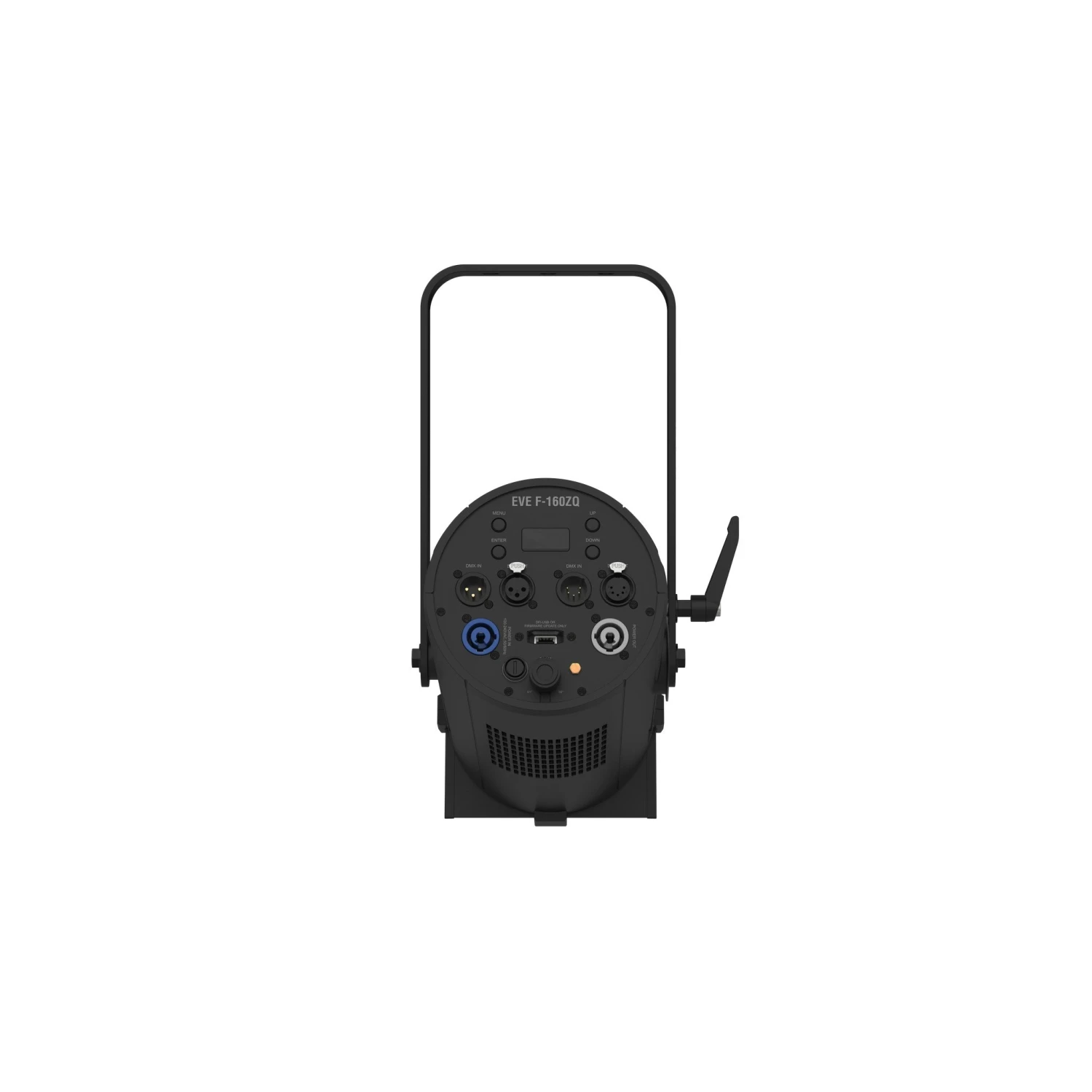

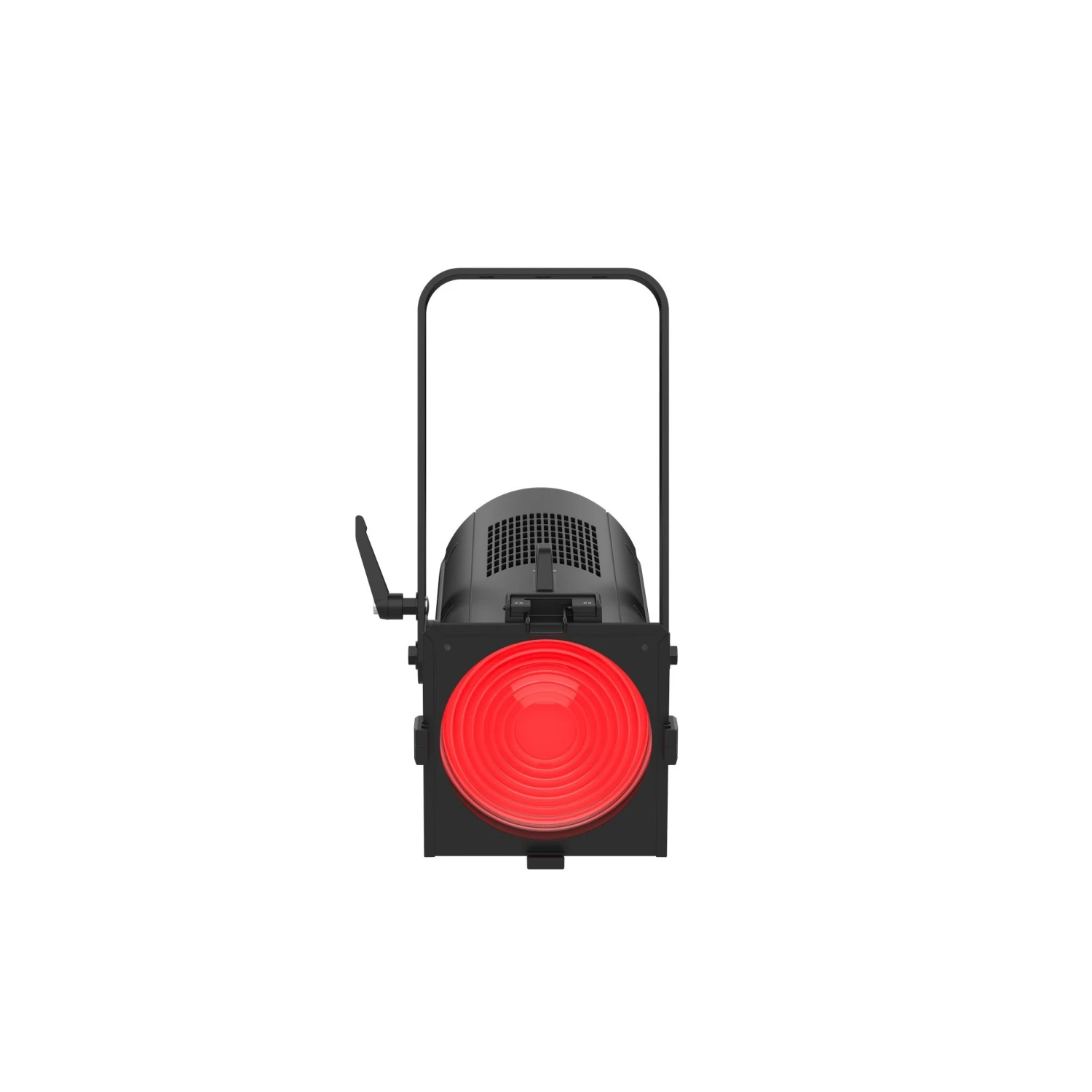

Chauvet DJ EVE F-160ZQ 160W Quad-Color RGBW Fresnel LED Light(Chauvet Dj Eve F 160zq 160w Quad Color Rgbw Fresnel Led Light)

Chauvet DJ EVE F-160ZQ 160W Quad-Color RGBW Fresnel LED Light

Bring vibrant, full-color lighting to your stage with the Chauvet Professional EVE F-160ZQ, a high-performance fresnel suitable for both mobile and installation applications. Powered by a 160W quad-color (RGBW) LED light source, the EVE F-160ZQ delivers exceptional brightness and color accuracy for any lighting setup. Its flicker-free operation ensures smooth performance on camera, making it ideal for broadcast or streaming environments. The pre-set color temperature ranges allow for quick setup without the need for manual color blending, simplifying the lighting design process and saving valuable time on-site.

Designed for flexibility, the EVE F-160ZQ features integrated zoom optics, enabling you to adjust the beam angle between 16° and 61°, with a zoom angle range of 24° to 37° and a field angle of 29° to 90°. This allows you to keep your subject in the spotlight across a wide range of distances, giving you complete control over the lighting effects. Additionally, the fixture is D-Fi USB compatible, offering wireless master/slave or DMX control for seamless operation. Its powerCON®-compatible power input/output connections make linking multiple units easy, making the EVE F-160ZQ perfect for both small and large-scale applications.

Whether you’re installing it in a venue or using it on the move, the EVE F-160ZQ is designed to meet the demanding needs of modern stage lighting, offering professional quality and versatility.

Key Features

• Full-Color Fresnel: Features a 160W quad-color (RGBW) LED light source for vibrant and dynamic lighting.
• Flicker-Free Operation: Ideal for on-camera use, providing smooth, reliable lighting for broadcasts and recordings.
• Integrated Zoom Optics: Offers a beam angle from 16° to 61°, ensuring flexibility and control over your lighting design.
• Pre-set Color Temperature Ranges: Simplifies the lighting design process by eliminating manual color blending.
• D-Fi USB Compatibility: Enables wireless master/slave or DMX control, offering convenient and flexible operation.
• Power Linking: powerCON®-compatible power input/output connections allow easy linking of multiple units.

Technical Specifications

DMX Channels: 3, 4 or 11

DMX Connectors: 3- and 5-pin XLR

Light Source: 1 LED (quad-color RGBW) 160 W, (7.3 A), 50,000 hours life expectancy

Beam Angle: 16° – 61°

Zoom Angle: 24° to 37°

Field Angle: 29° – 90°

Power Linking: 9 units @ 120 V; 16 units @ 230 V

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Weight: 12.2 lb. (5.5 kg)

Size: 18.4 x 9.8 x 16.9 in (467 x 248 x 429 mm)

Approvals: CE, RoHS, MET

Accessory Holder Size: 6.25 in

Color Temperature Range: 2800 K – 8000 K

Strobe Rate: 1 to 30 Hz

Illuminance (24°): 7072 lux @ 2 m

Illuminance (37°): 2964 lux @ 2 m

Illuminance (24°): 1132 lux @ 5 m

Illuminance (37°): 474 lux @ 5 m

CRI: 96

Optional Controllers: DMX

Power and Current (120 V): 150 W, 1.3A @ 120 V, 60 Hz

Power and Current (230 V): 150 W, 0.7 A @ 230 V, 50 Hz

What’s Included

• EVE F-160ZQ
• Power Cord
• Gel Frame
• Metal Gobo Holder
• Glass Gobo Holder
• Quick Reference Guide (QRG)
